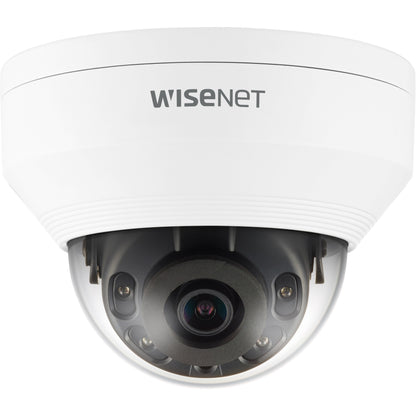

Front view of Wisenet QNV-8010R white dome security camera showing lens and IR LED array

5MP Crystal-Clear Surveillance with Advanced IR Technology

The Wisenet QNV-8010R dome camera delivers exceptional clarity with its 5MP CMOS sensor and f/2 fixed lens. The front-facing view showcases the camera's sleek dome design with integrated IR LEDs positioned strategically around the lens for optimal night vision coverage up to 65 feet. The robust white housing features Wisenet's signature professional aesthetic while maintaining IP66 weather resistance and IK10 impact protection. The camera's precision-engineered optical system combines a 2.8mm lens with advanced image processing to capture detailed footage across a wide 104.7° horizontal field of view. Multiple IR LEDs ensure consistent illumination in zero-light conditions while maintaining excellent contrast and reducing hotspots.

Technical Specifications

  • 5MP CMOS sensor with 2592 x 1944 resolution
  • Built-in IR illumination with 65ft range
  • 104.7° horizontal / 76.5° vertical field of view

Applications

  • 24/7 perimeter monitoring for commercial facilities
  • High-traffic entrance surveillance
  • Critical infrastructure protection
Angled view of Wisenet QNV-8010R dome camera showing housing design and mounting profile

Durable Design with Enhanced Installation Flexibility

The angled perspective highlights the QNV-8010R's thoughtful engineering, featuring a streamlined dome housing that enables flexible mounting options for both ceiling and wall installations. The camera's compact form factor, measuring just 4.7 inches in diameter, maintains a professional appearance while housing advanced surveillance capabilities. The ribbed housing design enhances heat dissipation for reliable operation in temperatures from -22°F to 131°F. The IP66-rated enclosure ensures complete protection against dust and powerful water jets, while the IK10 rating guarantees resistance against impacts up to 20 joules.

Technical Specifications

  • IK10 impact resistance rating
  • IP66 weatherproof certification
  • Operating temperature range -22°F to 131°F

Applications

  • Outdoor perimeter security deployment
  • Industrial environment monitoring
  • Weather-exposed installation locations

Product details

General Information
Manufacturer

Hanwha Group

Manufacturer Part Number

QNV-8010R

Brand Name

Wisenet

Product Series

Q

Product Model

QNV-8010R

Product Name

5MP Network IR Dome Camera

Product Type

Network Camera

Technical Information
HD Recording

Yes

Night Vision

Yes

Night Vision Distance

65.62 ft

Night Vision Type

Infrared

Display & Graphics
Image Sensor Type

CMOS

Color Supported

Color

Field of View

H : 104.7°/ V : 76.5°/ D : 136.0°

Effective Camera Resolution

5 Megapixel

Video
Video Formats

MJPEG
H.264
H.265

Maximum Video Resolution

2592 x 1944

Maximum Frame Rate

30 fps

Lens
Lens Type

Fixed

Maximum Focal Length

2.80 mm

Lens Included

Yes

Maximum Aperture

f/2

Exposure
Shortest Shutter Speed

1/12000 Second

Longest Shutter Speed

1/5 Second

Network & Communication
Connectivity Technology

Wired

Remote Management

Yes

Storage
Storage Type

Memory Card

Interfaces/Ports
Network (RJ-45)

Yes

Power Description
Power Source Type

PoE

Physical Characteristics
Mount Type

Ceiling Mount
Wall Mount

Form Factor

Dome

Product Color

White

Height

3.6

Diameter

4.7

Weight (Approximate)

1.12 lb

Environmental Conditions
Minimum Operating Temperature

-22°F (-30°C)

Maximum Operating Temperature

131°F (55°C)

Operating Humidity

90%

Miscellaneous
Features

Back Light Compensation (BLC)
Wide Dynamic Range
SD Card Local Storage
Built-in IR LED
Day/Night

Impact Protection Rating

IK10

Ingress Protection Rating

IP66

NDAA Compliant

Yes

Warranty
Limited Warranty

3 Year

Included in the Box

  • icon_list|dome camera|PTZ Speed Dome Camera icon

    Dome Camera

  • icon_list|Mounting hardware|Rack Rails Mounting hardware icon

    Mounting Hardware

  • icon_list|Quick guide|Setup Poster Quick guide icon

    Quick Guide

FAQs

What are the key features of the Wisenet QNV-8010R camera?
The Wisenet QNV-8010R features a 5MP resolution with 2592 x 1944 maximum video resolution, IR night vision up to 65.62 ft, and supports multiple video formats (H.265, H.264, MJPEG). It includes Wide Dynamic Range, SD card local storage, and built-in IR LED for night vision. The camera has robust IK10 impact protection and IP66 weather resistance ratings. Additional features include Back Light Compensation (BLC), day/night functionality, and PoE power capability.
What are the camera's video recording capabilities?
The camera records at up to 5 Megapixel resolution (2592 x 1944) with a maximum frame rate of 30 fps. It supports multiple video compression formats including H.265, H.264, and MJPEG for efficient storage and streaming. The camera features a fixed lens with f/2 maximum aperture and 2.80mm focal length, providing a wide field of view of 104.7° horizontal, 76.5° vertical, and 136.0° diagonal.
How does the night vision function work on the QNV-8010R?
The QNV-8010R features infrared night vision capability with built-in IR LEDs that can illuminate objects up to 65.62 feet away in complete darkness. The camera automatically switches between day and night modes for 24/7 surveillance. Combined with its advanced CMOS sensor and various exposure settings (1/5 to 1/12000 second shutter speed), it ensures clear image quality even in low-light conditions.
What are the mounting options and physical specifications?
The QNV-8010R can be installed using either ceiling mount or wall mount options. The dome-style camera has a diameter of 4.7 inches and height of 3.6 inches, weighing approximately 1.12 lb. Its white color and dome form factor allow it to blend seamlessly into most environments. The camera's compact size makes it suitable for various installation locations while maintaining a professional appearance.
How durable is the Wisenet QNV-8010R camera?
The QNV-8010R is built for exceptional durability with an IK10 impact protection rating, making it resistant to physical damage and vandalism. It also features an IP66 ingress protection rating, ensuring protection against dust and powerful water jets. The camera operates in temperatures from -22°F to 131°F (-30°C to 55°C) and up to 90% humidity, making it suitable for both indoor and outdoor installations.
