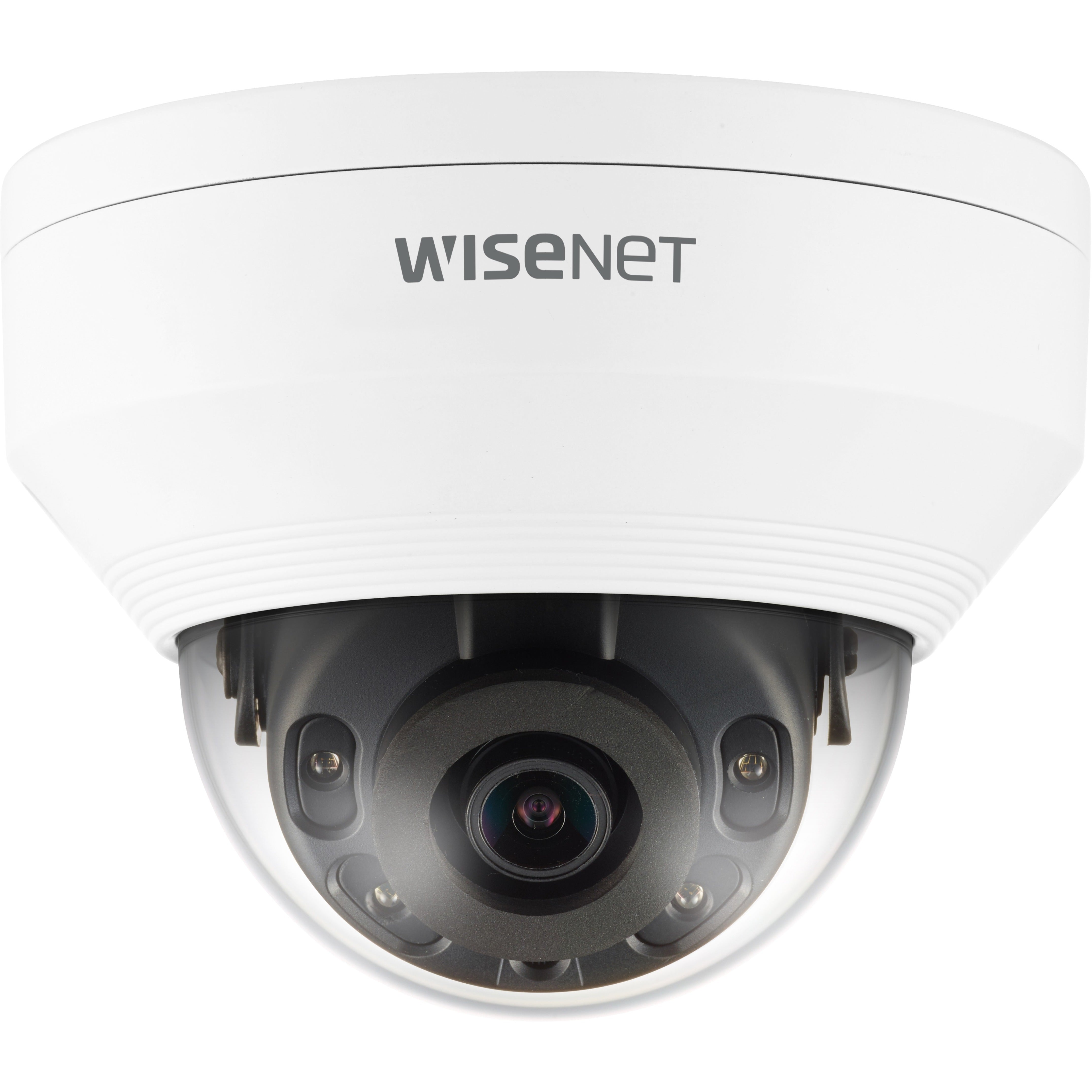

Front view of white Wisenet QND-8020R dome security camera with IR LEDs and 5MP lens visible-alternate-image1

QND-8020R

$329.99 $370.49

Wisenet Q Series 5MP Network IR Dome Camera, HD Night Vision 65ft, NDAA Compliant, Motion Detection, WDR, Built-in IR LED, Multiple Mounts, White QND-8020R (3 Year Warranty)

Name: Wisenet Q Series 5MP Network IR Dome Camera, HD Night Vision 65ft, NDAA Compliant, Motion Detection, WDR, Built-in IR LED, Multiple Mounts, White QND-8020R (3 Year Warranty)
Brand: Wisenet
SKU: QND-8020R
Price: 329.99 USD
Availability: InStock

Brand New

FREE Returns

Maximum Video Resolution:

1920x1080 See available options
3840x2160 See available options
2560x1920 See available options
2592x1944 See available options
2560x1440 See available options
2048x2048 See available options
3328x1872 See available options
2048x1536 See available options

Maximum Frame Rate:

60fps See available options
30fps See available options

Effective Camera Resolution:

2Megapixel See available options
8Megapixel See available options
5Megapixel See available options
4Megapixel See available options
6Megapixel See available options
3Megapixel See available options

Product variants

5MP

CMOS Sensor

IR Vision

65ft Range

30fps

H.265 Video

WDR

Wide Dynamic

Multi Mount

7 Options

NDAA

Compliant

In stock, ready to ship

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 3 Year

Downloads

Manufacturer Brochure PDF Document

User Manual PDF Document

Key Features

📸 5 Megapixel resolution with 2592 x 1944 max resolution
🌙 IR night vision up to 65.62 ft
🎥 30 fps with H.265/H.264 video compression
🔭 Wide FOV: H:79.8° / V:58.1° / D:105.9°
🌡️ Operating temperature: 14°F to 122°F
🎯 Advanced features: WDR, DNR, Motion Detection
💾 SD Card local storage support
🔒 NDAA compliant with tamper detection
🔌 Multiple mounting options with RJ-45 connectivity
⚡ f/1.6 aperture with 4mm fixed lens
⏱️ Shutter speed: 1/12000 to 1/5 second
🛡️ 3-year warranty coverage

Wisenet Q Series 5MP Networ...

$329.99 $370.49

Front view of white Wisenet QND-8020R dome security camera with IR LEDs and 5MP lens visible

5MP Crystal-Clear Surveillance with Advanced IR Technology

The Wisenet QND-8020R delivers exceptional image clarity with its 5MP sensor and precision-engineered optics. The dome camera's built-in IR LEDs work seamlessly with the Day/Night ICR filter to provide detailed footage in complete darkness up to 65.62 feet away. The compact yet robust design houses advanced features like WDR and DNR for balanced exposure in challenging lighting conditions.

Technical Specifications

5 Megapixel CMOS sensor for detailed surveillance
Built-in IR LEDs with 65.62ft night vision range
Wide Dynamic Range for balanced exposure

Applications

24/7 facility monitoring in varying light conditions
Secure surveillance of entry points and corridors
Critical infrastructure protection with clear identification

Angled perspective of Wisenet QND-8020R dome camera showing lens assembly and IR LED arrangement

Enhanced Detail Capture with Wide Field of View

Experience comprehensive coverage with the QND-8020R's 105.9° diagonal field of view. The fixed 4mm lens with f/1.6 aperture captures sharp details even in low light conditions. Multiple compression formats including H.265 and H.264 ensure efficient bandwidth usage while maintaining image quality at full 30fps.

Technical Specifications

105.9° diagonal field of view coverage
f/1.6 aperture for superior low-light performance
Multiple video compression formats support

Applications

Wide area monitoring in commercial spaces
High-traffic zone surveillance
Detailed evidence capture for security purposes

Back view of Wisenet QND-8020R showing mounting points and cable management system

Flexible Installation with Multiple Mounting Options

The QND-8020R features a versatile mounting system designed for quick and secure installation. The camera's base includes pre-drilled mounting points and cable management options for clean, professional installation. Compatible with multiple mounting types including wall, corner, and pendant mounts for optimal placement in any environment.

Technical Specifications

Multiple mounting configuration support
Integrated cable management system
Quick-install mounting base design

Applications

Professional installation in various architectural settings
Discrete mounting in commercial environments
Flexible positioning for optimal coverage

Product details

General Information

Manufacturer

Hanwha Group

Manufacturer Part Number

QND8020R

Brand Name

Wisenet

Product Series

Q

Product Model

QND-8020R

Product Name

5 MP Network IR Dome Camera

Product Type

Network Camera

Technical Information

HD Recording

Yes

Night Vision

Yes

Night Vision Distance

65.62 ft

Night Vision Type

Infrared

Display & Graphics

Image Sensor Type

CMOS

Color Supported

Color

Field of View

H : 79.8°/ V : 58.1°/ D : 105.9°

Effective Camera Resolution

5 Megapixel

Video

Video Formats

MJPEG
H.264H
H.264M
H.265
H.264

Maximum Video Resolution

2592 x 1944

Maximum Frame Rate

30 fps

Lens

Lens Type

Fixed

Maximum Focal Length

4 mm

Lens Included

Yes

Maximum Aperture

f/1.6

Exposure

Shortest Shutter Speed

1/12000 Second

Longest Shutter Speed

1/5 Second

Network & Communication

Connectivity Technology

Wired

Remote Management

Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mount Type

Gang Box Mount
Parapet Mount
Pendant Mount
Hanging Mount
Box Mount
Corner Mount
Wall Mount

Form Factor

Dome

Product Color

White

Height

3.4

Diameter

4.3

Weight (Approximate)

12.70 oz

Environmental Conditions

Minimum Operating Temperature

14°F (-10°C)

Maximum Operating Temperature

122°F (50°C)

Operating Humidity

90%

Miscellaneous

Features

Digital Noise Reduction
Built-in IR LED
SD Card Local Storage
Enter/Exit Detector
Motion Detection
Wide Dynamic Range
Built-in Mechanical ICR
Day/Night
Tamper Detection
Automatic White Balance
Auto Gain Control
Privacy Masking
Digital Image Stabilization

NDAA Compliant

Yes

Warranty

Limited Warranty

3 Year

Included in the Box

Dome Camera

Similar Products

Save 27%

Wisenet

Wisenet Q Series 5MP Network IR Dome Camera, NDAA Compliant, HD Night Vision 65ft,...

$269.99 $370.49

5MP

Resolution

65ft

Night Vision

30fps

Frame Rate

H.265

Compression

WDR

Dynamic Range

RJ-45

Network

Save 28%

Wisenet

Wisenet Q Series 5MP Network IR Dome Camera, Wide Dynamic Range, Night Vision 65ft...

$339.99 $470.49

5MP

Resolution

65ft

Night Vision

H.265

Compression

IP66/IK10

Rated

PoE

Powered

SD

Storage

Save 26%

Wisenet

Wisenet Q 5MP Network IR Bullet Camera, Outdoor IP66 IK10, 2.8mm Lens, H.265/H.264...

$349.99 $470.89

5MP

Resolution

IR 65ft

Night Vision

IP66 IK10

Weatherproof

120dB WDR

Dynamic Range

H.265/H.264

Triple Codec

2.8mm f/2.0

Wide Lens

Save 11%

Wisenet

Wisenet Q Series 5MP Network IR Flateye Outdoor Dome Camera, Color Night Vision, M...

$419.99 $470.49

5MP

Resolution

30 FPS

Frame Rate

65ft

Night Vision

IP67

Weatherproof

IK10

Impact Rated

H.265

Compression

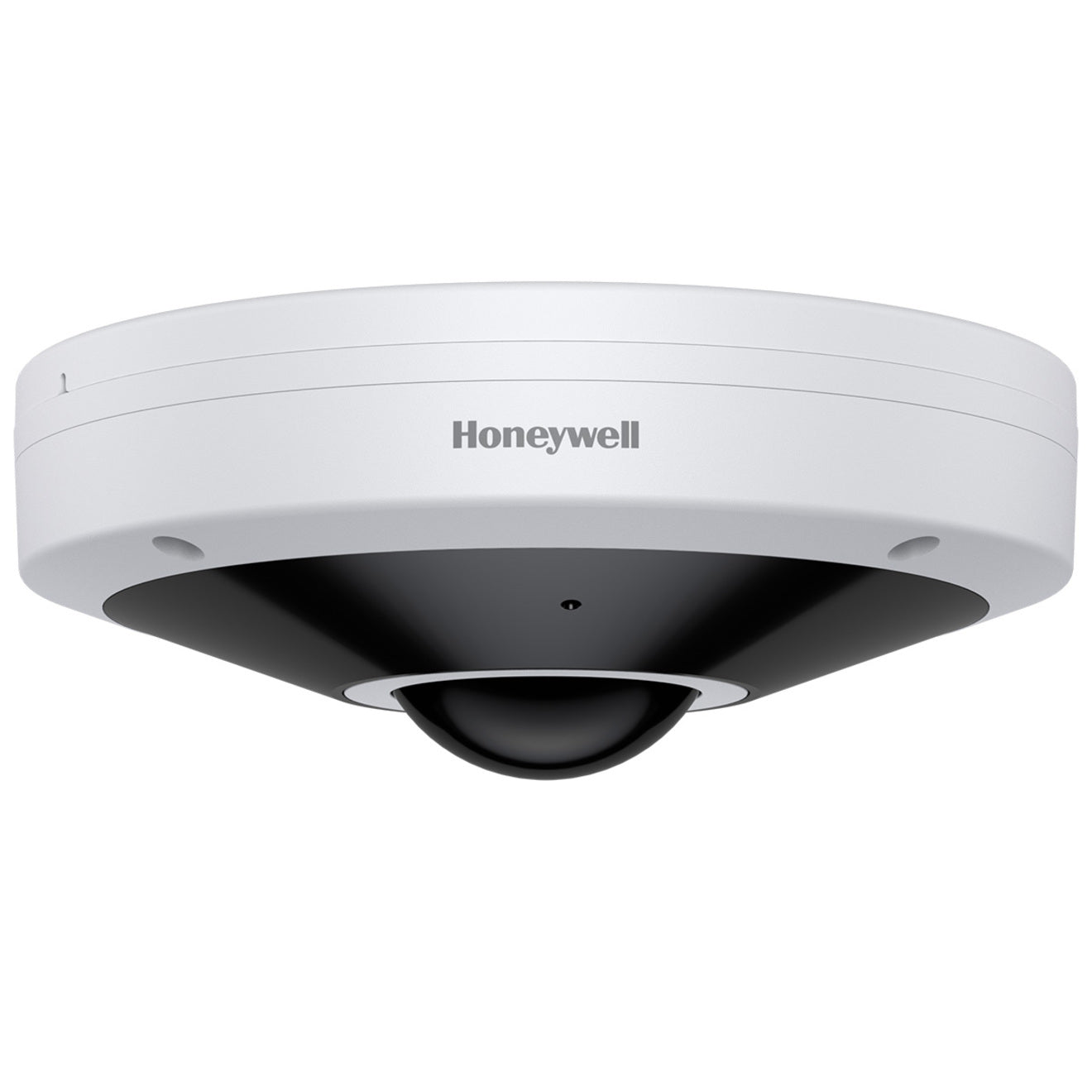

Honeywell Home

Honeywell Home 30 Series 5MP WDR Network Camera, Rugged Fisheye Design, HD IR Nigh...

$609.99

5MP

Resolution

Fisheye

Design

65ft

Night Vision

H.265

Compression

CMOS

Sensor

30fps

Frame Rate

FAQs

What is the resolution and video quality of the Wisenet QND-8020R camera?

The Wisenet QND-8020R features a 5 Megapixel CMOS sensor with a maximum video resolution of 2592 x 1944. It supports multiple video formats including H.265, H.264, and MJPEG, with a maximum frame rate of 30 fps. The camera delivers high-quality color images and includes features like Wide Dynamic Range and Digital Noise Reduction for enhanced image clarity in various lighting conditions.

What are the night vision capabilities of this camera?

The QND-8020R comes equipped with built-in IR LEDs for night vision functionality, providing clear surveillance in complete darkness up to 65.62 feet (20 meters). It features a Built-in Mechanical ICR (IR Cut Filter) and Day/Night functionality for automatic switching between day and night modes. The camera's maximum aperture of f/1.6 also helps in low-light performance.

What mounting options are available for the Wisenet QND-8020R?

The QND-8020R offers versatile mounting options including: Gang Box Mount, Parapet Mount, Pendant Mount, Hanging Mount, Box Mount, Corner Mount, and Wall Mount. This flexibility makes it suitable for various installation scenarios and locations. The dome camera's compact dimensions of 4.3" diameter and 3.4" height make it suitable for discrete installation.

What are the key security features of this camera?

The camera includes several security features such as tamper detection, motion detection, and enter/exit detection for comprehensive surveillance. It supports SD card local storage for footage backup, privacy masking for sensitive areas, and is NDAA compliant meeting government security requirements. The digital image stabilization ensures steady footage, while multiple video compression formats (H.265/H.264/MJPEG) provide secure and efficient video transmission.

What are the environmental specifications and durability features?

The Wisenet QND-8020R is designed to operate in temperatures ranging from 14°F (-10°C) to 122°F (50°C) with up to 90% operating humidity. The dome form factor provides protection for the camera components, and the white housing helps in heat management. The camera includes features like Digital Image Stabilization for reliable performance in various conditions.
