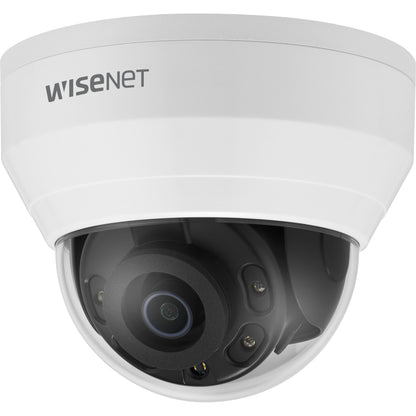

Front view of white Wisenet QND-8010R dome security camera showing lens assembly and IR LED array

5MP Crystal-Clear Surveillance with Advanced IR Technology

The Wisenet QND-8010R dome camera combines sleek design with powerful imaging capabilities. Its 5MP CMOS sensor and fixed 2.8mm lens deliver exceptional detail across a wide 136-degree diagonal field of view. The built-in IR LEDs provide clear night vision up to 65.62 feet, ensuring round-the-clock surveillance coverage.

Technical Specifications

  • 5MP resolution with 2592 x 1944 maximum video resolution
  • Built-in IR LEDs with 65.62ft night vision range
  • Wide 136° diagonal field of view

Applications

  • Indoor facility monitoring requiring high-detail capture
  • 24/7 surveillance in varying light conditions
  • Critical infrastructure security monitoring
Bottom view of Wisenet QND-8010R dome camera showing mounting points and cable management system

Flexible Installation with Multiple Mounting Options

The QND-8010R features a thoughtfully engineered mounting system with multiple connection points for versatile installation. The camera's compact base includes strategic cable routing options and mounting holes for clean, professional installation. The white housing seamlessly blends with most ceiling and wall surfaces while maintaining durability.

Technical Specifications

  • Multiple mounting configurations including wall, ceiling, and pendant
  • Integrated cable management system
  • Durable white housing construction

Applications

  • Professional security system installations
  • Retrofit applications requiring flexible mounting
  • Clean architectural integration requirements

Product details

General Information
Manufacturer

Hanwha Group

Manufacturer Part Number

QND8010R

Brand Name

Wisenet

Product Series

Q

Product Model

QND-8010R

Product Name

5 MP Network IR Dome Camera

Product Type

Network Camera

Technical Information
HD Recording

Yes

Night Vision

Yes

Night Vision Distance

65.62 ft

Night Vision Type

Infrared

Display & Graphics
Image Sensor Type

CMOS

Color Supported

Color

Field of View

H: 104.7°/ V: 76.5°/ D: 136.0°

Effective Camera Resolution

5 Megapixel

Video
Video Formats

H.264H
H.264M
H.264
MJPEG
H.265

Maximum Video Resolution

2592 x 1944

Maximum Frame Rate

30 fps

Video Signal Format

PAL
NTSC

Lens
Lens Type

Fixed

Maximum Focal Length

2.80 mm

Lens Included

Yes

Maximum Aperture

f/2

Exposure
Shortest Shutter Speed

1/12000 Second

Longest Shutter Speed

1/5 Second

Network & Communication
Connectivity Technology

Wired

Remote Management

Yes

Storage
Storage Type

Memory Card

Interfaces/Ports
Network (RJ-45)

Yes

Physical Characteristics
Mount Type

Box Mount
Corner Mount
Wall Mount
Pendant Mount
Parapet Mount
Hanging Mount
Gang Box Mount

Form Factor

Dome

Product Color

White

Height

3.4

Diameter

4.3

Weight (Approximate)

12.70 oz

Environmental Conditions
Minimum Operating Temperature

14°F (-10°C)

Maximum Operating Temperature

122°F (50°C)

Operating Humidity

90%

Miscellaneous
Features

Digital Noise Reduction
Built-in IR LED
SD Card Local Storage
Enter/Exit Detector
Motion Detection
Wide Dynamic Range
Built-in Mechanical ICR
Day/Night
Tamper Detection
Automatic White Balance
Auto Gain Control
Privacy Masking
Digital Image Stabilization

NDAA Compliant

Yes

Warranty
Limited Warranty

3 Year

Included in the Box

  • icon_list|dome camera|PTZ Speed Dome Camera icon

    Dome Camera

FAQs

What is the resolution and video quality of the Wisenet QND-8010R camera?
The Wisenet QND-8010R features a 5 Megapixel resolution with a maximum video resolution of 2592 x 1944. It supports multiple video formats including H.265, H.264, and MJPEG, with a maximum frame rate of 30 fps. The camera delivers high-quality, detailed images with Wide Dynamic Range for balanced exposure in varying lighting conditions.
What are the night vision capabilities of this camera?
The QND-8010R comes equipped with built-in IR LED night vision that provides visibility up to 65.62 feet in darkness. It features Day/Night functionality with a built-in Mechanical ICR (IR Cut Filter) for optimal performance in both daylight and nighttime conditions. The camera automatically adjusts to lighting changes to maintain clear image quality 24/7.
What mounting options are available for the Wisenet QND-8010R?
The QND-8010R offers versatile mounting options including Box Mount, Corner Mount, Wall Mount, Pendant Mount, Parapet Mount, Hanging Mount, and Gang Box Mount. This flexibility allows for installation in various locations and positions to achieve optimal coverage. The dome form factor and white color blend seamlessly with most environments.
What are the key security features of this camera?
The camera includes several security features such as motion detection, tamper detection, privacy masking, and Enter/Exit detection. It's NDAA compliant, meeting government security requirements. The camera also supports SD Card local storage for backup recording and features Digital Noise Reduction for clearer footage. These features combine to provide comprehensive surveillance capabilities.
What are the environmental specifications and durability features?
The Wisenet QND-8010R operates in temperatures ranging from 14°F (-10°C) to 122°F (50°C) with up to 90% operating humidity. It features Digital Image Stabilization for steady footage and includes various protective features. The dome design provides additional physical protection, making it suitable for both indoor and outdoor installations.
