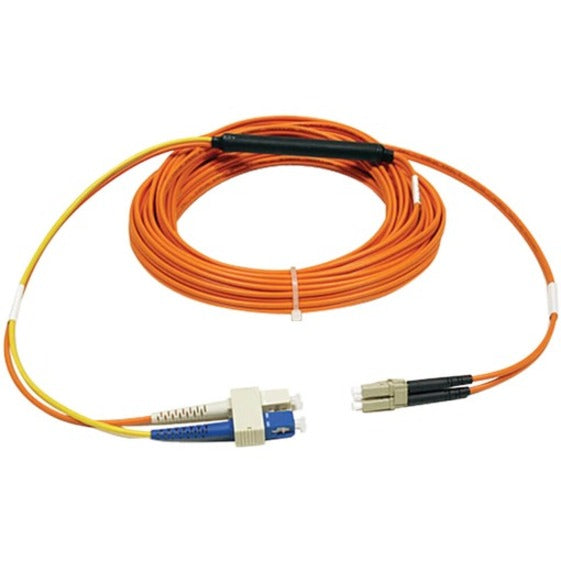

Tripp Lite 1-meter orange multimode duplex fiber optic patch cable with LC connectors on one end and SC connectors on the other

High-Performance Fiber Optic Connectivity with LC/SC Interface

This 1-meter multimode duplex fiber optic patch cable delivers enterprise-grade connectivity for critical network infrastructure. The 50/125 micron core provides optimal bandwidth for Gigabit and 10Gbps networks while maintaining backward compatibility with 62.5 micron systems. The precision-engineered LC and SC connectors ensure minimal signal loss, with factory-tested insertion loss of 0.2dB typical. The rugged plenum-rated jacket and 100,000 PSI proof-tested glass core make this cable ideal for both data center and building backbone applications. With superior attenuation characteristics of 3.5dB/KM @850NM and 1.0dB/KM @1300NM, this cable maintains signal integrity across the full length of the connection.

Technical Specifications

  • 50/125 micron graded index glass core for optimal signal transmission
  • Factory-verified 0.2dB typical insertion loss per connector
  • Bandwidth: 220 MHz-KM @850NM, 600 MHz-KM @1300NM

Applications

  • Data center rack-to-rack connectivity
  • Enterprise network backbone infrastructure
  • High-speed storage area network (SAN) connections

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

N51601M

Brand Name

Tripp Lite

Product Name

Duplex Fiber Optic Patch Cable

Product Type

Network Cable

Technical Information
Cable Type

Fiber Optic

Cable Characteristic

Patch Cable

Cable Length

3.30 ft

Connector Type on First End

LC - Male

Connector on First End Details

2 x LC - Male

Connector Type on Second End

SC Network - Male

Connector on Second End Details

2 x SC Network - Male

Jacket Type

Plenum

Miscellaneous
Package Contents

  • Duplex Fiber Optic Patch Cable
  • 1M duplex MMF cable LC/SC 50/125 fiber

Additional Information

  • Fiber type: all glass graded index
  • Core diameter: two 50+/-3 microns
  • CLAD diameter: 125+/-2 microns
  • Primary coating diameter: 245+/-15 microns
  • Primary coating material: acrylate
  • Secondary coating diameter: 900+/-50 microns
  • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
  • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
  • Numeric apeture: .275 nominal
  • Proof test level: 100,000 PSI
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable

Certifications & Standards

  • FDDI

Country of Origin

China

Warranty
Limited Warranty

Lifetime

Included in the Box

  • icon_list|fiber optic cable|Fiber Optic Cable Main cable icon

    Fiber Optic Cable

FAQs

What are the key specifications of the Tripp Lite N516-01M fiber cable?
The Tripp Lite N516-01M is a 1-meter (3.30 ft) multimode duplex fiber cable with LC connectors on one end and SC connectors on the other. It's made with 50/125 zipcord fiber, features a plenum jacket, and is FDDI rated. The cable has a core diameter of 50±3 microns and a CLAD diameter of 125±2 microns, optimized for Gigabit and 10Gbps networks.
What type of connectors does the N516-01M cable use?
The N516-01M uses different connectors on each end: one end features 2x LC Male connectors, while the other end has 2x SC Network Male connectors. This duplex configuration makes it ideal for bidirectional fiber optic communications in network applications.
What is the performance capability of this fiber cable?
The cable offers excellent performance specifications with attenuation of 3.5DB/KM maximum @850NM and 1.0DB/KM maximum @1300NM. It provides bandwidth of 220 MHz-KM minimum @850NM and 600 MHz-KM minimum @1300NM. Each connector undergoes insertion loss testing (0.2db typical) to ensure optimal performance.
Is this cable compatible with other fiber types?
Yes, this 50/125 multimode fiber cable is backward compatible with 62.5 micron fiber while providing built-in headroom for future applications. It's commonly used in Fibre Channel applications and is optimized for both Gigabit and 10Gbps networks.
What are the physical specifications of the fiber core?
The cable features an all glass graded index fiber with a core diameter of 50±3 microns, CLAD diameter of 125±2 microns, primary coating diameter of 245±15 microns (made of acrylate), and secondary coating diameter of 900±50 microns. It has a numeric aperture of .275 nominal and is proof tested to 100,000 PSI.
