CyberPower OR1500LCDRTXL2U Smart App LCD UPS Systems

Name: CyberPower OR1500LCDRTXL2U Smart App LCD UPS Systems
Brand: CyberPower
SKU: OR1500LCDRTXL2U
Price: 629.95 USD
Availability: InStock

by CyberPower

Authorized Partner

Availability:

in stock, ready to be shipped

$629.95 - $629.95

$629.95

$629.95 - $629.95

$629.95

New

FREE SHIPPING FOR DOMESTIC ORDERS

Delivery time

We ship orders 24-48 hours after they have been placed. We do not charge before we ship them out. It might take up to an additional 48 hours to ship international orders.

Why Do You Need a UPS System?

Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.

Simulated Sine Wave Output

Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

Rotatable Multifunction LCD Panel

The rotatable panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

GreenPower UPS Bypass Design

Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

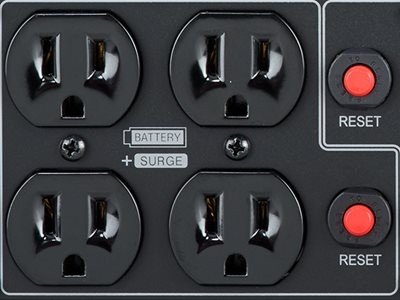

Battery Backup & Surge Protected Outlets

This unit is equipped with eight battery backup and surge protected outlets to keep your equipment protected from power surges and spikes.

Extended Battery Option

The optional BP48V75ART2U Extended Battery Module can help increase the UPS runtime.

Expansion Port for Optional Remote Management

The optional RMCARD205 allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).

Workstations

Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.

Telecom/VoIP

Keep your communication lines open and running during power outages.

Corporate & Department Servers

Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.

Product Q&A

How long will the UPS power my systems after the power goes out?

Run times vary based on the power required by connected devices. This system is estimated run for 18 minutes at half load, 7 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.

Can the battery capacity be expanded?

Yes, the OR1500LCDRTXL2U can support the BP48V75ART2U extended battery module to help extend the UPS runtime.

Can this UPS model be monitored over a network?

The OR1500LCDRTXL2U can be monitored over a network with the addition of the RMCARD205. It also comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

Does this come with rackmount hardware?

Yes, all CyberPower rackmount units come with the necessary hardware to mount the UPS. However, the unit does not have to be mounted to work. It can operate in any well-ventilated environment within 32 °F to 95 °F (0 °C to 35 °C).

How do I mute the alarms?

Press the SELECT button for 3 seconds to access the Audible Alarm within the set-up mode functions. Use the same button to select OFF within the Audible Alarm function and hold for 3 seconds to mute the alarm. Repeat this step to enable the alarms.

CyberPower OR1500LCDRTXL2U

A rack/tower UPS with line interactive topology, the CyberPower Smart LCD OR1500LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRTXL2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Experience higher efficiency with lower energy cost
1500 VA load capacity - work without any interruption during power outages
1125 W load capacity - backup power for your valuable electronics
Keep your sensitive devices powered with a backup of up to 7 minute at full load

CyberPower OR1500LCDRTXL2U Tech Specs

General Information
Manufacturer:	CyberPower Systems, Inc
Manufacturer Part Number:	OR1500LCDRTXL2U
Brand Name:	CyberPower
Product Series:	Smart App LCD UPS
Product Model:	OR1500LCDRTXL2U
Product Name:	Smart App Intelligent LCD OR1500LCDRTXL2U 1500 VA Tower/Rack-mountable UPS
Product Type:	Line-interactive UPS

Technical Information
AVR:	Yes
Plug/Connector Type:	NEMA 5-15P
Receptacle Type:	NEMA 5-15R
Receptacle Detail:	8 x NEMA 5-15R
Dataline Protection:	RJ-11
	RG-6
	RJ-45

Power Description
Load Capacity:	1500 VA
Input Voltage:	120 V AC
Output Voltage:	120 V AC

Management
Network Management:	SNMP Manageable

Interfaces/Ports
Serial Port:	Yes
USB:	Yes

Battery Information
Number of Batteries:	4
Battery Characteristics:	Maintenance-free
Battery Chemistry:	Lead Acid
Backup/Run Time (Full Load):	7 Minute
Backup/Run Time (Half Load):	18 Minute
Typical Battery Recharge Time:	8 Hour

Physical Characteristics
Form Factor:	Rack/Tower
Rack Height:	2U
Height:	3.5"
Width:	17"
Depth:	18.8"
Weight (Approximate):	59.50 lb

Miscellaneous
Package Contents:	Smart App Intelligent LCD OR1500LCDRTXL2U 1500 VA Tower/Rack-mountable UPS PowerPanel Business Edition Software CD-ROM
Certifications & Standards:	UL1778 cUL 107.3 FCC DOC Class B
Software Included:	PowerPanel Business Edition Software
Energy Star:	No
Environmentally Friendly:	Yes
Environmental Certification:	RoHS
Country of Origin:	China

Warranty
Limited Warranty:	3 Year
