CyberPower OR2200LCDRT2U Smart App LCD UPS Systems

Name: CyberPower OR2200LCDRT2U Smart App LCD UPS Systems
Brand: CyberPower
SKU: OR2200LCDRT2U
Price: 604.95 USD
Availability: InStock

by CyberPower

CyberPower

Authorized Partner

Availability:

in stock, ready to be shipped

$604.95 - $604.95

$604.95

$604.95 - $604.95

$604.95

New

FREE SHIPPING FOR DOMESTIC ORDERS

Delivery time

We ship orders 24-48 hours after they have been placed. We do not charge before we ship them out. It might take up to an additional 48 hours to ship international orders.

Why Do You Need a UPS System?

Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.

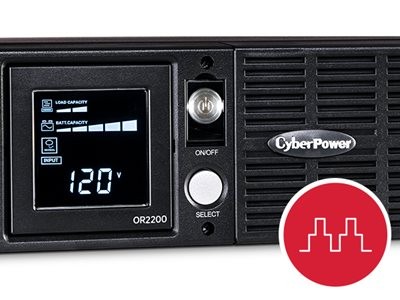

Simulated Sine Wave Output

Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

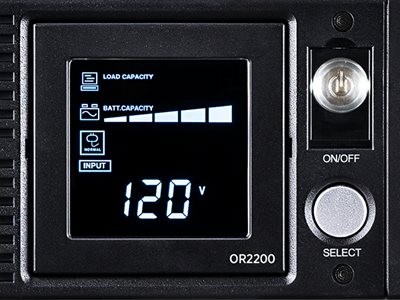

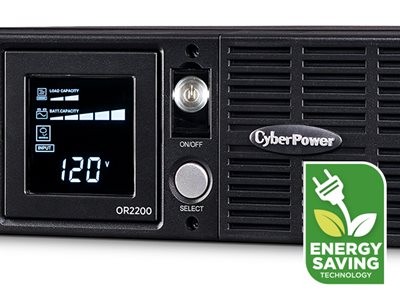

Rotatable Multifunction LCD Panel

The rotatable panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

GreenPower UPS Bypass Design

Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

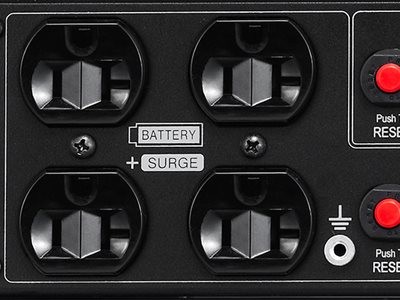

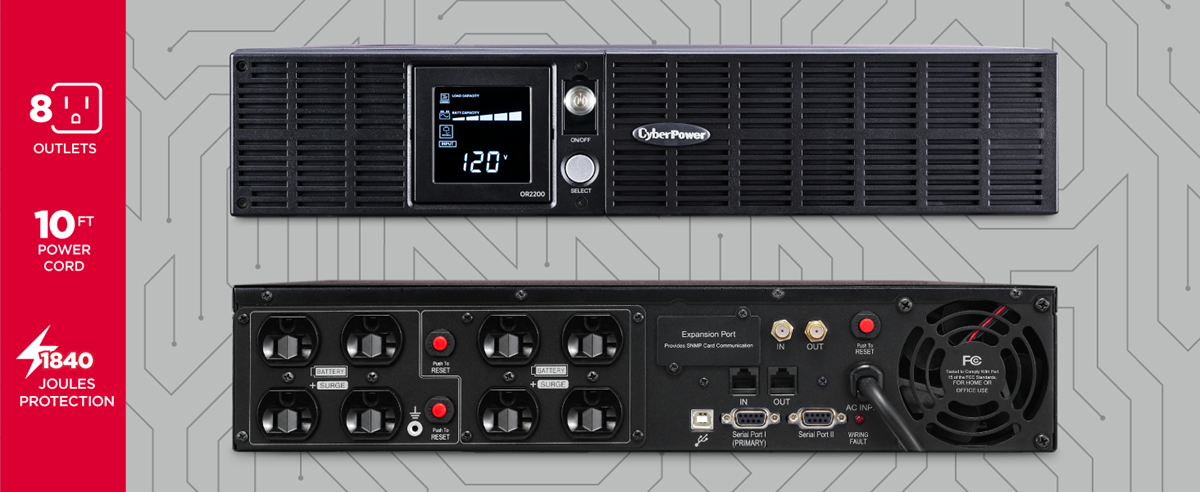

Battery Backup & Surge Protected Outlets

This unit is equipped with eight battery backup and surge protected outlets to keep your equipment protected from power surges and spikes.

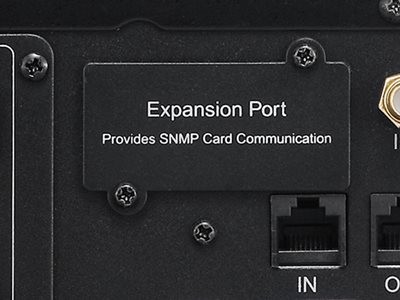

Expansion Port for Optional Remote Management

The optional RMCARD205 allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).

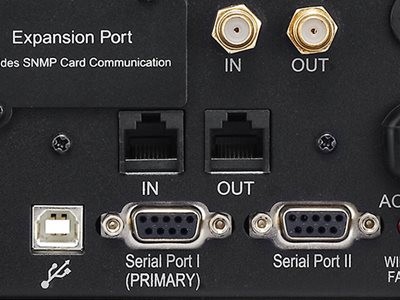

Data Line Protection

Prevents power surges that travel through network and coaxial lines from causing damage to electronics.

Workstations

Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.

Network Devices

Keep smart devices connected and running during power outages and brownouts.

Corporate & Department Servers

Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.

Product Q&A

How long will the UPS power my systems after the power goes out?

Run times vary based on the power required by connected devices. This system is estimated run for 13 minutes at half load, 5 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.

Can the battery capacity be expanded?

No, this unit cannot have its battery capacity expanded. CyberPower offers several models that can support extended battery modules to help extend the UPS runtime.

Can this UPS model be monitored over a network?

The OR2200LCDRT2U can be monitored over a network with the addition of the RMCARD205. It also comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

Does this come with rackmount hardware?

Yes, all CyberPower rackmount units come with the necessary hardware to mount the UPS. However, the unit does not have to be mounted to work. It can operate in any well-ventilated environment within 32 °F to 104 °F (0 °C to 40 °C).

How do I mute the alarms?

Press the SELECT button for 3 seconds to access the Audible Alarm within the set-up mode functions. Use the same button to select OFF within the Audible Alarm function and hold for 3 seconds to mute the alarm. Repeat this step to enable the alarms.

CyberPower OR2200LCDRT2U

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App LCD OR2200LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for office servers, corporate and department networks, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200LCDRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

CyberPower OR2200LCDRT2U Tech Specs

General Information
Manufacturer:	CyberPower Systems, Inc
Manufacturer Part Number:	OR2200LCDRT2U
Brand Name:	CyberPower
Product Series:	Smart App LCD UPS
Product Model:	OR2200LCDRT2U
Product Name:	Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT
Product Type:	Line-interactive UPS

Technical Information
AVR:	Yes
Plug/Connector Type:	NEMA 5-20P
Receptacle Type:	NEMA 5-20R
Receptacle Detail:	8 x NEMA 5-20R
Number of Battery & Surge Outlets:	8
Transfer Time:	10 ms
Dataline Protection:	RJ-45
	RJ-11
Protection Type:	Surge
Overload Protection:	Yes
EMI/RFI Noise Filter:	Yes
Energy Saving:	GreenPower UPS™ Bypass Technology

Power Description
Load Capacity:	2000 VA
Input Voltage:	120 V AC
Output Voltage:	120 V AC
Input Frequency:	63 Hz
Waveform Type:	Simulated Sine Wave
Surge Energy Rating:	1840 J

Management
Network Management:	SNMP Manageable
Alarm:	Battery Mode

Controls/Indicators
Status Indicators:	LCD : Multifunction LCD

Interfaces/Ports
Serial Port:	Yes
Modem (RJ-11):	Yes
Network (RJ-45):	Yes
USB (HID Compliant) Port:	Yes

Battery Information
Number of Batteries:	4
Battery Chemistry:	Lead Acid
Battery Size:	12V
Battery Capacity:	9000 mAh
Backup/Run Time (Full Load):	5 Minute
Backup/Run Time (Half Load):	13 Minute
Typical Battery Recharge Time:	8 Hour
Replaceable Battery:	Yes

Environmental Conditions
Maximum Operating Temperature:	104°F (40°C)
Storage Temperature:	5°F (-15°C) - 113°F (45°C)

Physical Characteristics
Product Color:	Black
Form Factor:	Rack/Tower
Rack Height:	2U
Height:	3.5"
Width:	17.3"
Depth:	15.8"
Weight (Approximate):	52.70 lb

Miscellaneous
Package Contents:	Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT PowerPanel Business Edition Software User Manual USB Cable Serial Cable Registration Card
Additional Information:	Replacement Battery Cartridge Quantity: 1 Circuit Breaker: 20 A Plug Style: Right Angle - 45° Offset Automatic Voltage Regulation: Single Boost On Battery Frequency: 50/60 Hz ± 1% Output Power Factor: 0.7 Overload Protection: Internal Circuitry Limiting USB Charge Port: No USB Charge Port Amperage COMPUTED: None Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Management Cable: USB Cable Serial Port: 1 Serial Software (Free Download): PowerPanel® Business Form Factor: Rack / Tower Material of Construction: Metal Operating Relative Humidity: 0 - 95 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C)
Certifications & Standards:	UL1778 cUL 107.1 FCC DOC Class B CSAC22.2
Software Included:	PowerPanel Business Edition UPS Management
Energy Star:	Yes
Environmentally Friendly:	Yes
Environmental Certification:	RoHS
Country of Origin:	China

Warranty
Limited Warranty:	3 Year
Directly Connected Equipment Guarantee:	$300000Lifetime
