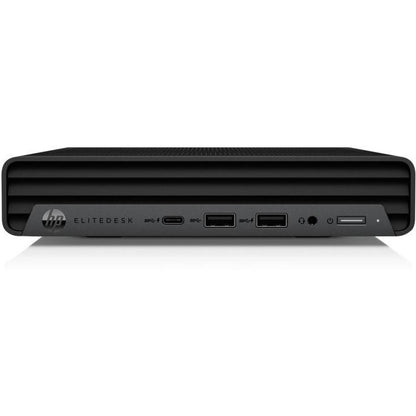

HP EliteDesk 800 G6 Desktop Mini PC, Intel 10th Gen i5-10500T 6-Core, 8GB DDR4, 1TB HDD, Windows 10 Pro, vPro, 7 USB Ports, Dual DisplayPort, WiFi 6 (20H64UT#ABA) 1 Year Warranty

HP

20H64UT#ABA

ⓘ

AUTHORIZED
PARTNER

$1,029.96

HP EliteDesk 800 G6 Desktop Mini PC, Intel 10th Gen i5-10500T 6-Core, 8GB DDR4, 1TB HDD, Windows 10 Pro, vPro, 7 USB Ports, Dual DisplayPort, WiFi 6 (20H64UT#ABA) 1 Year Warranty

Name: HP EliteDesk 800 G6 Desktop Mini PC, Intel 10th Gen i5-10500T 6-Core, 8GB DDR4, 1TB HDD, Windows 10 Pro, vPro, 7 USB Ports, Dual DisplayPort, WiFi 6 (20H64UT#ABA) 1 Year Warranty
Brand: HP
SKU: 20H64UT#ABA
Price: 1029.96 USD
Availability: OutOfStock

Brand New

Product variants

Out of stock

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

1-Year Warranty

Key Features

💻 Intel Core i5-10500T (10th Gen, 6 cores, 2.30 GHz)
🎮 Intel UHD Graphics 630 with shared memory
💾 8GB DDR4 RAM, expandable to 64GB
💽 1TB HDD storage capacity
🔌 7 USB ports including USB Type-C with 10Gbps
🖥️ Dual DisplayPort outputs
📡 Wi-Fi 6 (802.11ax) + Bluetooth
🛡️ Windows 10 Pro (64-bit)
🏢 Ultra-compact form factor (7" x 6.9" x 1.3")
🔒 vPro Technology for enhanced security

HP

20H64UT#ABA

HP EliteDesk 800 G6 Mini PC: Professional Desktop with 10th Gen Intel i5, 8GB RAM & Windows 10 Pro

Experience enterprise-level computing with the HP EliteDesk 800 G6 Desktop Mini PC, a compact powerhouse featuring the Intel Core i5-10500T processor. This space-saving business desktop combines robust performance with advanced security features, making it ideal for modern workplaces requiring reliable and secure computing solutions.

Powerful Performance in a Mini Form Factor

The EliteDesk 800 G6 is equipped with a 10th Generation Intel Core i5-10500T hexa-core processor, running at 2.30 GHz with Intel vPro technology. Combined with 8GB DDR4 SDRAM (expandable up to 64GB) and a 1TB hard drive, this mini PC delivers exceptional multitasking capabilities for business applications.

Compact Yet Versatile Design

With dimensions of just 1.3" x 7" x 6.9" and weighing only 3.13 lbs, this desktop mini PC offers remarkable flexibility in placement while maintaining professional-grade performance. The tool-less access design ensures easy maintenance and upgrades.

Comprehensive Connectivity Options

Stay connected with advanced networking features including:

7 USB ports total, including USB 3.2 Gen 1 and Gen 2
Front USB Type-C port with SuperSpeed 10Gbps signaling rate
Dual DisplayPort outputs for multi-monitor setup
Intel Wi-Fi 6 (802.11ax) compatibility
Bluetooth connectivity

Professional Graphics and Display Support

The integrated Intel UHD Graphics 630 with shared DDR4 SDRAM memory provides reliable visual performance for business applications and supports dual-display configurations through the rear DisplayPort outputs.

Enterprise-Grade Security and Management

Built with HP's comprehensive security features and Intel vPro technology, this desktop provides enhanced protection and remote management capabilities essential for business environments. The Windows 10 Pro operating system ensures compatibility with enterprise security protocols and management tools.

Environmental Certifications

The HP EliteDesk 800 G6 demonstrates environmental responsibility with:

TCO Certification
CECP compliance
Environmentally friendly design principles

Package Contents

HP EliteDesk 800 G6 Desktop Mini PC
AC Adapter
Keyboard (English)

Key Features:

10th Gen Intel Core i5-10500T hexa-core processor
8GB DDR4 RAM (expandable to 64GB)
1TB Hard Drive Storage
Intel UHD Graphics 630
Windows 10 Pro 64-bit
Compact form factor with tool-less access
Comprehensive connectivity options

Product details

General Information

Manufacturer

HP Inc.

Manufacturer Part Number

20H64UT#ABA

Brand Name

HP

Product Line

EliteDesk

Product Series

800 G6

Product Name

EliteDesk 800 G6 Desktop Mini PC

Product Type

Desktop Computer

Processor

Processor Manufacturer

Intel

Processor Type

Core i5

Processor Generation

10th Gen

Processor Model

i5-10500T

Processor Core

Hexa-core (6 Core)

Processor Speed

2.30 GHz

vPro Technology

Yes

Memory

Standard Memory

8 GB

Maximum Memory Supported

64 GB

Memory Technology

DDR4 SDRAM

Number of Total Memory Slots

2

Intel Optane Memory Ready

Yes

Storage

Total Hard Drive Capacity

1 TB

Display & Graphics

Graphics Controller Manufacturer

Intel

Graphics Controller Model

UHD Graphics 630

Graphics Memory Technology

DDR4 SDRAM

Graphics Memory Accessibility

Shared

Network & Communication

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11ax

Bluetooth

Yes

Input Devices

Keyboard Localization

English

Interfaces/Ports

Total Number of USB Ports

7

Number of USB 3.2 Gen 1 Ports

3

Number of USB 3.2 Gen 2 Ports

3

USB Type-C (Front)

Yes

USB Type-C Detail

Type-C® SuperSpeed USB 10 signaling rate Gbps port 1 (front)

Number of DisplayPort Outputs (Rear)

2

DisplayPort (Rear)

Yes

Operating System

Operating System Platform

Windows

Operating System

Windows 10 Pro

Operating System Architecture

64-bit

Power Description

Input Voltage

230 V AC
120 V AC

Physical Characteristics

Form Factor

Desktop Mini

Height

1.3

Width

7

Depth

6.9

Weight (Approximate)

3.13 lb

Miscellaneous

Package Contents

EliteDesk 800 G6 Desktop Mini PC

AC Adapter

Keyboard

Features

Tool-less Access
Security Slot

Environmentally Friendly

Yes

Environmental Certification

CECP
TCO

Country of Origin

Mexico

TCO Certified

Yes

Accessories

HP

HP Service/Support - 5 Year - Service (U7899E)

$92.85

HP

HP Warranty - 1 Year - Warranty (U5864PE)

$158.49

HP

HP Care Pack - 5 Year - Service (UE334E)

$148.99

HP

HP 3y NBD/Disk Retention DT Only SVC (UE332E)

$52.49

HP

HP Care Pack - 5 Year - Service (UF236E)

$194.88

Similar Products

Front view of HP ProDesk 400 G6 mini desktop showing USB ports, audio jacks, and power button-alternate-image1

HP

HP Business Desktop ProDesk 400 G6 Mini Desktop Computer, 10th Gen Intel i5-10500T...

$835.63

10th Gen i5

6-Core CPU

8GB DDR4

System RAM

1TB HDD

7200 RPM

USB-C

10Gbps Port

Mini Form

2.76 lbs

Tool-less

Easy Access

FAQs

What are the key specifications of the HP EliteDesk 800 G6 Desktop Mini PC?

The HP EliteDesk 800 G6 Desktop Mini PC features a 10th Gen Intel Core i5-10500T processor (2.30 GHz, 6 cores), 8GB DDR4 SDRAM (expandable to 64GB), 1TB HDD storage, and Intel UHD Graphics 630. It runs on Windows 10 Pro 64-bit and includes comprehensive connectivity with 7 USB ports, including USB Type-C, and dual DisplayPort outputs.

What are the physical dimensions and form factor of this desktop?

The EliteDesk 800 G6 features a compact Desktop Mini form factor, measuring 1.3" in height, 7" in width, and 6.9" in depth. It weighs approximately 3.13 pounds, making it an extremely compact and space-efficient solution for modern workspaces.

How many USB ports does the HP EliteDesk 800 G6 have and what are their types?

The HP EliteDesk 800 G6 comes with a total of 7 USB ports: 3 USB 3.2 Gen 1 ports, 3 USB 3.2 Gen 2 ports, and 1 USB Type-C port on the front supporting SuperSpeed USB with 10 Gbps signaling rate. This variety of ports ensures compatibility with both current and future devices.

What are the memory specifications and upgrade options?

The system comes with 8GB DDR4 SDRAM standard memory and supports up to 64GB maximum memory. It features 2 total memory slots and is Intel Optane Memory Ready. This configuration allows for significant memory expansion to meet growing computing needs.

What display connectivity options are available?

The HP EliteDesk 800 G6 features 2 DisplayPort outputs on the rear panel, powered by Intel UHD Graphics 630 with shared DDR4 SDRAM graphics memory. This setup supports multi-monitor configurations for enhanced productivity.
