Tripp Lite N785-H01-SCSM Gigabit Ethernet Media Converter, Single-mode Fiber to Copper, 6.21 Mile Range, RJ45/SC Ports, TAA Compliant (2 Year Warranty)

Name: Tripp Lite N785-H01-SCSM Gigabit Ethernet Media Converter, Single-mode Fiber to Copper, 6.21 Mile Range, RJ45/SC Ports, TAA Compliant (2 Year Warranty)
Brand: Tripp Lite
SKU: N785-H01-SCSM
Price: 209.99 USD
Availability: InStock

Brand New

FREE Returns

Fiber Mode Supported:

Multi-mode, Single-mode See available options
Single-mode See available options
Multi-mode See available options

Maximum Distance Supported:

328.08 ft See available options
18.64 Mile See available options
1.24 Mile See available options
1804.46 ft See available options
1804 ft See available options
9.32 Mile See available options
12.43 Mile See available options
6.21 Mile See available options
1640.42 ft See available options

Product variants

6.21 Mile

Range

Gigabit

Ethernet

Single-mode

Fiber

Dual Ports

RJ45/SC

1.8W

Power

Multi-Mount

Options

In stock, ready to ship

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 2 Year

Key Features

🌐 Gigabit Ethernet media converter with 6.21-mile (10km) reach over single-mode fiber
🔌 Dual-port design: 1x RJ-45 and 1x SC duplex fiber port
🔄 Auto-negotiation and MDI/MDI-X configuration for seamless connectivity
📊 Link Fault Signaling (LFS) and Loop Back diagnostics features
🌡️ Hardened aluminum case operates in -10° to 60°C temperatures
⚡ Low power consumption at 1.80W
🏗️ Versatile mounting options: wall, desktop, or DIN rail
🔒 Protected against ESD, RFI, and power surges
✅ TAA compliant for government procurement
♻️ Eco-friendly with WEEE and RoHS certifications

Tripp Lite N785-H01-SCSM Gi...

$209.99 $288.85

Front view of Tripp Lite N785-H01-SCSM media converter showing SC fiber port and RJ-45 copper port with LED indicators

Dual-Port Design Enables Seamless Fiber-to-Copper Conversion

The front panel of this media converter features essential connectivity options with a fiber SC port and RJ-45 port for smooth integration between copper and fiber networks. The clear port labeling and LED indicators provide instant visual feedback on network status and connection quality, making network management more efficient and reliable.

Technical Specifications

Gigabit speed support on both copper and fiber ports
Auto-negotiating 10/100/1000 RJ-45 port
Single-mode SC fiber port for long-distance transmission

Applications

Extending network reach beyond copper limitations
Connecting remote office locations via fiber backbone
Bridging copper and fiber network segments

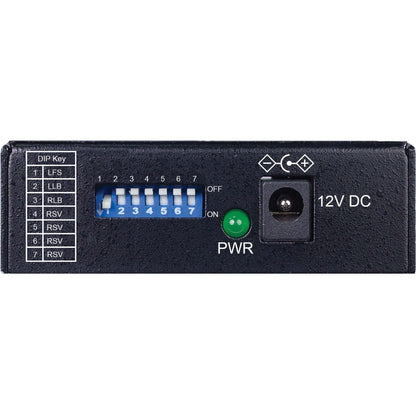

Rear view of N785-H01-SCSM showing DIP switch panel and power input

Advanced Network Diagnostics Through DIP Switch Controls

The rear panel features comprehensive DIP switch controls for Link Fault Signaling (LFS) and loop back testing capabilities. These diagnostic tools enable network administrators to quickly identify and troubleshoot connection issues, ensuring optimal network performance and minimal downtime.

Technical Specifications

7-position DIP switch configuration
LFS and loop back testing functionality
12V DC power input

Applications

Network troubleshooting and diagnostics
Cable integrity verification
Remote link monitoring

Close-up of N785-H01-SCSM LED indicators and port configuration

Comprehensive Status Monitoring with LED Array

The interface features an intuitive LED array that provides real-time status information for both fiber and copper connections. The clear indicators for link status, activity, and alarm conditions allow for quick visual assessment of network performance and immediate identification of potential issues.

Technical Specifications

Dual TX/RX fiber ports with status LEDs
Link/Activity indicators for both media types
Alarm indicator for fault conditions

Applications

Real-time network status monitoring
Quick fault identification
Performance verification

Side view of N785-H01-SCSM showing metal housing construction

Durable Construction for Long-Term Reliability

The robust metal housing is engineered for durability and protection against environmental factors. The solid construction ensures reliable operation in various installation environments while providing effective EMI shielding.

Technical Specifications

Metal chassis construction
EMI-resistant design
Mounting screw positions for secure installation

Applications

Industrial environment deployment
Telecommunications closet installation
Data center implementation

Side view showing mounting holes of N785-H01-SCSM media converter

Flexible Mounting Options for Various Installations

The converter's compact design includes versatile mounting options with pre-drilled screw holes for secure installation. This flexibility allows for wall mounting, DIN rail installation, or rack placement, adapting to different network infrastructure requirements.

Technical Specifications

Multiple mounting configurations
Compact form factor
Secure installation options

Applications

Wall-mount installation in telecom rooms
DIN rail mounting in industrial cabinets
Rack integration with optional chassis

Top view of N785-H01-SCSM showing Tripp Lite branding and model information

Enterprise-Grade Media Conversion Solution

The top view showcases the professional branding and model information of this enterprise-grade media converter. The clear labeling ensures easy identification and documentation in complex network environments.

Technical Specifications

10/100/1000Base-T to 1000Base-X conversion
Single-mode fiber compatibility
Professional-grade build quality

Applications

Enterprise network expansion
Data center connectivity
Campus network infrastructure

Rear view showing safety certifications and compliance information of N785-H01-SCSM

Safety-Certified Design with Industry Compliance

The rear view displays important safety certifications and compliance information, including FCC and CE markings. This ensures the converter meets international standards for electromagnetic compatibility and safety in professional network installations.

Technical Specifications

International safety certifications
EMC compliance
Power input specifications

Applications

Government facility deployments
Regulated industry installations
International market implementation

Product details

General Information

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

N785-H01-SCSM

Brand Name

Tripp Lite

Product Model

N785-H01-SCSM

Product Name

N785-H01-SCSM Transceiver/Media Converter

Product Type

Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports

2

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

1

Number of SC Ports

1

SC Port Type

Duplex

Media & Performance

Media Type Supported

Twisted Pair
Optical Fiber

Fiber Mode Supported

Single-mode

Fiber Optic Wavelength

1310 nm

Maximum Distance Supported

6.21 Mile

Network & Communication

Ethernet Technology

Gigabit Ethernet

Network Technology

10/100/1000Base-T
1000Base-X

Power Description

Power Source

AC Adapter

Power Consumption

1.80 W

Plug/Connector Type

NEMA 1-15P

Physical Characteristics

Form Factor

Wall Mountable
Desktop
DIN Rail Mountable

Height

0.9

Width

2.9

Depth

4.3

Weight (Approximate)

8.43 oz

Miscellaneous

Package Contents

N785-H01-SCSM Transceiver/Media Converter
L-shaped Bracket
Rubber Foot
SC Connector Cap
External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A)
DIN Rail Kit
Wall-mounting Hardware
Quick Start Guide

Environmentally Friendly

Yes

Environmental Certification

WEEE
RoHS

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty

Limited Warranty

2 Year

Included in the Box

Media Converter
L-shaped Bracket
Rubber Foot
SC Connector Cap
Power Supply
DIN Rail Kit
Wall Hardware
Quick Start Guide

Accessories

Close-up view of blue Cat6 network cable RJ-45 connectors with snagless boots and gold-plated contacts-alternate-image1

Tripp Lite

Tripp Lite Cat6 UTP Network Patch Cable, Gigabit Ethernet, Snagless Boot, Gold-Pla...

$19.99

Cat6

Standard

550MHz

Bandwidth

10ft

Length

Gold

Plated

Snagless

Boot

Gigabit

Ethernet

Close-up view of blue Cat5e patch cable showing transparent RJ45 connectors with snagless design and strain relief-alternate-image1

Tripp Lite

Tripp Lite Cat5e Network Cable, Snagless RJ45 Male/Male Patch Cable, 350MHz/1Gbps,...

$19.99

1Gbps Speed

High Performance

350MHz

Bandwidth

Cat5e

Standard

Snagless

RJ45 Design

Copper

Conductor

3ft

Length

Close-up view of blue Cat6 cable RJ-45 connectors with transparent housing and gold-plated contacts-alternate-image1

Tripp Lite

Tripp Lite Cat6 Network Patch Cable, 3ft Blue, Snagless RJ-45 M/M, Gigabit Etherne...

$19.99

Cat6

Category 6

Gigabit

1 Gbit/s

Gold Plated

Contacts

3ft Length

Blue Cable

Snagless

RJ-45

Copper

24 AWG

Close-up view of blue Cat5e ethernet cable ends showing transparent snagless RJ45 connectors with strain relief design-alternate-image1

Tripp Lite

Tripp Lite Cat5e Network Cable, Blue Snagless Ethernet Patch Cable, 10ft RJ45 Male...

$19.99

Cat5e

Cable Type

1Gbps

Speed

350MHz

Bandwidth

10ft

Length

Snagless

RJ45 Design

Copper

Conductor

Tripp Lite by Eaton

Tripp Lite by Eaton 3-ft. duplex MMF cable SC/SC 62.5/125 fiber (N306-003)

$29.99

FAQs

What is the maximum distance range of the Tripp Lite N785-H01-SCSM media converter?

The Tripp Lite N785-H01-SCSM can extend network connections up to 10 kilometers (6.21 miles) over SC single-mode fiber optic cable. This is significantly farther than traditional copper Cat5e/6 cables, which are limited to 100 meters.

What types of network connections does this media converter support?

This media converter supports Gigabit Ethernet technology with 10/100/1000Base-T for copper connections and 1000Base-X for fiber connections. It features one RJ-45 port for copper and one duplex SC port for single-mode fiber, enabling conversion between these two media types.

What monitoring and diagnostic features does the N785-H01-SCSM include?

The device includes Link Fault Signaling (LFS) and Loop Back functions for monitoring network health. It has LED indicators for network speed, connection status, LFS diagnostics, and power status. Both Local Loop Back (LLB) and Remote Loop Back (RLB) functions help verify proper cable installation, with DIP switches for function control.

What are the mounting options for this media converter?

The N785-H01-SCSM offers versatile mounting options including wall-mounting, desktop placement, and DIN rail mounting. The package includes all necessary mounting hardware: an L-shaped bracket, DIN rail kit, and wall-mounting hardware for flexible installation options.

What environmental conditions can this media converter withstand?

The media converter features a hardened aluminum case designed to operate in extreme temperatures from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It's protected against electrostatic discharge (ESD), radio frequency interference (RFI), and power surges, making it suitable for demanding environments.
