Front view of HPE 5130 48G 4SFP+ switch showing 48 Gigabit Ethernet ports and 4 SFP+ uplink ports

High-Density Port Configuration for Enterprise Networks

The HPE 5130 switch features a robust front panel with 48 Gigabit Ethernet ports and 4 dedicated SFP+ slots, delivering exceptional connectivity density in a 1U form factor. The clean, industrial design incorporates advanced thermal management with strategically placed ventilation, while the port layout enables efficient cable management for modern data center environments.

Technical Specifications

  • 48 auto-sensing 10/100/1000 ports for maximum network flexibility
  • 4 dedicated 10GbE SFP+ ports for high-speed uplinks
  • 1U rack-mount design optimized for space efficiency

Applications

  • Enterprise campus network deployment
  • Data center top-of-rack switching
  • High-performance department networking
Rear view of HPE 5130 switch showing dual power supplies and cooling system

Redundant Power System for Maximum Uptime

The rear view showcases the switch's dual hot-swappable power supplies and cooling system. This redundant power architecture ensures continuous operation even if one power supply fails. The efficient cooling design features multiple fans and power inputs rated for 100-240V operation, providing enterprise-grade reliability.

Technical Specifications

  • Hot-swappable redundant power supplies
  • Multi-fan cooling system for optimal thermal management
  • Universal power input support (100-240V)

Applications

  • Mission-critical network infrastructure
  • 24/7 operation environments
  • High-availability network deployments
Close-up front view of HPE 5130 switch showing detailed port layout and management interfaces

Advanced Layer 3 Switching Architecture

This perspective highlights the switch's comprehensive port layout and management interfaces. The design integrates enterprise-class features including Layer 3 routing capabilities, advanced QoS, and security features. The intuitive port arrangement facilitates easy connectivity and status monitoring.

Technical Specifications

  • Layer 3 routing with static and RIP protocols
  • Advanced QoS and traffic management
  • Comprehensive security features with ACLs

Applications

  • Large campus network deployments
  • Network segmentation and routing
  • Secure enterprise access layer
Angled view of HPE 5130 switch showing overall design and port configuration

Enterprise-Grade Network Infrastructure

The angled view emphasizes the switch's robust construction and enterprise-ready design. Built for reliable operation in demanding environments, it features a durable metal chassis and professional-grade components. The architecture supports advanced features like IRF stacking and intelligent management capabilities.

Technical Specifications

  • IRF stacking support for up to 9 switches
  • Enterprise-grade metal chassis construction
  • Intelligent Management Center (IMC) compatible

Applications

  • Enterprise network expansion
  • Data center network modernization
  • Campus network consolidation

Product details

General Information
Manufacturer

Hewlett Packard Enterprise

Manufacturer Part Number

JH324A

Brand Name

HPE

Product Line

FlexNetwork

Product Series

5130 HI

Product Model

5130 48G 4SFP+ 1-slot HI

Product Name

5130 48G 4SFP+ 1-slot HI Switch

Packaged Quantity

1

Product Type

Layer 3 Switch

Interfaces/Ports
Total Number of Network Ports

48

Uplink Port

No

Modular

Yes

Stack Port

Yes

Port/Expansion Slot Details

48 x Gigabit Ethernet Network
4 x 10 Gigabit Ethernet Expansion Slot
1 x Expansion Slot

Media & Performance
Media Type Supported

Twisted Pair
Optical Fiber

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

Network Technology

10GBase-X
10/100/1000Base-TX

I/O Expansions
Number of Total Expansion Slots

5

Expansion Slot Type

SFP+

Number of SFP+ Slots

4

Network & Communication
Layer Supported

3

Management & Protocols
Manageable

Yes

Power Description
Power Source

Power Supply

Redundant Power Supply Supported

Yes

Power Consumption

150 W

Physical Characteristics
Compatible Rack Unit

1U

Form Factor

Rack-mountable

Height

1.7

Width

17.3

Depth

14.2

Weight (Approximate)

16.53 lb

FAQs

What are the key features of the HPE 5130 48G 4SFP+ 1-slot HI Switch?
The HPE 5130 48G 4SFP+ 1-slot HI Switch is a Layer 3 switch featuring 48 Gigabit Ethernet ports, 4 SFP+ 10GbE expansion slots, and 1 additional expansion slot. It supports enterprise-class QoS, HPE Intelligent Resilient Framework (IRF) stacking, static Layer 3 routing and RIP, dual redundant power supplies, and PoE+. The switch includes comprehensive security features like ACLs, IPv6 support, and can be managed through HPE Intelligent Management Center (IMC) Software.
What are the networking capabilities and port configuration of this switch?
The switch offers 48 Gigabit Ethernet ports (10/100/1000Base-TX) and 4 SFP+ 10 Gigabit Ethernet expansion slots. It supports both twisted pair and optical fiber media types, with 10GBase-X and 10/100/1000Base-TX network technology. The device functions as a Layer 3 switch, providing advanced routing capabilities. The modular design includes stacking ports and a total of 5 expansion slots, offering flexibility for network configuration and growth.
What are the power specifications and redundancy features?
The HPE 5130 switch features dual, redundant, hot-swappable power supplies for enhanced reliability. It has a power consumption of 150W under normal operation and can deliver up to 1440 Watts of PoE+ power for connected devices like cameras, phones, and wireless access points. The redundant power supply support ensures network continuity even if one power supply fails.
What security features does the HPE 5130 switch provide?
The switch offers comprehensive security features including flexible authentication methods (802.1X and MAC Authentication), per-user access control lists (ACLs), IP Layer 2 to Layer 4 traffic filtering, and support for global ACL, VLAN ACL, port ACL, and IPv6 ACL. It includes encryption through SSHv2, SSL, and SNMPv3, plus DHCP protection, IP source guard, dynamic ARP protection, and RADIUS/HWTACAS. The switch also supports industry-standard MACsec for enhanced endpoint and switch-to-switch security.
What are the physical specifications and mounting options?
The HPE 5130 switch is a rack-mountable unit that occupies 1U of rack space. Its dimensions are 1.7" in height, 17.3" in width, and 14.2" in depth, with a weight of approximately 16.53 lb. The form factor is designed for standard rack installation, making it suitable for enterprise data center and network closet deployments.

Didn’t find your answer?

Don't hestitate to contact us

Compare Similar Products

Specification
HPE FlexNetwork 5130 HI Layer 3 Switch, 48G Ethernet Ports, 4 SFP+ 10GbE Slots, Manageable, Stackable, Redundant Power, Rack-mountable 1U - JH324A (1 Year Warranty)
HPE FlexNetwork 5130 HI Layer 3 Switch, 48G Eth...
Fortinet FortiSwitch FS-424E Layer 3 Switch, 24 Gigabit Ethernet Ports, 4 SFP+ 10GbE Slots, Manageable, Security Fabric Integration, Rack-mountable 1U, Redundant Power (Lifetime Warranty)
Fortinet FortiSwitch FS-424E Layer 3 Switch, 24...
Fortinet FortiSwitch FS-424E Layer 3 Switch, 24 Port Gigabit Ethernet, 4x 10GbE SFP+ Expansion Slots, Manageable, Security Fabric Integration, Rack-mountable 1U, RoHS 2 (Lifetime Warranty)
Fortinet FortiSwitch FS-424E Layer 3 Switch, 24...

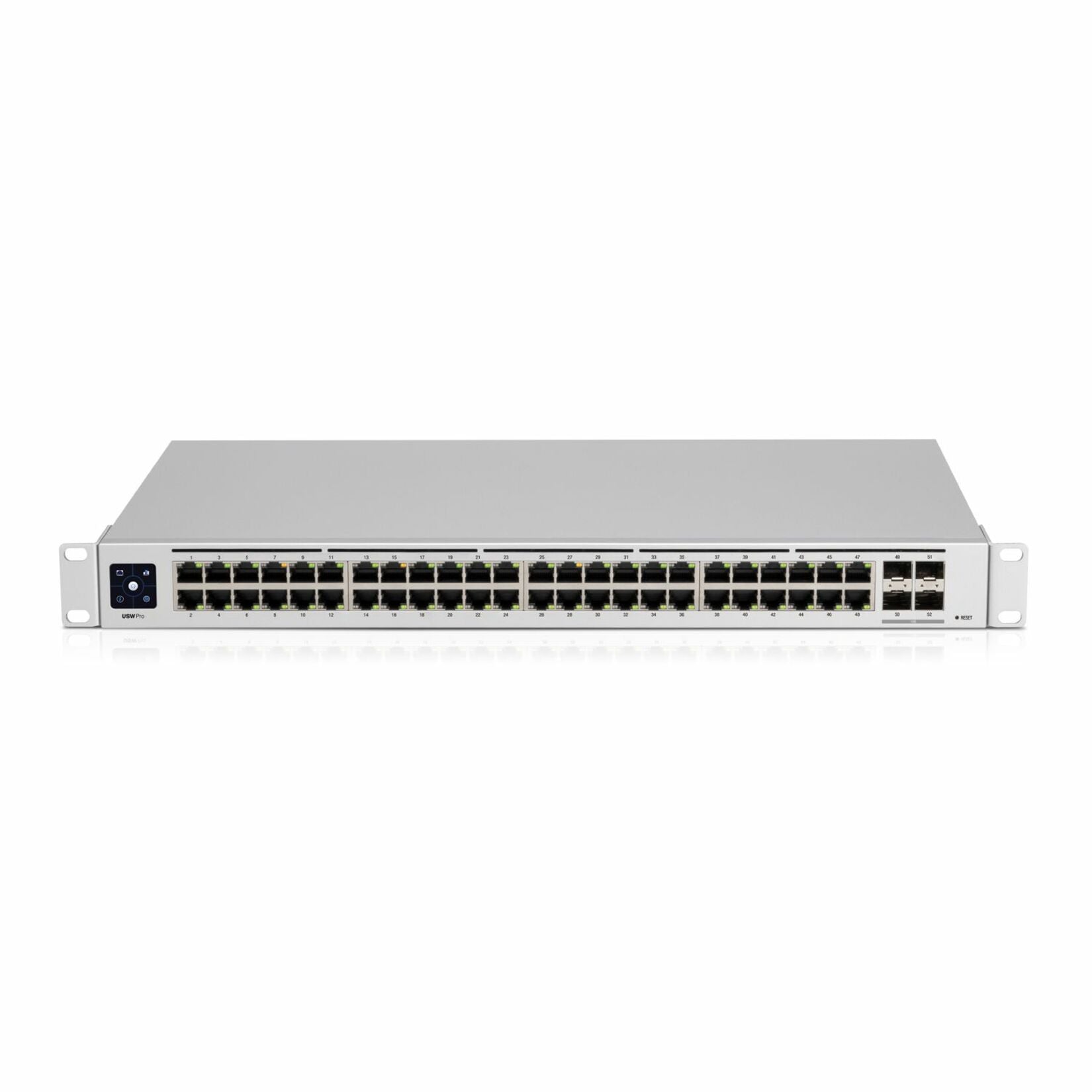

Ubiquiti UniFi Pro USW-Pro-48 Layer 3 Switch, 48 Gigabit Ethernet Ports, 4x 10G SFP+ Uplinks, Managed Network Switch, Near-Silent Cooling, SmartPower RPS (2 Year Warranty)
