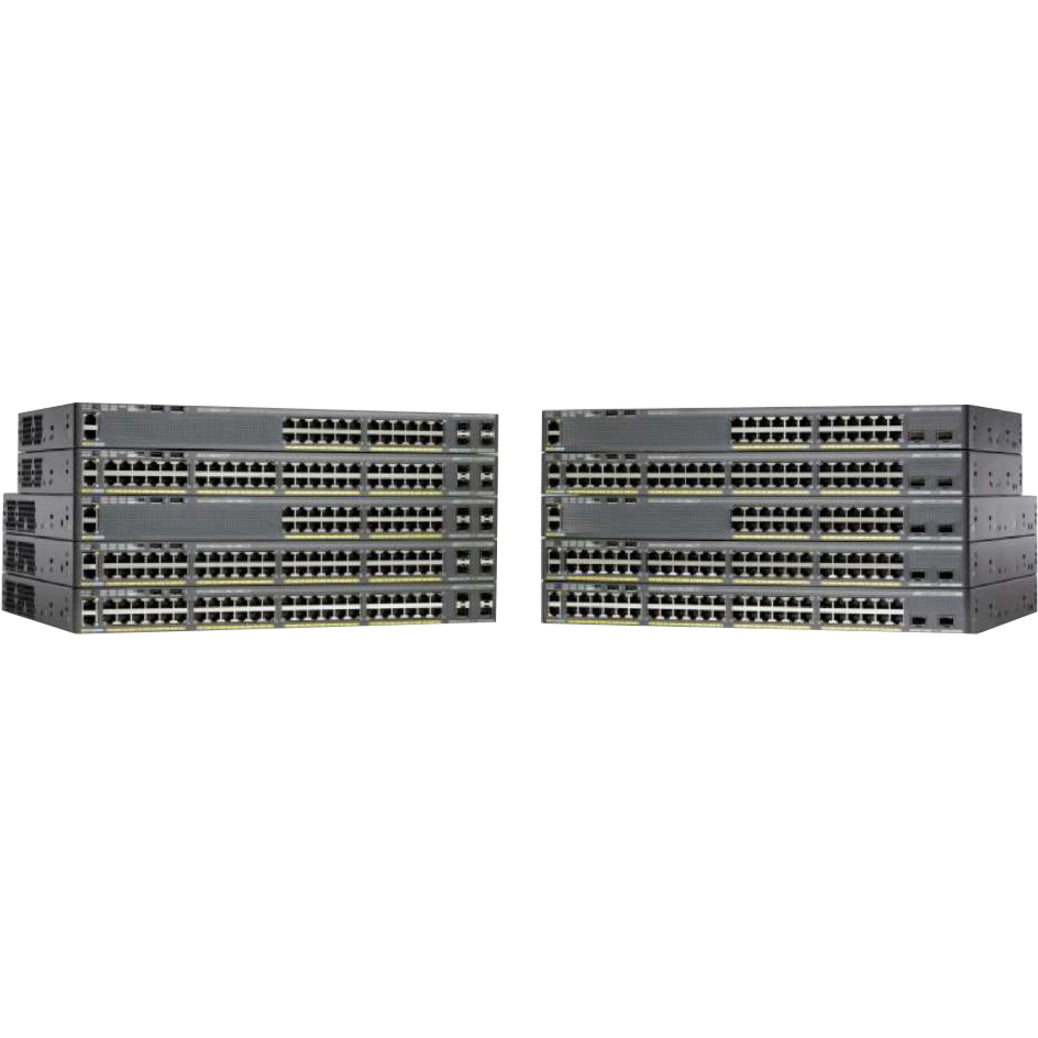

Cisco WS-C2960XR-48FPD-I Catalyst 2960XR-48FPD-I Ethernet Switch with 48 Gigabit Ports and 24 PoE+ Ports
The Cisco WS-C2960XR-48FPD-I Catalyst 2960XR-48FPD-I Ethernet Switch delivers enterprise-grade networking performance with 48 Gigabit Ethernet ports, 24 PoE+ ports, and 2 SFP+ 10 Gigabit expansion slots. This rack-mountable Layer 3 switch features IP Lite functionality, 512 MB DRAM, 128 MB flash memory, and comprehensive management capabilities including web-based management, VLAN support, QoS, and SNMP v1/v2c/v3. Designed for medium to large enterprise deployments, this Catalyst 2960-XR series switch provides reliable network infrastructure with lifetime warranty coverage.
48 Port Gigabit Ethernet Switch with Advanced PoE+ Capabilities
The Cisco Catalyst 2960XR-48FPD-I features 48 Gigabit Ethernet network ports supporting 10/100/1000Base-T connectivity over Category 5 twisted pair cables. Among these ports, 24 are PoE+ (Power over Ethernet Plus) enabled, delivering up to 30 watts per port to power IP phones, wireless access points, security cameras, and other network devices. This eliminates the need for separate power adapters and reduces installation complexity.
10 Gigabit Ethernet Uplink Expansion
Two SFP+ expansion slots provide 10 Gigabit Ethernet uplink capabilities, enabling high-speed connections to core switches, servers, or storage devices. These modular SFP+ slots support various fiber optic and copper transceivers for flexible deployment options in different network topologies.
Layer 3 IP Lite Feature Set and Cisco IOS Software
The WS-C2960XR-48FPD-I operates with Cisco's IP Lite feature set, providing Layer 3 routing capabilities including static routing and basic dynamic routing protocols. The switch runs on a Universal Cisco IOS Software Image that automatically configures the appropriate feature set based on the hardware model.
Memory and Performance Specifications
Equipped with 512 MB of DRAM and 128 MB of flash memory, the switch provides sufficient resources for advanced features and configurations. The robust hardware platform ensures reliable operation with an MTBF (Mean Time Between Failures) rating of 231,590 hours, demonstrating exceptional reliability for mission-critical network environments.
Comprehensive Network Management and Security Features
The Catalyst 2960XR-48FPD-I supports extensive management protocols including web-based management interface, command-line interface (CLI), SNMP v1/v2c/v3, Telnet, and RMON I/II. Advanced features include VLAN support, Quality of Service (QoS), DHCP services, and Syslog for comprehensive network monitoring and control.
IEEE Standards Compliance and Certifications
This enterprise switch complies with numerous IEEE standards including 802.1D (Spanning Tree), 802.1Q (VLAN), 802.1w (Rapid Spanning Tree), 802.1X (Network Access Control), 802.3af/at (PoE/PoE+), 802.3ad (Link Aggregation), and 802.3az (Energy Efficient Ethernet). Safety certifications include UL 60950-1, EN 60950-1, and IEC 60950-1, while EMC compliance covers FCC Part 15 Class A and EN55022 Class A standards.
Rack-Mountable Design and Physical Specifications
The switch features a standard 1U rack-mountable form factor with dimensions of 17.5" width, 16" depth, and 1.8" height, weighing approximately 14.60 pounds. This compact design maximizes rack space efficiency while providing high port density for access layer deployments.
Power and Environmental Considerations
The switch supports redundant power supply configurations for enhanced reliability and features energy-efficient operation compliant with 802.3az standards. Environmental certifications include RoHS compliance, demonstrating commitment to environmentally responsible manufacturing practices.
System Requirements and Compatibility
Management software requires a PC with 1 GHz processor, 1 GB memory, 200 MB disk space, and 1024 x 768 screen resolution. Compatible operating systems include Windows 2000 Professional (SP4+), Windows 2003 Server, Windows XP Professional (SP2+), Windows Vista Ultimate, Windows 7, and Macintosh OS X, ensuring broad compatibility across enterprise environments.
