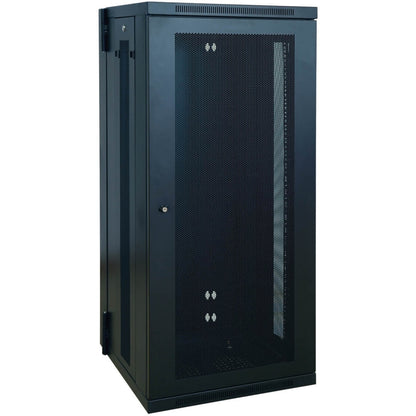

Tripp Lite 26U Wall Mount Rack Enclosure Server Cabinet Hinged w/ Door & Sides (SRW26US) Main image

Tripp Lite 26U (SRW26US) Rack Equipment

Availability:
Out of stock
Sold out
$1,013.79 - $1,013.79
$1,013.79
$1,013.79 - $1,013.79
$1,013.79

New

FREE SHIPPING FOR DOMESTIC ORDERS

Delivery time

We ship orders 24-48 hours after they have been placed. We do not charge before we ship them out. It might take up to an additional 48 hours to ship international orders.

Tripp Lite SRW26US

The SRW26US SmartRack 26U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW26US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

Tripp Lite SRW26US Tech Specs

General Information
Manufacturer:Tripp Lite by Eaton
Manufacturer Part Number:SRW26US
Brand Name:Tripp Lite
Product Line:SmartRack
Product Model:SRW26US
Product Name:SRW26US Wall mount Rack Enclosure Server Cabinet
Product Type:Rack Cabinet
Physical Characteristics
Form Factor:Wall Mountable
Maximum Weight Capacity:140 lb
Height:49.7"
Width:23.6"
Depth:21.6"
Rack Height:26U
Rack Width:19"
Miscellaneous
Additional Information:
  • Adjustable mounting depths from 3" to 20.5" inches
  • Heavy duty construction to handle added leverage
  • Ventilated front door and side panels for increased airflow
  • Hinged cabinet swings away from wall bracket for easy equipment and cable access
  • Top and bottom panel cable access openings
  • Fully assembled for quick installation
Certifications & Standards:
  • UL/CSA 60950-1
  • EIA-310-D
  • IEC 60297-3-100
  • DIN 41494
  • IP20 Protection Rating
Environmentally Friendly:Yes
Environmental Certification:RoHS
Country of Origin:China
Warranty
Limited Warranty:5 Year
