Close-up view of Genesis Cat6+ network cable showing blue jacket and exposed color-coded twisted copper pairs-alternate-image1

$249.99

Genesis Cat6+ Network Cable, Voice & Data Riser Rated, 1000ft Copper 23AWG, 4-Pair Stranded, Sunlight Resistant, NEXT/PSNEXT, CMR/CL2R/FT4 Plenum - 50921001 (2 Year Warranty)

Name: Genesis Cat6+ Network Cable, Voice & Data Riser Rated, 1000ft Copper 23AWG, 4-Pair Stranded, Sunlight Resistant, NEXT/PSNEXT, CMR/CL2R/FT4 Plenum - 50921001 (2 Year Warranty)
Brand: Genesis
SKU: 50921001
Price: 249.99 USD
Availability: InStock

Brand New

FREE Returns

Length:

3.28ft See available options
32.81ft See available options
500ft See available options
1000ft See available options

Product variants

Cat6+

High Performance

1000ft

Cable Length

23 AWG

Copper Wire

4-Pair

Stranded

CMR Rated

Riser/Plenum

NEXT/PSNEXT

Low Crosstalk

In stock, ready to ship

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Monday, Jul 14

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 2 Year

Key Features

🔌 Category 6+ network cable with 1000 ft length
🛡️ Riser rated with multiple certifications (CMR, CL2R, CMG, FT4)
📡 Supports multiple devices: Network, Phone, Speaker, and Alarm systems
🔧 23 AWG copper conductor with 4 pairs (8 conductors)
⚡ Enhanced performance with minimized NEXT and PSNEXT
☀️ Sunlight resistant and environmentally friendly (RoHS certified)
🏗️ Stranded construction with bare copper conductors
🔒 Meets TIA/EIA-568-B.2-1 standards with C(UL) certification
⚖️ Approximately 33.10 lb weight
✅ 2-year limited warranty

Genesis Cat6+ Network Cable...

$249.99

Enhanced Signal Integrity with Color-Coded Twisted Pairs

The Genesis Cat6+ cable features meticulously engineered twisted pair construction, with each pair distinctly color-coded for precise identification and installation. The 23 AWG bare copper conductors are individually insulated with high-grade polyethylene and arranged in four pairs, delivering superior near-end crosstalk (NEXT) performance and reliable data transmission. The riser-rated PVC jacket in signature blue provides robust protection while meeting stringent building code requirements. Each conductor pair maintains optimal twist ratios to ensure consistent performance across the full 1000-foot length, making it ideal for demanding network infrastructure projects.

Technical Specifications

23 AWG bare copper conductors for optimal signal transmission
Four precisely twisted pairs with PE insulation for minimal crosstalk
CMR/CL2R/CMG rated jacket for vertical shaft installations

Applications

High-speed network backbone installations in multi-story buildings
Enterprise-grade voice and data infrastructure deployments
Security system and IP surveillance network implementations

Product details

General Information

Manufacturer

Genesis Cable

Manufacturer Part Number

50921001

Brand Name

Genesis

Product Model

50921001

Product Name

Voice & Data Category 6 Plus, Riser Rated

Packaged Quantity

1

Packing

Spool

Product Type

Network Cable

Technical Information

Cable Type

Category 6+

Cable Length

1000 ft

Connector Type on First End

Bare Wire

Connector on First End Details

Bare Wire

Connector Type on Second End

Bare Wire

Connector on Second End Details

Bare Wire

Features

Stranded
Sunlight Resistant
Minimized Near-End Crosstalk (NEXT)
Power-sum Near End Crosstalk (PSNEXT)

Conductor

Copper

Shielding

No

Jacket Type

CMR
CL2R
CMG
Riser
Plenum
FT4

Device Supported

Speaker
Network Device
Alarm
Phone

American Wire Gauge

23 AWG

Number of Conductors

8

Number of Pairs

4

Physical Characteristics

Product Color

Blue
Green
Brown
White/Blue
White/Orange
White/Green
White/Brown
White
Orange

Jacket Color

White

Color Details

Pair

Blue
Orange
Green
Brown
White/Blue
White/Orange
White/Green
White/Brown

Product Material

Bare Copper

Insulation Material

Polyethylene

Jacket Material

Polyvinyl Chloride (PVC)

Material Details

<p>Bare Copper - Conductor</p>

Weight (Approximate)

33.10 lb

Miscellaneous

Certifications & Standards

TIA/EIA-568-B.2-1
C(UL)

Environmentally Friendly

Yes

Environmental Certification

RoHS

Country of Origin

Vietnam

Warranty

Limited Warranty

2 Year

Included in the Box

Cat6+ Cable

Similar Products

Save 32%

Belkin

Belkin Cat5e Network Cable, 1000ft Purple Bulk Cable, 24AWG UTP, Creates Custom Le...

$269.99 $399.49

1000ft

Bulk Cable

Cat5e

UTP

24AWG

Copper Wire

8-Wire

4-Pair

PowerSum

Tested

PVC

Jacket

Save 28%

Belkin

Belkin Cat5e UTP Network Cable, 1000ft Bulk, White, Copper Conductor, EIA/TIA-568 ...

$229.99 $319.49

Cat5e

UTP Cable

1000ft

Bulk Length

Copper

Conductor

24 AWG

Solid Wire

EIA/TIA-568

Compliant

Bare Wire

Ends

Belkin

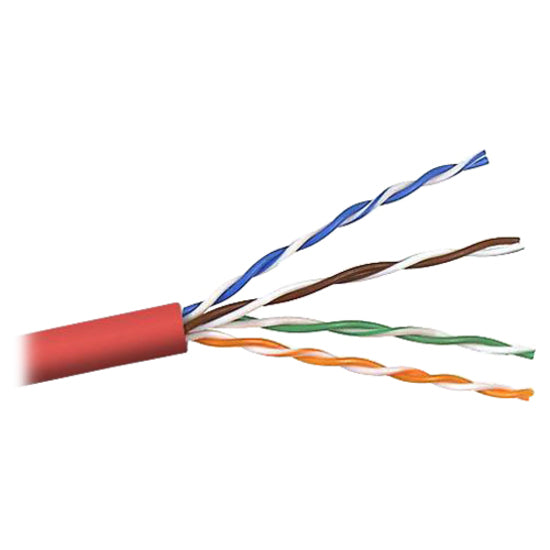

Belkin Cat6 Network Cable, 1000ft UTP Bulk Cable, Red, High-Performance Copper Con...

$369.99

Cat6

High Performance

1000ft

Bulk Length

Gigabit

Ethernet Ready

Copper

24AWG Wire

TIA/EIA

Certified

UTP

Unshielded

Belkin

Belkin FastCAT Category 6 Network Cable, 1000ft Bulk UTP Bare Wire, Black Copper C...

$289.99

Cat 6

Network Cable

1000ft

Bulk Length

Copper

Conductor

PVC

Jacket

TIA Certified

Standards

Bare Wire

Ends

Save 2%

Black Box

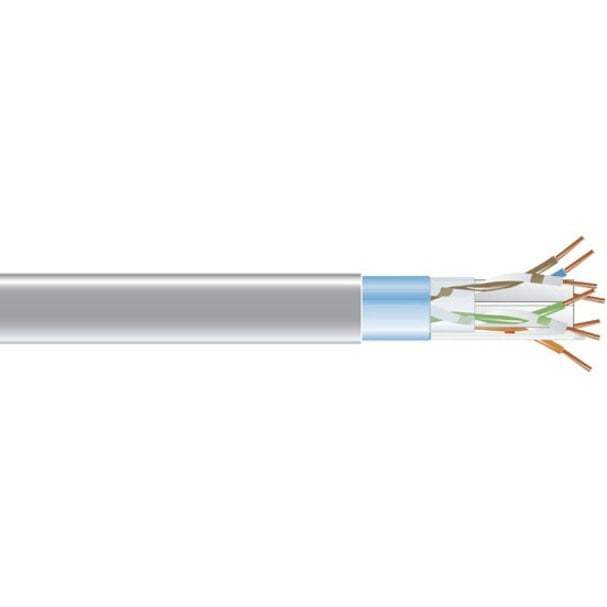

Black Box CAT6 400-MHz Network Cable, 1000ft Bulk, Shielded F/UTP, CMP Plenum, EMI...

$799.99 $819.85

CAT6 400MHz

High Speed

1000ft Bulk

Spool Length

1Gbps Speed

Data Rate

F/UTP Shielded

EMI Protection

CMP Plenum

Fire Rated

24AWG Copper

Solid Core

FAQs

What are the key specifications of the Genesis Cat6+ Network Cable?

The Genesis Cat6+ Network Cable is a 1000ft riser-rated cable made of 23AWG copper with 4 pairs (8 conductors) of stranded wire. It features sunlight resistance and minimized NEXT/PSNEXT interference. The cable is rated for CMR/CL2R/FT4 plenum applications and comes with bare wire ends. It's suitable for voice, data, speaker, network device, alarm, and phone applications.

What certifications and ratings does this cable have?

This cable meets TIA/EIA-568-B.2-1 standards and has C(UL) certification. It's rated for CMR (Communications Riser), CL2R, CMG, and FT4 plenum applications. The cable is also RoHS certified, making it environmentally friendly. These certifications ensure it meets industry standards for safety and performance in commercial building installations.

What is the construction and material composition of the cable?

The cable features bare copper conductors (23 AWG) with polyethylene insulation and a PVC (Polyvinyl Chloride) jacket. It contains 4 pairs (8 conductors) of stranded wire. The color coding includes blue, orange, green, brown pairs with corresponding white/color combinations for easy identification. The overall jacket color is white.

What devices and applications is this cable compatible with?

This Cat6+ cable is compatible with multiple devices and applications including network devices, phones, speakers, and alarm systems. It's designed for voice and data transmission in commercial riser applications. The cable's specifications make it suitable for high-speed data networking and various low-voltage applications requiring reliable performance.

What are the special features that protect against interference?

The cable incorporates advanced features to minimize interference, including Near-End Crosstalk (NEXT) and Power-sum Near End Crosstalk (PSNEXT) protection. These features ensure clean signal transmission and reduced electromagnetic interference between wire pairs, making it ideal for high-speed data applications.
