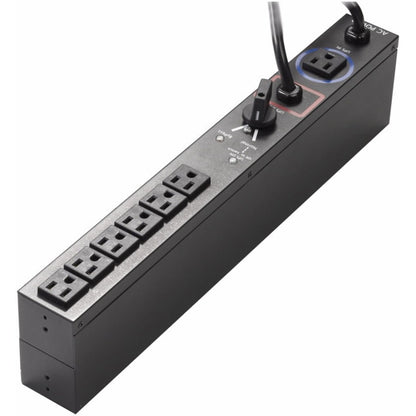

Eaton HotSwap MBP PDU showing 2U rack-mount design with six NEMA outlets and maintenance bypass controls

Hot-Swappable Maintenance Bypass Technology for Zero-Downtime Operations

The Eaton HotSwap MBP PDU revolutionizes data center maintenance with its innovative hot-swappable bypass technology. This 2U rack-mounted unit features six NEMA 5-15R outlets strategically positioned for optimal equipment connectivity, while the maintenance bypass switch enables seamless UPS battery replacement without interrupting power to critical systems. The compact 17.3-inch width design maximizes rack space efficiency while delivering 1440VA of reliable power distribution. Engineered for mission-critical environments, this PDU integrates seamlessly with Eaton Evolution and 5130/9130 UPS systems. The intuitive control panel with clearly marked bypass positions ensures IT administrators can perform maintenance operations with confidence. The robust construction and enterprise-grade components guarantee consistent performance in demanding server room environments where every minute of uptime translates to business continuity.

Technical Specifications

  • 2U rack height (3.5 inches) for standard 19-inch racks
  • 1440VA power rating with 6x NEMA 5-15R outlets
  • Hot-swappable maintenance bypass for zero-downtime operations
  • 17.3" x 3.8" compact footprint maximizes rack density

Applications

  • Data center UPS battery replacement without service interruption
  • Server rack power distribution in enterprise environments
  • Critical system maintenance in 24/7 operations
  • Integration with Eaton Evolution and 5130/9130 UPS systems

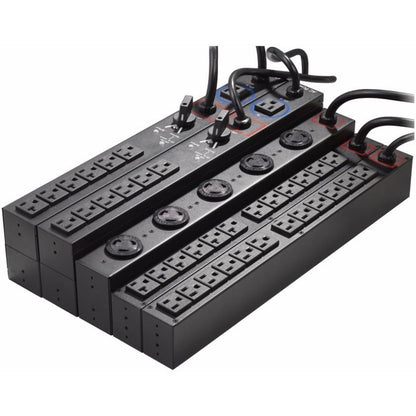

Multiple Eaton HotSwap MBP PDUs arranged to show scalable power distribution configuration for data centers

Scalable Power Distribution Architecture for Growing Infrastructure

Multiple Eaton HotSwap MBP PDUs demonstrate the scalable architecture essential for expanding data center operations. This configuration showcases how facilities can standardize on a single PDU platform while accommodating diverse power requirements across different rack configurations. Each unit maintains independent bypass functionality, allowing selective maintenance without affecting adjacent systems or compromising overall infrastructure availability. The modular approach enables IT managers to implement consistent power distribution standards across their entire facility. With identical control interfaces and bypass procedures, technicians can efficiently manage maintenance schedules while minimizing training requirements. The standardized NEMA 5-15R outlet configuration ensures compatibility with the majority of enterprise IT equipment, from servers and switches to storage arrays and networking hardware.

Technical Specifications

  • Modular design allows multiple units for increased capacity
  • Standardized NEMA 5-15P input connection for UPS compatibility
  • Independent bypass controls on each unit for selective maintenance
  • Consistent 2U form factor for uniform rack installation

Applications

  • Multi-rack data center power distribution standardization
  • Phased infrastructure expansion with consistent components
  • Redundant power distribution for high-availability systems
  • Centralized maintenance scheduling across multiple PDU units

Product details

General Information
Manufacturer

Eaton Corporation

Manufacturer Part Number

EHBPL1500R-PDU1U

Brand Name

Eaton

Product Name

HotSwap MBP

Product Type

PDU

Technical Information
Plug/Connector Type

NEMA 5-15P

Receptacle Type

NEMA 5-15R

Receptacle Detail

6 x NEMA 5-15R

Power Description
Power Rating (VA)

1440 VA

Physical Characteristics
Rack Height

2U

Height

2.1

Width

17.3

Depth

3.8

Miscellaneous
Compatibility

Eaton UPS Products:

  • Evolution UPS
  • Evolution S UPS
  • 5130 UPS
  • 9130 UPS
  • EX UPS

Country of Origin

China

Included in the Box

  • icon_list|pdu unit|PDU Unit Main device icon

    PDU Unit

  • icon_list|Power cord|Power Cable Power cord icon

    Power Cord

  • icon_list|rack hardware|Rack Hardware Mounting kit icon

    Rack Hardware

FAQs

What is the Eaton EHBPL1500R-PDU1U HotSwap MBP and what is its primary function?
The Eaton EHBPL1500R-PDU1U HotSwap MBP is a 2U power distribution unit (PDU) with maintenance bypass functionality. Its primary function is to provide continuous power distribution and enable hot-swappable UPS maintenance without service interruption. It features 6 NEMA 5-15R output receptacles and operates at 1440VA power rating, making it ideal for critical equipment that requires uninterrupted power supply.
What are the compatible Eaton UPS models for this HotSwap MBP?
The Eaton EHBPL1500R-PDU1U HotSwap MBP is compatible with several Eaton UPS models including: Evolution UPS, Evolution S UPS, 5130 UPS, 9130 UPS, and EX UPS series. This compatibility ensures seamless integration with Eaton's popular UPS product lines for enhanced power management solutions.
What are the physical dimensions and rack specifications of this PDU?
The Eaton EHBPL1500R-PDU1U HotSwap MBP is designed for 2U rack mounting with dimensions of 2.1" height, 17.3" width, and 3.8" depth. These compact measurements make it ideal for standard 19-inch rack installations while maximizing space efficiency in your rack environment.
What type of power connections does this PDU support?
This PDU features a NEMA 5-15P input plug and provides 6 NEMA 5-15R output receptacles. This configuration allows for standard 120V power distribution and is suitable for connecting multiple pieces of IT equipment while maintaining professional-grade power management capabilities.
What is the power rating of the Eaton EHBPL1500R-PDU1U?
The Eaton EHBPL1500R-PDU1U has a power rating of 1440VA, making it suitable for managing power distribution to multiple devices while maintaining appropriate load capacity for typical rack-mounted IT equipment configurations.
