Close-up view of GigaTrue CAT6 cable showing purple jacket and exposed internal wire pairs-alternate-image1

Cross-sectional diagram of CAT6 cable showing internal components including conductor pairs, separator, and jacket-alternate-image2

EYN864A-PB-1000

ⓘ

AUTHORIZED
PARTNER

$279.99

Black Box GigaTrue CAT6 Network Cable, 550-MHz, 1 Gbps, 1000ft Bulk, Purple, 23 AWG Solid Copper, UTP CMR PVC, ETL Verified, TAA Compliant - EYN864A-PB-1000 (Lifetime Warranty)

Name: Black Box GigaTrue CAT6 Network Cable, 550-MHz, 1 Gbps, 1000ft Bulk, Purple, 23 AWG Solid Copper, UTP CMR PVC, ETL Verified, TAA Compliant - EYN864A-PB-1000 (Lifetime Warranty)
Brand: Black Box
SKU: EYN864A-PB-1000
Price: 279.99 USD
Availability: InStock

Brand New

FREE Returns

Product variants

CAT6 550MHz

High Performance

1 Gbps

Data Speed

1000ft Bulk

Cable Length

23 AWG

Solid Copper

ETL Verified

Certified

CMR Rated

Fire Safe

In stock, ready to ship

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Monday, Jul 14

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Key Features

🚀 550-MHz bandwidth with 1 Gbps data transfer rate
📏 1000 ft length with Accu-Pull Measuring System
🔌 23 AWG solid bare copper conductors
🛡️ Unshielded Twisted Pair (UTP) construction
🏢 CMR-rated flame retardant jacket
✨ ETL Verified and TIA/EIA-568-B.2-1 compliant
⚡ Supports high-performance data and digital video networks
🔄 Compatible with full and half-duplex operation
💜 Purple PVC jacket with HDPE insulation
⌛ Lifetime warranty coverage

Black Box GigaTrue CAT6 Net...

$279.99

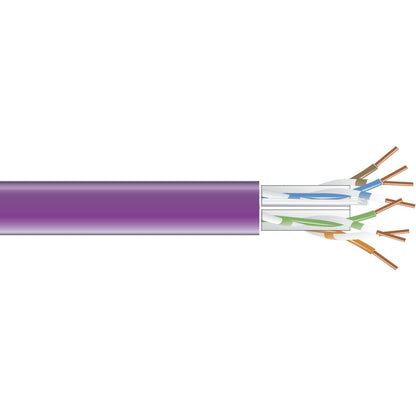

Close-up view of GigaTrue CAT6 cable showing purple jacket and exposed internal wire pairs

High-Performance Cat6 Cable Construction for Reliable Data Transfer

The GigaTrue CAT6 cable features premium 23 AWG solid copper conductors wrapped in high-density polyethylene insulation, ensuring optimal signal integrity and minimal crosstalk. The durable purple PVC jacket provides protection while maintaining flexibility for easy installation. Each of the four twisted pairs is precisely engineered to maintain consistent impedance and superior performance up to 550 MHz. The cable's internal design incorporates an advanced spline separator that maintains pair spacing and geometry throughout the cable length, critical for achieving reliable Gigabit Ethernet performance. This construction enables consistent support for high-bandwidth applications while exceeding Category 6 specifications.

Technical Specifications

23 AWG solid bare copper conductors for optimal conductivity
High-density polyethylene insulation for superior signal integrity
PVC jacket with CMR fire rating for commercial installations

Applications

High-speed network backbone infrastructure
Data center rack-to-rack connectivity
Commercial building structured cabling systems

Product details

General Information

Manufacturer

Black Box Corporation

Manufacturer Part Number

EYN864A-PB-1000

Brand Name

Black Box

Product Line

GigaTrue

Product Name

CAT6 550-MHz Solid Bulk Cable UTP CMR PVC Purple 1000FT Pull-Box

Package Type

Bulk

Product Type

Network Cable

Technical Information

Cable Type

Category 6

Cable Length

1000 ft

Connector Type on First End

Bare Wire

Connector on First End Details

Bare Wire

Connector Type on Second End

Bare Wire

Connector on Second End Details

Bare Wire

Features

Flame Retardant

Conductor

Bare Copper

Shielding

No

Jacket Type

CMR

Device Supported

Patch Panel
Network Device

American Wire Gauge

23 AWG

Data Transfer Rate

1 Gbit/s

Physical Characteristics

Product Color

Purple

Insulation Material

High-density Polyethylene (HDPE)

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous

Certifications & Standards

ETL Verified
ANSI/TIA/EIA-568-B.2-1 Category 6
ISO/IEC 11801

Country of Origin

South Korea

TAA Compliant

Yes

Warranty

Limited Warranty

Lifetime

Included in the Box

CAT6 Cable

FAQs

What are the key features of the Black Box GigaTrue CAT6 Bulk Cable?

The Black Box GigaTrue CAT6 Bulk Cable features 550-MHz solid bulk cable (UTP) designed for high-performance networks, delivering speeds up to 550 MHz/1 Gbps. It includes 23 AWG 4-pair solid copper wire construction, supports both full and half-duplex operation, and comes with the Accu-Pull Measuring System to track remaining cable length. The cable is flame retardant, features a PVC jacket, and is ETL verified. It's available in a 1000-foot length with violet coloring.

What is the maximum data transfer rate of this cable?

This GigaTrue CAT6 cable supports a data transfer rate of up to 1 Gigabit per second (1 Gbit/s) with a frequency bandwidth of 550 MHz. This provides excellent headroom over standard CAT6 specifications, ensuring reliable high-speed data transmission for demanding network applications and digital video networks.

What certifications and standards does this cable meet?

The Black Box GigaTrue CAT6 cable is ETL Verified and complies with ANSI/TIA/EIA-568-B.2-1 Category 6 and ISO/IEC 11801 standards. It's also TAA compliant and manufactured in South Korea. These certifications ensure the cable meets industry standards for performance, reliability, and quality in network installations.

What type of jacket and insulation does this cable use?

This cable features a Polyvinyl Chloride (PVC) outer jacket with CMR rating for flame retardance, and High-density Polyethylene (HDPE) insulation. The combination of these materials provides durability and protection while maintaining optimal signal integrity. The jacket is violet in color and designed for standard indoor installations.

What is the Accu-Pull Measuring System?

The Accu-Pull Measuring System is a built-in feature that allows users to know exactly how much cable remains on the spool. This eliminates guesswork and the need for manual measuring, making it easier to plan and execute cable installations efficiently and accurately.
