VisionTek 901355 VT300 Docking Station, 2 Year Limited Warranty, HDMI, USB Type-C, Network (RJ-45), 4 USB Ports, 100W Power Supply
VisionTek 901355 VT300 Docking Station, 2 Year Limited Wa...
VisionTek 901355 VT300 Docking Station, 2 Year Limited Warranty, HDMI, USB Type-C, Network (RJ-45), 4 USB Ports, 100W Power Supply
VisionTek 901355
Brand New
Availability:
Sold out!
- Free Shipping
- 2 Year Warranty
- 30 Day Returns
- Carbon Neutral
Product Key Features
- Universal Compatibility for USB-C Systems
- Supports 1 display via HDMI - 4K UHD 3840 x 2160 60Hz - System must support DisplayPort over USB-C
- 2x SuperSpeed USB 3.1 Ports
- 1x USB-C Port for Data
- 1x USB-C Port Power Input for pass through to laptop, up to 100W (Charger not included)
VisionTek
901355
VisionTek VT300 - USB-C Portable Dock 4K HDMI 60Hz, 2x USB 3.1, 1x USB-C PD, Ethernet, SD Card Reader
Key Features
- Universal Compatibility for USB-C Systems
- Supports 1 display via HDMI - 4K UHD 3840 x 2160 @60Hz (system must support DisplayPort over USB-C)
- 2x SuperSpeed USB 3.1 Ports
- 1x USB-C Port for Data
- 1x USB-C Port Power Input for pass through to laptop, up to 100W (charger not included)
- 1x RJ45 Ethernet port - 10/100/1000 Mbps (Gigabit) for wired connections
- SD Card Reader
Increase your productivity with our plug and play power passthrough hub, the VisionTek VT300 USB-C Single Display Dock for Windows™ and Mac™ laptop systems. With a single USB-C connection, you can connect an additional external display, transfer files and data at up to 5Gbps speeds and charge mobile devices.
- Universally Compatible USB-C – Windows™ or Mac™, the VT300 is connected through theattached USB-C 4 inch cable, making this the ideal dock for mixed system environments.
- USB-C Pass-Through Power – Plug your laptop’s USB-C power adapter into the dock’sUSB-C Power-In port on the side to provide passthrough power, up to 100W, dependingon system and charger being used. The VT300 functions fully without a power adapterconnected.
- Connect An External Display in UHD 4K – The VT300 has one HDMI port that allows youto connect an additional screen via mirroring or extended desktop with resolutions up to3840 x 2160 and 60 Hz refresh rates.
- Expanded Selection of Ports – The VT300 offers the most popular ports in a compact, sleekform factor, with an attached cable that you won’t lose or forget.
- 1x HDMI port let’s you connect an external display to increase your system workspace.
- 2x USB 3.1 ports let you connect external storage, full size keyboard and mouse, ormobile devices.
- 1x USB-C port for optional user supplied Power Delivery.
- 1x USB-C port for USB Type-C devices up to 5Gbps.
- 1x RJ45 Ethernet port - 10/100/1000 Mbps (Gigabit) for wired network connections.
- 1x SD Card Reader for multi-media professionals.
- Attached 4 inch USB-C cable to connect to your system’s USB-C port.
Front & Back Ports
- 2x USB 3.1 Ports
- 1x USB-C Data Transfer Port
- 1x SD Reader Port
- 1x USB-C Power Passthrough to System Port
- 1x HDMI Port
End Connection & Port
- Attached USB-C 4" Cable
System Requirements
Operating Systems Supported
- Windows 7, 8, 8.1, 10
- MacOX 10.X and later
System Resource Requirement
- System must support Power Delivery mode through USB-C DP Alt Mode.
- System must support MST compatibility for multi-display setup.
USB-C Power Delivery
- Supports USB-C PD 3.0
- 5V/9V/12V/15V/20V up to 5A
- 100W Maximum
Dock to System Connection
Dock Connector
- Attached USB-C Cable - 4 inch
Video Connections - System Dependent*
Single Display
USB-C Port Connection
- HDMI Port: Up to 3840 x 2160 @30Hz
- HDMI Port (DP1.4): Up to 3840 x 2160 @60Hz
Thunderbolt 3 Port Connection
- HDMI Port: Up to 3840 x 2160 @60Hz
*Resolutions and Refresh rates will vary based on host system. Please see your system owner manual for maximum displays and resolutions supported.
USB Connections

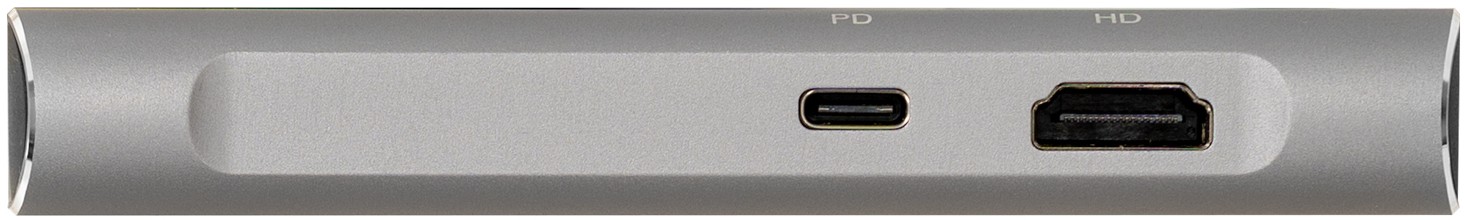

Side 1
- 1x USB-C Power Delivery Input Port

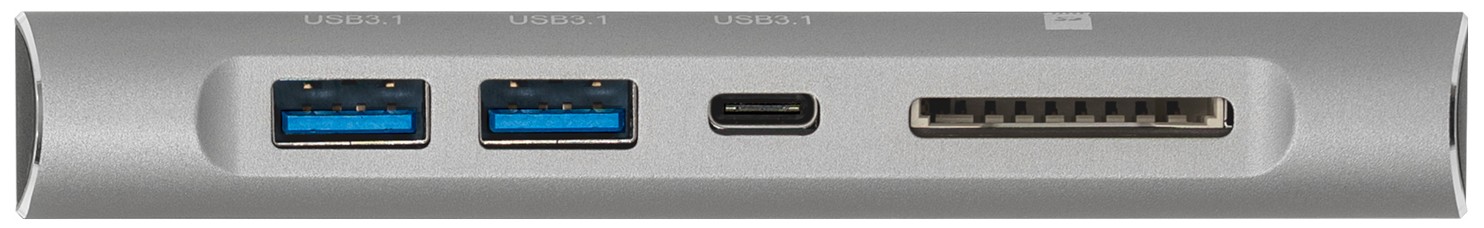

Side 2
- 2x USB 3.1 Type-A Port
- 1x USB 3.1 Type-C Port
Additional Connections
Side 2
- 1x SD Reader Port

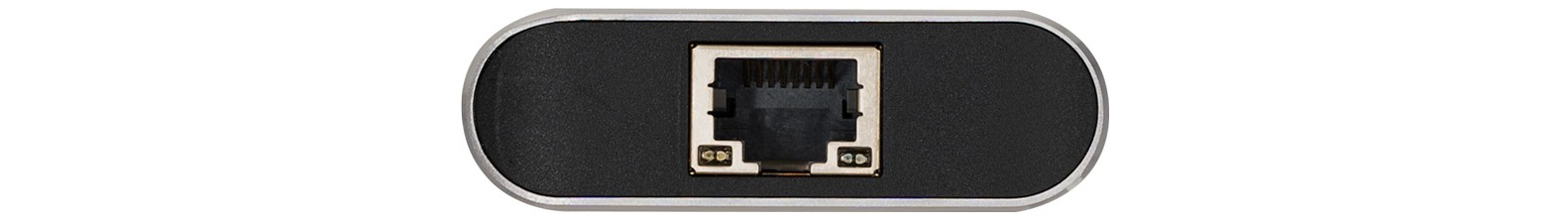

Back
- 1x Ethernet 10/100/1000 Mbps (RJ45) Port
Power and Environmental
Power
- Power delivery compatible with user supplied USB-C Power Adapter up to 100W. No power adapter included. (Aftermarket USB-C Charging Compatible.)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -10 to 70° C (-14 to 158° F)
Relative Humidity: 10% to 90% non-condensing
Product Dimensions
- Length: 3.7" (94mm)
- Depth: 2.25” (58mm)
- Height: 0.7” (18mm)
- Weight: 3.9oz (109g)
- Included Cable Length: 4" (102mm)
- Product Color and Material: Silver and Black ABS
Packaging Dimensions
Packaging Style: Retail Box
- Length: 5.43” (138mm)
- Depth: 1.07” (27mm)
- Height: 3.74” (95mm)
- Weight: 5.8oz (165g)
Master Carton: 40 pcs
What's in the Box
- 1x VT300 Dock
- 1x Quick Start Manual
| Return Policy | Time to Return |
|---|---|
| Standard Return Policy | We offer a hassle-free 30-day returns policy for domestic (US) orders, excluding non-refundable items. Refund or Replacement within 30 days of the delivery date. All products that fall under the Standard Return Policy qualify for our 30-Day Hassle-Free Returns. |
| Replacement Only Return Policy | Replacement within 30 days of the delivery date. |
| Manufacturer Only Return Policy | Covered by the manufacturer's warranty. Please refer to the terms and conditions for the manufacturer's warranty or contact the manufacturer. |
FAQ
Yes, the VisionTek VT300 Docking Station has an HDMI port that allows you to connect your laptop to a monitor or display.
