UVC-G5-Dome-Ultra

$129.99

Ubiquiti UniFi G5 Dome Ultra Network Camera, 4MP 2K HD, 102.4° Wide-Angle, 65ft IR Night Vision, AI Event Detection, PoE, Indoor, Tamper-Resistant, White - UVC-G5-DOMEULTRA (1 Year Warranty)

Name: Ubiquiti UniFi G5 Dome Ultra Network Camera, 4MP 2K HD, 102.4° Wide-Angle, 65ft IR Night Vision, AI Event Detection, PoE, Indoor, Tamper-Resistant, White - UVC-G5-DOMEULTRA (1 Year Warranty)
Brand: Ubiquiti
SKU: UVC-G5-Dome-Ultra
Price: 129.99 USD
Availability: OutOfStock

Brand New

FREE Returns

Maximum Video Resolution:

2688x1512 See available options
3840x2160 See available options
1920x1920 See available options
3264x2448 See available options

Maximum Frame Rate:

30fps See available options
24fps See available options

Effective Camera Resolution:

4Megapixel See available options
8Megapixel See available options
10Megapixel See available options
5Megapixel See available options
12Megapixel See available options

Product variants

4MP 2K

HD Resolution

102.4°

Wide Angle

65ft IR

Night Vision

AI Detection

Event Recognition

PoE

Power & Data

Tamper Resistant

IK06 Rating

Out of stock

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

1-Year Warranty

Key Features

🎥 2K (4MP) resolution with 2688 x 1512 max video quality
👁️ Ultra-wide 102.4° horizontal viewing angle
🌙 65 ft IR night vision capability
🤖 AI-powered event detection
⚡ PoE (Power over Ethernet) support
🔒 Vandal and tamper-resistant dome design
🎯 30 fps maximum frame rate
🌡️ Operating temperature range: -4°F to 104°F
💪 IK06 impact protection rating
🔧 Surface mount with optional flush mounting

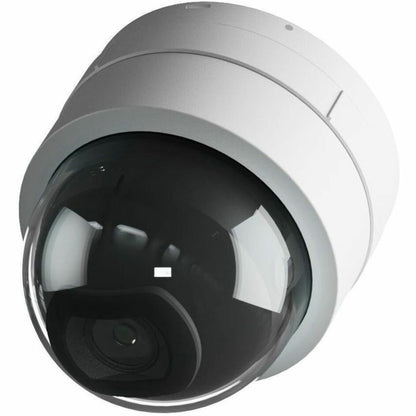

White dome security camera with dark tinted dome cover showing internal lens assembly

Crystal-Clear 2K Resolution with Ultra-Wide Coverage

The G5 Dome Ultra camera features a sleek, compact design that houses powerful 4MP imaging capabilities. The polycarbonate dome and aluminum alloy construction ensure durability while maintaining an aesthetically pleasing appearance. The camera's advanced optics deliver exceptional clarity across its expansive 102.4° horizontal field of view, making it ideal for comprehensive indoor surveillance.

Technical Specifications

4MP sensor resolution for detailed surveillance coverage
102.4° horizontal field of view for wide area monitoring
IK06-rated vandal-resistant housing

Applications

Reception area monitoring with wide-angle coverage
Retail store security with high-detail capture
Office corridor surveillance with tamper protection

Exploded view of G5 Dome Ultra camera components including mounting hardware and installation accessories

Complete Installation Kit for Flexible Mounting

Every component needed for professional installation comes included with the G5 Dome Ultra. The comprehensive mounting kit features precision-engineered brackets, mounting plates, and hardware designed for secure placement. The PoE-compatible connection system streamlines installation while ensuring reliable power and data transmission through a single cable.

Technical Specifications

Complete mounting hardware kit included
PoE connectivity for single-cable installation
Multiple mounting options for versatile deployment

Applications

Surface mount installation in offices
Flush ceiling integration in corporate environments
Quick deployment in retail locations

G5 Dome Ultra camera installed flush in white ceiling showing clean integration

Low-Profile Ceiling Integration

The G5 Dome Ultra's flush mount capability enables seamless integration into ceiling installations. The camera's minimal profile maintains architectural aesthetics while providing comprehensive surveillance coverage. The precision-engineered mounting system ensures stable positioning and reliable operation while concealing all mounting hardware.

Technical Specifications

Flush mount design for discreet installation
Clean ceiling integration with concealed hardware
Maintains full pan/tilt functionality when flush mounted

Applications

Executive office surveillance with minimal visibility
Hotel corridor monitoring with architectural integration
Retail environment coverage with clean aesthetics

G5 Dome Ultra camera mounted on pendant mount from ceiling with integrated cable management

Pendant Mount for Extended Coverage

The pendant mount configuration offers enhanced flexibility for optimal camera positioning. This installation option extends the camera's coverage range while maintaining the sleek aesthetic of the G5 Dome Ultra. The secure mounting system includes integrated cable management for a clean, professional appearance.

Technical Specifications

Integrated cable management system
Adjustable pendant length for optimal positioning
Secure mounting system with stability features

Applications

High-ceiling installation in warehouses
Lobby surveillance with extended coverage
Open office monitoring with flexible positioning

Product details

General Information

Manufacturer

Ubiquiti Inc.

Manufacturer Part Number

UVC-G5-Dome-Ultra

Brand Name

Ubiquiti

Product Line

UniFi

Product Model

G5

Product Name

G5 Dome Ultra

Product Type

Network Camera

Technical Information

Recording Formats

2K

HD Recording

Yes

Night Vision

Yes

Night Vision Distance

65.62 ft

Night Vision Type

Infrared

AI-powered

Yes

Display & Graphics

Image Sensor Type

CMOS

Image Sensor Size

1/2.4''

Color Supported

Color

Field of View

H: 102.4°, V: 54.9°, D: 120.6°

Effective Camera Resolution

4 Megapixel

Video

Maximum Video Resolution

2688 x 1512

Maximum Frame Rate

30 fps

Lens

Lens Type

Fixed

Network & Communication

Connectivity Technology

Wired

Ethernet Technology

Fast Ethernet

Remote Management

Yes

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Maximum Power Consumption

4.20 W

Input Voltage

57 V DC
36 V DC

Power Source Type

PoE
DC

Physical Characteristics

Mount Type

Surface Mount

Form Factor

Dome

Durability

Vandal Resistant
Tamper Resistant

Color Family

White

Product Color

White

Product Material

Aluminum Alloy
Polycarbonate

Diameter

2.5''

Weight (Approximate)

6.17 oz

Environmental Conditions

Minimum Operating Temperature

-4°F (-20°C)

Maximum Operating Temperature

104°F (40°C)

Minimum Operating Humidity (Non-condensing)

10%

Maximum Operating Humidity (Non-condensing)

90%

Miscellaneous

Features

2D Noise Reduction
White Balance
Event Detection
Noise Reduction
3D Noise Reduction

Indoor/Outdoor

Indoor

Impact Protection Rating

IK06

Included in the Box

G5 Dome Camera
Mounting Hardware
Quick Guide

Similar Products

Save 27%

Wisenet

Wisenet Q Series 5MP Network IR Dome Camera, NDAA Compliant, HD Night Vision 65ft,...

$269.99 $370.49

5MP

Resolution

65ft

Night Vision

30fps

Frame Rate

H.265

Compression

WDR

Dynamic Range

RJ-45

Network

Save 11%

Wisenet

Wisenet Q Series 5MP Network IR Dome Camera, HD Night Vision 65ft, NDAA Compliant,...

$329.99 $370.49

5MP

CMOS Sensor

IR Vision

65ft Range

30fps

H.265 Video

WDR

Wide Dynamic

Multi Mount

7 Options

NDAA

Compliant

Save 28%

Wisenet

Wisenet Q Series 5MP Network IR Dome Camera, Wide Dynamic Range, Night Vision 65ft...

$339.99 $470.49

5MP

Resolution

65ft

Night Vision

H.265

Compression

IP66/IK10

Rated

PoE

Powered

SD

Storage

Save 26%

Wisenet

Wisenet Q 5MP Network IR Bullet Camera, Outdoor IP66 IK10, 2.8mm Lens, H.265/H.264...

$349.99 $470.89

5MP

Resolution

IR 65ft

Night Vision

IP66 IK10

Weatherproof

120dB WDR

Dynamic Range

H.265/H.264

Triple Codec

2.8mm f/2.0

Wide Lens

Honeywell Home

Honeywell Home 30 Series 5MP WDR Network Camera, Rugged Fisheye Design, HD IR Nigh...

$609.99

5MP

Resolution

Fisheye

Design

65ft

Night Vision

H.265

Compression

CMOS

Sensor

30fps

Frame Rate

FAQs

What are the key features of the Ubiquiti G5 Dome Ultra camera?

The Ubiquiti G5 Dome Ultra camera offers several premium features including 2K (4MP) video resolution with 2688 x 1512 maximum resolution, a wide 102.4° horizontal viewing angle, and 20m (65 ft) IR night vision capability. It's powered by PoE (Power over Ethernet), features AI-powered event detection, and is designed for indoor use. The camera is ultra-compact and tamper-resistant, constructed with aluminum alloy and polycarbonate materials. It supports up to 30fps frame rate and includes advanced features like 2D/3D noise reduction and white balance.

What are the night vision capabilities of the G5 Dome Ultra?

The G5 Dome Ultra features powerful infrared night vision capabilities with a range of up to 65.62 feet (20 meters). The camera utilizes IR technology to provide clear surveillance in complete darkness, making it effective for 24/7 monitoring. This feature automatically activates in low-light conditions, ensuring continuous surveillance regardless of lighting conditions.

What are the mounting options and physical specifications of the camera?

The G5 Dome Ultra is designed for surface mounting and offers an optional flush mount for in-ceiling installation. The camera has a compact dome form factor with a 2.5-inch diameter and weighs approximately 6.17 ounces. It's constructed with durable aluminum alloy and polycarbonate materials, featuring both vandal-resistant and tamper-resistant properties with an IK06 impact protection rating. The camera comes in white color to blend seamlessly with most indoor environments.

What are the power requirements and consumption of the G5 Dome Ultra?

The G5 Dome Ultra can be powered through PoE (Power over Ethernet) or DC power source. It accepts input voltage of 36V DC or 57V DC and has a maximum power consumption of just 4.20W. The PoE capability allows for simple single-cable installation, providing both power and network connectivity through one Ethernet cable.

What environmental conditions can the camera operate in?

The G5 Dome Ultra is designed for indoor use and operates within a temperature range of -4°F (-20°C) to 104°F (40°C). It can function in humidity conditions ranging from 10% to 90% non-condensing. While it's built with durability in mind, it's specifically optimized for indoor environments and should not be used outdoors.
