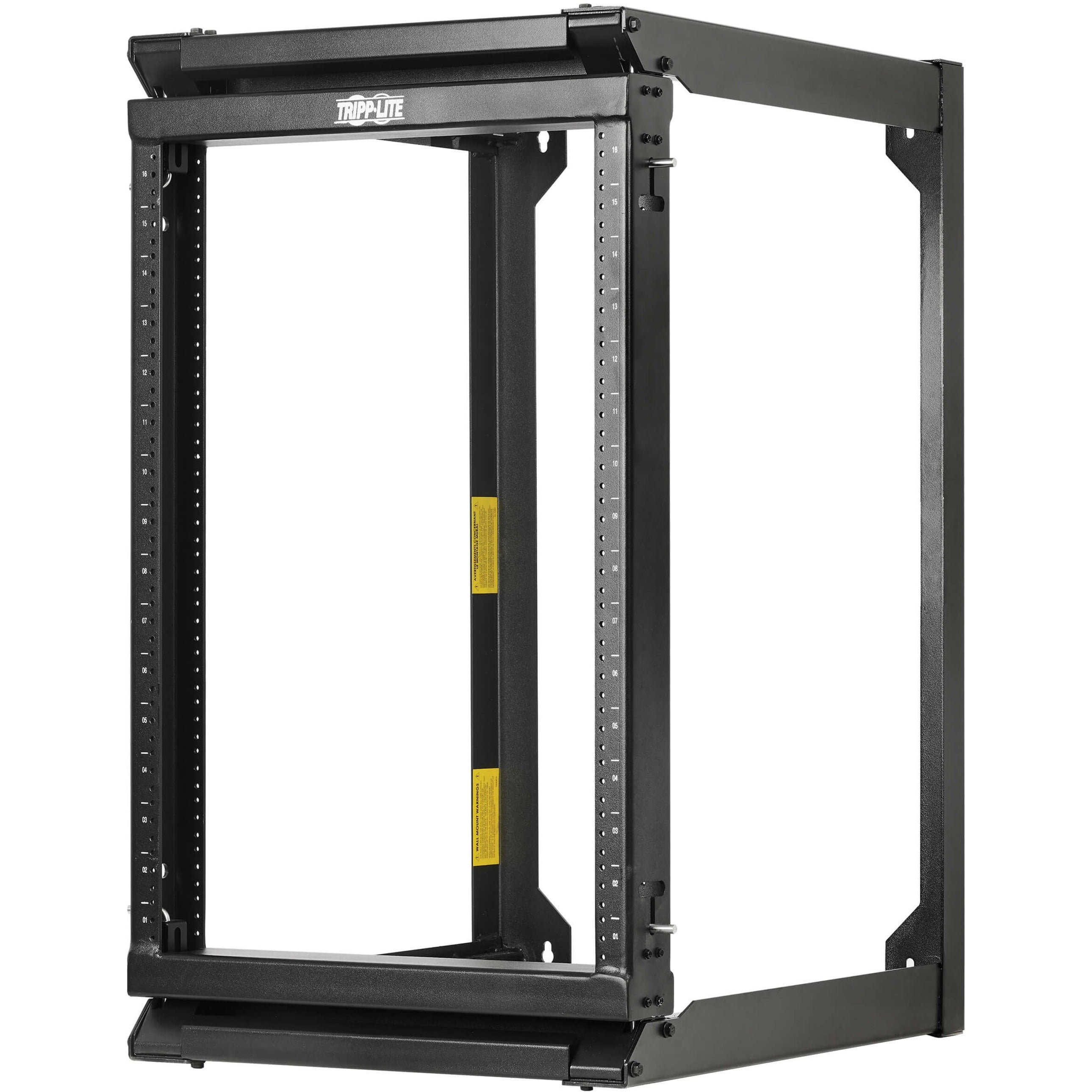

Front angled view of Tripp Lite SRWO16US 16U wall-mount open frame rack with hinged design

Space-Saving 16U Open Frame Design

The SRWO16US open frame rack optimizes vertical space while maintaining full access to equipment. Its sturdy construction supports up to 150 pounds of networking equipment, making it ideal for switches, servers, and patch panels. The open architecture promotes natural airflow and heat dissipation.

Technical Specifications

  • 16U rack height capacity
  • EIA-standard 19-inch width compatibility
  • 22-inch maximum mounting depth

Applications

  • Network closet organization
  • Small office IT infrastructure
  • Telecommunications equipment mounting
Front view of wall-mount rack frame showing mounting holes and structural design

Direct Wall-Mount Installation Framework

Purpose-built mounting system features strategically placed mounting holes for secure wall attachment. The frame's design ensures even weight distribution and stable equipment support. Integrated mounting points accommodate standard wall stud spacing.

Technical Specifications

  • 16-inch on-center mounting hole spacing
  • Heavy-duty steel construction
  • Black powder-coat finish

Applications

  • Permanent wall installation
  • Load-bearing wall mounting
  • Secure equipment housing
Side view of open frame rack showing hinge mechanism

Hinged Access System

Innovative hinged design allows the frame to swing open for comprehensive access to equipment and cables. The secure locking mechanism maintains position during maintenance while providing quick access when needed.

Technical Specifications

  • Full-frame swing access
  • Integrated hinge system
  • Position lock mechanism

Applications

  • Easy equipment maintenance
  • Cable management access
  • Rear equipment installation

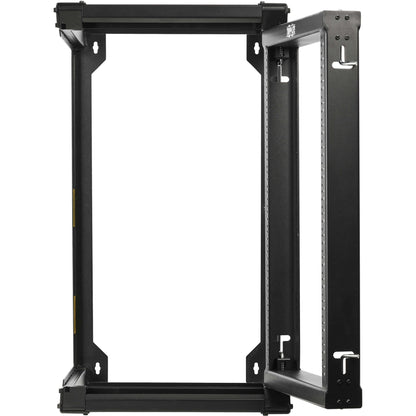

Open frame rack with swing mechanism demonstrated

Dual-Direction Swing Capability

Adaptable mounting system allows left or right-swing configuration to suit any installation environment. The frame maintains structural integrity while providing flexible access options for different space configurations.

Technical Specifications

  • Bi-directional swing operation
  • Configurable hinge placement
  • Secure swing lock system

Applications

  • Corner installations
  • Restricted access environments
  • Multiple rack deployments

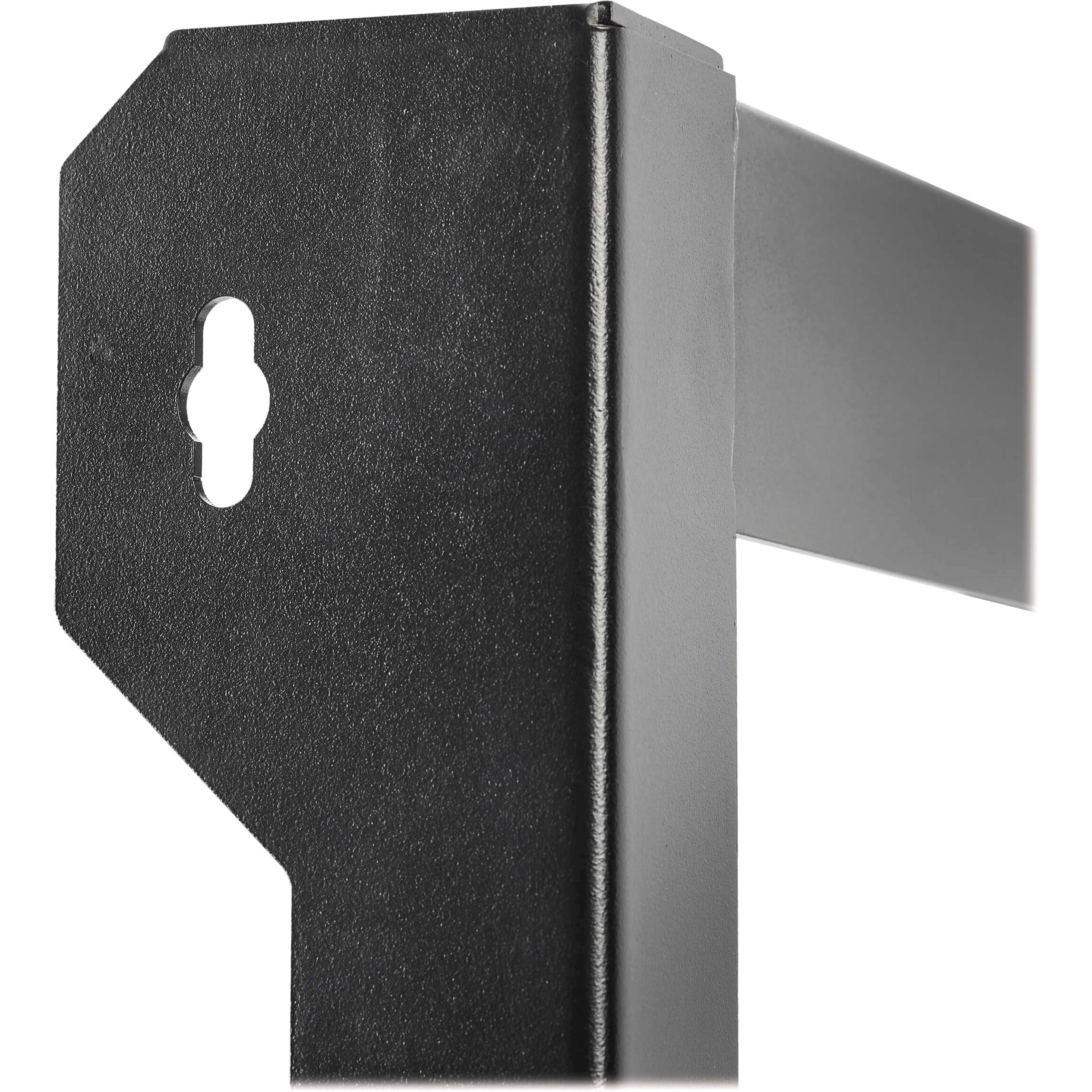

Close-up of rack corner support structure

Enhanced Stability Framework

Reinforced corner design provides additional stability and support for mounted equipment. The structural engineering ensures consistent performance under maximum load conditions.

Technical Specifications

  • Reinforced corner supports
  • Load-bearing frame design
  • Industrial-grade construction

Applications

  • Heavy equipment mounting
  • High-density installations
  • Critical infrastructure support
Detailed view of rack mounting interface

Precision Mounting Interface

Engineered mounting points ensure precise equipment alignment and secure installation. The frame features multiple mounting options for various equipment types and sizes.

Technical Specifications

  • Multiple mounting point options
  • Standard rack unit spacing
  • Equipment alignment guides

Applications

  • Mixed equipment installation
  • Precise alignment requirements
  • Standard rack mount equipment
Front view of vertical mounting rails with unit markers

Vertical Rail Configuration

Numbered rack unit markings facilitate precise equipment placement. The vertical rails accommodate standard rack mount equipment with threaded mounting points.

Technical Specifications

  • Numbered U-space markers
  • Threaded mounting holes
  • Standard rack unit spacing

Applications

  • Equipment inventory management
  • Space planning optimization
  • Quick installation reference
Side view showing full frame access capability

Full Frame Access Design

Complete frame access enables efficient cable routing and equipment maintenance. The open design allows for flexible installation approaches and easy equipment modifications.

Technical Specifications

  • Complete frame swing access
  • Cable management space
  • Maintenance accessibility

Applications

  • Complex cable installations
  • Regular maintenance access
  • Equipment upgrades
Open position view of rack frame

Secure Equipment Access

The frame provides secure equipment access while maintaining structural integrity. The design allows for quick access to both front and rear equipment surfaces.

Technical Specifications

  • Secure frame positioning
  • Dual-side access capability
  • Maintenance-friendly design

Applications

  • Secure equipment servicing
  • Dual-sided equipment access
  • Installation flexibility
Angled view of complete rack assembly

Professional Installation Platform

The rack provides a professional-grade platform for network and server equipment installation. Its design accommodates various equipment depths and sizes.

Technical Specifications

  • Variable equipment depth support
  • Professional-grade construction
  • Flexible mounting options

Applications

  • Professional IT installations
  • Network infrastructure deployment
  • Server room organization
Close-up of rack unit number markings

Precision Unit Markings

Clear rack unit markings ensure accurate equipment placement and space management. The numbered system facilitates equipment inventory and installation planning.

Technical Specifications

  • Clear unit numbering system
  • Standard rack unit spacing
  • Visual alignment guides

Applications

  • Precise equipment placement
  • Space utilization planning
  • Installation documentation
Detail of mounting surface texture and finish

Durable Mounting Surface

Heavy-duty mounting surface ensures long-term stability and reliability. The textured powder coat finish provides protection against wear and environmental factors.

Technical Specifications

  • Textured powder coat finish
  • Corrosion-resistant surface
  • Industrial-grade durability

Applications

  • Long-term installations
  • High-traffic environments
  • Industrial applications

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

SRWO16US

Brand Name

Tripp Lite

Product Line

SmartRack

Product Model

SRWO16US

Product Name

SmartRack 16U Wall-Mount 2-Post Open Frame Rack, Hinged Front, Heavy Duty

Product Type

Rack Frame

Technical Information
Rack Type

Open Frame

Application/Usage

Switch
Server
Patch Panel
PDU
Networking
UPS

Features

Heavy Duty
Cable Management

Rack Post Quantity

2

Physical Characteristics
Form Factor

Floor Standing

Product Color

Black Powder Coat

Product Material

Steel

Static/Stationary Weight Capacity

149.91 lb

Height

36.6

Width

22.3

Depth

25.2

Weight (Approximate)

71.69 lb

Rack Height

16U

Rack Width

19

Rack Depth

22

Miscellaneous
Package Contents

  • SRWO16US 16U Wall-Mount 2-Post Open Frame Rack, Hinged
  • 2 x Wall-Mount Bracket Frames
  • 2 x Front Rail Assemblies
  • Swinging Foor Assembly
  • 16 x M6 Hex Bolts For Assembly
  • Owner's Manual

Assembly Required

Yes

Environmentally Friendly

Yes

Environmental Certification

RoHS

Country of Origin

China

Warranty
Limited Warranty

5 Year

Included in the Box

  • icon_list|open frame rack|Open Frame Rack Main unit icon

    Open Frame Rack

  • icon_list|wall-mount brackets|Wall-Mount Brackets Mounting hardware icon

    Wall-Mount Brackets

  • icon_list|front rail assemblies|Front Rail Assemblies Rack components icon

    Front Rail Assemblies

  • icon_list|swinging door assembly|Swinging Door Assembly Access panel icon

    Swinging Door Assembly

  • icon_list|m6 hex bolts|M6 Hex Bolts Assembly hardware icon

    M6 Hex Bolts

  • icon_list|owner's manual|Owner's Manual Documentation icon

    Owner's Manual

FAQs

What is the weight capacity of the Tripp Lite SRWO16US rack?
The Tripp Lite SRWO16US has a static weight capacity of 150 pounds (68 kilograms). This heavy-duty capacity makes it suitable for mounting various equipment including servers, switches, patch panels, and UPS systems.
What are the dimensions of the SRWO16US rack?
The SRWO16US rack measures 36.6" in height, 22.3" in width, and 25.2" in depth. It provides 16U of rack space and can accommodate 19-inch wide standard equipment with a maximum depth of 22 inches.
What type of equipment can be installed in this rack?
This rack is designed for multiple types of equipment including switches, servers, patch panels, PDUs, networking equipment, and UPS systems. It's compatible with any EIA-standard 19-inch rack equipment up to 22 inches deep that can be mounted in a 2-post configuration.
How does the hinged front feature work?
The rack's hinged front can be mounted to open either to the left or right side, providing flexible installation options. This feature allows unrestricted access for installing, configuring, and servicing equipment. The swinging front frame can be secured in position during equipment installation for added stability.
What comes included in the package?
The package includes the SRWO16US 16U Wall-Mount 2-Post Open Frame Rack, 2 wall-mount bracket frames, 2 front rail assemblies, swinging door assembly, 16 M6 hex bolts for assembly, and an owner's manual. Note that wall-mounting fasteners are not included and must be user-supplied.
