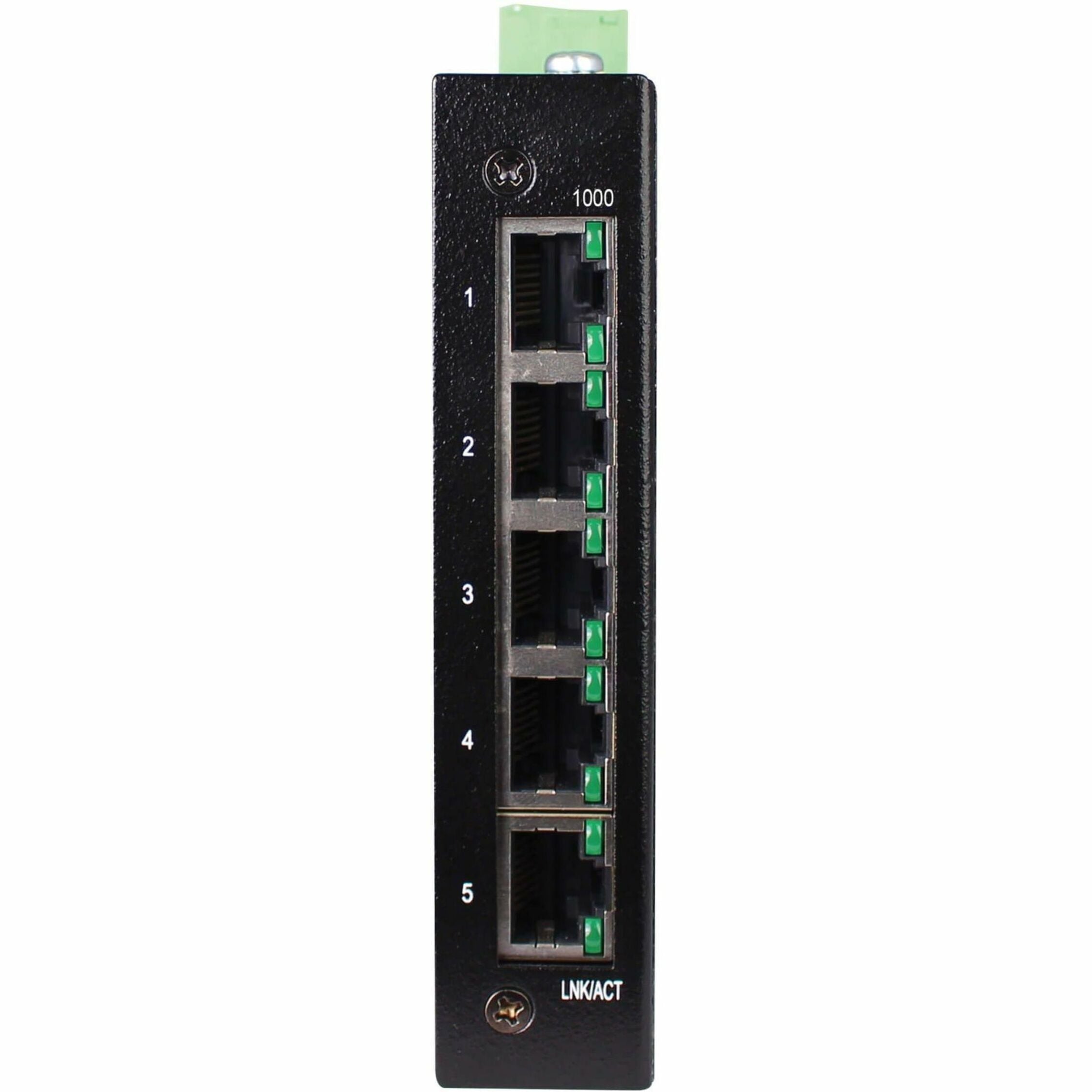

5-Port Unmanaged Industrial Gigabit Ethernet Switch with EIP QoS Support
The Tripp Lite series Eaton NGIU05E is a ruggedized 5-port unmanaged Gigabit Ethernet switch designed for industrial and commercial applications. With support for 10/100/1000 Mbps speeds and EIP QoS functionality, this compact switch delivers reliable network connectivity in harsh environments with temperatures ranging from -40°C to 75°C.
Industrial-Grade Performance and Reliability
Built with a high-strength aluminum housing, this industrial-grade switch withstands vibration, shock, and extreme temperatures. The fanless design and compact form factor (4.3" x 0.9" x 2.9") make it ideal for factory floors, warehouse operations, and space-constrained installations.
Advanced Network Features
- Automatic MDI/MDI-X crossover detection for plug-and-play setup
- MAC address auto-learning and auto-aging capabilities
- IEEE 802.3x flow control for smooth file transfers
- Maximum data transfer rate of 125 MB/s
- Support for IEEE 802.3, 802.3u networking standards
Flexible Mounting and Power Options
The NGI-U05E offers versatile installation options with pre-installed DIN rail clip for 35mm DIN rail mounting and wall-mounting brackets for vertical or horizontal placement. Power is supplied through a 3-pin 12-48VDC terminal block, with low power consumption of just 3W.
Compliance and Warranty
- TAA compliant for GSA Schedule purchases
- REACH and RoHS environmental compliance
- 3-year limited warranty
- Made in Taiwan
Package Contents
- 5-Port Unmanaged Industrial Gigabit Ethernet Switch
- Pre-installed DIN Rail-Mounting Clip
- Pre-installed Wall-Mounting Bracket
- Owner's Manual
5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving switch with EIP QoS transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ethernet/IP Quality of Service (EIP QoS)
The EIP QoS control mechanism is widely used for Ethernet/IP data streams. Based on the application requirements, this feature helps provide different priorities for different users or data streams. This helps ensure that the performance of data streams deliver at a certain level. Note : While NGI-U05E does support QoS, the feature is handled automatically by our product. If you want to control network traffic flow or prioritize specific ports to your personal preference, you must use a router in your network with a QoS tool to achieve this level of control.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05E adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05E supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NGI-U05E is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U05E accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted vertically or horizontally using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U05E is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
