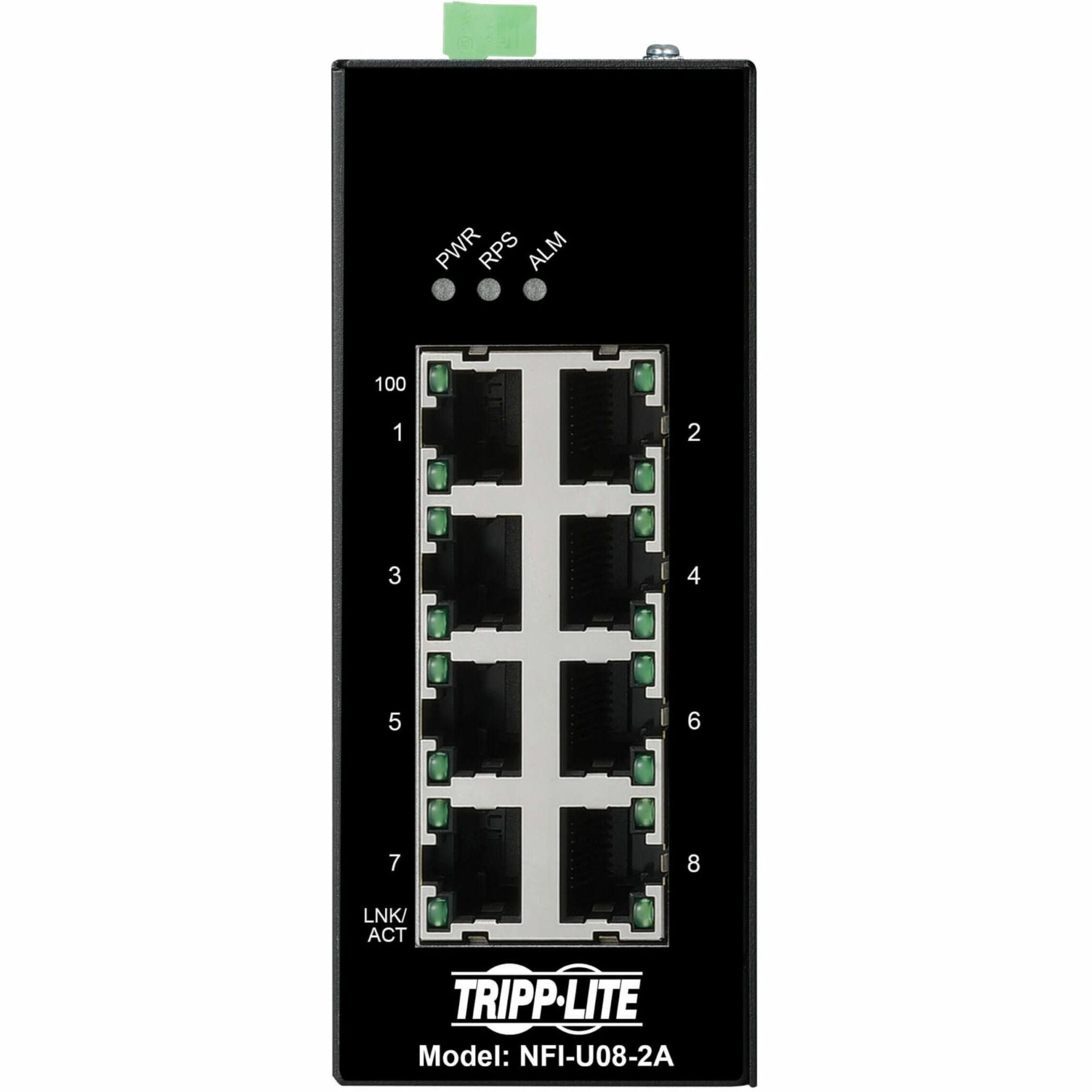

Tripp Lite NFIU082A 8-Port Industrial Ethernet Switch with EIP QoS Support
The Tripp Lite NFIU082A is a ruggedized 8-port unmanaged industrial Ethernet switch designed for harsh environments, featuring 10/100 Mbps connectivity and EIP QoS support. This compact, DIN-rail mountable switch operates in extreme temperatures from -40°C to 75°C, making it ideal for factory floors and industrial applications.
Industrial-Grade Performance and Reliability
Built with a high-strength metal housing, this industrial Ethernet switch delivers reliable performance in challenging environments. The device supports IEEE 802.3x flow control and features auto-negotiating 10/100 Mbps ports with MDI/MDI-X crossover detection for seamless connectivity.
Key Technical Specifications
- 8 Fast Ethernet ports with 10/100Base-T support
- Layer 2 switching capabilities with MAC address auto-learning
- Power consumption: 3W via 12-48VDC terminal block
- Compact dimensions: 3.9" x 2" x 4.6"
Advanced Network Features and Browser Compatibility
The NFI-U08-2A incorporates EIP QoS functionality for optimized data stream management and supports popular web browsers including Google Chrome and Microsoft Edge. The switch complies with networking standards IEEE 802.3, IEEE 802.3u, and IEEE 802.3x for comprehensive network compatibility.
Installation and Environmental Specifications
Pre-installed with a DIN rail clip for easy 35mm rail mounting, this TAA-compliant switch is engineered for industrial and commercial applications. The device is RoHS and REACH compliant, ensuring environmental responsibility while delivering robust performance in temperature extremes.
Package Contents
- 8-Port Unmanaged Industrial Ethernet Switch
- Pre-installed DIN Rail-Mounting Clip
- Owner's Manual
8-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving switch with EIP QoS transmits data over an Ethernet network. Eight auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ethernet/IP Quality of Service (EIP QoS)
The EIP QoS control mechanism is widely used for Ethernet/IP data streams. Based on the application requirements, this feature helps provide different priorities for different users or data streams. This helps ensure that the performance of data streams deliver at a certain level. Note : While NFI-U08-2A does support QoS, the feature is handled automatically by our product. If you want to control network traffic flow or prioritize specific ports to your personal preference, you must use a router in your network with a QoS tool to achieve this level of control.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U08-2A adds 10/100 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U08-2A supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer.
Works with the Most Popular Web Browsers
The NFI-U08-2A is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U08-2A accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Pre-Installed DIN Rail Clip Allows for Convenient Mounting
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 12-48VDC terminal block supplies power input. Device power must be supplied by LPS circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U08-2A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
