Network interface panel of PDU showing dual ethernet ports, USB configuration port, and digital load display

Advanced Network Monitoring and Power Management Interface

The PDU's intelligent interface combines real-time power monitoring with enterprise-grade network connectivity. The integrated LX Platform features dual network ports with Link and Status indicators, enabling seamless integration into your existing infrastructure while providing detailed load monitoring through the digital amperage display.

Technical Specifications

  • HTML5-based LX Platform interface for modern browser compatibility
  • Dual 10/100 Mbps ethernet ports for redundant networking
  • USB configuration port for initial setup and maintenance

Applications

  • Data center power distribution monitoring
  • Remote load balancing management
  • Network operations center power oversight
Full-length view of vertical PDU showing multiple power outlets

High-Density Power Distribution Solution

This vertical PDU maximizes rack space efficiency with its 0U form factor design. The 24-outlet configuration provides extensive power distribution capacity while maintaining a compact footprint, perfect for high-density server environments.

Technical Specifications

  • 24 NEMA 5-15/20R outlets for comprehensive power distribution
  • 0U vertical mounting design for space optimization
  • 1.9kW power capacity supporting mission-critical equipment

Applications

  • Server rack power management
  • Network cabinet power distribution
  • High-density computing environments
Close-up of digital LED amperage display showing load monitoring

Real-Time Load Monitoring Display

The bright LED display provides instant visibility of current power load, enabling proactive power management. This digital readout helps prevent circuit overloads and ensures optimal load distribution across all outlets.

Technical Specifications

  • High-visibility green LED display for clear readability
  • Real-time amperage monitoring up to 20A
  • Rotatable display orientation for flexible mounting

Applications

  • Load balancing verification
  • Power consumption monitoring
  • Capacity planning assessment
Close-up detail of PDU outlet showing NEMA 5-15/20R receptacle

Industrial-Grade Outlet Design

Each outlet is engineered for reliability and consistent power delivery. The rugged construction ensures secure connections and prevents accidental disconnections, while supporting both 5-15 and 5-20 plug configurations.

Technical Specifications

  • NEMA 5-15/20R compatible outlets
  • Reinforced socket construction
  • 20A current rating per outlet

Applications

  • Mission-critical equipment power distribution
  • Mixed IT equipment deployment
  • High-availability infrastructure support

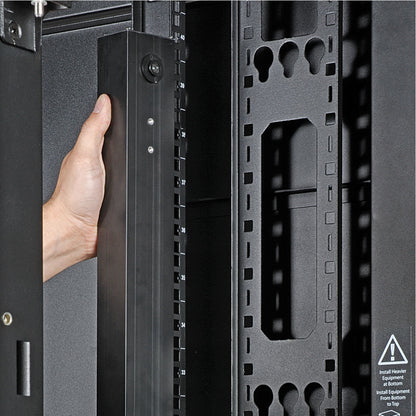

Demonstration of PDU rack mounting system and installation

Tool-Free Mounting System

The innovative mounting system enables quick installation without tools. Button mounting points and included brackets provide flexible orientation options, while maintaining secure placement in standard 19-inch racks.

Technical Specifications

  • Tool-free button mount installation
  • Compatible with standard 19-inch racks
  • Multiple mounting orientation options

Applications

  • Rapid deployment scenarios
  • Data center rack integration
  • Equipment room power infrastructure setup
Power cord adapter and plug configuration options

Secure Power Connection System

The PDU features a NEMA L5-20P locking plug with included 5-20P adapter, ensuring reliable power connectivity. This dual-compatibility design provides flexibility in power source options while maintaining secure connections.

Technical Specifications

  • NEMA L5-20P locking connector
  • Included NEMA 5-20P adapter
  • 10-foot heavy-duty power cord

Applications

  • Secure power source connection
  • UPS system integration
  • Generator backup power systems
Complete PDU installation kit with mounting hardware and accessories

Complete Installation Kit

Every PDU includes a comprehensive installation package with mounting hardware, cable management accessories, and configuration tools. The kit ensures proper installation and optimal performance from day one.

Technical Specifications

  • Full mounting bracket set included
  • Cable management accessories
  • Configuration software and documentation

Applications

  • New rack deployment
  • Infrastructure upgrades
  • Data center expansion projects

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

PDUMNV20LX

Brand Name

Tripp Lite

Product Name

PDUMNV20LX 1.9kW Single-Phase Monitored PDU

Product Type

PDU

Technical Information
PDU Type

Monitored

Phase

Single Phase

Plug/Connector Type

NEMA L5-20P

Receptacle Type

NEMA 5-15/20R

Receptacle Detail

24 x NEMA 5-15/20R

Power Description
Input Voltage

120 V AC

Input Voltage Range

100 V AC - 127 V AC

Output Voltage

127 V AC
120 V AC
100 V AC

Power Rating (Watt)

1900 W

Input Current

20 A

Management
Management

  • HTTP
  • HTTPS
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • telnet
  • SSH
  • FTP
  • DHCP
  • NTP

Physical Characteristics
Mounting Orientation

Vertical

Mount Type

Rack-mountable

Rack Height

0U

Height

70

Width

2.2

Depth

1.8

Weight (Approximate)

12.20 lb

Miscellaneous
Package Contents

  • PDUMNV20LX 1.9kW Single-Phase Monitored PDU
  • Configuration cable
  • 24 x Cable ties
  • 2 x Cord retention brackets
  • NEMA 5-20P adapter
  • Rack-mounting hardware
  • Nounting Bracket Accessory
  • Owner's manual

Environmentally Friendly

Yes

Environmental Certification

RoHS

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty
Limited Warranty

2 Year

Included in the Box

  • icon_list|monitored pdu|Monitored PDU Main unit icon

    Monitored PDU

  • icon_list|configuration cable|Configuration Cable Setup cable icon

    Configuration Cable

  • icon_list|cable ties|Cable Ties Main product icon

    Cable Ties

  • icon_list|cord retention brackets|Cord Retention Brackets Cable management icon

    Cord Retention Brackets

  • icon_list|nema 5-20p adapter|NEMA 5-20P Adapter Input adapter icon

    NEMA 5-20P Adapter

  • icon_list|rack hardware|Rack Hardware Mounting kit icon

    Rack Hardware

  • icon_list|mounting bracket|Mounting Bracket Hardware icon

    Mounting Bracket

  • icon_list|owner's manual|Owner's Manual Documentation icon

    Owner's Manual

FAQs

What are the key features of the Tripp Lite PDUMNV20LX PDU?
The Tripp Lite PDUMNV20LX is a 1.9kW Single-Phase Monitored PDU featuring 24 NEMA 5-15/20R outlets, real-time remote monitoring capabilities for voltage, frequency, and load levels via built-in network connection. It includes a 10-foot cord with NEMA L5-20P plug and 5-20P adapter, HTML5-based LX Platform interface for remote access, and supports multiple protocols including HTTP, HTTPS, SNMP, SSH, and more. The unit features cord retention brackets, digital ammeter for real-time monitoring, and versatile 0U mounting options.
What are the power specifications of this PDU?
The PDUMNV20LX operates at 120V AC with an input voltage range of 100-127V AC. It has a power rating of 1900W (1.9kW) and supports an input current of 20A. The PDU provides output voltages of 100V AC, 120V AC, and 127V AC through its 24 NEMA 5-15/20R outlets, making it suitable for a wide range of IT and industrial applications.
How can I monitor and manage this PDU remotely?
The PDU features a Java-free HTML5-based LX Platform network interface that enables comprehensive remote monitoring and management. You can access PDU status and receive email notifications through secure web browser, SNMP (v1, v2, v3), telnet, or SSH. It supports 10/100 Mbps auto-sensing for Ethernet network communication and is compatible with various protocols including HTTP, HTTPS, SMTP, FTP, DHCP, and NTP. The digital ammeter allows real-time current monitoring.
What are the mounting options and physical specifications?
The PDUMNV20LX is designed for 0U vertical mounting in EIA-standard 19-inch racks. It can be installed using included toolless mounting buttons or rack-mounting brackets. The unit measures 70" in height, 2.2" in width, and 1.8" in depth, weighing approximately 12.20 lb. The included PDUMVROTATEBRKT kit allows installation with outlets facing the rear for improved airflow or equipment access.
What comes included in the package?
The package includes the PDUMNV20LX PDU unit, configuration cable, 24 cable ties, 2 cord retention brackets, NEMA 5-20P adapter, rack-mounting hardware, mounting bracket accessory, and owner's manual. The cord retention brackets are particularly useful for preventing accidental cable disconnections.

Didn’t find your answer?

Don't hestitate to contact us

Compare Similar Products

Specification
Tripp Lite PDUMNV20LX Monitored PDU, 1.9kW Single-Phase, 120V, 24 NEMA 5-15/20R Outlets, Network Management, TAA Compliant, RoHS, Vertical 0U Mount - PDUMNV20LX (2 Year Warranty)
Tripp Lite PDUMNV20LX Monitored PDU, 1.9kW Sing...
Tripp Lite PDUMV20NETLX 1.9kW Single-Phase Switched PDU, 24 NEMA 5-15/20R Outlets, Remote Outlet Control, IPv4/IPv6 Management, 120V, 1920W, RoHS, TAA Compliant - PDUMV20NETLX (2 Year Warranty)
Tripp Lite PDUMV20NETLX 1.9kW Single-Phase Swit...
Tripp Lite PDUMVR20NETLX Switched PDU, 24-Outlet Network-Managed Power Distribution Unit, 2030W Single-Phase, TAA Compliant, RoHS Certified - PDUMVR20NETLX (2 Year Warranty)
Tripp Lite PDUMVR20NETLX Switched PDU, 24-Outle...
Price $519.99$809.99$1,209.99
Manufacturer Tripp Lite by Eaton Tripp Lite by Eaton Tripp Lite by Eaton
PDU Type Monitored Switched Switched
Receptacle Detail 24 x NEMA 5-15/20R 24 x NEMA 5-15/20R 24 x NEMA 5-15/20R
Power Rating (Watt) 1900 W 1920 W 2030 W
Management Protocols N/A N/A N/A
