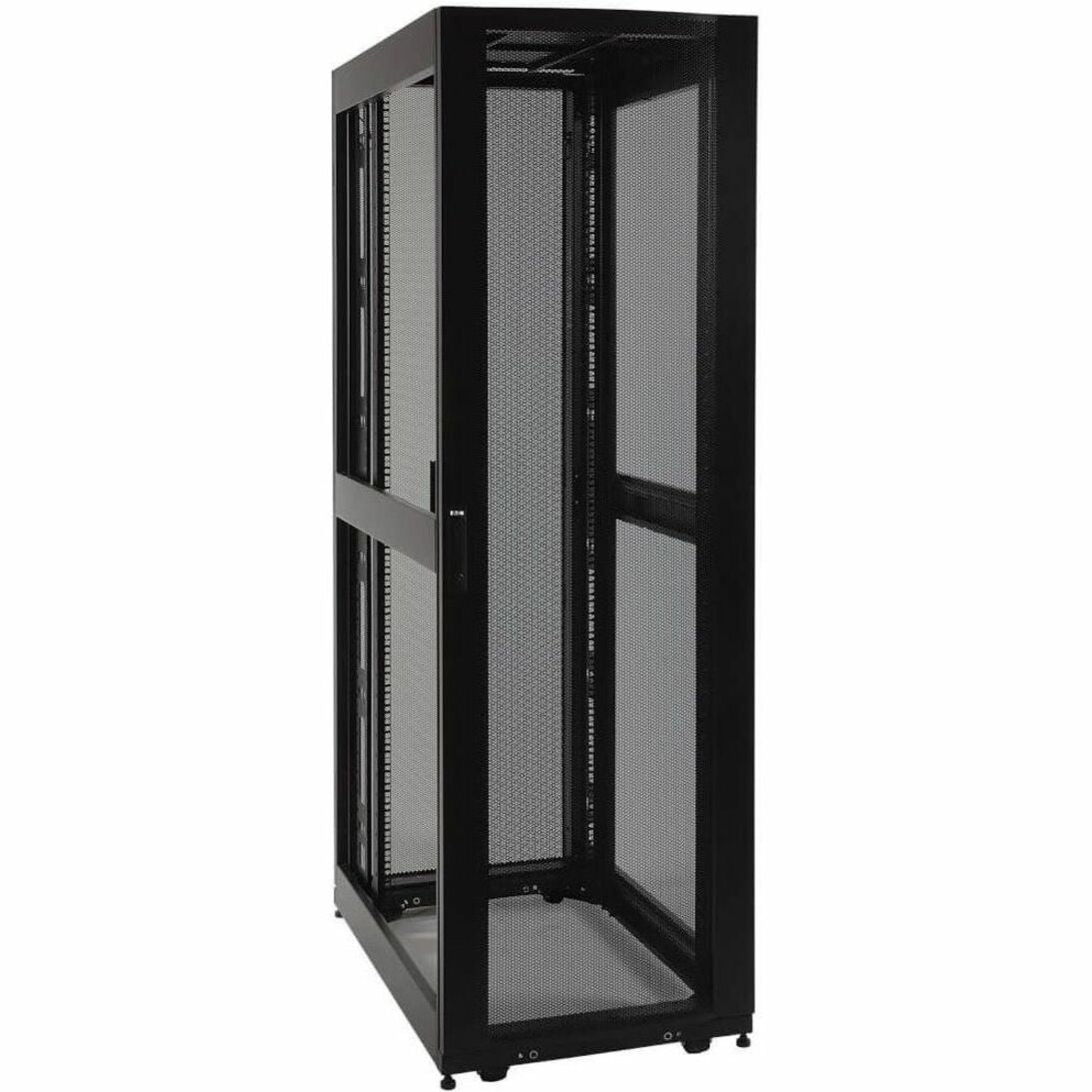

Tripp Lite 42U Mid-Depth SmartRack Expansion Server Rack Cabinet - Professional Data Center Equipment Solution
The Tripp Lite SR42UBMDEXP is a professional-grade 42U mid-depth expansion rack cabinet designed for modern data center applications. This 19-inch EIA-310-E compliant server rack offers an impressive 3000-pound weight capacity, toolless mounting capabilities, and integrated baying features for multiple cabinet configurations. With its 36-inch depth and 24-inch width, this expansion model is perfectly suited for hot aisle/cold aisle setups and efficient cable management solutions.
Advanced Design Features for Data Center Optimization
The SR42UBMDEXP features adjustable vertical mounting rails with quarter-inch increments from 4 to 31 inches, complemented by an easy-view depth index for precise equipment placement. The rack spaces are numbered for quick reference, while toolless button-mount 0U installation supports up to four PDUs and cable managers, significantly reducing cord clutter and improving airflow management.
Superior Ventilation and Thermal Management
Engineered with data center cooling in mind, the cabinet features a vented top panel with 65+% open space in door perforation patterns, exceeding server manufacturer requirements. The toolless removable top panel includes convenient cable routing ports, while the open-bottom design facilitates comprehensive cable access.
Professional Integration and Security Features
The rack includes integrated baying tabs for secure multi-cabinet configurations, with adjustable center-to-center width settings of 600mm or 24 inches to match standard data center floor tiles. All components feature comprehensive grounding to the enclosure frame, with front and rear threaded grounding points for facility earth ground connection.
Package Contents and Specifications
- 42U Mid-Depth SmartRack Expansion Rack (No Side Panels)
- 50 sets of M6 Cage Nuts, Screws, and Washers
- Stabilizing Brackets
- 2 Door Keys
- Owner's Manual
Technical Specifications
Dimensions: 78.5" height x 26.6" width x 36" depth
Weight: 186 lbs
Rack Height: 42U
Standard Rack Width: 19 inches
Warranty: 5-year product warranty
Compliance and Certification
The SR42UBMDEXP meets rigorous industry standards including UL60950, CE, EIA/ECA-310-E, and NOM (Mexico). It's also environmentally conscious, adhering to RoHS compliance standards for sustainable data center solutions.
