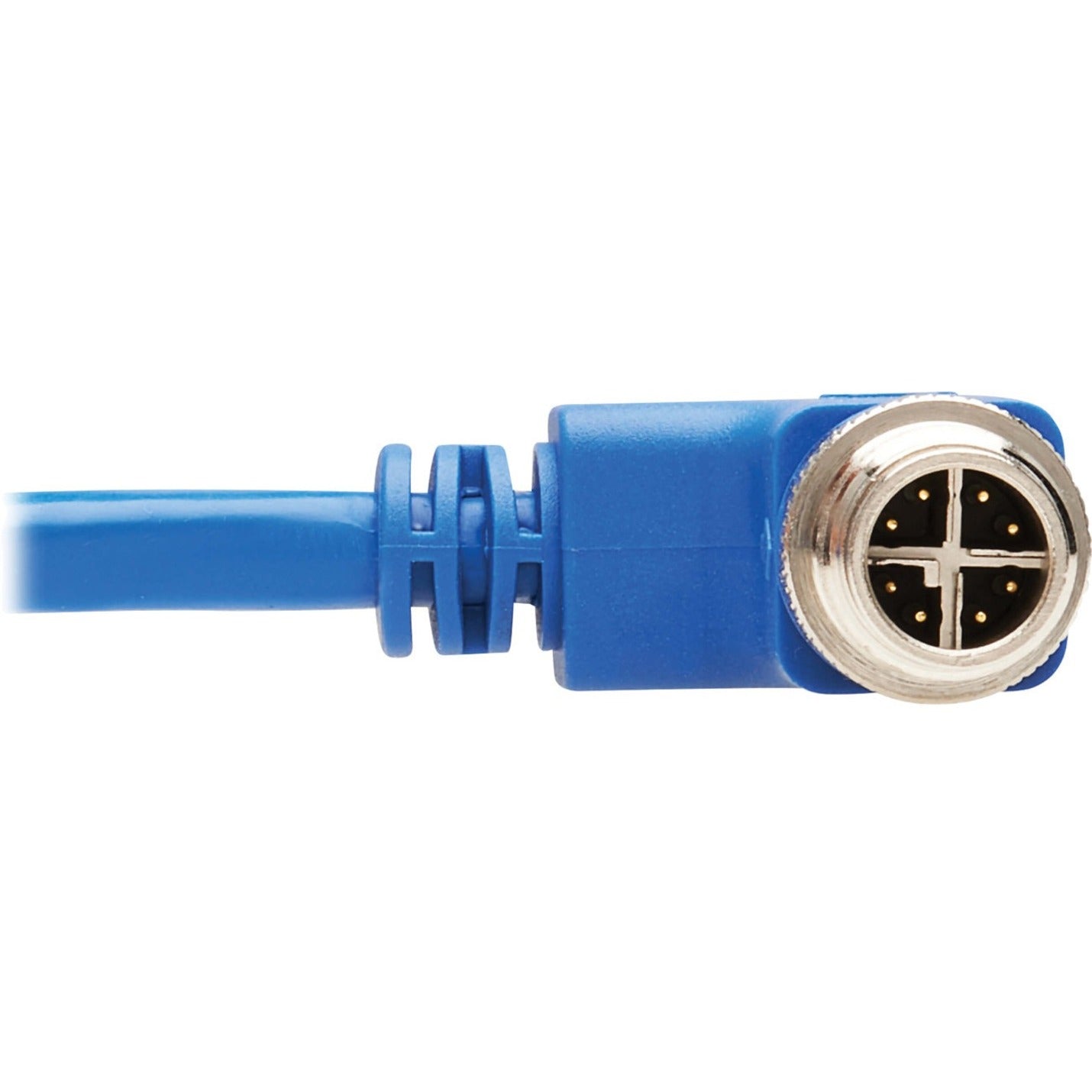

Close-up view of blue Cat6 cable showing right-angle M12 connector and RJ45 termination with strain relief-alternate-image1

Full length view of blue Cat6 industrial ethernet cable with M12 and RJ45 connectors-alternate-image2

Detailed view of M12 X-code connector pins and RJ45 termination interface-alternate-image3

Close-up of strain relief design on RJ45 connector end-alternate-image4

Detailed view of right-angle M12 connector construction and locking thread-alternate-image5

Close-up of M12 X-code connector pin layout and shielding design-alternate-image6

Tripp Lite by Eaton

NM12-604-02M-BL

ⓘ

AUTHORIZED
PARTNER

$59.99

Tripp Lite by Eaton Cat6 Network Cable, M12-X to RJ-45, Right-Angle, PoE++, Gigabit, IP68 Dust/Water Resistant, Industrial-Grade, Blue - NM12-604-02M-BL (Lifetime Warranty)

Name: Tripp Lite by Eaton Cat6 Network Cable, M12-X to RJ-45, Right-Angle, PoE++, Gigabit, IP68 Dust/Water Resistant, Industrial-Grade, Blue - NM12-604-02M-BL (Lifetime Warranty)
Brand: Tripp Lite by Eaton
SKU: NM12-604-02M-BL
Price: 59.99 USD
Availability: InStock

Brand New

FREE Returns

Product variants

Cat6

Gigabit Ethernet

IP68

Water resistant

60W

PoE++

M12-X

Industrial connector

Right-Angle

Space saving

CMR-LP

High power rated

In stock, ready to ship

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Monday, Jul 14

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Downloads

Manufacturer Brochure PDF Document

Key Features

🔌 Cat6 M12 X-Code cable with IP68 rating for complete dust & water protection
⚡ Supports 60W PoE for powering network devices without separate power supplies
🏭 Ideal for industrial environments with vibration, moisture & corrosion resistance
📡 1 Gbps data transfer rate with 23 AWG copper conductors
↪️ Right-angle M12 connector design for tight space installation
🛡️ CMR-LP certified for high-power installations with temperature management
🔒 M12 12mm locking thread for secure connections
🌊 Waterproof up to 1.5 meters for 60 minutes
🔷 Blue PVC jacket for easy identification
⚖️ 6.56 ft length with M12-X to RJ-45 connectivity

Tripp Lite by Eaton Cat6 Ne...

$59.99

Close-up view of blue Cat6 cable showing right-angle M12 connector and RJ45 termination with strain relief

Industrial-Grade M12 to RJ45 Connection Design

The robust right-angle M12 X-code connector paired with RJ45 termination delivers reliable Gigabit Ethernet connectivity in demanding industrial environments. The precision-engineered interface ensures consistent data transmission while the right-angle design reduces cable strain and enables installation in tight spaces.

Technical Specifications

IP68-rated M12 X-code connector for complete dust and water protection
Right-angle design optimized for space-constrained installations
23 AWG copper conductors for reliable Gigabit performance

Applications

Factory automation systems requiring compact cable routing
Manufacturing equipment exposed to washdown conditions
Industrial control panels with limited installation space

Full length view of blue Cat6 industrial ethernet cable with M12 and RJ45 connectors

Flexible Blue Cable Design for Easy Identification

The distinctive blue PVC jacket enables quick visual identification in complex industrial installations. The cable's flexibility and durability allow for smooth routing while maintaining optimal bend radius protection. The color-coding prevents accidental disconnection and simplifies maintenance procedures.

Technical Specifications

Blue PVC jacket for clear cable identification
CMR-rated construction for riser applications
6.56 ft length for precise installation requirements

Applications

Network infrastructure requiring clear cable management
Multi-device PoE installations
Industrial ethernet backbone cabling

Detailed view of M12 X-code connector pins and RJ45 termination interface

High-Performance Connector Interface Detail

The precision-engineered connector interfaces showcase the cable's enterprise-grade construction. The M12 X-code design features eight gold-plated contacts in a cross-shield configuration, while the RJ45 connector utilizes the standard TIA/EIA-568 pinout for universal compatibility.

Technical Specifications

8-pin X-coded M12 interface for Gigabit speeds
Gold-plated contacts for superior conductivity
Cross-shield design for EMI protection

Applications

High-speed industrial data transmission
EMI-sensitive manufacturing environments
Mission-critical network connections

Close-up of strain relief design on RJ45 connector end

Enhanced Strain Relief System

The integrated strain relief mechanism protects cable integrity at the connector junction. The molded design prevents cable stress and maintains proper bend radius, extending operational life in high-vibration industrial environments.

Technical Specifications

Molded strain relief boot for cable protection
Snagless design for secure installation
Vibration-resistant construction

Applications

Mobile industrial equipment connections
High-vibration manufacturing environments
Repetitive motion applications

Detailed view of right-angle M12 connector construction and locking thread

Ruggedized Right-Angle M12 Design

The industrial-grade right-angle M12 connector showcases robust construction with precision threading and secure locking mechanism. This design ensures consistent performance in wet and corrosive environments while facilitating installation in space-restricted locations.

Technical Specifications

12mm threaded locking mechanism
Corrosion-resistant metal housing
90-degree connector orientation

Applications

Washdown area installations
Corrosive industrial environments
Space-constrained equipment connections

Close-up of M12 X-code connector pin layout and shielding design

X-Coded Contact Configuration

The X-coded pin layout delivers optimal signal integrity for Gigabit Ethernet applications. The cross-shield design provides enhanced EMI protection while maintaining backward compatibility with standard M12 infrastructure.

Technical Specifications

X-coded pin arrangement for Gigabit speeds
Cross-shield EMI protection design
Backward compatible interface

Applications

High-speed industrial networks
EMI-sensitive applications
Legacy system integration

Product details

General Information

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

NM1260402MBL

Brand Name

Tripp Lite by Eaton

Product Model

NM12-604-02M-BL

Product Name

NM12-604-02M-BL Cat.6 Network Cable

Product Type

Network Cable

Technical Information

Cable Type

Category 6

Cable Length

6.56 ft

Connector Type on First End

M12-X Network - Male

Connector on First End Details

1 x M12-X Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Conductor

Copper

Shielding

No

Jacket Type

CMR

Device Supported

Switch
Network Device
VoIP Device
Access Control Device
Controller
Security Device
PoE-enabled Device
Surveillance Camera

American Wire Gauge

23 AWG

Data Transfer Rate

1 Gbit/s

Boot Type

Snagless

Features

Temperature Resistant
Corrosion Resistant
Lockable
Dust Resistant
Water Resistant
Damage Resistant
Heat Resistant
Moisture Resistant
Right-angled Connector
Strain Relief
Bend Resistant
PoE++
PoE
Vibration Resistant

Physical Characteristics

Jacket Color

Blue

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty

Limited Warranty

Lifetime

Included in the Box

Network Cable

Accessories

Save 28%

Tripp Lite

Tripp Lite NGI-U08C2POE8 Industrial Ethernet Switch, 8-Port PoE+ Gigabit, 2 SFP Sl...

$539.99 $755.00

8-Port

Gigabit PoE+

240W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mounting

Industrial

Aluminum Case

Unmanaged

Plug & Play

Save 29%

Tripp Lite

Tripp Lite NGI-U05C2POE4 Industrial Ethernet Switch, 5-Port Gigabit PoE+ 30W, 4 Po...

$439.99 $620.95

5-Port

Gigabit Switch

PoE+

30W Ports

120W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mountable

Industrial

Metal Case

Save 19%

Tripp Lite

Tripp Lite NGI-U08 Industrial Unmanaged Ethernet Switch, 8-Port Gigabit 10/100/100...

$239.99 $295.49

8-Port

Gigabit Ethernet

DIN Rail

Mountable

Metal Housing

Industrial Grade

5W Power

Low Consumption

1.1 lb

Lightweight

TAA Compliant

Certified

Save 28%

Tripp Lite

Tripp Lite NGI-U16 Industrial Ethernet Switch, 16-Port Unmanaged Gigabit Network, ...

$419.99 $580.49

16-Port

Gigabit Ethernet

Gigabit Speed

1000 Mbps

DIN Rail

Mountable

Low Power

16W Consumption

Metal Build

Industrial Grade

TAA Compliant

Government Ready

Tripp Lite by Eaton

Tripp Lite by Eaton ETHERNET SWITCH UNMANAGED 8-PORT POE+ 30W 2 SFP 10/100/1000 MB...

$1,989.99

FAQs

What is the main purpose of the Tripp Lite NM12-604-02M-BL cable?

The Tripp Lite NM12-604-02M-BL is a Cat6 M12 cable designed for connecting Gigabit Ethernet networks in challenging environments. It's specifically built for wet/humid conditions, areas with vibration, and harsh industrial settings like factories, warehouses, recycling plants, airports, and railways. The cable features an M12 X-Code connector with a 12mm locking thread, making it ideal for washdown and corrosive applications in industries such as agriculture, factory automation, and food/beverage facilities.

What is the IP68 rating on this cable, and what protection does it offer?

The IP68 rating on the M12 connector provides maximum protection against environmental factors. It offers 100% protection against dust ingress and can withstand immersion in water up to 1.5 meters deep for 60 minutes without any damage or performance degradation. This makes it extremely reliable for use in wet, dusty, or harsh industrial environments where standard cables might fail.

What are the PoE capabilities of this cable?

This Cat6 cable supports high-power 60W PoE++ (Power over Ethernet), allowing it to power various PoE-enabled devices such as surveillance cameras, VoIP telephones, and access control devices. This capability eliminates the need for separate power supplies and additional power cables, making installation more efficient and cost-effective, especially in locations far from AC outlets like poles or ceilings.

What are the connector types and length specifications?

The cable is 6.56 feet long and features an M12-X Network male connector on one end and an RJ-45 Network male connector on the other end. The M12 connector is designed at a right angle for easy installation in tight spaces, while the RJ-45 connector is snagless. Both connectors are engineered for reliable network connectivity in industrial environments.

What is the significance of the CMR-LP certification?

The CMR-LP certification indicates that this cable has been evaluated to handle marked current levels under various installation scenarios without exceeding its temperature rating. This certification ensures the cable can safely manage increased power levels without heat-related issues, making it ideal for installations requiring higher power transmission while maintaining safety standards.
