Tripp Lite by Eaton Cat6 Network Cable, M12-X to RJ-45, PoE++, IP68 Dust/Water Resistant, Right-Angle, Industrial-Grade, Gigabit, Blue, 3.28ft - NM12-604-01M-BL (Lifetime Warranty)

Name: Tripp Lite by Eaton Cat6 Network Cable, M12-X to RJ-45, PoE++, IP68 Dust/Water Resistant, Right-Angle, Industrial-Grade, Gigabit, Blue, 3.28ft - NM12-604-01M-BL (Lifetime Warranty)
Brand: Tripp Lite by Eaton
SKU: NM12-604-01M-BL
Price: 49.99 USD
Availability: InStock

Brand New

FREE Returns

Product variants

Cat6

Gigabit speed

IP68

Water resistant

60W

PoE++

M12-X

Industrial connector

3.28ft

Cable length

Right-angle

Space saving

In stock, ready to ship

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Monday, Jul 14

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Downloads

Manufacturer Brochure PDF Document

Key Features

🔌 Cat6 M12 X-Code cable with IP68 rating for industrial environments
💧 100% dust-proof and water-resistant up to 1.5m for 60 minutes
⚡ Supports 60W PoE for powering network devices
📡 1 Gbps data transfer rate with copper conductors
↪️ Right-angle M12 connector for tight spaces
🛡️ Corrosion, vibration, and temperature resistant
📏 3.28 ft length with M12-X to RJ-45 connectivity
🏭 Ideal for factories, warehouses, and harsh environments
🔒 CMR-LP certified for high-power installations
⚠️ Blue PVC jacket for easy identification

Tripp Lite by Eaton Cat6 Ne...

$49.99

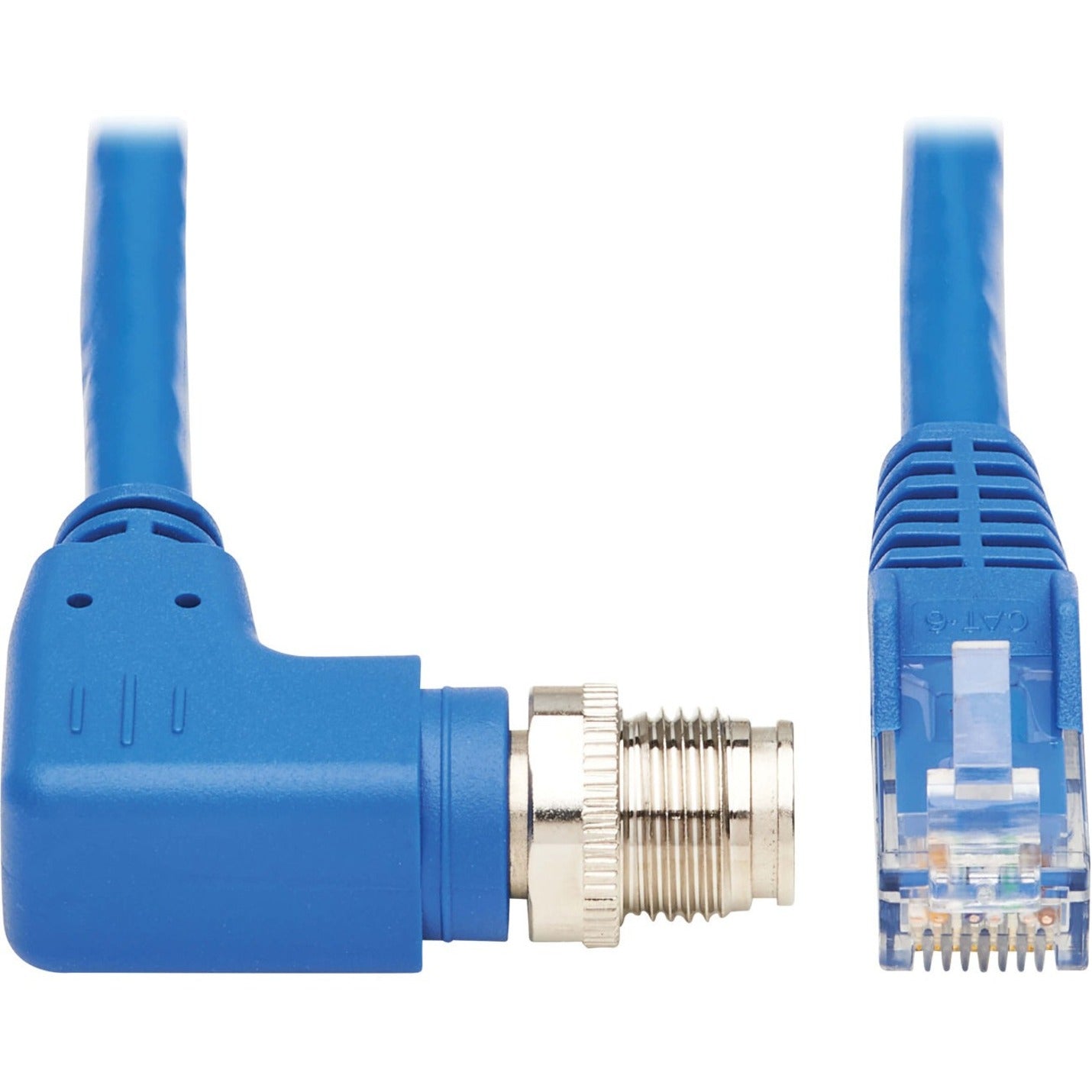

Close-up view of M12 X-Code and RJ-45 connectors on blue Cat6 industrial cable

Industrial-Grade Connectors for Maximum Network Reliability

The M12 X-Code and RJ-45 connectors showcase robust engineering designed for industrial environments. The right-angle M12 connector features a 12mm threaded locking mechanism that ensures secure connections in high-vibration areas, while the snagless RJ-45 end provides reliable data transmission up to 1 Gbps.

Technical Specifications

IP68-rated M12 X-Code connector for complete dust and water protection
Right-angle design for space-constrained installations
23 AWG copper conductors for optimal signal integrity

Applications

Factory automation systems requiring washdown-resistant connections
Machine shop equipment with high vibration exposure
Food processing facilities needing water-resistant network infrastructure

Detailed view of M12 X-Code connector pin layout showing cross-shaped configuration

X-Code Pin Configuration for High-Speed Data Transfer

The precision-engineered M12 X-Code connector features an 8-pin configuration optimized for Gigabit Ethernet performance. The cross-shaped pin layout provides superior signal isolation and electromagnetic interference protection, ensuring reliable data transmission in electrically noisy industrial environments.

Technical Specifications

8-pin X-Code design for Gigabit Ethernet support
Cross-shaped pin layout for optimal signal isolation
Corrosion-resistant nickel-plated contacts

Applications

High-speed industrial control networks
Manufacturing line monitoring systems
Automated material handling equipment

Full length view of blue industrial Cat6 cable with M12 and RJ-45 connectors

Flexible Design Meets Industrial Durability

The cable's blue PVC jacket combines flexibility with industrial-grade durability. The 3.28-foot length provides optimal reach for equipment connections while maintaining signal integrity. The bend-resistant construction prevents cable damage during installation and operation in tight spaces.

Technical Specifications

CMR-LP rated PVC jacket for temperature resistance
3.28-foot optimized length for equipment connections
Bend-resistant construction for installation flexibility

Applications

Connection between industrial switches and field devices
Robot control system wiring
Production line equipment integration

Close-up comparison of M12 X-Code and RJ-45 connector contact points

Enhanced Connector Design for Network Reliability

The detailed view highlights the cable's enterprise-grade construction, featuring gold-plated contacts in both the M12 and RJ-45 connectors. This premium contact design ensures consistent electrical connectivity and corrosion resistance, critical for maintaining network uptime in demanding industrial environments.

Technical Specifications

Gold-plated contacts for superior conductivity
Precision-engineered contact alignment
Industrial-grade contact durability

Applications

Mission-critical industrial network connections
High-reliability automation systems
Continuous operation manufacturing environments

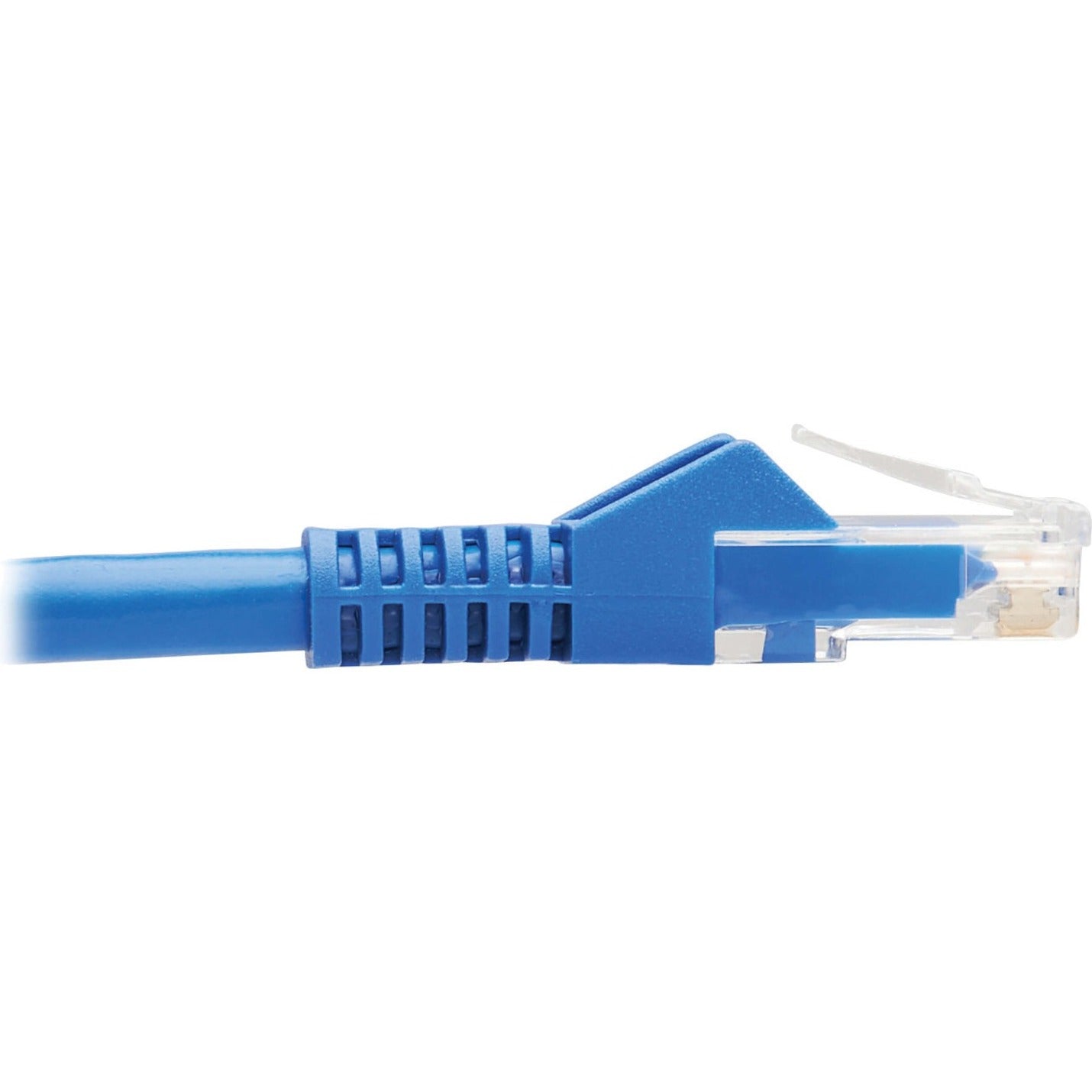

Detailed view of RJ-45 connector strain relief system

Strain Relief System for Cable Longevity

The integrated strain relief mechanism protects against cable stress and potential connection failures. The robust design incorporates multiple anchor points to distribute mechanical load, ensuring reliable network connectivity even in applications with frequent cable movement or vibration.

Technical Specifications

Multi-point strain relief design
Reinforced cable entry point
Snagless boot protection

Applications

Mobile industrial equipment connections
Robotics applications with cable movement
Vibration-prone manufacturing environments

Close-up of right-angle M12 connector design showing space-saving configuration

Right-Angle Engineering for Space Optimization

The M12 connector's right-angle design enables efficient cable routing in confined spaces. This thoughtful engineering allows for proper bend radius maintenance while minimizing stress on the cable and connector interface, ideal for tight installation environments in industrial equipment and control panels.

Technical Specifications

90-degree connector orientation
Optimized bend radius protection
Space-saving connector profile

Applications

Compact control panel installations
Space-constrained equipment connections
High-density network cabinet wiring

Product details

General Information

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

NM1260401MBL

Brand Name

Tripp Lite by Eaton

Product Model

NM12-604-01M-BL

Product Name

NM12-604-01M-BL Cat.6 Network Cable

Product Type

Network Cable

Technical Information

Cable Type

Category 6

Cable Length

3.28 ft

Connector Type on First End

M12-X Network - Male

Connector on First End Details

1 x M12-X Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Conductor

Copper

Shielding

No

Jacket Type

CMR

Device Supported

Switch
Network Device
VoIP Device
Access Control Device
Controller
Security Device
PoE-enabled Device
Surveillance Camera

American Wire Gauge

23 AWG

Data Transfer Rate

1 Gbit/s

Boot Type

Snagless

Features

Temperature Resistant
Corrosion Resistant
Lockable
Dust Resistant
Water Resistant
Damage Resistant
Heat Resistant
Moisture Resistant
Right-angled Connector
Strain Relief
Bend Resistant
PoE++
PoE
Vibration Resistant

Physical Characteristics

Jacket Color

Blue

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty

Limited Warranty

Lifetime

Included in the Box

Network Cable

Accessories

Save 28%

Tripp Lite

Tripp Lite NGI-U08C2POE8 Industrial Ethernet Switch, 8-Port PoE+ Gigabit, 2 SFP Sl...

$539.99 $755.00

8-Port

Gigabit PoE+

240W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mounting

Industrial

Aluminum Case

Unmanaged

Plug & Play

Save 29%

Tripp Lite

Tripp Lite NGI-U05C2POE4 Industrial Ethernet Switch, 5-Port Gigabit PoE+ 30W, 4 Po...

$439.99 $620.95

5-Port

Gigabit Switch

PoE+

30W Ports

120W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mountable

Industrial

Metal Case

Save 19%

Tripp Lite

Tripp Lite NGI-U08 Industrial Unmanaged Ethernet Switch, 8-Port Gigabit 10/100/100...

$239.99 $295.49

8-Port

Gigabit Ethernet

DIN Rail

Mountable

Metal Housing

Industrial Grade

5W Power

Low Consumption

1.1 lb

Lightweight

TAA Compliant

Certified

Save 28%

Tripp Lite

Tripp Lite NGI-U16 Industrial Ethernet Switch, 16-Port Unmanaged Gigabit Network, ...

$419.99 $580.49

16-Port

Gigabit Ethernet

Gigabit Speed

1000 Mbps

DIN Rail

Mountable

Low Power

16W Consumption

Metal Build

Industrial Grade

TAA Compliant

Government Ready

Tripp Lite by Eaton

Tripp Lite by Eaton ETHERNET SWITCH UNMANAGED 8-PORT POE+ 30W 2 SFP 10/100/1000 MB...

$1,989.99

FAQs

What are the key features and applications of the Tripp Lite NM12-604-01M-BL cable?

The Tripp Lite NM12-604-01M-BL is a Cat6 M12 cable designed for industrial environments, featuring an IP68-rated M12 connector that's dust-proof and water-resistant up to 1.5 meters for 60 minutes. It's ideal for factories, warehouses, railways, and food/beverage facilities. The cable supports Gigabit Ethernet (1 Gbps) and 60W PoE, making it perfect for connecting devices like surveillance cameras, VoIP phones, and access control systems. It includes a right-angle connector design for easy installation in tight spaces and features a blue PVC jacket for easy identification.

What type of connectors does this cable have and what's their configuration?

The cable features two different connector types: one end has an M12-X Network male connector with a 12-millimeter locking thread, while the other end has an RJ-45 Network male connector. The M12 connector is designed at a right angle to facilitate installation in confined spaces and reduce cable strain. Both connectors are snagless, and the M12 connector is specifically designed for industrial applications requiring protection against harsh environmental conditions.

What is the cable's PoE (Power over Ethernet) capability?

The cable supports high-power 60W PoE++ (Power over Ethernet), allowing it to power various network devices like surveillance cameras, VoIP telephones, and access control devices without requiring separate power supplies. This capability is particularly valuable for installations where AC power outlets are not readily available, such as on poles or ceilings, and helps reduce installation costs by eliminating the need for separate power cabling.

What environmental protections does this cable offer?

This cable offers comprehensive environmental protection with an IP68 rating, making it 100% dust-proof and water-resistant up to 1.5 meters for 60 minutes. It's also temperature, corrosion, vibration, moisture, and damage resistant. The cable is specifically designed for harsh environments like factories, warehouses, recycling plants, and food/beverage facilities where exposure to challenging conditions is common.

What are the cable's technical specifications?

The cable is a Category 6 (Cat6) network cable measuring 3.28 feet in length, constructed with 23 AWG copper conductors. It supports data transfer rates up to 1 Gigabit per second. The cable features a CMR-rated PVC jacket in blue color, is unshielded (UTP), and is certified as CMR-LP for installations with increased power levels. It's designed to maintain performance without exceeding temperature ratings when handling marked current loads.
