Tripp Lite by Eaton

NM12-603-05M-BL

ⓘ

AUTHORIZED
PARTNER

$89.99 $94.40

Tripp Lite by Eaton M12 X-Code Cat6 Industrial Network Cable, Right-Angle Connector, PoE++, IP68 Dust/Water Resistant, Vibration Resistant, Blue - NM12-603-05M-BL (Lifetime Warranty)

Name: Tripp Lite by Eaton M12 X-Code Cat6 Industrial Network Cable, Right-Angle Connector, PoE++, IP68 Dust/Water Resistant, Vibration Resistant, Blue - NM12-603-05M-BL (Lifetime Warranty)
Brand: Tripp Lite by Eaton
SKU: NM12-603-05M-BL
Price: 89.99 USD
Availability: InStock

Brand New

FREE Returns

Product variants

Cat6

Gigabit Speed

IP68

Water Resistant

PoE++

60W Power

M12 X-Code

Industrial Connector

Right Angle

Space Saving

16.4 ft

Cable Length

In stock, ready to ship

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Monday, Jul 14

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Downloads

Manufacturer Brochure PDF Document

Key Features

🔌 Cat6 M12 X-Code cable with 1 Gbps data transfer rate
💧 IP68-rated: 100% dust-proof and water-resistant up to 1.5m for 60 minutes
⚡ Supports 60W PoE for powering network devices
📏 5-meter (16.4 ft) length with right-angle connector
🏭 Ideal for industrial environments: vibration, corrosion & temperature resistant
🔒 M12 connectors with 12mm locking thread for secure connection
📶 Compatible with surveillance cameras, VoIP, access control devices
🛡️ CMR-LP certified for high-power installations
🔷 Blue PVC jacket for easy identification
⚖️ 23 AWG copper conductor construction

Tripp Lite by Eaton M12 X-C...

$89.99 $94.40

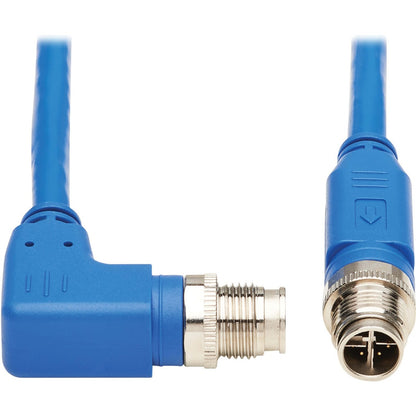

Close-up view of M12 X-Code connectors showing right-angle and straight connector designs with 8-pin configuration

Industrial-Grade M12 X-Code Connectors for Reliable Network Performance

The M12 X-Code connectors feature precision-engineered 8-pin configuration optimized for Gigabit Ethernet transmission. The robust metal housing and threaded design ensure secure connections in demanding industrial environments where vibration and mechanical stress are common. The right-angle connector design provides excellent strain relief while enabling installation in space-constrained locations.

Technical Specifications

8-pin X-Code configuration for Gigabit Ethernet
Metal threaded housing for secure connection
Right-angle and straight connector options

Applications

Factory automation systems requiring reliable data transmission
Industrial machinery with space-constrained installation requirements
Manufacturing environments with high vibration exposure

Full-length view of 5-meter blue Cat6 industrial ethernet cable with M12 connectors

Extended 5-Meter Cable Length for Flexible Installation

The 5-meter (16.4 ft) blue cable provides optimal reach for connecting industrial network devices across manufacturing floors and control rooms. The high-quality PVC jacket maintains signal integrity while offering excellent durability and flexibility. Clear cable markings ensure proper identification and prevent accidental disconnection during maintenance.

Technical Specifications

5-meter (16.4 ft) cable length
23 AWG copper conductors
Blue PVC jacket with printed specifications

Applications

Long-distance device connections in factory settings
Cross-room network infrastructure deployment
Machine-to-controller connectivity in large facilities

Detailed view of M12 X-Code connector pin layout showing 8-pin configuration

High-Performance X-Code Pin Layout for Gigabit Speed

The precision-engineered X-Code pin layout delivers reliable Gigabit Ethernet performance through 8 gold-plated contacts. The cross-shield design provides superior signal isolation and electromagnetic interference protection. This robust connection architecture ensures consistent data transmission in electrically noisy industrial environments.

Technical Specifications

Gold-plated 8-pin contacts
Cross-shield interference protection
Gigabit Ethernet compatible design

Applications

High-speed industrial network deployments
Noise-sensitive automation systems
Mission-critical data transmission applications

Close-up side view of M12 connector showing strain relief and threaded coupling design

Ruggedized Connector Design with Integrated Strain Relief

The robust connector construction features integrated strain relief to prevent cable damage during installation and operation. The durable blue housing protects internal components while maintaining proper cable alignment. The threaded coupling ensures a secure connection that resists vibration and accidental disconnection.

Technical Specifications

Integrated strain relief system
Vibration-resistant threading
Impact-resistant housing construction

Applications

High-vibration manufacturing environments
Mobile industrial equipment connections
Harsh-environment network installations

Detailed view of right-angle M12 connector showing space-saving design

Space-Saving Right-Angle Connector Innovation

The right-angle connector design enables installation in tight spaces while maintaining proper cable routing and strain relief. The precision-machined metal threading ensures secure attachment in high-vibration environments. This innovative design allows for optimal cable management in compact industrial enclosures and equipment panels.

Technical Specifications

90-degree connector orientation
Precision-machined threading
Compact form factor design

Applications

Tight equipment cabinet installations
Space-constrained control panels
Corner-mount network connections

Close-up view of M12 connector showing sealed construction for environmental protection

IP68-Rated Protection for Harsh Environments

The IP68-rated connector design provides complete protection against dust and water immersion up to 1.5 meters. The sealed construction prevents contamination while maintaining reliable network connectivity in wet and dusty environments. This robust protection ensures consistent performance in challenging industrial conditions.

Technical Specifications

IP68 dust and water protection
Sealed connector construction
Corrosion-resistant materials

Applications

Washdown area installations
Outdoor industrial applications
Food and beverage processing environments

Product details

General Information

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

NM1260305MBL

Brand Name

Tripp Lite by Eaton

Product Model

NM12-603-05M-BL

Product Name

NM12-603-05M-BL M12 X-Code Cat6 Ethernet Cable, M/M, Blue, 5 m (16.4 ft.)

Product Type

Network Cable

Technical Information

Cable Type

Category 6

Cable Length

16.40 ft

Connector Type on First End

M12-X Network - Male

Connector on First End Details

1 x M12-X Network - Male

Connector Type on Second End

M12-X Network - Male

Connector on Second End Details

1 x M12-X Network - Male

Conductor

Copper

Shielding

No

Jacket Type

CMR

Device Supported

Switch
Network Device
VoIP Device
Access Control Device
Controller
Security Device
PoE-enabled Device
Surveillance Camera

American Wire Gauge

23 AWG

Data Transfer Rate

1 Gbit/s

Boot Type

Snagless

Features

Temperature Resistant
Corrosion Resistant
Lockable
Dust Resistant
Water Resistant
Damage Resistant
Heat Resistant
Moisture Resistant
Right-angled Connector
Strain Relief
Bend Resistant
PoE++
PoE
Vibration Resistant

Physical Characteristics

Jacket Color

Blue

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty

Limited Warranty

Lifetime

Included in the Box

Network Cable

Accessories

Save 28%

Tripp Lite

Tripp Lite NGI-U08C2POE8 Industrial Ethernet Switch, 8-Port PoE+ Gigabit, 2 SFP Sl...

$539.99 $755.00

8-Port

Gigabit PoE+

240W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mounting

Industrial

Aluminum Case

Unmanaged

Plug & Play

Save 29%

Tripp Lite

Tripp Lite NGI-U05C2POE4 Industrial Ethernet Switch, 5-Port Gigabit PoE+ 30W, 4 Po...

$439.99 $620.95

5-Port

Gigabit Switch

PoE+

30W Ports

120W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mountable

Industrial

Metal Case

Save 19%

Tripp Lite

Tripp Lite NGI-U08 Industrial Unmanaged Ethernet Switch, 8-Port Gigabit 10/100/100...

$239.99 $295.49

8-Port

Gigabit Ethernet

DIN Rail

Mountable

Metal Housing

Industrial Grade

5W Power

Low Consumption

1.1 lb

Lightweight

TAA Compliant

Certified

Save 28%

Tripp Lite

Tripp Lite NGI-U16 Industrial Ethernet Switch, 16-Port Unmanaged Gigabit Network, ...

$419.99 $580.49

16-Port

Gigabit Ethernet

Gigabit Speed

1000 Mbps

DIN Rail

Mountable

Low Power

16W Consumption

Metal Build

Industrial Grade

TAA Compliant

Government Ready

Tripp Lite by Eaton

Tripp Lite by Eaton ETHERNET SWITCH UNMANAGED 8-PORT POE+ 30W 2 SFP 10/100/1000 MB...

$1,989.99

FAQs

What is the main purpose of the Tripp Lite NM12-603-05M-BL cable?

The Tripp Lite NM12-603-05M-BL is a Cat6 M12 X-Code cable designed for connecting Gigabit Ethernet networks in harsh industrial environments. It's specifically built for wet/humid conditions, areas with vibration, and locations requiring protection from harsh elements like factories, warehouses, recycling plants, airports, railways, and machine shops. The cable supports 1 Gbps data transfer rates and features IP68-rated protection against dust and water.

What is the IP68 rating on this cable and what does it mean?

The IP68 rating on this cable indicates complete protection against dust (IP6x) and water resistance (IPx8). Specifically, the cable can be immersed in water up to 1.5 meters deep for 60 minutes without any damage or performance degradation. This makes it ideal for washdown applications and environments where water exposure is common.

What are the PoE capabilities of this cable?

This Cat6 cable supports high-power 60W PoE++ (Power over Ethernet), allowing it to power various PoE-enabled devices like surveillance cameras, VoIP telephones, and access control devices. This feature eliminates the need for separate power supplies and additional power cables, enabling device installation in locations far from AC outlets, such as poles or ceilings.

What is the length and connector type of this cable?

The cable is 5 meters (16.4 feet) long and features M12 X-Code connectors on both ends (Male/Male). One connector is designed at a right angle for easy installation in tight spaces. The M12 connectors include a 12-millimeter locking thread specifically designed for washdown and corrosive applications.

What environments is this cable best suited for?

This cable is ideal for industrial and harsh environments including factories, warehouses, recycling plants, airports, railways, machine shops, agriculture facilities, alternative energy installations, communications centers, factory automation systems, and food/beverage facilities. It's specifically designed to withstand vibration, moisture, dust, and corrosive conditions.
