Tripp Lite by Eaton

NM12-603-02M-BL

ⓘ

AUTHORIZED
PARTNER

$89.99

Tripp Lite by Eaton M12 X-Code Cat6 Network Cable, Right-Angle Industrial Ethernet, PoE++ Compatible, IP68 Dust/Water Resistant, Blue - NM1260302MBL (Lifetime Warranty)

Name: Tripp Lite by Eaton M12 X-Code Cat6 Network Cable, Right-Angle Industrial Ethernet, PoE++ Compatible, IP68 Dust/Water Resistant, Blue - NM1260302MBL (Lifetime Warranty)
Brand: Tripp Lite by Eaton
SKU: NM12-603-02M-BL
Price: 89.99 USD
Availability: InStock

Brand New

FREE Returns

Product variants

Cat6

Gigabit Speed

IP68

Water Resistant

PoE++

60W Power

M12 X-Code

Industrial Connector

Right Angle

Space Saving

6.56 ft

Cable Length

In stock, ready to ship

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Wednesday, Jul 16

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Downloads

Manufacturer Brochure PDF Document

Key Features

🔌 Cat6 M12 X-Code cable with 1 Gbps data transfer rate
💧 IP68-rated: 100% dust-proof and water-resistant up to 1.5m for 60 minutes
⚡ Supports 60W PoE for powering network devices
📐 Right-angle connector design for tight spaces
🏭 Industrial-grade for harsh environments (factories, warehouses, railways)
🛡️ Corrosion, vibration, and temperature resistant
📏 2-meter (6.56 ft) length with copper conductors
🔒 12mm locking thread for secure connections
🎯 CMR-LP certified for high-power installations
♾️ Lifetime warranty

Tripp Lite by Eaton M12 X-C...

$89.99

Close-up of blue M12 X-Code connectors showing right-angle and straight connector designs with 8-pin configuration

Industrial-Grade M12 X-Code Connectors for Maximum Reliability

The M12 X-Code connectors feature a robust 12mm locking thread design specifically engineered for industrial environments. The precision-machined metal housing and eight-pin configuration ensure reliable Gigabit Ethernet connectivity even in challenging conditions. The right-angle connector orientation optimizes cable management while reducing strain on the connection point.

Technical Specifications

Eight-pin X-Code configuration for Gigabit speeds
12mm threaded locking mechanism
IP68-rated connector housing

Applications

Factory automation systems requiring secure connections
Industrial machinery with space-constrained installations
Manufacturing environments with high vibration

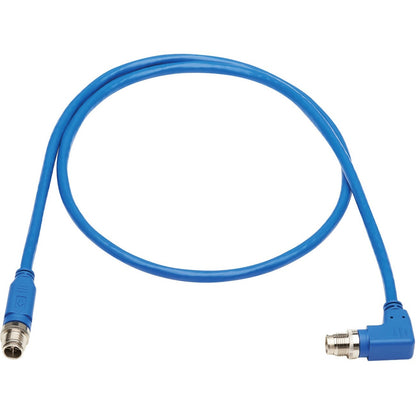

Full length view of blue Cat6 cable with M12 connectors on both ends showing cable flexibility

Flexible Blue Cable Design for Easy Integration

The 2-meter blue Cat6 cable provides the perfect balance of length and maneuverability for industrial installations. The distinctive blue PVC jacket allows for quick identification in complex network setups while offering excellent durability. The cable's flexibility enables clean routing through tight spaces without compromising signal integrity.

Technical Specifications

2-meter (6.6 ft) cable length
23 AWG copper conductors
Blue PVC jacket for identification

Applications

Network device connections in industrial control panels
Machine-to-machine communication links
Industrial sensor and camera connections

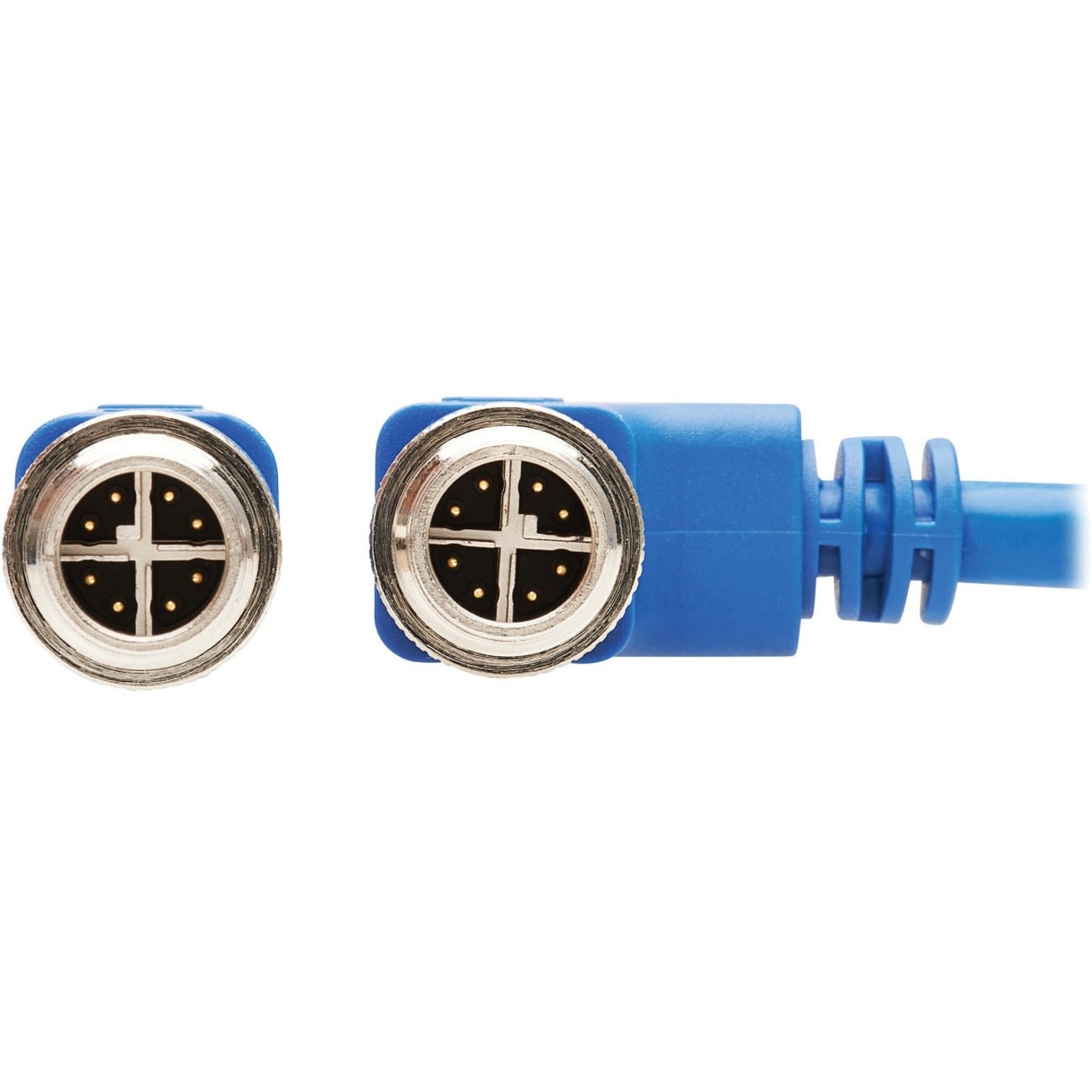

Detailed view of M12 X-Code connector pin layout showing eight-contact configuration

High-Performance X-Code Pin Layout for Gigabit Speed

The precision-engineered X-Code pin layout delivers reliable Gigabit Ethernet performance through eight gold-plated contacts. The cross-shield design provides superior signal isolation and electromagnetic interference protection. This advanced connector architecture ensures consistent data transmission in noisy industrial environments.

Technical Specifications

Gold-plated contact pins
Cross-shield interference protection
1 Gbps data transmission support

Applications

High-speed industrial network backbones
Data-intensive automation systems
Real-time control applications

Close-up of M12 connector strain relief mechanism and cable interface

Strain Relief Design for Enhanced Cable Longevity

The integrated strain relief mechanism protects the cable's internal conductors from stress and tension. The robust design prevents cable damage at the connector interface while maintaining optimal bend radius. This engineering detail significantly extends the cable's operational life in dynamic industrial applications.

Technical Specifications

Integrated bend protection
Enhanced pull strength resistance
Optimized cable strain relief

Applications

Moving machinery connections
Robotics applications
High-vibration environments

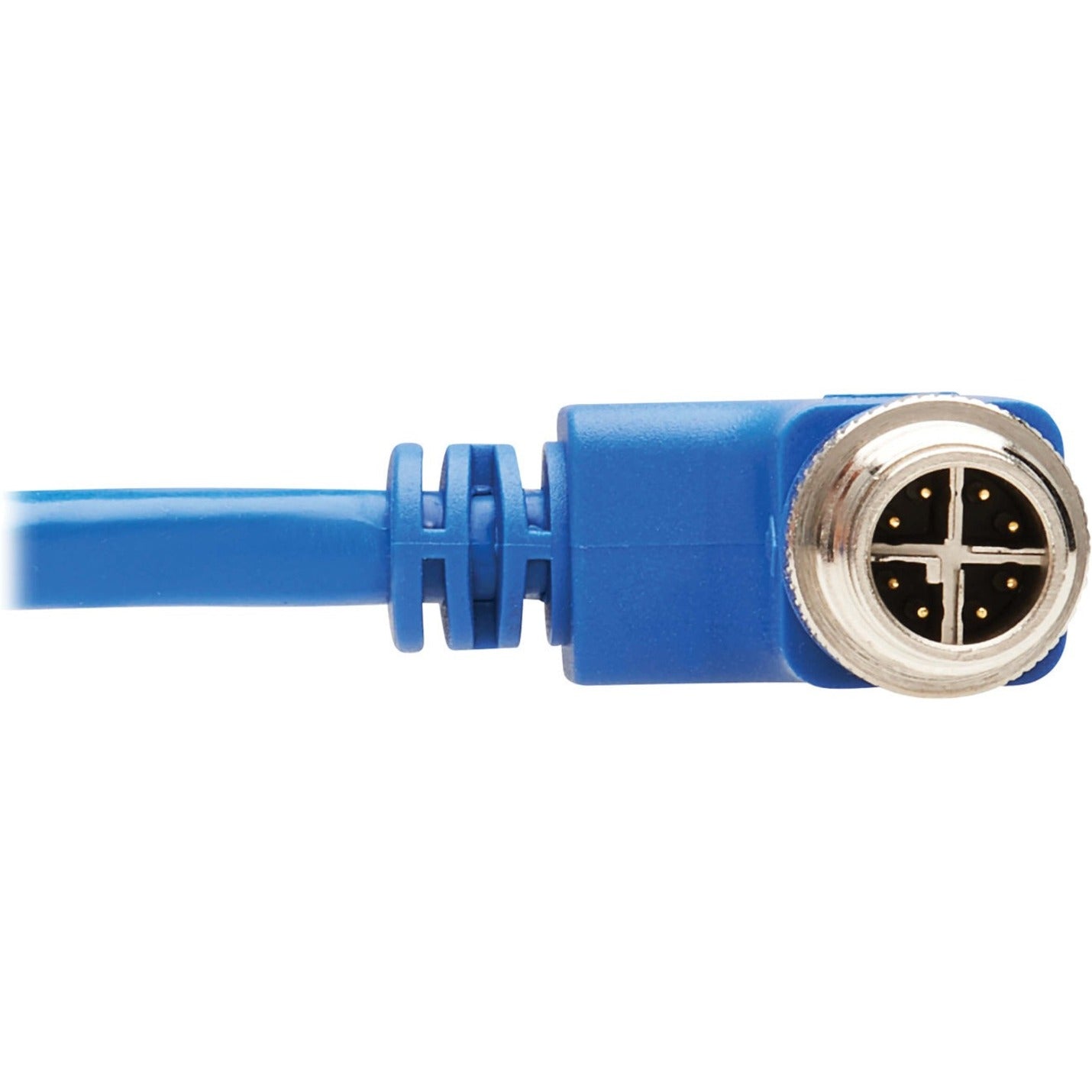

Detailed view of right-angle M12 connector showing 90-degree cable exit

Right-Angle Connector Innovation for Space Efficiency

The 90-degree connector design maximizes installation flexibility in confined spaces. This thoughtful engineering allows for neat cable routing and reduced stress on connection points. The right-angle orientation is particularly valuable in tight enclosures and along equipment surfaces.

Technical Specifications

90-degree connector orientation
Space-saving design
Reduced cable stress point

Applications

Compact control cabinet installations
Edge-mounted device connections
Space-constrained equipment racks

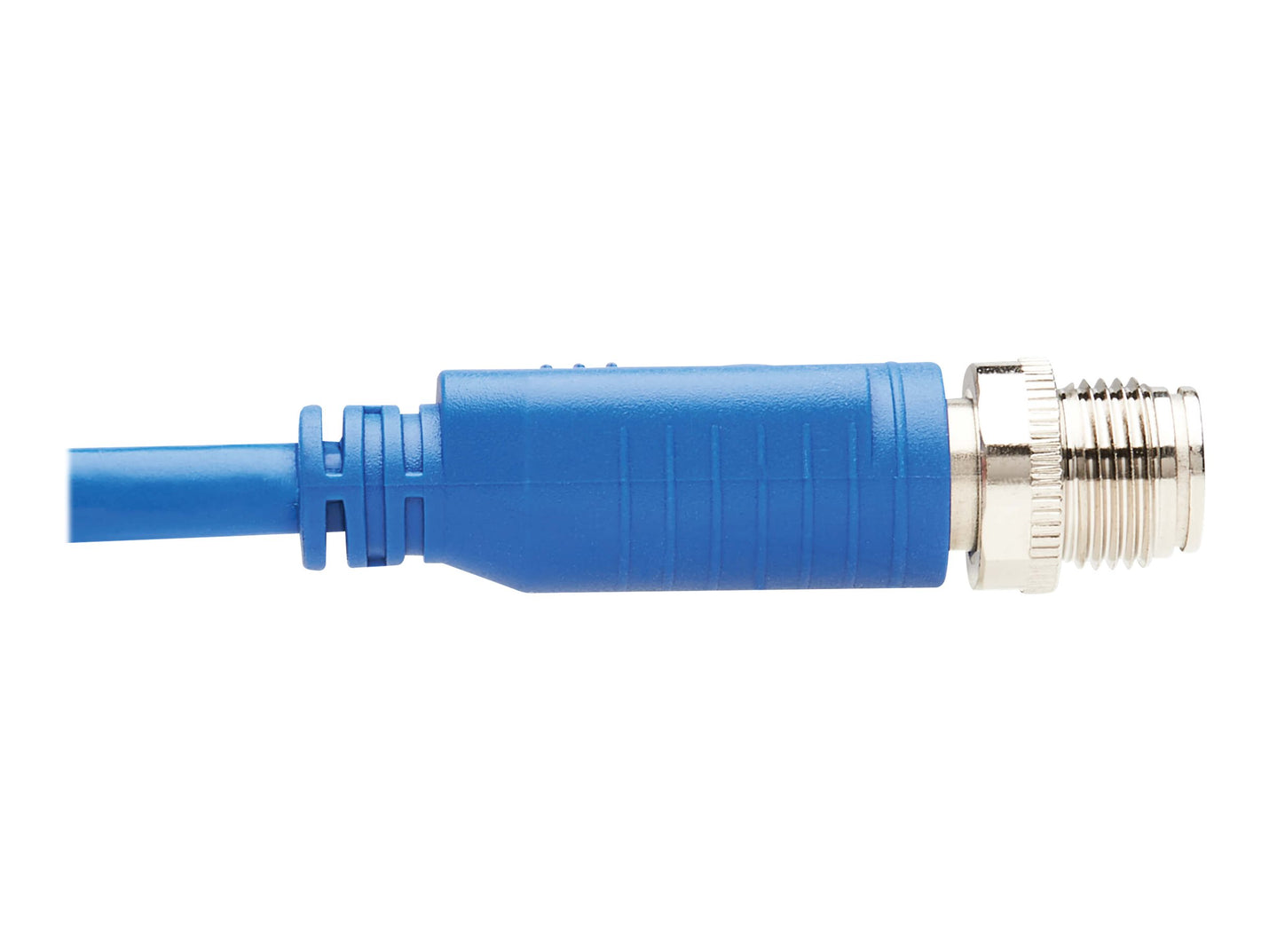

Close-up of M12 connector threading and locking mechanism

Precision-Engineered Locking Mechanism for Secure Connections

The threaded locking system ensures a vibration-resistant connection that maintains signal integrity in demanding industrial environments. The precision-machined threads provide quick and secure attachment while enabling easy maintenance access. This reliable locking mechanism prevents accidental disconnections and maintains network uptime.

Technical Specifications

Threaded locking system
Vibration-resistant design
Quick-connect mechanism

Applications

High-vibration manufacturing environments
Mobile equipment connections
Safety-critical network links

Product details

General Information

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

NM1260302MBL

Brand Name

Tripp Lite by Eaton

Product Model

NM12-603-02M-BL

Product Name

NM12-603-02M-BL M12 X-Code Cat6 Ethernet Cable, M/M, Blue, 2 m (6.6 ft.)

Product Type

Network Cable

Technical Information

Cable Type

Category 6

Cable Length

6.56 ft

Connector Type on First End

M12-X Network - Male

Connector on First End Details

1 x M12-X Network - Male

Connector Type on Second End

M12-X Network - Male

Connector on Second End Details

1 x M12-X Network - Male

Conductor

Copper

Shielding

No

Jacket Type

CMR

Device Supported

Switch
Network Device
VoIP Device
Access Control Device
Controller
Security Device
PoE-enabled Device
Surveillance Camera

American Wire Gauge

23 AWG

Data Transfer Rate

1 Gbit/s

Boot Type

Snagless

Features

Temperature Resistant
Corrosion Resistant
Lockable
Dust Resistant
Water Resistant
Damage Resistant
Heat Resistant
Moisture Resistant
Right-angled Connector
Strain Relief
Bend Resistant
PoE++
PoE
Vibration Resistant

Physical Characteristics

Jacket Color

Blue

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty

Limited Warranty

Lifetime

Included in the Box

M12 Network Cable

Accessories

Save 28%

Tripp Lite

Tripp Lite NGI-U08C2POE8 Industrial Ethernet Switch, 8-Port PoE+ Gigabit, 2 SFP Sl...

$539.99 $755.00

8-Port

Gigabit PoE+

240W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mounting

Industrial

Aluminum Case

Unmanaged

Plug & Play

Save 29%

Tripp Lite

Tripp Lite NGI-U05C2POE4 Industrial Ethernet Switch, 5-Port Gigabit PoE+ 30W, 4 Po...

$439.99 $620.95

5-Port

Gigabit Switch

PoE+

30W Ports

120W

PoE Budget

2 SFP

Fiber Slots

DIN Rail

Mountable

Industrial

Metal Case

Save 19%

Tripp Lite

Tripp Lite NGI-U08 Industrial Unmanaged Ethernet Switch, 8-Port Gigabit 10/100/100...

$239.99 $295.49

8-Port

Gigabit Ethernet

DIN Rail

Mountable

Metal Housing

Industrial Grade

5W Power

Low Consumption

1.1 lb

Lightweight

TAA Compliant

Certified

Save 28%

Tripp Lite

Tripp Lite NGI-U16 Industrial Ethernet Switch, 16-Port Unmanaged Gigabit Network, ...

$419.99 $580.49

16-Port

Gigabit Ethernet

Gigabit Speed

1000 Mbps

DIN Rail

Mountable

Low Power

16W Consumption

Metal Build

Industrial Grade

TAA Compliant

Government Ready

Tripp Lite by Eaton

Tripp Lite by Eaton ETHERNET SWITCH UNMANAGED 8-PORT POE+ 30W 2 SFP 10/100/1000 MB...

$1,989.99

FAQs

What is the main purpose of the Tripp Lite NM12-603-02M-BL cable?

The Tripp Lite NM12-603-02M-BL is a Cat6 M12 X-Code cable designed for connecting Gigabit Ethernet networks in harsh industrial environments. It's specifically built for wet/humid environments, areas subject to vibration, and locations requiring protection from harsh elements such as factories, warehouses, recycling plants, airports, railways, and machine shops. The cable supports 1 Gbps data transfer rates and features IP68-rated protection against dust and water.

What is the IP68 rating on this cable, and what protection does it offer?

The IP68 rating on this cable provides maximum protection against environmental factors. It offers 100% protection against dust ingress and can withstand immersion in water up to 1.5 meters deep for 60 minutes without any damage or performance degradation. This makes it ideal for washdown applications and harsh industrial environments where exposure to dust and water is common.

What are the PoE capabilities of this cable?

This Cat6 cable supports high-power 60W PoE++ (Power over Ethernet), allowing it to power various PoE-enabled devices such as surveillance cameras, VoIP telephones, and access control devices. This feature eliminates the need for separate power supplies and additional power cables, enabling device installation in locations far from AC outlets, such as poles or ceilings.

What are the connector types and cable length specifications?

The cable features M12 X-Code connectors (Male) on both ends with a 12-millimeter locking thread. One end has a right-angle connector design for easier installation in tight spaces. The total cable length is 2 meters (6.56 feet), and it uses 23 AWG copper conductors.

What environments is this cable best suited for?

This cable is ideal for industrial and harsh environments including factories, warehouses, recycling plants, airports, railways, machine shops, agriculture facilities, alternative energy installations, communications centers, factory automation systems, and food/beverage facilities. It's specifically designed to withstand corrosion, vibration, moisture, heat, and regular washdowns.
