Close-up view of green Cat6 ethernet cable RJ45 connectors with transparent housing and gold contacts

Gold-Plated RJ45 Connectors for Reliable Data Transfer

The premium RJ45 connectors feature gold-plated contacts and a transparent housing that allows visual confirmation of proper pin alignment. The staggered-pin design and precision engineering ensure optimal signal integrity for gigabit ethernet speeds up to 550 MHz. The green molded strain relief boot protects the cable while maintaining flexibility for easy installation.

Technical Specifications

  • Gold-plated contacts for maximum conductivity
  • Staggered-pin design minimizes crosstalk
  • Transparent connector housing for visual inspection

Applications

  • Server room network connections
  • Data center patch panel wiring
  • Network infrastructure installations

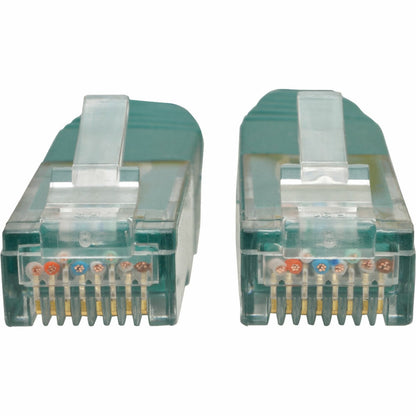

Detailed view of Cat6 ethernet cable RJ45 connector pins and internal wiring

Eight-Pin Architecture for Full Gigabit Performance

Each RJ45 connector houses eight precisely aligned pins with gold-plated contacts, supporting all eight conductors needed for full gigabit ethernet operation. The clear housing reveals the sophisticated internal wiring pattern that enables high-speed data transmission while maintaining signal integrity. The molded boot provides strain relief while keeping the internal wiring properly positioned.

Technical Specifications

  • Eight-conductor pin configuration
  • 24 AWG copper wiring
  • 550 MHz bandwidth support

Applications

  • High-speed network device connections
  • Enterprise network deployments
  • Data center cabling infrastructure
Side profile of Cat6 ethernet cable strain relief boot and connector

Integrated Strain Relief for Enhanced Cable Protection

The molded strain relief boot features a graduated ribbed design that provides flexibility while preventing cable kinking and connector damage. This robust construction ensures reliable performance even in high-traffic installation environments. The seamless integration between boot and connector housing maintains proper cable geometry for optimal signal transmission.

Technical Specifications

  • Molded strain relief boot design
  • Flexible ribbed construction
  • Integrated connector protection

Applications

  • Under-desk cable routing
  • Network closet organization
  • High-density patch panel connections
Close-up side view of Cat6 ethernet cable RJ45 connector locking tab

Precision-Engineered Locking Mechanism

The transparent RJ45 connector features a durable locking tab that ensures secure connections in any network environment. The robust design prevents accidental disconnections while allowing easy removal when needed. The precise engineering of the locking mechanism maintains consistent contact pressure for reliable long-term performance.

Technical Specifications

  • Secure locking tab mechanism
  • Snag-free connector design
  • Tool-free installation and removal

Applications

  • Mission-critical network connections
  • High-vibration environments
  • Frequent connect/disconnect applications

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

N200-035-GN

Brand Name

Tripp Lite by Eaton

Product Line

Premium

Product Model

N200-035-GN

Product Name

Premium N200-035-GN RJ-45 Patch Network Cable

Product Type

Network Cable

Technical Information
Cable Type

RJ-45

Cable Characteristic

Patch Cable

Cable Length

35 ft

Connector Type on First End

RJ-45 Network - Male

Connector on First End Details

1 x RJ-45 Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Contact Plating

Gold

Device Supported

Photocopier
Computer
Printer
Gaming Console
Blu-ray Player
Router
Modem

American Wire Gauge

24 AWG

Data Transfer Rate

1 Gbit/s

Features

Flexible
Minimized Near-End Crosstalk (NEXT)
Strain Relief
Molded
Corrosion Resistant

Physical Characteristics
Color Family

Green

Product Color

Green

Miscellaneous
Environmentally Friendly

Yes

Country of Origin

China

Warranty
Limited Warranty

Lifetime

Included in the Box

  • icon_list|network cable|Cat.6 Network cable icon

    Cat6 Cable - Network cable

FAQs

What is the maximum data transfer speed of the N200-035-GN Cat6 cable?
The N200-035-GN Cat6 cable supports data transfer speeds up to 1 Gbps (Gigabit per second) with frequency bandwidth up to 550 MHz. It's designed for high-speed 1000Base-T networks while maintaining compatibility with slower 10/100Base-T Ethernet standards.
What devices can I connect with this Cat6 cable?
This cable can connect multiple devices including computers, printers, gaming consoles, Blu-ray players, photocopiers, routers, and modems. It's versatile enough for both home and office network applications, supporting various protocols including 1000Base-T, 10/100Base-T Ethernet, ISDN, and Token Ring Type 3.
How long is the N200-035-GN cable and what color is it?
The N200-035-GN is a 35-foot (10.7 meters) cable that comes in green color. This length makes it suitable for longer-distance connections within offices or homes while maintaining high-speed performance throughout the entire length.
What type of connectors does this cable use?
The cable features male RJ-45 connectors on both ends with gold-plated copper contacts. The connectors are molded with a staggered-pin plug design and include integral strain relief to protect against cable stress and cracking while ensuring maximum conductivity and minimal data loss.
What industry standards does this cable comply with?
The N200-035-GN complies with multiple industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (category 6 draft 11). This ensures broad compatibility and reliable performance across various network applications.
