TRENDnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 8 x Gigabit PoE+ Ports, DIN-Rail Mount, 2 x SFP Slots, 240W PoE Power Budget, Network Switch, IP30, QoS, Lifetime Protection, Black, TI-PG102 (TI-PG102) Main image

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch

Availability:
in stock, ready to be shipped
$432.96 - $432.96
$432.96
$432.96 - $432.96
$432.96

New

FREE SHIPPING FOR DOMESTIC ORDERS

Delivery time

We ship orders 24-48 hours after they have been placed. We do not charge before we ship them out. It might take up to an additional 48 hours to ship international orders.

Carbon-neutral shipping with Shopify Planet
All deliveries are carbon neutral
Powered by Shopify Planet

TRENDnet TI-PG102

  • 8 x Gigabit PoE+ ports & 2 x Gigabit RJ-45 / SFP shared ports
  • 240 W PoE power budget
  • 20 Gbps switching capacity
  • Power supply sold separately (models: TI-S24048 / 48VDC3000)
  • Hardened IP30 rated metal switch
  • Includes DIN-rail and wall mounts
  • Operating temperature range of -40° - 75°C (-40° - 167°F)
  • Dual redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Lifetime TRENDnet Manufacturer's Warranty

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.

PoE Power

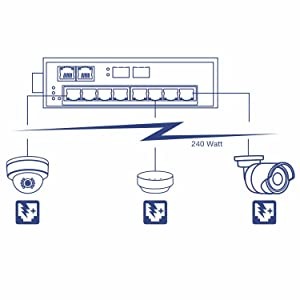

A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.

Fault Tolerance

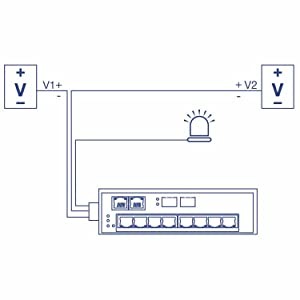

Features dual redundant power inputs with output alarm relay.

Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 - 75°C (-40 - 167°F).

Package Contents:
- TI-PG102
- Quick Installation Guide
-Removable terminal block
- DIN-Rail and wall mount kit

More from the Manufacturer

TRENDnet TI-PG102 Tech Specs

General Information
Manufacturer:TRENDnet
Manufacturer Part Number:TI-PG102
Brand Name:TRENDnet
Product Model:TI-PG102
Product Name:10-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
Product Condition:New
Product Type:Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:10
Modular:Yes
Port/Expansion Slot Details:2 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot
8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:Optical Fiber
Twisted Pair
Ethernet Technology:Gigabit Ethernet
Network Technology:1000Base-X
1000Base-T
I/O Expansions
Number of Total Expansion Slots:2
Expansion Slot Type:SFP
Shared SFP Slot:Yes
Number of SFP Slots:2
Network & Communication
Layer Supported:2
Power Description
Power Source:Power Supply
Redundant Power Supply Supported:Yes
Physical Characteristics
Form Factor:Wall Mountable
DIN Rail Mountable
Height:3"
Width:5"
Depth:10"
Length:6.1"
Weight (Approximate):1.43 lb
Miscellaneous
Package Contents:
  • 10-Port Industrial Gigabit PoE+ DIN-Rail Switch
  • Quick Installation Guide
  • Removable Terminal Block
  • DIN-rail and Wall Mount Kit
Country of Origin:Taiwan
NDAA Compliant:Yes
Warranty
Limited Warranty:Lifetime
