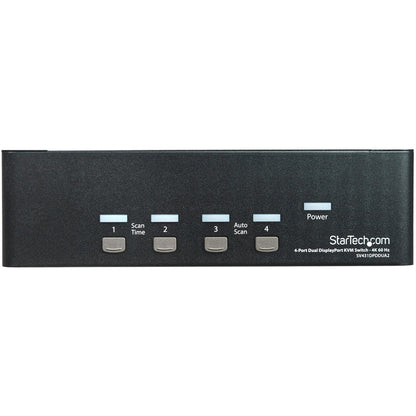

Front view of StarTech.com 4-port dual DisplayPort KVM switch showing control buttons and LED indicators

Streamlined Control at Your Fingertips

The front panel of this 4-port KVM switch features intuitive push-button controls for seamless switching between connected systems. The clean, minimalist design incorporates LED indicators above each button to clearly show which computer is currently active. With dedicated buttons for each port plus auto-scan functionality, managing multiple systems becomes effortless.

Technical Specifications

  • 4 dedicated port selection buttons with LED indicators
  • Auto-scan functionality for automated switching
  • Durable tactile push buttons for reliable operation

Applications

  • IT administrators managing multiple workstations
  • Control room monitoring and switching
  • Multi-system testing environments
Close-up front view of StarTech KVM switch control panel with numbered buttons and LED indicators

Intuitive One-Touch System Management

The sleek front panel interface puts complete control at your disposal with clearly labeled buttons for each connected system. The integrated auto-scan feature enables automated switching between computers at customizable intervals. High-contrast LED indicators provide instant visual confirmation of the active connection, ensuring efficient workflow management.

Technical Specifications

  • Illuminated port indicators for active status
  • Programmable auto-scan timing options
  • Ergonomic button layout for quick access

Applications

  • Desktop switching in creative workstations
  • Server room management
  • Multi-computer development environments
Rear view of StarTech KVM switch showing DisplayPort, USB, and audio connections

Complete Connectivity Hub

The rear panel reveals extensive connectivity options with dual DisplayPort outputs per computer, USB ports for peripherals, and dedicated audio connections. This comprehensive I/O setup supports full multimedia functionality across all connected systems. The USB hub enables sharing of peripherals while maintaining independent audio control through separate 3.5mm ports.

Technical Specifications

  • Dual DisplayPort outputs per computer
  • Independent USB peripheral sharing
  • Dedicated audio I/O ports per system

Applications

  • Multi-display workstation management
  • Audio-visual production environments
  • Complex peripheral sharing setups
Detailed view of StarTech KVM switch rear panel ports and connections

Advanced Port Configuration

The detailed rear panel layout showcases the switch's comprehensive connectivity options. Each computer connection features dual DisplayPort inputs, USB interface, and dedicated audio ports. The console section includes additional USB ports for shared peripherals, making this KVM switch a complete solution for managing multiple systems with extensive I/O requirements.

Technical Specifications

  • 10 DisplayPort connections total
  • Multiple USB peripheral ports
  • Integrated audio switching capability

Applications

  • Professional multi-system control
  • High-performance gaming setups
  • Digital content creation workstations

Product details

General Information
Manufacturer

StarTech.com

Manufacturer Part Number

SV431DPDDUA2

Brand Name

StarTech.com

Product Name

4-Port Dual DisplayPort KVM Switch - 4K 60Hz

Packaged Quantity

1

Product Type

KVM Switchbox

Technical Information
Number of Computers Supported

4

Number of Local Users Supported

1

Video
Maximum Video Resolution

3840 x 2160

Interfaces/Ports
USB

Yes

DisplayPort

Yes

Number of USB Ports

8

Number of DisplayPorts

10

Power Description
Input Voltage

230 V AC
120 V AC

Input Voltage Range

100V AC to 240V AC

Physical Characteristics
Product Color

Black

Form Factor

Rack-mountable
Desktop

Rack Height

2U

Height

2.5

Width

8.5

Depth

5

Weight (Approximate)

2.70 lb

Miscellaneous
Package Contents

  • 4-Port Dual DisplayPort KVM Switch - 4K 60Hz
  • 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
  • 1 x Quick Start Guide
  • 4 x Rubber Feet

Environmentally Friendly

Yes

Environmental Certification

REACH
WEEE
RoHS

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty
Limited Warranty

2 Year

Included in the Box

  • icon_list|kvm switch|2-Port KVM Switch icon

    KVM Switch

  • icon_list|power adapter|LP4 Power adapter icon

    Power Adapter

  • icon_list|quick start guide|Quick Start Guide Documentation icon

    Quick Start Guide

  • icon_list|rubber feet|Non-skid Rubber feet icon

    Rubber Feet

FAQs

What are the key features of the StarTech.com SV431DPDDUA2 KVM Switch?
The StarTech.com SV431DPDDUA2 is a 4-port dual DisplayPort KVM switch that supports 4K 60Hz resolution, allows control of four PC/Mac computers, and features dual-display capability. It includes USB peripheral support, audio connectivity with 3.5mm mic and speaker ports, and a 2-port USB hub for shared peripherals. The switch is TAA compliant and supports dual 4K displays at 60Hz resolution (3840 x 2160).
What is the maximum display resolution supported by this KVM switch?
This KVM switch supports Ultra HD resolution up to 4K (3840 x 2160) at 60Hz refresh rate on both DisplayPort outputs. This high-resolution support makes it particularly suitable for graphic design and other applications requiring high-quality imaging across dual displays.
How many computers and displays can be connected to this KVM switch?
The SV431DPDDUA2 can connect and control up to 4 different computers and supports dual displays for each computer. It features 10 DisplayPort connections in total, allowing you to create a dual-head display setup while switching between four different systems. The switch supports one local user for controlling all connected computers.
What are the USB capabilities of this KVM switch?
The KVM switch features 8 USB ports in total, including dedicated ports for HID keyboard and mouse connections, plus a 2-port USB hub for sharing peripherals between connected computers. This allows users to share USB devices across all four connected computers without needing to physically reconnect them.
What are the physical specifications and mounting options?
The SV431DPDDUA2 measures 2.5" in height, 8.5" in width, and 5" in depth, weighing approximately 2.70 lb. It's available in black and offers flexible mounting options, being both rack-mountable (2U height) and suitable for desktop placement. The package includes rubber feet for desktop use.
