Red SocketScan S720 barcode scanner resting in black charging dock station-alternate-image1

Close-up view of SocketScan S720 scanner showing LED status indicators and ergonomic design-alternate-image2

Black charging dock for SocketScan S720 with Socket Mobile branding-alternate-image3

USB charging cable with right-angle connector for SocketScan S720-alternate-image4

Black wrist strap accessory for SocketScan S720 barcode scanner-alternate-image5

CX3987-3044

$299.99

Socket Mobile SocketScan S720 Wireless Barcode Scanner Kit, 2D & 1D QR Code Reader, Bluetooth, LED Scanner, 16Hr Battery Life, iOS/Android/Mac/PC Compatible, Red & Black Dock - CX3987-3044 (1 Year Warranty)

Name: Socket Mobile SocketScan S720 Wireless Barcode Scanner Kit, 2D & 1D QR Code Reader, Bluetooth, LED Scanner, 16Hr Battery Life, iOS/Android/Mac/PC Compatible, Red & Black Dock - CX3987-3044 (1 Year Warranty)
Brand: Socket Mobile
SKU: CX3987-3044
Price: 299.99 USD
Availability: OutOfStock

Brand New

FREE Express Shipping | FREE Returns

Product variants

2D & 1D

Dual Scanning

16 Hour

Battery Life

Bluetooth

Wireless

LED

Light Source

4.13 oz

Lightweight

2000 mAh

Battery

Out of stock

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Tuesday, Jul 15

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 1 Year

Additional warranty information: optional extended warranty available.

Downloads

Manufacturer Brochure PDF Document

User Manual PDF Document

Key Features

📱 Wireless Bluetooth scanner compatible with iOS, Android, Mac, and PC
🔍 Scans both 1D and 2D barcodes (QR, PDF417, Data Matrix)
🔋 16-hour battery life with 2000 mAh NiMH battery
📸 High-resolution 1280 x 960 image sensor
🎯 45° horizontal and 34° vertical field of view
💪 Durable design with 4 ft drop resistance
🌡️ Operating temperature range: 32°F to 113°F
⚖️ Lightweight at 4.13 oz
✨ 100,000 lux maximum ambient light tolerance
🛡️ 1-year warranty with optional extension

Red SocketScan S720 barcode scanner resting in black charging dock station

Effortless Charging with Smart Docking Station

The SocketScan S720's charging dock combines functionality with convenience. The sturdy black dock securely holds the scanner while providing reliable charging through direct contact points. Its angled design allows for easy scanner removal and replacement during busy workflows, while maintaining a minimal footprint on your workspace.

Technical Specifications

2000 mAh NiMH battery charging capability
6-hour maximum recharge time
Stable mounting design for secure placement

Applications

Retail point-of-sale counter setup
Warehouse inventory management stations
Healthcare facility scanning stations

Close-up view of SocketScan S720 scanner showing LED status indicators and ergonomic design

Intuitive LED Status Indicators

The S720 features clear status indicators for instant feedback on battery level, Bluetooth connectivity, and scanning operations. The ergonomic design incorporates easily visible LED lights that provide immediate operational status at a glance, ensuring smooth workflow management and reducing downtime.

Technical Specifications

Multi-color LED status indicators
Battery level monitoring system
Bluetooth connection status display

Applications

Quick battery status checks during operations
Wireless connection verification
Scan confirmation in noisy environments

Black charging dock for SocketScan S720 with Socket Mobile branding

Robust Charging Base Design

The standalone charging dock features Socket Mobile's signature durability and stability. Its weighted base prevents tipping while the curved cradle design ensures proper alignment for consistent charging contact. The dock's professional aesthetic complements any business environment while maintaining full functionality.

Technical Specifications

Weighted stable base construction
Precision charging contact alignment
Compatible with S720 scanner series

Applications

Fixed scanning station setup
Multi-shift operation support
High-traffic retail environments

USB charging cable with right-angle connector for SocketScan S720

Universal USB Connectivity

The S720 kit includes a standard USB charging cable for universal compatibility and reliable power delivery. The right-angle connector design reduces cable strain while ensuring secure connection. This professional-grade cable supports both data transfer and charging capabilities for maximum functionality.

Technical Specifications

Standard USB-A connector
Right-angle design for strain relief
Data and power transmission capability

Applications

Direct computer connectivity
Alternative charging options
System integration setups

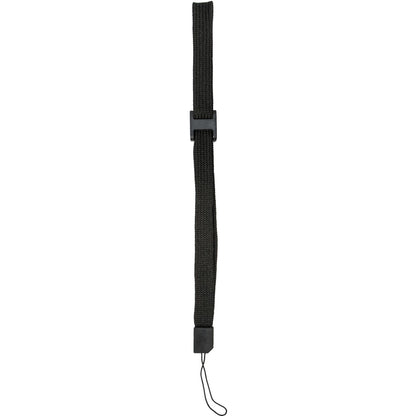

Black wrist strap accessory for SocketScan S720 barcode scanner

Secure Wrist Strap Attachment

The included wrist strap provides additional security during mobile scanning operations. Made from durable nylon material with a secure attachment point, it prevents accidental drops while allowing full range of motion. This essential accessory enhances user confidence during intensive scanning sessions.

Technical Specifications

Durable nylon construction
Adjustable strap length
Secure attachment mechanism

Applications

Mobile inventory operations
Warehouse scanning tasks
Field service applications

Product details

General Information

Manufacturer

Socket Mobile, Inc

Manufacturer Part Number

CX3987-3044

Brand Name

Socket Mobile

Product Line

SocketScan

Product Model

S720

Product Name

SocketScan S720, Linear Barcode Plus QR Code Reader, Red & Black Dock

Product Type

Barcode Scanner Kit

Technical Information

Connectivity Technology

Wireless

Scanning Capability

2D
1D

Barcode Symbology Supported

1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, UPC A, UPC E1, Standard 2 of 5, UK Plessey 2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code

Light Source

LED

Image Sensor Type

Linear

Scanning Distance

14.96

Field of View (Horizontal)

45°

Field of View (Vertical)

34°

Maximum Ambient Light

100000 lux

Drop Specification

4 ft. drop to linoleum

Minimum Print Contrast

25%

Maximum Element Resolution (Code 39)

5 mil

Maximum Element Resolution (DataMatrix)

10 mil

Image Sensor Resolution

1280 x 960

Network & Communication

Bluetooth

Yes

Battery Information

Battery Included

Yes

Battery Chemistry

Nickel Metal Hydride (NiMH)

Battery Capacity

2000 mAh

Battery Weight

1.92 oz

Maximum Battery Run Time

16 Hour

Maximum Battery Recharge Time

6 Hour

Environmental Conditions

Operating Temperature

32°F (0°C) to 113°F (45°C)

Storage Temperature

-40°F (-40°C) to 158°F (70°C)

Physical Characteristics

Form Factor

Handheld

Product Color

Red

Weight (Approximate)

4.13 oz

Miscellaneous

Package Contents

SocketScan S720, Linear Barcode Plus QR Code Reader, Red
Black Dock
Wrist strap

Application/Usage

Transportation
Ticketing
Hospitality
Inventory
Loyalty Program
Delivery
Asset Tracking

Platform Supported

iOS
Android
Mac
PC

Environmentally Friendly

Yes

Environmental Certification

WEEE
RoHS

Country of Origin

United States

Warranty

Limited Warranty

1 Year

Additional Warranty Information

optional extended warranty available.

Included in the Box

S720 Scanner
Black Dock
Wrist Strap

Similar Products

Side view of red SocketScan S720 barcode scanner showing ergonomic design and status indicators-alternate-image1

Socket Mobile

Socket Mobile SocketScan S720 Linear Barcode and QR Code Reader, Bluetooth Scanner...

$299.99

Bluetooth

Wireless

1D/2D

Dual Scan

PDF417

Compatible

QR Code

Reader

Data Matrix

Support

Lightweight

Design

Socket Mobile

Socket Mobile SocketScan S720 Barcode Scanner Kit, 1D 2D QR Code Reader, Wireless ...

$309.99

Dual Scan

1D & 2D

Wireless

Bluetooth

16-Hour

Battery Life

2000 mAh

NiMH Battery

4.13 oz

Lightweight

1280x960

Sensor Resolution

Socket Mobile

Socket Mobile SocketScan S720 Wireless Barcode Scanner Kit, 2D & 1D QR Code Re...

$309.99

16Hr Battery

Long Life

2D & 1D

Dual Scanning

Bluetooth

Wireless

2000 mAh

High Capacity

4.13 oz

Lightweight

1280x960

HD Sensor

SocketScan S720 barcode scanner in green shown with black charging dock station-alternate-image1

Socket Mobile

Socket Mobile SocketScan S720 Barcode Scanner Kit, Wireless 2D & 1D Scanning, ...

$299.99

2D & 1D

Dual Scanning

Bluetooth

Wireless

16 Hour

Battery Life

2000 mAh

NiMH Battery

4.13 oz

Lightweight

1280x960

Image Sensor

Socket Mobile

Socket Mobile SocketScan S720 Wireless Barcode Scanner Kit, 2D QR Code Reader, Lin...

$299.99

2D Scanning

QR & PDF417

16Hr Battery

2000 mAh

Bluetooth

Wireless

4ft Drop

Durable

Multi-Platform

iOS/Android

LED Scanner

1280x960

FAQs

What types of barcodes can the SocketScan S720 scanner read?

The SocketScan S720 can read both 1D and 2D barcodes. For 1D barcodes, it supports Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, UPC A, UPC E1, and many others. For 2D barcodes, it can scan QR Codes, PDF417, Data Matrix, Aztec, Micro QR Code, and Han Xin codes. It's capable of scanning barcodes both on paper and digital screens, making it versatile for various business applications.

What is the battery life and charging time of the S720?

The SocketScan S720 features a 2000 mAh Nickel Metal Hydride (NiMH) battery that provides up to 16 hours of continuous operation on a single charge. The battery requires approximately 6 hours for a full recharge. The battery weighs 1.92 oz and is included with the scanner kit.

What are the connectivity options for the SocketScan S720?

The SocketScan S720 connects wirelessly via Bluetooth technology. It's compatible with multiple platforms including iOS, Android, Mac, and PC, making it versatile for various business environments. The wireless connectivity provides increased mobility and helps reduce human error while scanning.

What are the scanning specifications and capabilities of the S720?

The S720 features a linear image sensor with 1280 x 960 resolution and LED light source. It offers a 45° horizontal and 34° vertical field of view, with a scanning distance of 14.96 inches. The scanner can operate in up to 100,000 lux of ambient light and requires a minimum print contrast of 25%. It can resolve elements as small as 5 mil for Code 39 and 10 mil for DataMatrix.

What environmental conditions can the S720 operate in?

The SocketScan S720 operates in temperatures ranging from 32°F (0°C) to 113°F (45°C). It can be stored in temperatures from -40°F (-40°C) to 158°F (70°C). The device is durably built and can withstand drops of up to 4 feet onto linoleum flooring.
