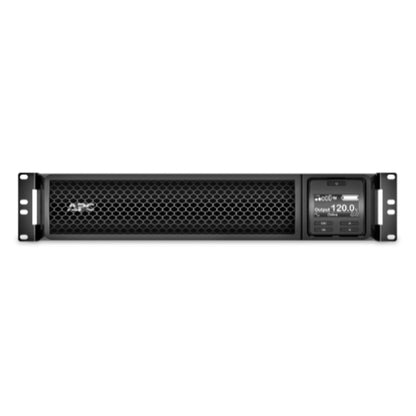

Front view of APC Smart-UPS SRT 1000VA rack-mount UPS showing LCD display and mesh ventilation panel

Double-Conversion Power Protection with Intelligent LCD Display

The APC Smart-UPS SRT 1000VA showcases advanced double-conversion technology in a sleek 2U rack-mount design. The high-contrast LCD screen provides real-time monitoring of vital power metrics, allowing for immediate status assessment and proactive power management. The precision-engineered cooling mesh front panel ensures optimal thermal performance while maintaining the unit's professional aesthetic.

Technical Specifications

  • 2U rack-mount form factor for efficient space utilization
  • Integrated LCD interface for real-time power monitoring
  • Double-conversion online technology for pure sine wave output

Applications

  • Server room power protection
  • Network infrastructure backup
  • Data center deployment

Product details

General Information
Manufacturer

Schneider Electric SA

Manufacturer Part Number

SRT1000RMXLA-NC

Brand Name

APC by Schneider Electric

Product Line

Smart-UPS SRT

Product Name

Smart-UPS SRT 1000VA RM 120V Network Card

Product Type

Double Conversion Online UPS

Technical Information
Receptacle Type

NEMA 5-15R

Receptacle Detail

6 x NEMA 5-15R

Number of Battery & Surge Outlets

6

Power Description
Load Capacity

1000 VA/900 W

Input Voltage

120 V AC

Output Voltage

120 V AC

Waveform Type

Sine Wave

Interfaces/Ports
Network (RJ-45)

Yes

Battery Information
Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

10 Minute

Typical Battery Recharge Time

3 Hour

Physical Characteristics
Product Color

Black

Height

3.4

Width

17

Depth

20

Rack Height

2U

Form Factor

Rack-mountable

Weight (Approximate)

48.50 lb

Miscellaneous
Package Contents

  • Smart-UPS SRT 1000VA RM 120V Network Card
  • CD with software
  • Documentation CD
  • Installation guide
  • Network management card
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Temperature probe
  • USB cable
  • Warranty card
  • Energy Star

    Yes

    Environmentally Friendly

    Yes

    Warranty
    Limited Warranty

    3 Year

    Included in the Box

    • icon_list|smart-ups srt|Smart-UPS SRT Main unit icon

      Smart-UPS SRT

    • icon_list|software cd|Software CD Installation disc icon

      Software CD

    • icon_list|documentation cd|Documentation CD Manual disc icon

      Documentation CD

    • icon_list|installation guide|Installation Guide Documentation icon

      Installation Guide

    • icon_list|network card|5GbE Network card icon

      Network Card

    • icon_list|mounting brackets|Mounting Brackets Main product icon

      Mounting Brackets

    • icon_list|Mounting hardware|Rack Rails Mounting hardware icon

      Mounting Hardware

    • icon_list|support rails|Support Rails Tile mounts icon

      Support Rails

    • icon_list|temperature probe|Temperature Probe Sensor icon

      Temperature Probe

    • icon_list|usb cable|6ft USB cable icon

      USB Cable

    • icon_list|warranty card|Warranty Card Documentation icon

      Warranty Card

    FAQs

    What is the power capacity of the APC SRT1000RMXLA-NC Smart-UPS?
    The APC SRT1000RMXLA-NC Smart-UPS has a load capacity of 1000 VA/900 W, providing reliable power protection for servers, network equipment, and critical devices. This double-conversion online UPS delivers true sine wave output and can support equipment for up to 10 minutes at full load.
    How many outlets does this UPS provide and what type are they?
    This Smart-UPS features 6 NEMA 5-15R outlets, all of which provide both battery backup and surge protection. These outlets are compatible with standard North American equipment power cords and deliver clean, regulated 120V AC output power.
    What are the physical dimensions and mounting options for this UPS?
    The APC SRT1000RMXLA-NC is a rack-mountable unit with dimensions of 3.4" height x 17" width x 20" depth, occupying 2U of rack space. It weighs approximately 48.50 lbs. The unit comes with rack mounting brackets, hardware, and support rails for proper installation in a standard equipment rack.
    What is the battery recharge time and backup duration?
    The UPS provides 10 minutes of backup time at full load and requires approximately 3 hours for a typical battery recharge. The unit uses lead acid batteries and can support critical operations during power outages, providing enough time for proper equipment shutdown or transition to alternative power sources.
    What networking capabilities does this UPS include?
    The APC SRT1000RMXLA-NC comes with a built-in network card and RJ-45 network connectivity. This allows for remote management and monitoring of the UPS system. It also includes PowerChute management software for unattended graceful shutdown of network operating systems.
