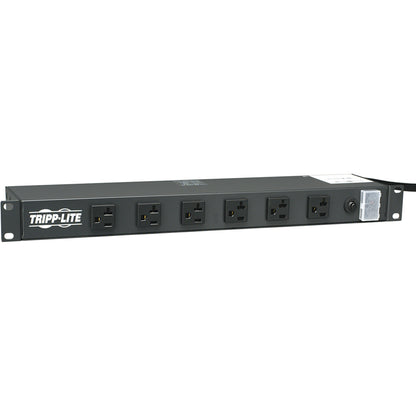

Front view of Tripp Lite RS-1215-20 rackmount power strip showing six front-facing outlets and illuminated power switch

Streamlined Power Distribution with Front-Facing Outlets

The RS-1215-20 power strip features six conveniently positioned front-facing NEMA 5-20R outlets, providing immediate access to reliable 20-amp power distribution. The sleek 1U rackmount design incorporates a protected power switch with illuminated indicator, ensuring controlled power management while preventing accidental shutoffs. Built with durability in mind, the metal housing provides robust protection for mission-critical power distribution needs.

Technical Specifications

  • 20-amp capacity with NEMA 5-20R compatible outlets
  • 1U rack mount form factor for space efficiency
  • Illuminated power switch with protective cover

Applications

  • Server rack power distribution
  • Network closet equipment power management
  • Data center power organization
Angled view of Tripp Lite RS-1215-20 power strip showing both front outlets and rack mounting features

Dual-Sided Access Power Management Solution

The angled perspective showcases the RS-1215-20's efficient dual-sided outlet configuration, combining front and rear access points for optimal cable management. The industrial-grade metal chassis is engineered for reliable performance in demanding rack environments. The integrated mounting flanges enable versatile installation options while maintaining professional cable organization.

Technical Specifications

  • 12 total NEMA 5-20R outlets split between front and rear
  • Rugged metal housing construction
  • Universal EIA-compliant rack mounting design

Applications

  • High-density rack equipment power distribution
  • Mixed-use server room power management
  • IT infrastructure power organization

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

RS-1215-20

Brand Name

Tripp Lite

Product Name

Power Strip 120V AC

Product Type

Power Strip

Technical Information
Plug/Connector Type

NEMA 5-20P

Receptacles

12 x NEMA 5-20R

Cord Length

15 ft

Circuit Breaker

Yes

Power Description
Input Voltage

120 V AC

Maximum Output Voltage

120 V AC

Maximum Input Current

20 A

Maximum Frequency

60 Hz

Power Switch

Yes

Physical Characteristics
Product Color

Black

Form Factor

Rack-mountable

Height

1.8

Width

17.5

Depth

4.5

Weight (Approximate)

4.60 lb

Miscellaneous
Package Contents

  • Power Strip 120V AC

Additional Information

  • Form factors supported: Rackmount, wall-mount and undercounter installation
  • Switches: Red illuminated 2 position switch controls power to all outlets
  • Locking switch cover: Transparent locking switch cover prevents accidental shutoff
  • TVSS grounding: Back panel nut and bolt grounding lug

Certifications & Standards

  • UL1363
  • cUL

Country of Origin

China

Warranty
Limited Warranty

Lifetime

Included in the Box

  • icon_list|power strip|6-Outlet Power strip icon

    Power Strip

FAQs

What are the key features of the Tripp Lite RS-1215-20 Power Strip?
The Tripp Lite RS-1215-20 Power Strip features 12 NEMA 5-20R outlets (6 front/6 rear), 20-amp capacity, and a 15-foot AC power cord. It's designed for 120V AC power distribution and includes a lighted switch with protective cover. The unit is versatile with configurable mounting options for rackmount (1U), wallmount, or under-counter installation. It's ideal for distributing UPS or generator power in rack enclosures and network closets.
What are the mounting options for this power strip?
The RS-1215-20 offers multiple mounting options through its detachable mounting flanges. It can be installed as a 1U rackmount unit in any standard 19-inch rack meeting EIA standards, wall-mounted for vertical installation, or mounted under a counter. This versatility makes it suitable for various installation environments including data centers, network closets, and other technical spaces.
What are the power specifications of the RS-1215-20?
The RS-1215-20 operates on 120V AC input voltage with a maximum output voltage of 120V AC. It supports a maximum input current of 20 amps and operates at a maximum frequency of 60 Hz. The unit features a NEMA 5-20P plug type and provides 12 NEMA 5-20R receptacles. It includes circuit breaker protection and a power switch for safety and control.
What safety features does this power strip include?
This power strip includes several safety features: a circuit breaker for overload protection, a red illuminated 2-position switch with a transparent locking cover to prevent accidental shutoff, and a back panel nut and bolt grounding lug for TVSS grounding. It's also certified to UL1363 and cUL standards, ensuring compliance with safety requirements.
What are the physical dimensions and weight of the unit?
The Tripp Lite RS-1215-20 measures 17.5 inches in width, 4.5 inches in depth, and 1.8 inches in height, making it compatible with standard 1U rack spaces. The unit weighs approximately 4.60 pounds. Its black metal construction provides durability and professional appearance suitable for various installation environments.
