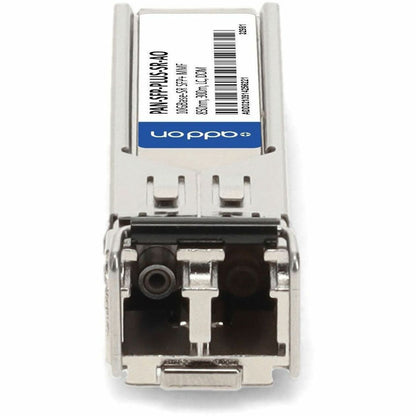

Front view of AddOn PAN-SFP-PLUS-SR SFP+ transceiver showing LC connector interface

10G Performance with Seamless Integration

The AddOn PAN-SFP-PLUS-SR transceiver delivers high-speed 10Gbps connectivity in a compact SFP+ form factor. This hot-swappable module features precision engineering for reliable multi-mode fiber transmission up to 300 meters, making it ideal for data center and enterprise network deployments.

Technical Specifications

  • 10GBASE-SR compliant for high-bandwidth applications
  • 850nm wavelength optimized for multi-mode fiber
  • Hot-swappable design for zero-downtime maintenance

Applications

  • Data center interconnects requiring high-speed transmission
  • Enterprise network backbone infrastructure
  • Server connectivity in virtualized environments
Top view of AddOn PAN-SFP-PLUS-SR SFP+ transceiver showing metal construction and labeling

Industrial-Grade Construction for Reliability

The robust metal housing provides superior electromagnetic shielding and thermal management. Each module undergoes rigorous testing to ensure consistent performance in demanding network environments.

Technical Specifications

  • Durable metal enclosure for EMI protection
  • Industrial temperature range operation
  • Integrated heat dissipation design

Applications

  • Mission-critical network infrastructure
  • High-density data center deployments
  • 24/7 operation environments

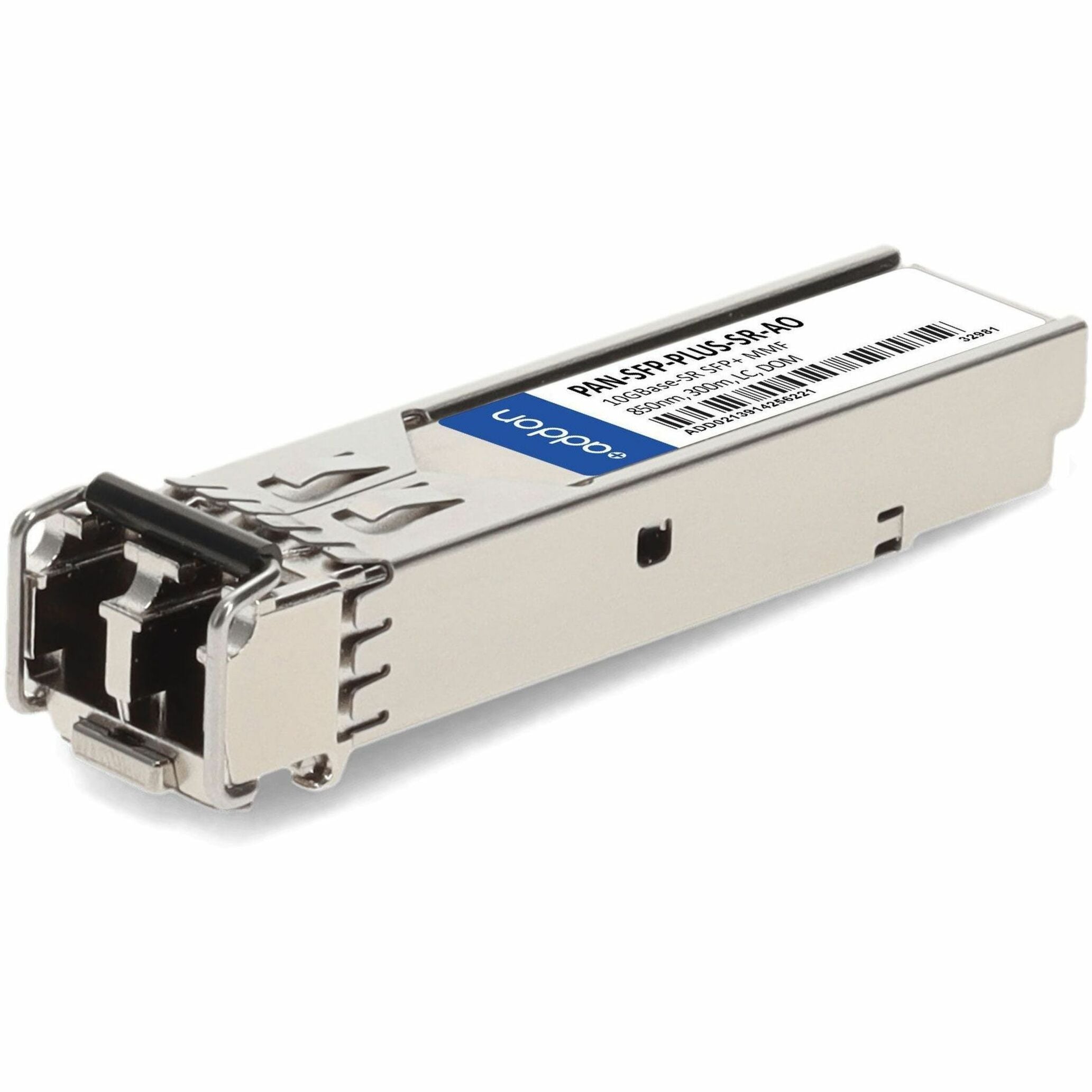

Angled view of AddOn PAN-SFP-PLUS-SR SFP+ transceiver highlighting LC connector interface

Advanced LC Interface Design

The module features a high-precision LC connector interface, ensuring stable optical connections and minimal insertion loss. The latching mechanism provides secure retention while allowing easy installation and removal.

Technical Specifications

  • Precision LC connector interface
  • Low insertion loss design
  • Multi-insertion cycle durability

Applications

  • High-density patch panel connections
  • Direct attach optical links
  • Core network infrastructure
Close-up of AddOn PAN-SFP-PLUS-SR SFP+ transceiver label showing product specifications

MSA-Compliant Label Design

Clear product identification and specifications are prominently displayed on the module label. The standardized labeling ensures easy inventory management and quick verification of module specifications.

Technical Specifications

  • Industry-standard MSA compliance
  • Clear specification marking
  • Traceable serial numbering

Applications

  • Network inventory management
  • Configuration validation
  • Asset tracking systems
Side profile view of AddOn PAN-SFP-PLUS-SR SFP+ transceiver showing form factor

Precision-Engineered Form Factor

The SFP+ form factor is precisely engineered to ensure perfect fit and alignment in standard SFP+ ports. The streamlined design facilitates optimal airflow and thermal management.

Technical Specifications

  • Standard SFP+ form factor compliance
  • Optimized thermal design
  • Precision alignment features

Applications

  • High-density switch deployments
  • Modular network systems
  • Scalable infrastructure solutions

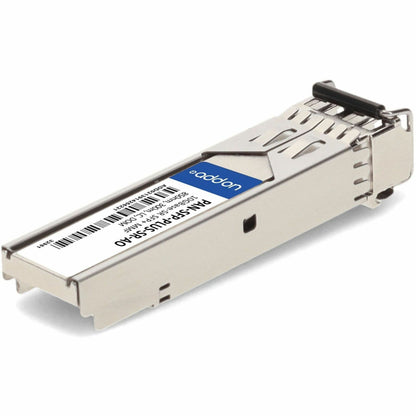

Reverse angle view of AddOn PAN-SFP-PLUS-SR SFP+ transceiver showing cooling features

Enhanced Thermal Management

Strategic ventilation design and premium materials ensure optimal heat dissipation. The module maintains stable operation in high-density deployment scenarios.

Technical Specifications

  • Advanced thermal management
  • Strategic ventilation design
  • Temperature-optimized components

Applications

  • High-temperature environments
  • Densely packed equipment racks
  • Climate-controlled data centers
Detailed view of AddOn PAN-SFP-PLUS-SR SFP+ transceiver optical interface

Professional-Grade Optical Interface

The optical interface features precision alignment and superior build quality. Each component is designed for optimal signal transmission and long-term reliability.

Technical Specifications

  • High-precision optical alignment
  • Superior signal integrity
  • Extended durability design

Applications

  • Long-term infrastructure deployment
  • Critical data transmission
  • High-availability networks
Close-up view of AddOn PAN-SFP-PLUS-SR SFP+ transceiver latching mechanism

Secure Latching Mechanism

The integrated latching mechanism ensures secure module retention while allowing tool-free installation and removal. The design prevents accidental disconnection while maintaining easy serviceability.

Technical Specifications

  • Tool-free installation design
  • Secure retention system
  • Quick-release mechanism

Applications

  • Frequent maintenance environments
  • Hot-swap operations
  • Remote data center management

Product details

General Information
Manufacturer

AddOn

Manufacturer Part Number

PAN-SFP-PLUS-SR-AO

Brand Name

AddOn

Product Name

Palo Alto Networks PAN-SFP-PLUS-SR Comp 10Gbase-SR SFP+

Product Type

SFP+

Technical Information
Application/Usage

Data Networking
Optical Network

Interfaces/Ports
Total Number of Ports

1

Connector Type

LC

Interfaces/Ports Details

1 x LC 10GBase-SR Network

Media & Performance
Media Type Supported

Optical Fiber

Fiber Mode Supported

Multi-mode

Ethernet Technology

10 Gigabit Ethernet

Network Technology

10GBase-SR

Physical Characteristics
Form Factor

Hot-swappable

Height

0.4

Width

0.6

Depth

2.2

Weight (Approximate)

0.15 lb

Miscellaneous
Compatibility

  • MSA Compliant

Palo Alto Networks Products:

  • PA-5020
  • PA-5050
  • PA-5060

Environmentally Friendly

Yes

Environmental Certification

RoHS

Country of Origin

United States

Warranty
Limited Warranty

3 Year

Included in the Box

  • icon_list|sfp+ transceiver|SFP+ Transceiver Main unit icon

    SFP+ Transceiver

FAQs

What is the PAN-SFP-PLUS-SR-AO and what is its main purpose?
The PAN-SFP-PLUS-SR-AO is a 10Gbase-SR SFP+ transceiver module designed for Palo Alto Networks equipment. It's a hot-swappable input/output device that plugs into Gigabit Ethernet slots to connect fiber-optic networks. This module supports 10 Gigabit Ethernet technology and is specifically designed for data networking and optical network applications.
What are the compatibility specifications for this SFP+ module?
This SFP+ module is MSA compliant and specifically compatible with several Palo Alto Networks devices including the PA-5020, PA-5050, and PA-5060 models. It's 100% OEM compliant and can be seamlessly integrated with other OEM or 3rd party transceivers for consistent network performance.
What are the physical specifications and form factor of this SFP+ module?
The module features a compact, hot-swappable form factor with dimensions of 0.4" height, 0.6" width, and 2.2" depth. It weighs approximately 0.15 lb, making it lightweight and easy to install. The hot-swappable design allows for installation and removal while the system is running.
What type of fiber and connection does this SFP+ module support?
This SFP+ module supports multi-mode optical fiber and uses an LC connector type. It's designed for 10GBase-SR network technology, featuring 1 x LC 10GBase-SR network port. The module operates at 850nm wavelength and supports distances up to 300 meters on multi-mode fiber.
What warranty and environmental certifications does this product have?
The PAN-SFP-PLUS-SR-AO comes with a 3-year limited warranty. It's environmentally friendly and RoHS certified, demonstrating compliance with environmental standards for electronic equipment. The product is manufactured in the United States.
