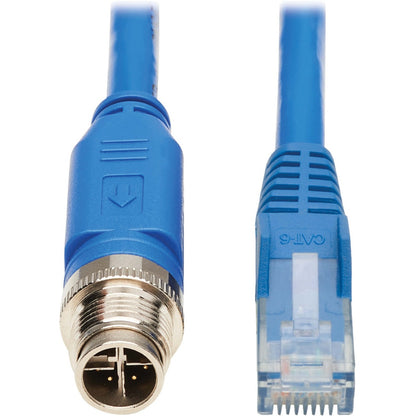

Close-up of M12 X-Code connector and RJ-45 connector ends of industrial Cat6 network cable

Industrial-Grade Connectors for Harsh Environment Protection

The M12 X-Code connector and RJ-45 termination showcase the cable's robust industrial design. The M12 connector features a precision-engineered 8-pin configuration for reliable Gigabit Ethernet performance, while the metal housing provides superior durability. The RJ-45 end maintains compatibility with standard network equipment while featuring a snagless boot design for easy cable management.

Technical Specifications

  • IP68-rated M12 X-Code connector for complete dust and water protection
  • 8-pin configuration supporting Gigabit Ethernet speeds
  • Snagless boot design on RJ-45 end for cable protection

Applications

  • Factory automation systems requiring washdown-resistant connections
  • Industrial equipment exposed to dust and moisture
  • Manufacturing facilities with vibration concerns
Full length view of 32.8ft blue industrial Cat6 network cable with M12 and RJ-45 connectors

Extended 32.8ft Length for Flexible Installation

The 10-meter blue cable provides ample length for various industrial applications. The high-visibility blue jacket allows for quick identification in complex installations while meeting CMR-LP specifications for reliable power delivery. The durable construction maintains signal integrity across the full cable length while supporting PoE++ applications.

Technical Specifications

  • 10-meter (32.8ft) length for extended reach
  • CMR-LP rated for increased power handling
  • 23 AWG conductors for optimal signal transmission

Applications

  • Connecting remote industrial equipment to network infrastructure
  • Power over Ethernet deployment for surveillance systems
  • Machine-to-controller networking in large facilities
Detailed view of M12 X-Code and RJ-45 connector contact patterns

High-Performance Contact Design

Detailed view of the premium contact design shows the precision-engineered pin layout of both connectors. The M12 X-Code features gold-plated contacts in a cross-shield configuration for optimal signal integrity, while the RJ-45 connector utilizes a standardized pin arrangement for universal compatibility.

Technical Specifications

  • Gold-plated contacts for superior conductivity
  • Cross-shield design for EMI protection
  • TIA/EIA 568B compliant pin configuration

Applications

  • High-speed industrial data transmission
  • Noise-sensitive automation environments
  • Mission-critical network connections
Close-up of RJ-45 connector strain relief and boot design

Enhanced Strain Relief System

The RJ-45 connector features an integrated strain relief design that protects against cable stress and maintains connection integrity. The molded boot construction provides excellent bend protection while ensuring reliable network performance in demanding industrial environments.

Technical Specifications

  • Reinforced cable entry point for durability
  • Integrated bend relief design
  • Snagless tab protection

Applications

  • Mobile equipment connections
  • High-movement industrial applications
  • Repeated connect/disconnect scenarios
Detailed side view of M12 X-Code connector construction

Ruggedized M12 Connector Design

The M12 connector's robust construction features a threaded coupling mechanism for secure connections in high-vibration environments. The metal housing provides excellent durability while the blue overmold ensures proper strain relief and maintains the IP68 rating for washdown applications.

Technical Specifications

  • Threaded coupling mechanism for secure connection
  • Metal housing for maximum durability
  • Integrated waterproof seal design

Applications

  • Wet processing environments
  • High-vibration equipment connections
  • Outdoor industrial installations

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

NM1260210MBL

Brand Name

Tripp Lite

Product Model

NM12-602-10M-BL

Product Name

NM12-602-10M-BL Cat.6 Network Cable

Product Type

Network Cable

Technical Information
Cable Type

Category 6

Cable Length

32.81 ft

Connector Type on First End

M12-X Network - Male

Connector on First End Details

1 x M12-X Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Features

Heat Resistant
PoE
Vibration Resistant
Temperature Resistant
Corrosion Resistant
Lockable
Dust Resistant
Water Resistant
Damage Resistant
Moisture Resistant
PoE++

Conductor

Copper

Shielding

No

Jacket Type

CMR

Device Supported

Surveillance Camera
Network Device
VoIP Device
Access Control Device
Controller
Switch
Security Device
PoE-enabled Device

American Wire Gauge

23 AWG

Data Transfer Rate

1 Gbit/s

Boot Type

Snagless

Physical Characteristics
Jacket Color

Blue

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous
Environmentally Friendly

Yes

Environmental Certification

REACH
RoHS

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty
Limited Warranty

Lifetime

Included in the Box

  • icon_list|network cable|Cat.6 Network cable icon

    Cat6 Cable - Network cable

FAQs

What is the maximum data transfer rate of the Tripp Lite NM12-602-10M-BL cable?
The Tripp Lite NM12-602-10M-BL supports a data transfer rate of 1 Gigabit per second (1 Gbit/s). This Cat6 cable provides reliable high-speed connectivity for Gigabit Ethernet networks, making it suitable for demanding industrial applications and data-intensive devices like surveillance cameras and VoIP systems.
What are the connector types on this cable?
This cable features an M12-X Network Male connector on one end and an RJ-45 Network Male connector on the other end. The M12 connector has a 12-millimeter locking thread specifically designed for industrial applications, while the RJ-45 connector is the standard network connector used in most networking equipment.
What is the IP68 rating on this cable, and what protection does it offer?
The IP68 rating on the M12 connector provides complete protection against dust (IP6X) and water immersion up to 1.5 meters for 60 minutes (IPX8). This makes the cable ideal for wet, humid, and dusty environments such as factories, warehouses, and food/beverage facilities where protection from harsh elements is essential.
What PoE capabilities does this cable support?
The cable supports high-power 60W PoE++ (Power over Ethernet), allowing it to power various PoE-enabled devices such as surveillance cameras, VoIP telephones, and access control devices. This feature eliminates the need for separate power supplies and additional power cables, providing more flexible installation options and cost savings.
What is the length of the cable and what type of conductor does it use?
The cable is 32.81 feet (10 meters) long and uses 23 AWG copper conductors. The copper construction ensures reliable electrical conductivity and signal integrity for optimal network performance.
