Tripp Lite MTB3-DOCK-04 docking station with USB ports and Thunderbolt 3 cable shown from front angle

Transform Your Laptop into a Multi-Display Powerhouse

The MTB3-DOCK-04 docking station seamlessly expands your laptop's connectivity with its sleek, compact design. The built-in Thunderbolt 3 cable delivers lightning-fast 40 Gbps data transfer while supporting stunning 8K and 4K video output.

Technical Specifications

  • Thunderbolt 3 interface with 40 Gbps transfer speed
  • Dual display support up to 4K@60Hz
  • 60W Power Delivery charging capability

Applications

  • Video editing workstations requiring multiple displays
  • Creative studios handling large media transfers
  • Corporate environments needing reliable connectivity

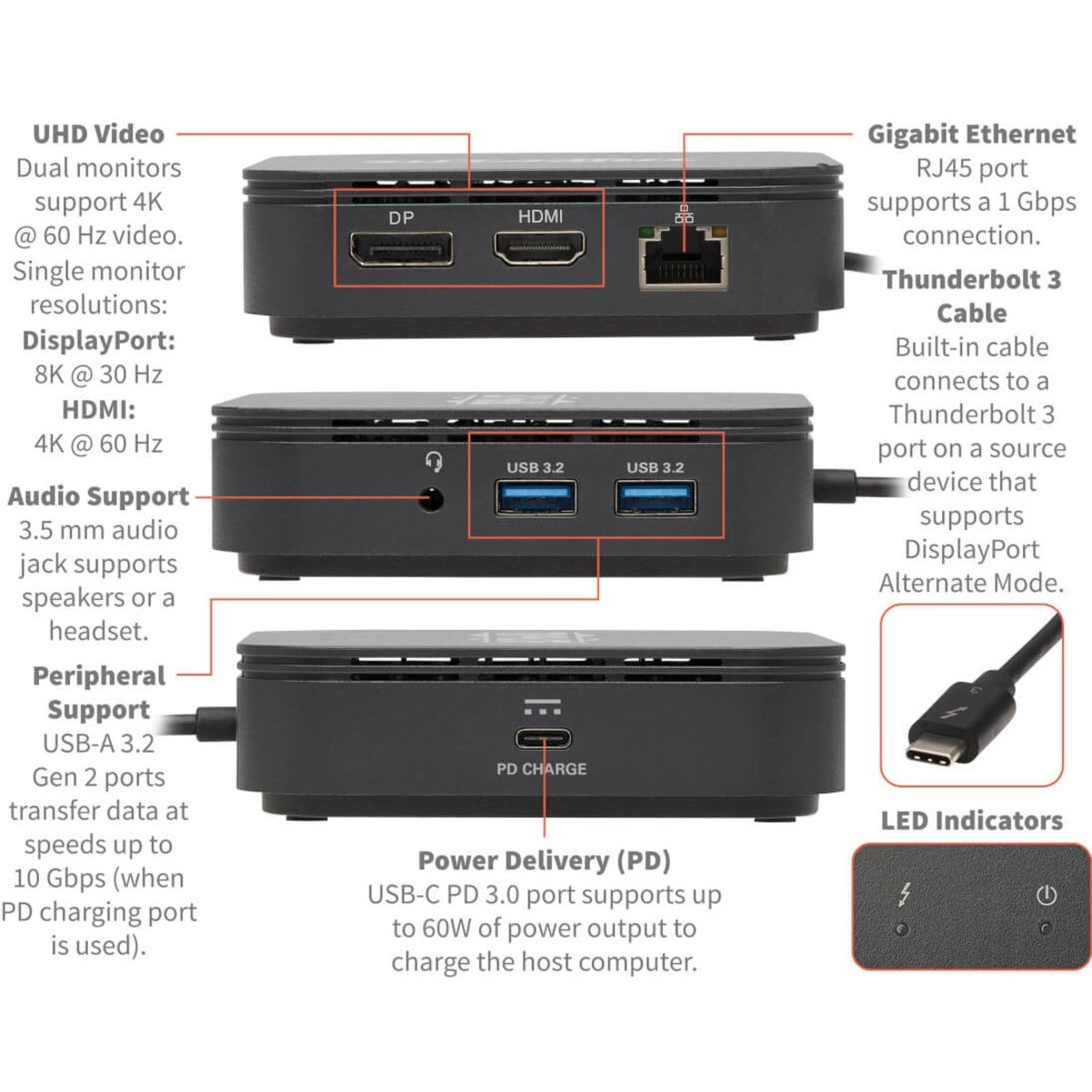

Detailed port diagram of MTB3-DOCK-04 showing all connections with specifications labeled

Complete Port Overview and Specifications

Every port is strategically placed for optimal accessibility. The comprehensive array includes DisplayPort, HDMI, USB 3.2, and Gigabit Ethernet, enabling seamless integration with existing peripherals and networks.

Technical Specifications

  • DisplayPort supporting 8K@30Hz resolution
  • HDMI 2.0 with 4K@60Hz output
  • Dual USB 3.2 Gen 2 ports with 10 Gbps speed

Applications

  • Digital signage deployments
  • Data center management
  • Multi-monitor workstations
Connection diagram showing various device connectivity options with icons

Universal Device Connectivity Solution

Connect multiple devices simultaneously through versatile ports. From dual monitors and storage devices to network connections and audio equipment, this dock serves as your central connectivity hub.

Technical Specifications

  • Multi-device support architecture
  • 3.5mm audio interface
  • Gigabit Ethernet port

Applications

  • Conference room setups
  • Professional audio stations
  • Remote work environments
Angled view of MTB3-DOCK-04 showing display ports with dual monitor support

Dual Display Capability Unleashed

Experience the power of dual 4K displays with crystal-clear resolution. The dock supports both DisplayPort and HDMI outputs simultaneously for enhanced productivity.

Technical Specifications

  • Simultaneous dual 4K@60Hz output
  • DisplayPort 1.4 compatibility
  • HDMI 2.0 support

Applications

  • Financial trading stations
  • Design studios
  • Content creation workstations
Dimensional diagram of MTB3-DOCK-04 showing exact measurements

Compact Design with Precise Dimensions

The dock's space-efficient design measures just 3.94 inches square with a height of 1.1 inches, making it perfect for any desk setup while maintaining full functionality.

Technical Specifications

  • 3.94 x 3.94 x 1.1 inch footprint
  • Integrated Thunderbolt 3 cable
  • Durable aluminum construction

Applications

  • Space-constrained workstations
  • Mobile office setups
  • Desk hoteling environments
Side view of MTB3-DOCK-04 showing slim profile and cable connection

Elegant Profile with Built-in Power

The sleek side profile showcases the dock's minimal footprint while highlighting the integrated Thunderbolt 3 cable and power delivery capabilities.

Technical Specifications

  • 60W Power Delivery
  • Integrated cable management
  • LED power indicators

Applications

  • Executive desks
  • Clean desk policies
  • Modern office environments
Perspective view of MTB3-DOCK-04 showing all ports and connections

Professional-Grade Port Layout

The thoughtfully designed port arrangement ensures easy access to all connections while maintaining a clean, professional appearance.

Technical Specifications

  • Ergonomic port placement
  • Clear port labeling
  • Optimized spacing design

Applications

  • IT deployment scenarios
  • Professional installations
  • Quick-connect applications
Close-up of MTB3-DOCK-04 front panel showing display and network ports

Essential Connectivity Panel

The front panel houses critical display and network connections, providing quick access to frequently used ports.

Technical Specifications

  • DisplayPort and HDMI outputs
  • Gigabit Ethernet port
  • Status LED indicators

Applications

  • Presentation systems
  • Network operations centers
  • Digital signage control
Side view of MTB3-DOCK-04 showing USB and audio ports

Peripheral Connection Hub

USB 3.2 ports and audio connectivity provide essential interfaces for peripherals and communication devices.

Technical Specifications

  • Dual USB 3.2 Gen 2 ports
  • 3.5mm audio combo jack
  • High-speed data transfer

Applications

  • Audio/video production
  • Multiple peripheral connections
  • Conference room systems
Close-up of MTB3-DOCK-04 PD charging port

Power Delivery Excellence

The USB-C Power Delivery port provides up to 60W of charging power, keeping your laptop powered while driving multiple peripherals.

Technical Specifications

  • 60W PD charging support
  • USB-C PD 3.0 compliance
  • Simultaneous power and data

Applications

  • All-day workstations
  • Mobile professional setups
  • Hot desk environments
Top view of MTB3-DOCK-04 showing logo and status LEDs

Streamlined Top View Design

The minimalist top surface features the Tripp Lite logo and essential status indicators for power and connectivity.

Technical Specifications

  • Dual status LED indicators
  • Durable surface finish
  • Heat-dissipating design

Applications

  • Professional desk setups
  • Meeting room installations
  • Executive office environments
MTB3-DOCK-04 in use with laptop, monitors, and peripherals connected

Real-World Application Setup

See the dock in action, connecting a laptop to multiple peripherals including displays, storage devices, and network infrastructure.

Technical Specifications

  • Multi-device connectivity
  • Plug-and-play operation
  • Universal compatibility

Applications

  • Workstation deployment
  • Home office setup
  • Professional computing environments

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

MTB3-DOCK-04

Brand Name

Tripp Lite

Product Model

MTB3-DOCK-04

Product Name

MTB3-DOCK-04 Docking Station

Product Type

Docking Station

Technical Information
Connectivity Technology

Wired

Device Supported

Notebook

Interfaces/Ports
Host Interface

USB Type C

Total Number of USB Ports

4

USB Type-C

Yes

USB Type-C Detail

USB C (FEMALE) & THUNDERBOLT 3 (Type-C MALE)

Network (RJ-45)

Yes

Number of DisplayPort Outputs

1

DisplayPort

Yes

Headphone/Microphone Combo Port

Yes

Number of HDMI Outputs

1

HDMI

Yes

Thunderbolt

Yes

Power Description
Maximum Power Supply Wattage

60 W

Physical Characteristics
Height

0.98

Width

4.17

Depth

4.17

Weight (Approximate)

7.70 oz

Miscellaneous
Package Contents

  • MTB3-DOCK-04 Docking Station
  • Owner's Manual

Compatibility

Apple Devices:

  • MacBook
  • MacBook Pro
Chromebook

Brand Compatibility

Apple

Environmentally Friendly

Yes

Environmental Certification

RoHS

Country of Origin

China

Warranty
Limited Warranty

3 Year

Included in the Box

  • icon_list|docking station|Single Slot Docking Station icon

    Docking Station

  • icon_list|owner's manual|Owner's Manual Documentation icon

    Owner's Manual

FAQs

What are the main video output capabilities of the Tripp Lite MTB3-DOCK-04?
The MTB3-DOCK-04 offers impressive video output capabilities, supporting up to 8K (7680 x 4320) at 30Hz through DisplayPort and 4K (3840 x 2160) at 60Hz through HDMI 2.0. When using both ports simultaneously, it can support dual 4K displays at 60Hz. Users can display the same content on both monitors, extend their desktop across screens, or create a video wall setup. Note that 8K resolution requires the host device to support DisplayPort 1.3.
What is the power delivery capacity of this docking station?
The docking station features a USB-C Power Delivery port that provides up to 60W of power (20V 3A), sufficient for charging and powering connected devices like MacBooks or Chromebooks. The dock operates at optimal specifications when using the PD charging port, and can simultaneously power both the host device and the dock itself when connected to the device's AC wall charger.
What are the data transfer speeds supported by the Thunderbolt 3 connection?
The Thunderbolt 3 connection supports blazing-fast bidirectional speeds up to 40 Gbps, which is 8x faster than USB 3.0, 4x faster than Thunderbolt 1, and 2x faster than Thunderbolt 2. It features dual 20 Gbps channels moving data in both directions simultaneously, making it ideal for video streaming, editing across dual monitors, and transferring large files like RAW video or CAD files.
What USB ports are available and what speeds do they support?
The dock features two USB-A hub ports that support USB 3.1 Gen 2 data transfer rates up to 10 Gbps when the dock is powered via the USB-C PD port. In bus-powered mode, one port supports 10 Gbps while the other operates at USB 2.0 speeds on a first-come, first-serve basis. All ports are backward compatible with previous USB generations and can connect peripherals like flash drives, mice, keyboards, and external hard drives.
What networking capabilities does the MTB3-DOCK-04 offer?
The docking station includes an RJ45 port that provides access to Gigabit Ethernet networks, supporting true 10/100/1000 Mbps speeds for fast data transfers. This wired connection option is ideal when Wi-Fi isn't available or when users need more reliable and faster network speeds for their work.
