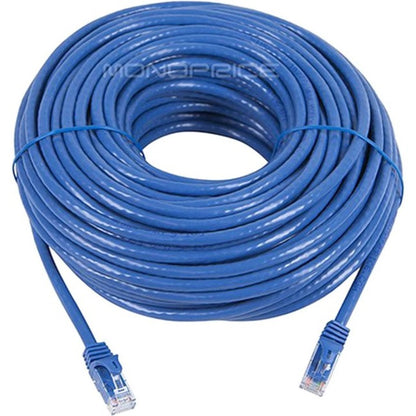

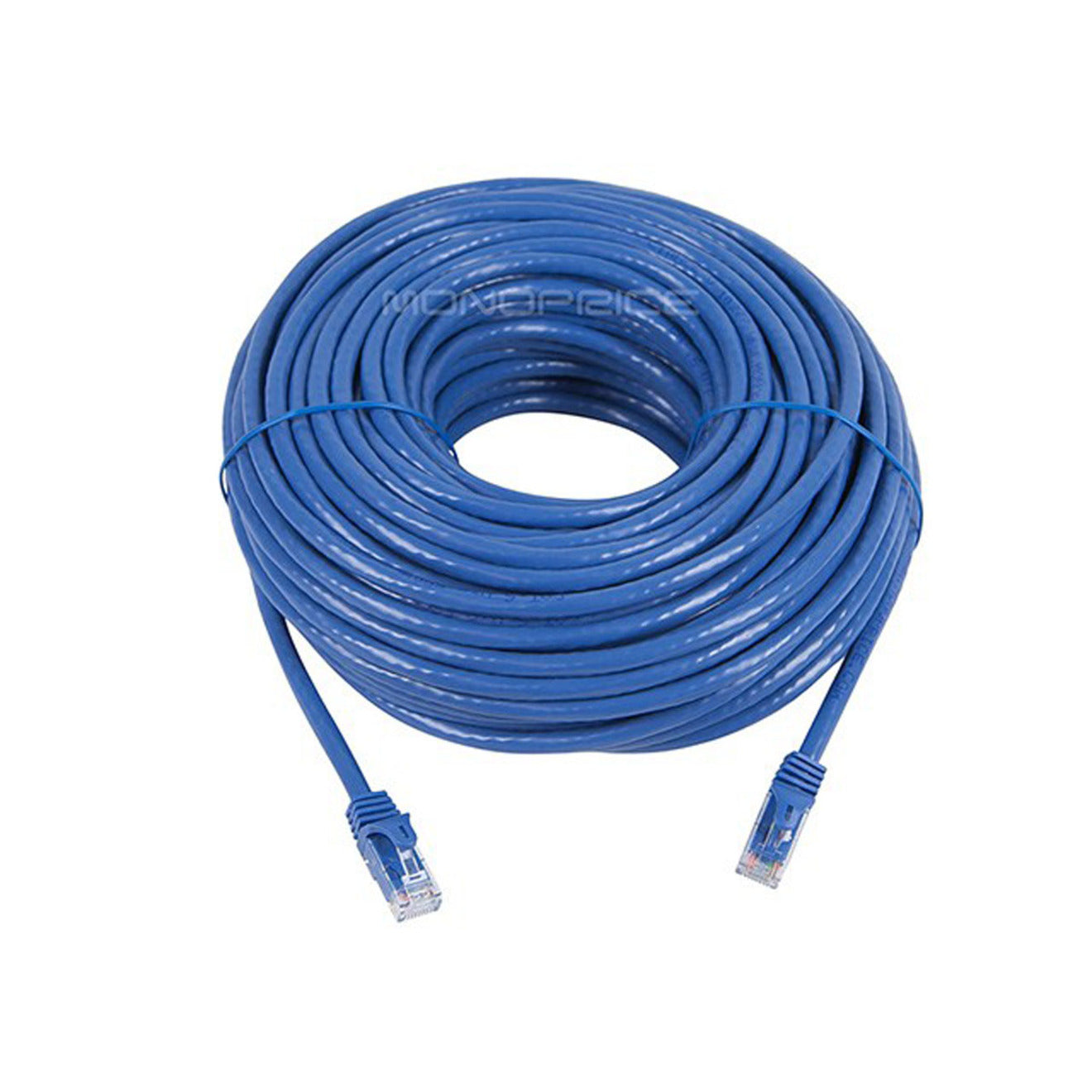

Full length view of 100ft blue Cat6 ethernet cable coiled with visible connectors

Extended Reach Network Solutions

This 100-foot cable provides the perfect solution for long-distance network connections while maintaining Cat6 performance standards. The stranded copper construction offers the flexibility needed for complex routing paths, while the robust outer jacket provides protection against environmental factors and physical stress.

Technical Specifications

  • UTP (Unshielded Twisted Pair) design for standard environments
  • Durable PVC jacket for extended cable life
  • TIA-568-C.2 compliant construction

Applications

  • Cross-building network connectivity
  • Warehouse network infrastructure
  • Large office space deployments

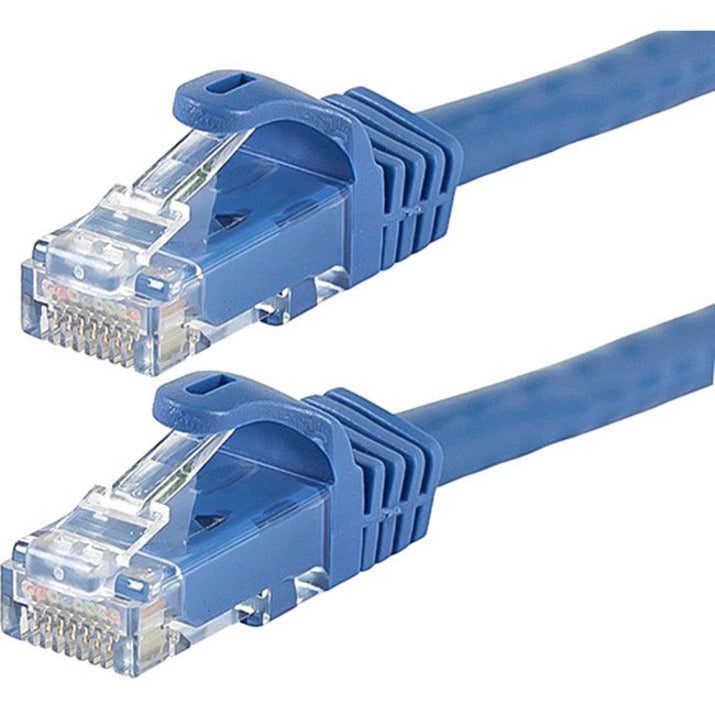

Detailed view of 100ft blue Cat6 ethernet cable showing quality construction

Quality-Assured Network Performance

Built to exceed Category 6 specifications, this cable delivers consistent performance for your critical network infrastructure. The UL Code 444 compliant construction ensures safety and reliability, while the lifetime warranty provides peace of mind for long-term installations.

Technical Specifications

  • UL Code 444 and NEC compliant design
  • Full bandwidth support up to 550MHz
  • Lifetime warranty coverage

Applications

  • Mission-critical network installations
  • Educational institution deployments
  • Healthcare facility networking

Product details

General Information
Manufacturer

Monoprice, Inc

Manufacturer Part Number

9794

Brand Name

Monoprice

Product Line

Flexboot

Product Name

FLEXboot Series Cat6 24AWG UTP Ethernet Network Patch Cable, 100ft Blue

Product Type

Network Cable

Technical Information
Cable Type

Category 6

Cable Characteristic

Patch Cable

Cable Length

100 ft

Connector Type on First End

RJ-45 Network - Male

Connector on First End Details

1 x RJ-45 Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Contact Plating

Gold

Device Supported

Network Device

American Wire Gauge

24 AWG

Boot Type

Snagless

Features

Booted
Stranded

Physical Characteristics
Product Color

Blue

Warranty
Limited Warranty

Lifetime

Included in the Box

  • icon_list|network cable|Cat.6 Network cable icon

    Cat6 Cable - Network cable

FAQs

What are the key features of the Monoprice CAT6 UTP Network Cable?
The Monoprice CAT6 UTP Network Cable features 24AWG stranded pure bare copper conductors, 550MHz bandwidth, and 50µm gold plated contacts. It includes a snagless FLEXboot design with a thinner cable boot for easier clip access. The cable is 100 feet long, features RJ-45 male connectors on both ends, and is UL Code 444 and TIA-568-C.2 compliant. It's designed for reliable network connectivity with premium materials and construction.
What makes the FLEXboot design special on this cable?
The FLEXboot design features a thinner cable boot that protects the plug retaining clip while making it much easier to depress the clip and protective cover. This snagless design prevents the connector from getting caught during installation and removal, reducing potential damage to the cable while improving overall handling and usability.
What is the maximum bandwidth supported by this cable?
This CAT6 cable supports up to 550MHz bandwidth, which is suitable for high-speed data transmission in modern networks. This bandwidth capability ensures the cable can handle demanding network applications and provides sufficient headroom for current and future networking needs.
What type of connectors does the cable use?
The cable features RJ-45 Network Male connectors on both ends with 50µm gold plated contacts. The gold plating ensures better conductivity and corrosion resistance, while the RJ-45 connectors provide universal compatibility with standard network devices and equipment.
Is this cable compliant with safety standards?
Yes, this cable is fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards. It's made with 100% pure bare copper wire, not copper clad aluminum (CCA), which is a requirement for these safety standards in communications cables.
