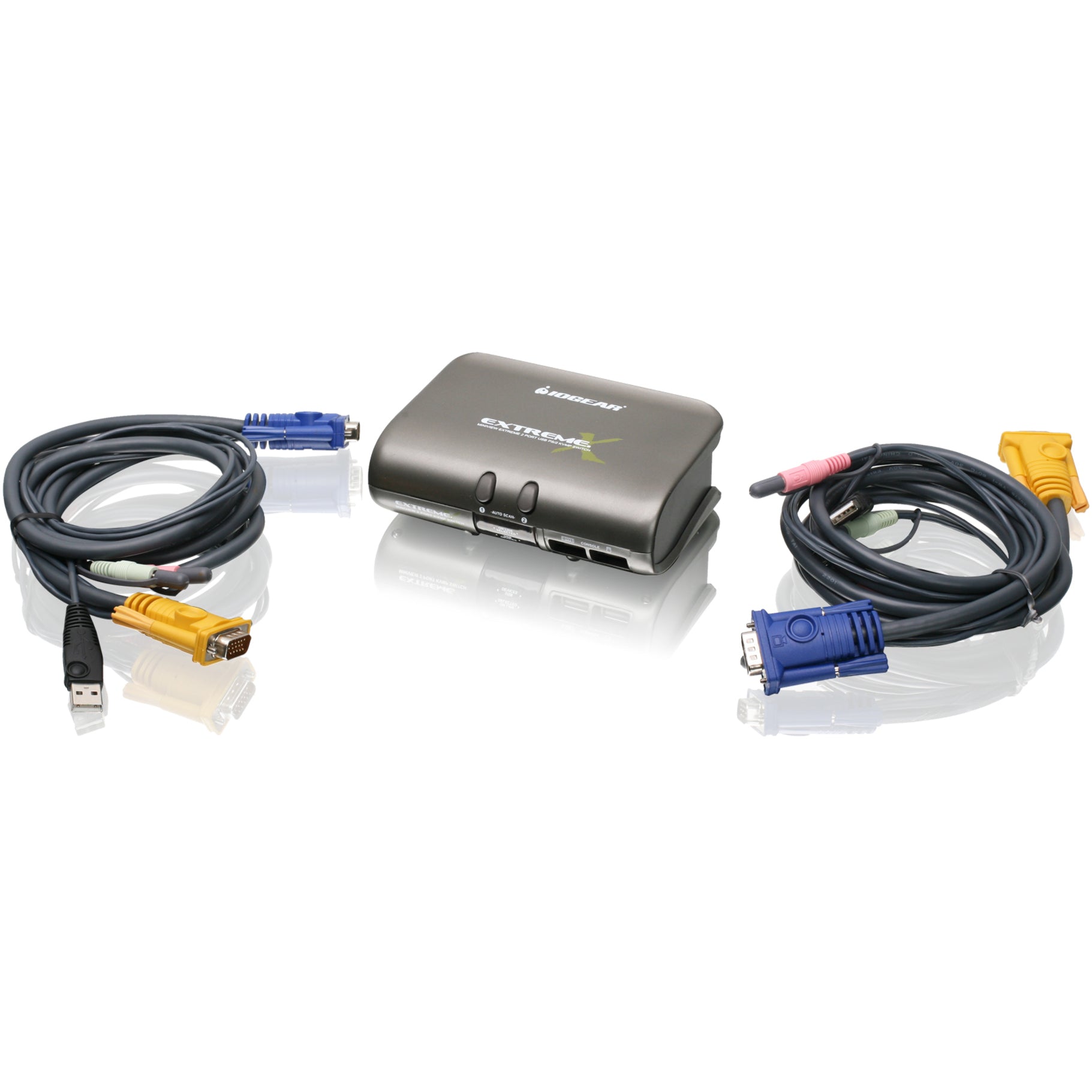

IOGEAR KVM switch with integrated cables showing VGA and USB connections

Streamlined Connectivity with Integrated 6-Foot Cables

The IOGEAR GCS632U features pre-attached 6-foot KVM cables that eliminate the need for separate cable purchases and simplify setup. The integrated design combines VGA, USB, and audio connections into a clean, organized solution that reduces desktop clutter while ensuring optimal signal quality. This thoughtful engineering allows for flexible positioning of your computers while maintaining reliable connectivity.

Technical Specifications

  • 6-foot integrated KVM cables for hassle-free setup
  • Combined VGA and USB connections for clean cable management
  • Audio pass-through capability for shared speaker systems

Applications

  • Dual-computer workstation setups in office environments
  • IT administrative stations requiring multiple system access
  • Design workstations needing seamless computer switching
Close-up view of IOGEAR KVM switch ports showing dual USB and VGA connections

Dual USB Ports with VGA Display Support

The front panel interface showcases the switch's essential connectivity options with two USB ports flanking a central VGA connector. This configuration supports high-resolution display output up to 2048 x 1536, while the USB ports ensure seamless peripheral sharing between connected systems. The clean, white housing design emphasizes the product's modern approach to KVM functionality.

Technical Specifications

  • High-resolution VGA support up to 2048 x 1536
  • Dual USB 2.0 ports for keyboard and mouse connectivity
  • Multi-platform compatibility with Windows, Mac, and Sun systems

Applications

  • Multi-system control in development environments
  • Shared workstation setups in educational facilities
  • Cross-platform testing and development stations
Top view of IOGEAR KVM switch showing switching buttons and branding

Compact Design with One-Touch Switching

The top view highlights the switch's space-efficient design, featuring convenient switching buttons integrated into the sleek gray accent panel. The IOGEAR branding and minimalist aesthetic complement modern office environments while maintaining professional functionality. This compact form factor makes it ideal for desk setups where space is at a premium.

Technical Specifications

  • Compact dimensions: 3.2" width x 2.7" depth x 1" height
  • Quick-access switching buttons for instant computer selection
  • Self-powered design requiring no external power adapter

Applications

  • Space-constrained desktop environments
  • Professional monitoring stations
  • Shared resource management in small offices

Product details

General Information
Manufacturer

ATEN Technology Inc

Manufacturer Part Number

GCS632U

Brand Name

IOGEAR

Product Name

MiniView Micro USB Plus 2-Port KVM Switch

Product Type

KVM Switchbox

Technical Information
Number of Computers Supported

2

Number of Local Users Supported

1

Maximum Operating Distance

72

Video
Maximum Video Resolution

2048 x 1536

Interfaces/Ports
USB

Yes

VGA

Yes

Number of USB Ports

2

Number of VGA Ports

1

Physical Characteristics
Height

1

Width

3.2

Depth

2.7

Weight (Approximate)

14.40 oz

Miscellaneous
Package Contents

  • 1 x MiniView Micro USB PLUS 2 Port KVM Switch
  • 1 x User Manual
  • 1 x Quick Start Guide
  • 1 x Warranty Registration Card

Warranty
Limited Warranty

2 Year

Included in the Box

  • icon_list|kvm switch|2-Port KVM Switch icon

    KVM Switch

  • icon_list|user manual|User Manual Documentation icon

    User Manual

  • icon_list|quick start guide|Quick Start Guide Documentation icon

    Quick Start Guide

  • icon_list|warranty card|Warranty Card Documentation icon

    Warranty Card

FAQs

What is the IOGEAR GCS632U MiniView Micro USB Plus and what are its main features?
The IOGEAR GCS632U MiniView Micro USB Plus is a 2-port KVM switch that allows users to control two computers using a single USB keyboard, monitor, and USB mouse. Key features include USB sniffing technology for smooth keyboard and mouse emulation, VSE Video Signal Enhancement technology supporting 2048 x 1536 resolution with 32-bit color, integrated audio sharing capabilities, and multi-platform support for Windows, Mac, and Sun Solaris systems. The device comes with pre-attached 6' KVM cables for easy setup.
What is the maximum video resolution supported by this KVM switch?
The IOGEAR GCS632U supports a maximum video resolution of 2048 x 1536 pixels through its VGA connection. This high resolution is enhanced by the device's patented VSE (Video Signal Enhancement) technology, which provides rich 32-bit color depth for superior visual quality across both connected computers.
What are the physical dimensions and weight of the GCS632U?
The IOGEAR GCS632U KVM switch has compact dimensions of 1" in height, 3.2" in width, and 2.7" in depth. The unit weighs approximately 14.40 ounces, making it a lightweight and space-efficient solution for desktop setups.
What operating systems is the IOGEAR GCS632U compatible with?
The IOGEAR GCS632U offers multi-platform support, being compatible with Windows, Mac, and Sun Solaris operating systems. It features special hot key functionality that allows PC keyboards to emulate Mac and Sun special keys, ensuring full functionality across all supported platforms.
What comes included in the package with the IOGEAR GCS632U?
The package includes the MiniView Micro USB PLUS 2 Port KVM Switch with pre-attached cables, a user manual, a quick start guide, and a warranty registration card. The switch comes with everything needed for immediate setup and operation.
