HC30WF5R1

$609.99

Honeywell Home 30 Series 5MP WDR Network Camera, Rugged Fisheye Design, HD IR Night Vision 65ft, H.265/H.264, Fixed Lens, CMOS Sensor, TAA & NDAA Compliant - HC30WF5R1 (3 Year Warranty)

Name: Honeywell Home 30 Series 5MP WDR Network Camera, Rugged Fisheye Design, HD IR Night Vision 65ft, H.265/H.264, Fixed Lens, CMOS Sensor, TAA & NDAA Compliant - HC30WF5R1 (3 Year Warranty)
Brand: Honeywell Home
SKU: HC30WF5R1
Price: 609.99 USD
Availability: OutOfStock

Brand New

FREE Returns

Product variants

5MP

Resolution

Fisheye

Design

65ft

Night Vision

H.265

Compression

CMOS

Sensor

30fps

Frame Rate

Out of stock

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Wednesday, Jul 16

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 3 Year

Downloads

Manufacturer Brochure PDF Document

User Manual PDF Document

Key Features

🎥 5MP CMOS sensor with 2560 x 1920 resolution
🌙 Night vision up to 65.62 ft with 6 IR LEDs
🎬 Supports H.265, H.264, and MJPEG video formats at 30fps
🔭 1.16mm fixed fisheye lens with f/2.25 aperture
🌈 Dual mode: Color and Monochrome capabilities
🔌 RJ-45 wired connectivity with remote management
🏗️ Versatile mounting: Pole, Junction Box, and Pendant options
🛡️ TAA and NDAA compliant
♻️ RoHS compliant and environmentally friendly
⚡ 3-year limited warranty

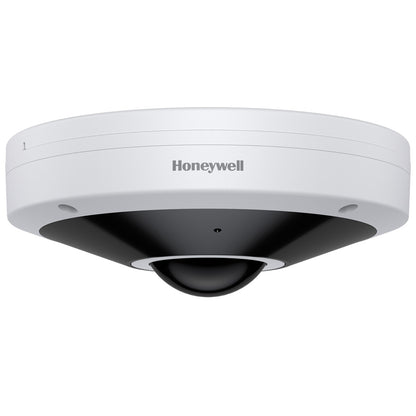

Honeywell Home 5MP WDR fisheye security camera in white housing with black dome lens, side view

180° Panoramic Coverage with 5MP Crystal-Clear Resolution

The Honeywell Home 5MP Fisheye Camera delivers comprehensive surveillance through its advanced fisheye lens design. The camera's 5MP CMOS sensor paired with WDR technology ensures exceptional image quality in varying light conditions, while the low-profile form factor maintains discrete monitoring. With a 1.16mm fixed lens and f/2.25 aperture, this camera captures wide-angle views with remarkable detail and clarity.

Technical Specifications

5MP resolution for detailed wide-area coverage
180° panoramic field of view with fisheye lens
WDR technology for balanced exposure in mixed lighting

Applications

Large retail space surveillance with single camera placement
Campus security monitoring of open areas
Government facility perimeter observation

Honeywell Home 5MP fisheye security camera showing IR LED configuration, angled view

Night Vision Excellence with Advanced IR Technology

Experience uninterrupted 24/7 surveillance with the integrated IR LED array that provides clear night vision up to 65 feet. The camera's sophisticated IR system automatically adjusts to changing light conditions, ensuring consistent image quality from day to night. The rugged design houses 6 high-performance IR LEDs strategically positioned to eliminate blind spots in low-light conditions.

Technical Specifications

65.62 ft night vision range with 6 IR LEDs
Automatic day/night switching capability
True WDR for optimal contrast management

Applications

24/7 warehouse security monitoring
After-hours retail surveillance
Parking facility monitoring in low-light conditions

Honeywell Home 5MP fisheye security camera displaying compact form factor, front view

Compact Design with Multiple Mounting Options

This versatile security camera features a sleek, low-profile design that seamlessly integrates into any environment. At just 2 inches in height and 6.3 inches in diameter, it offers flexible mounting options including pole, junction box, and pendant installations. The durable Lyric White housing ensures long-lasting performance while maintaining a professional appearance suitable for various commercial applications.

Technical Specifications

Multiple mounting options for versatile installation
Compact 2" height and 6.3" diameter design
IP-rated housing for environmental protection

Applications

Discrete monitoring in corporate environments
High-ceiling installation in retail spaces
Outdoor perimeter security deployment

Product details

General Information

Manufacturer

Resideo

Manufacturer Part Number

HC30WF5R1

Brand Name

Honeywell Home

Product Series

30

Product Model

HC30WF5R1

Product Name

5MP WDR IR IP Fisheye Camera

Product Type

Network Camera

Technical Information

Recording Formats

HD

HD Recording

Yes

Night Vision Distance

65.62 ft

Number of IR LEDs

6

Display & Graphics

Image Sensor Type

CMOS

Color Supported

Color
Monochrome

Effective Camera Resolution

5 Megapixel

Video

Video Formats

MJPEG
H.265
H.264

Maximum Video Resolution

2560 x 1920

Maximum Frame Rate

30 fps

Video Signal Format

NTSC
PAL

Lens

Lens Type

Fixed

Maximum Focal Length

1.16 mm

Maximum Aperture

f/2.25

Network & Communication

Connectivity Technology

Wired

Remote Management

Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mount Type

Pole Mount
Junction Box Mount
Pendant Mount

Form Factor

Fisheye

Product Color

Lyric White

Height

2''

Diameter

6.3''

Weight (Approximate)

1.81 lb

Miscellaneous

Country of Origin

Taiwan

TAA Compliant

Yes

NDAA Compliant

Yes

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year

Included in the Box

Network Camera
Mounting Hardware
Quick Guide
