Product details

General Information
Manufacturer

Honeywell International, Inc

Manufacturer Part Number

8675I300FR2N

Brand Name

Honeywell

Product Model

8675i

Product Name

8675i Wearable Barcode Scanner

Product Type

Barcode Scanner

Technical Information
Connectivity Technology

Wireless

Scanning Capability

1D
2D

Image Sensor Type

Imager

Scan Mode

Trigger

Scan Pattern

Omni-directional

Scanner Range

FlexRange

Reading Angle (Skew)

60°

Reading Angle (Pitch)

60°

Drop Specification

  • 1.8m(6 ft) Mil-Std-810 Drop Test at operating temperature
  • 50x 1.5m (5 ft) to concrete at operating temperature

Minimum Print Contrast

20%

Minimum Element Resolution (Code 39)

5 mil

Maximum Element Resolution (Code 39)

100 mil

Minimum Element Resolution (DataMatrix)

10 mil

Maximum Element Resolution (DataMatrix)

100 mil

Network & Communication
Bluetooth

Yes

Radio Frequency

Yes

Battery Information
Battery Included

Yes

Battery Capacity

570 mAh

Battery Weight

0.67 oz

Environmental Conditions
Operating Temperature

-4°F (-20°C) to 122°F (50°C)

Storage Temperature

-4°F (-20°C) to 140°F (60°C)

Humidity (Non-condensing)

95%

Physical Characteristics
Form Factor

Wearable

Rugged

Yes

Height

0.6''

Width

1.2''

Length

2.6''

Weight (Approximate)

2.40 oz

Miscellaneous
Ingress Protection (IP) Rating

IP65

Warranty
Limited Warranty

2 Year

Included in the Box

  • icon_list|8675i scanner|8675i Scanner Main unit icon

    8675i Scanner

  • icon_list|battery|C Size Battery icon

    Battery

  • icon_list|triggered ring|Triggered Ring Wearable accessory icon

    Triggered Ring

  • icon_list|strap glove|Strap Glove Wearable accessory icon

    Strap Glove

FAQs

What is the scanning range and capability of the Honeywell 8675i barcode scanner?
The Honeywell 8675i features FlexRange™ technology with impressive scanning capabilities. It can read 100% UPC codes from near contact up to 5 feet (1.5m), and 100 mil Code 39 barcodes up to 33 feet (10m). The scanner supports both 1D and 2D barcode scanning with an omni-directional scan pattern. It offers excellent reading angles of 60° for both skew and pitch, with a minimum print contrast requirement of 20%.
How durable is the Honeywell 8675i scanner?
The Honeywell 8675i is built for durability with impressive rugged specifications. It passes the 1.8m (6 ft) Mil-Std-810 Drop Test at operating temperature and can withstand 50 drops from 1.5m (5 ft) to concrete. The scanner features an IP65 rating for dust and water protection. It can operate in extreme temperatures from -4°F (-20°C) to 122°F (50°C) and can handle up to 95% non-condensing humidity.
What are the battery specifications and power management features?
The Honeywell 8675i comes with a 570 mAh battery that weighs just 0.67 oz. The scanner is designed for multi-shift operations with an easy-to-replace battery system. It features user-facing LEDs that indicate Bluetooth connection status, battery state of charge, and battery health alerts when replacement is needed. The battery can be easily replaced as it ages through normal use, extending the scanner's service life.
How ergonomic is the Honeywell 8675i for daily use?
The 8675i is optimized for ergonomic comfort with minimal height off the finger to prevent workplace interference. It features user-friendly contact surfaces, easy adjustment capabilities, and simple operation. The triggered ring can be quickly switched between right and left-hand configurations, and the finger strap buckle is low-profile to prevent interference between fingers. The scanner can be instantly converted from ring to glove without tools, and the strap glove is minimal and easily adjustable to fit various users.
What are the physical dimensions and weight of the 8675i scanner?
The Honeywell 8675i is designed to be compact and lightweight, measuring 2.6 inches in length, 1.2 inches in width, and 0.6 inches in height. The scanner weighs approximately 2.40 oz, making it comfortable for extended wear during long work shifts. Its compact form factor makes it ideal for wearable applications while maintaining robust scanning capabilities.

Didn’t find your answer?

Don't hestitate to contact us

Compare Similar Products

Specification
Honeywell 8675i Wearable Wireless Barcode Scanner, FlexRange Technology, 1D/2D Omni-directional Scanning, Bluetooth, IP65 Rugged, Ergonomic Design - 8675I300FR2N (2 Year Warranty)
Honeywell 8675i Wearable Wireless Barcode Scann...
Socket Mobile SocketScan S740 Universal Wireless Barcode Scanner, 1D/2D Scanning, Bluetooth Compatible, Handheld Imager, Blue - CX3431-1881 (1 Year Warranty)
Socket Mobile SocketScan S740 Universal Wireles...
Socket Mobile SocketScan S740 Universal Wireless Barcode Scanner, 1D/2D Scanning, Bluetooth Compatible, Handheld Imager, Red - CX3413-1832 (1 Year Warranty)
Socket Mobile SocketScan S740 Universal Wireles...

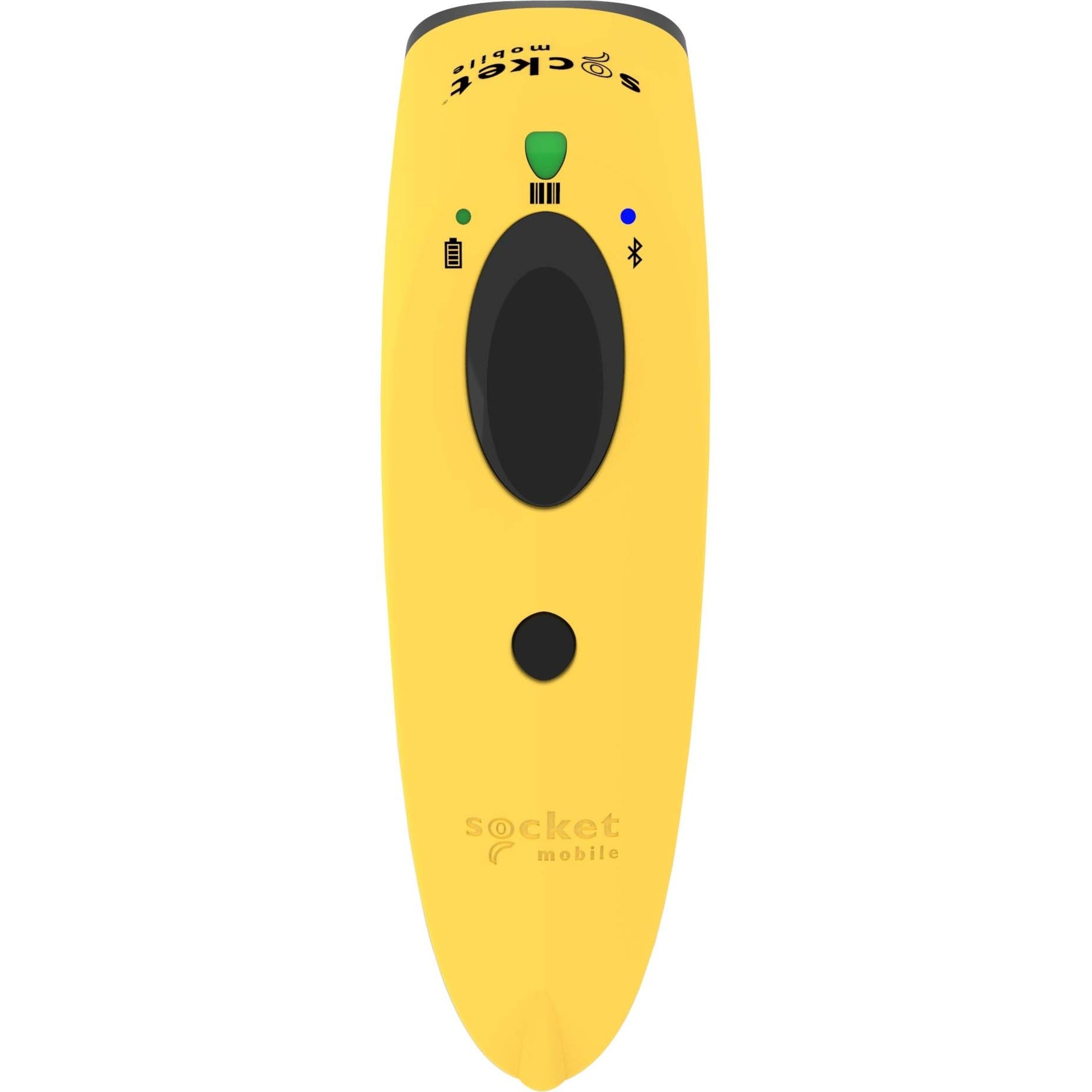

Socket Mobile SocketScan S740 Universal Wireless Barcode Scanner, 1D/2D Scanning, Bluetooth Compatible, Handheld Design, Yellow - CX3415-1834 (1 Year Warranty)
