Product details

General Information
Manufacturer

Genesis Cable

Manufacturer Part Number

63602105

Brand Name

Genesis

Product Line

Genesis

Product Name

General Communications Cable

Product Type

Network Cable

Technical Information
Cable Type

Category 6

Cable Length

1000 ft

Connector Type on First End

Bare Wire

Connector on First End Details

Bare Wire

Connector Type on Second End

Bare Wire

Connector on Second End Details

Bare Wire

Shielding

No

Jacket Type

Riser
CMR
FT4

Device Supported

Network Device

American Wire Gauge

23 AWG

Number of Pairs

4

Features

Sunlight Resistant

Physical Characteristics
Product Color

Green

Product Material

Bare Copper

Miscellaneous
Environmentally Friendly

Yes

Country of Origin

Vietnam

Included in the Box

  • icon_list|cat6 cable|10ft Cat6 Cable icon

    Cat6 Cable

FAQs

What are the key specifications of the Genesis General Communications Cable?

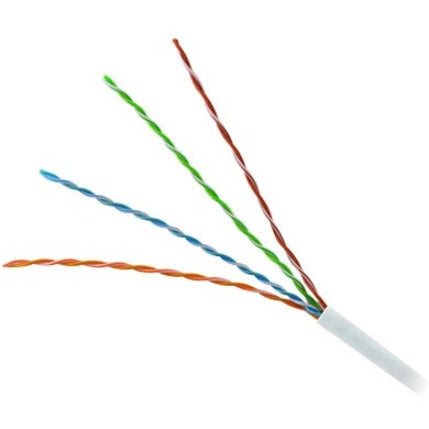

The Genesis General Communications Cable (63602105) is a Category 6 UTP cable featuring 4 pairs of 23 AWG solid bare copper conductors. It's a 1000 ft riser-rated cable with a sunlight-resistant PVC jacket. The cable is UL/ETL verified to TIA/EIA-568 standards and sweep tested to 350 MHz, making it ideal for high-performance network installations.
What type of jacket and rating does this cable have?
This cable features a sunlight-resistant PVC jacket with CMR/FT4 Riser rating. The jacket includes a ripcord underneath for easier stripping and sequential footage markings. The riser rating means it's approved for vertical runs between floors in non-plenum spaces, meeting UL fire safety standards.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable. It doesn't include any metallic shielding around the conductors, making it more flexible and cost-effective for standard installations where electromagnetic interference (EMI) isn't a major concern.
What is the conductor size and material used in this cable?
The cable uses 23 AWG solid bare copper conductors with polypropylene or polyethylene insulation. The solid copper construction ensures optimal electrical performance and signal integrity for network communications.
What is the maximum frequency testing for this cable?
The cable is sweep tested to 350 MHz and verified to meet TIA/EIA-568 Category 6 standards. This testing ensures the cable can handle high-bandwidth applications and maintains consistent performance across its operating frequency range.
