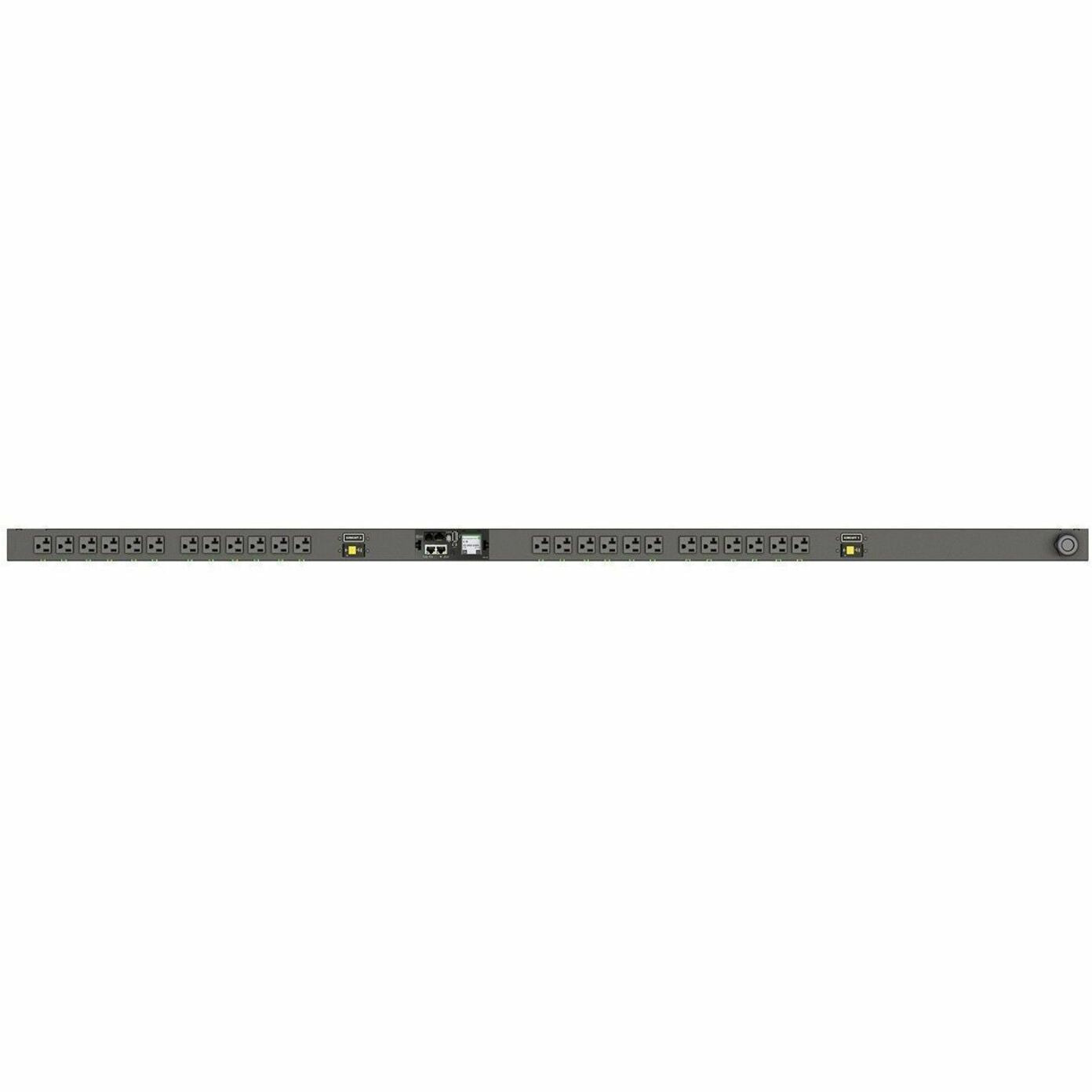

Front view of Eaton EMA108-10 ePDU showing 24 outlets with yellow and blue color-coded sections and network management interface

Intelligent Power Management with Color-Coded Outlet Banks

The Eaton EMA108-10 ePDU features strategically organized outlet banks with distinct color coding for intuitive power distribution management. The front-facing design presents 24 NEMA 5-20R outlets arranged in clearly segmented sections, with yellow and blue indicators marking different circuit groups. This thoughtful layout enables quick identification and efficient load balancing across multiple devices. The integrated network interface and monitoring display provide real-time power metrics and remote management capabilities, allowing IT administrators to maintain optimal power distribution across their infrastructure. The slim 2.1-inch width maximizes rack space efficiency while delivering enterprise-grade power management.

Technical Specifications

  • 24 NEMA 5-20R outlets arranged in color-coded banks

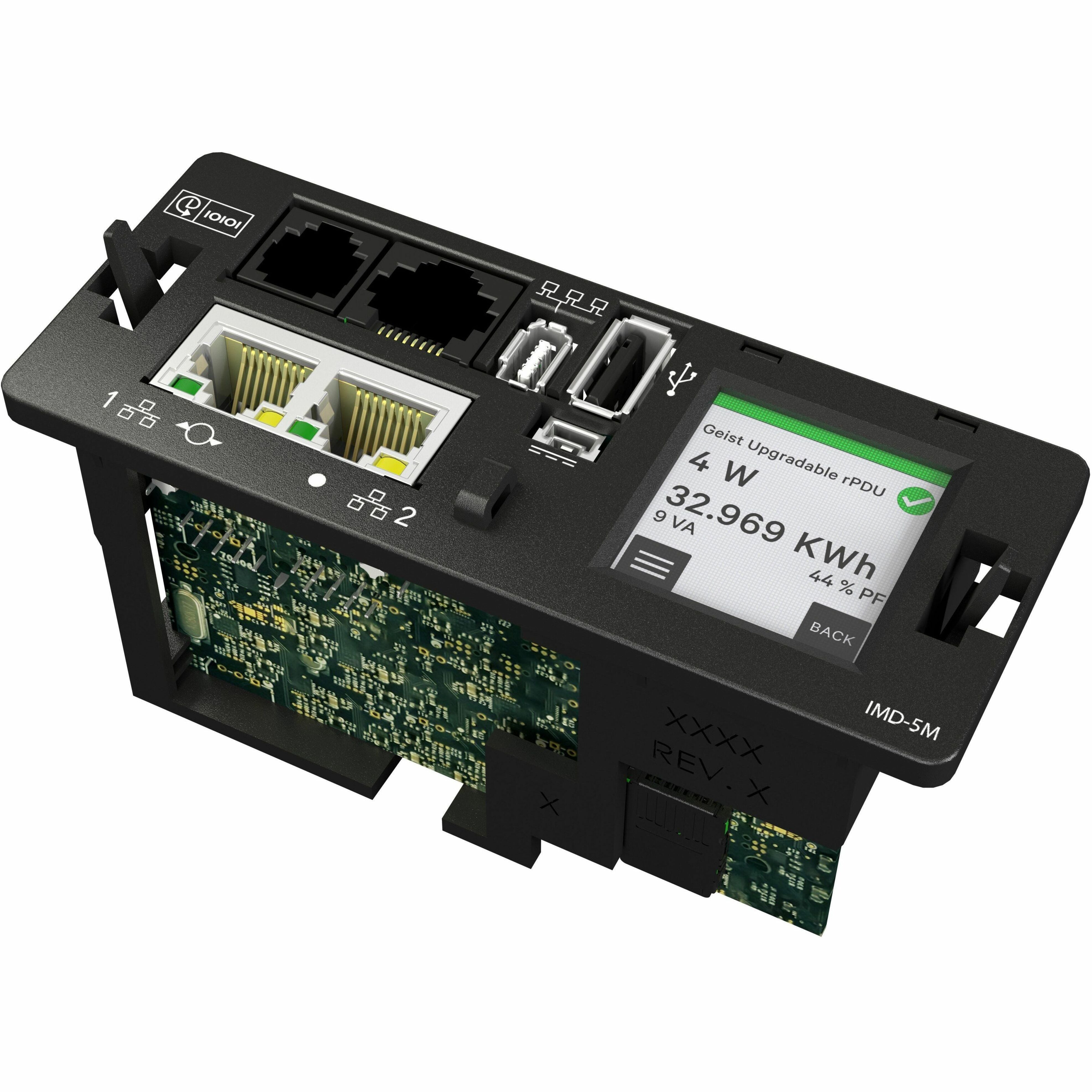

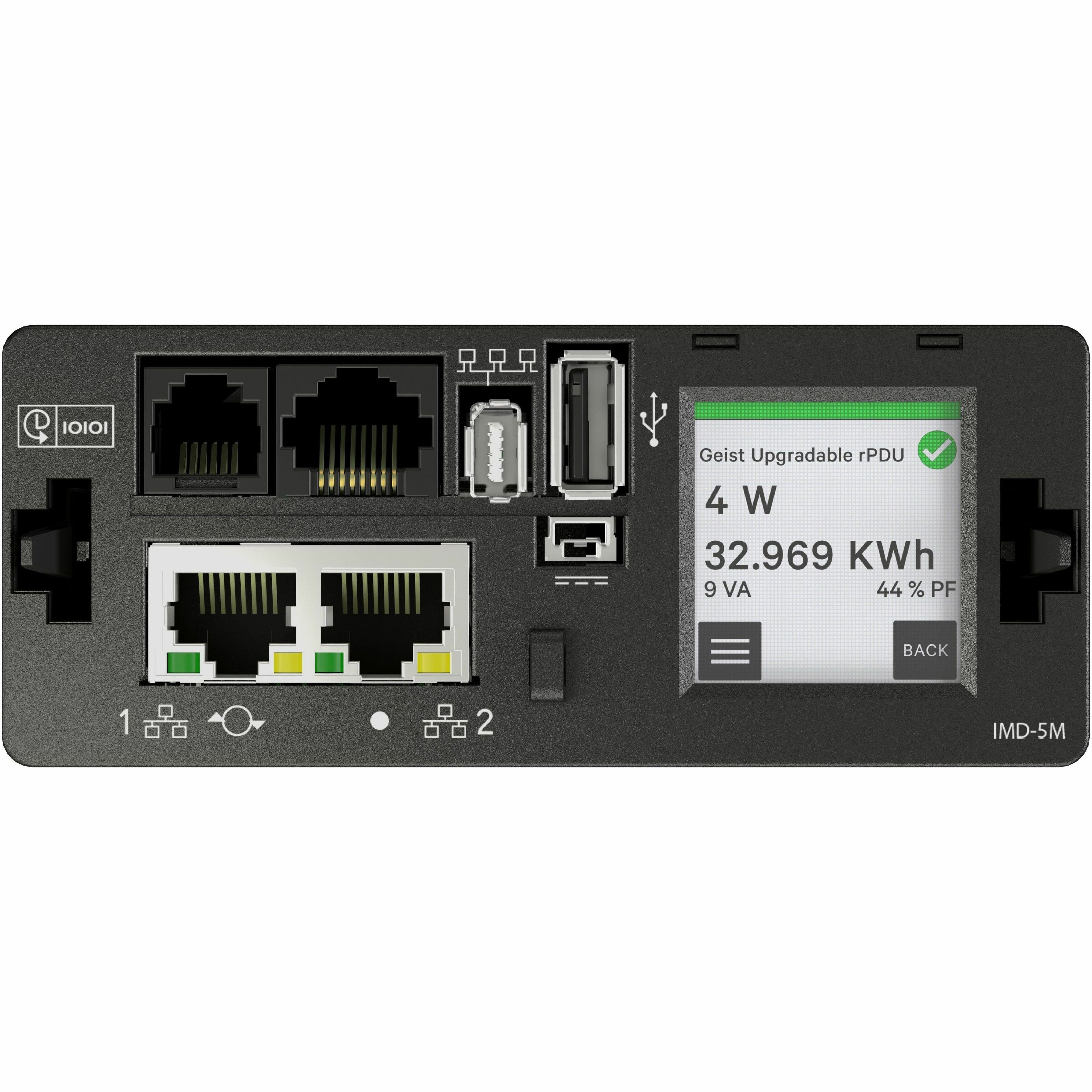

  • Built-in network management interface for remote monitoring
  • 2880W total power capacity with circuit protection

Applications

  • Data center rack power distribution
  • Network operations center power management
  • Server room infrastructure deployment
Angled view of Eaton EMA108-10 ePDU showing vertical mounting orientation and monitoring interface

Space-Efficient Vertical Design with Advanced Monitoring

The 38U vertical form factor of the Eaton EMA108-10 exemplifies efficient space utilization in modern data centers. The sleek black housing integrates seamlessly into standard rack environments while providing easy access to all 24 outlets. The angled perspective highlights the PDU's sophisticated monitoring interface and streamlined cable management capabilities. The strategic placement of the network management module at the center provides convenient access to power monitoring data and configuration options. This design enables IT teams to efficiently manage power distribution while maintaining a clean, organized rack environment.

Technical Specifications

  • 38U vertical mounting design for optimal space usage
  • Centrally located management interface
  • Integrated circuit breaker protection

Applications

  • High-density rack environments
  • Enterprise data center deployment
  • Managed hosting facilities

Product details

General Information
Manufacturer

Eaton Corporation

Manufacturer Part Number

EMA108-10

Brand Name

Eaton

Product Line

ePDU

Product Series

Managed

Product Model

EMA108-10

Product Name

ePDU Managed EMA108-10 24-Outlets PDU

Product Type

PDU

Technical Information
PDU Type

Switched

Plug/Connector Type

NEMA L5-30P

Plug/Connector Detail

1 x NEMA L5-30P

Receptacle Type

NEMA 5-20R

Receptacle Detail

24 x NEMA 5-20R

Power Description
Input Voltage

120 V AC

Output Voltage

120 V AC

Power Rating (Watt)

2880 W

Input Current

24 A

Circuit Breaker

Yes

Interfaces/Ports
Serial Port

Yes

Network (RJ-45)

Yes

Physical Characteristics
Product Color

Black

Mounting Orientation

Vertical

Rack Height

38U

Cord Length

10 ft

Height

66.5

Width

2.1

Depth

2.6

Miscellaneous
Certifications & Standards

cUL

Country of Origin

China

Warranty
Limited Warranty

3 Year

Included in the Box

  • icon_list|pdu unit|PDU Unit Main device icon

    PDU Unit

  • icon_list|Power cord|Power Cable Power cord icon

    Power Cord

  • icon_list|Mounting hardware|Rack Rails Mounting hardware icon

    Mounting Hardware

  • icon_list|user manual|User Manual Documentation icon

    User Manual

FAQs

What are the basic specifications of the Eaton EMA108-10 ePDU?
The Eaton EMA108-10 is a managed PDU featuring 24 NEMA 5-20R outlets with 120V AC input/output voltage. It has a power rating of 2880W and supports 24A input current. The unit comes with a NEMA L5-30P plug and includes both serial and network (RJ-45) interfaces for remote management. It's designed for vertical mounting with a 38U form factor and includes a 10-foot power cord.
What are the power capabilities and electrical specifications?
The Eaton EMA108-10 ePDU delivers 120V AC input and output voltage with a maximum power rating of 2880W. It handles 24A input current and features 24 NEMA 5-20R outlets for device connection. The unit includes circuit breaker protection for safety. The PDU uses a NEMA L5-30P plug type for power input, making it suitable for standard data center and enterprise power infrastructure.
How many outlets does this PDU have and what type are they?
This PDU features 24 NEMA 5-20R outlets, providing ample connectivity for multiple devices. These outlets are industry-standard receptacles compatible with most IT equipment including servers, networking devices, and other data center hardware. The NEMA 5-20R specification ensures reliable power delivery at the rated 120V AC output.
What management and monitoring capabilities does this PDU offer?
As a managed PDU, the Eaton EMA108-10 offers comprehensive remote management capabilities through both serial and network (RJ-45) interfaces. The switched PDU type allows for individual outlet control and monitoring. Users can monitor power consumption, manage outlet scheduling, and receive alerts through the network interface, enabling efficient power distribution management and monitoring.
What are the physical dimensions and mounting specifications?
The Eaton EMA108-10 features a vertical mounting orientation with dimensions of 66.5" height, 2.1" width, and 2.6" depth. It's designed for 38U rack installations and comes in a black finish. The unit includes a 10-foot power cord, providing flexible installation options while maintaining a compact footprint in the rack environment.
