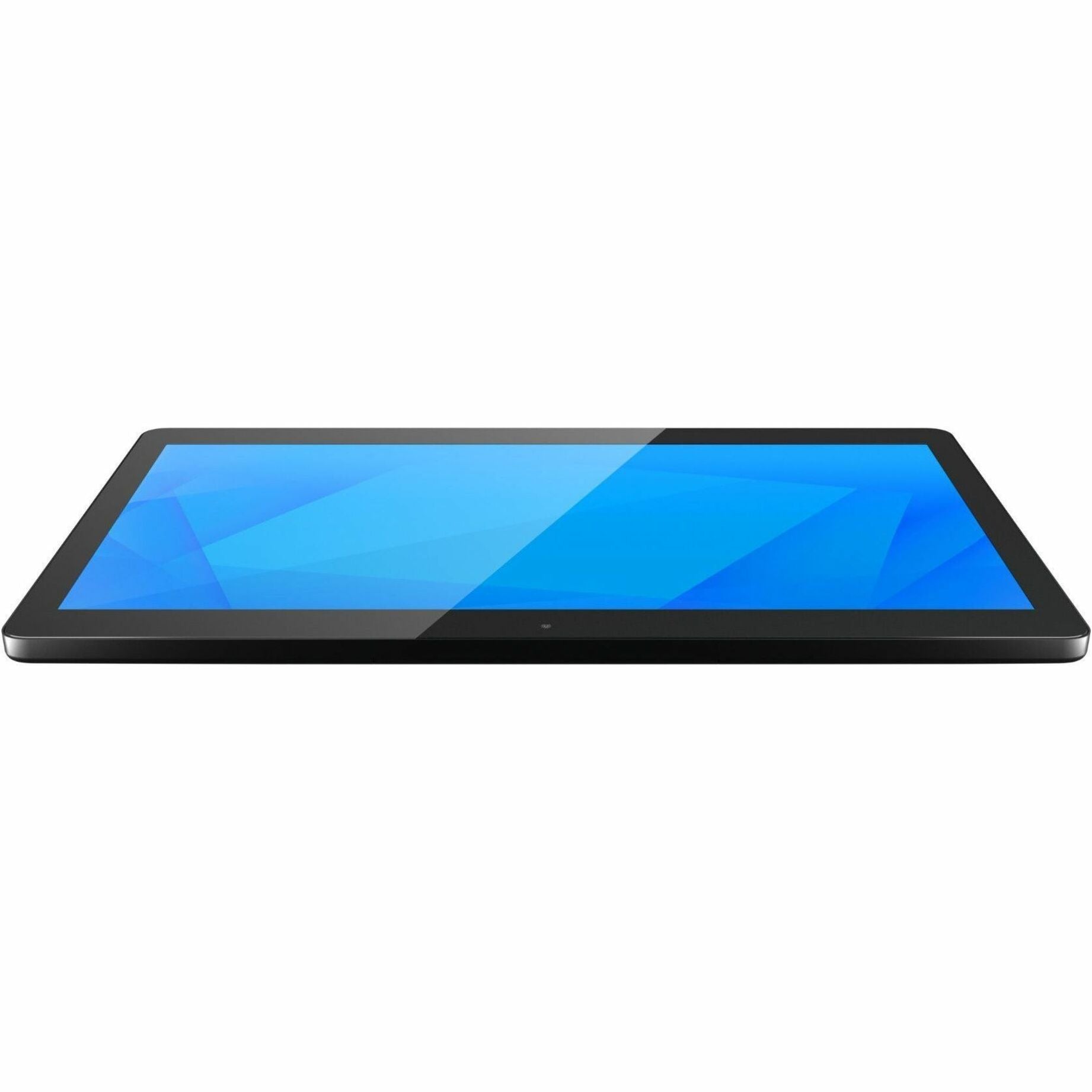

Front view of Elo I-Series POS terminal showing 10-inch touchscreen display with blue interface-alternate-image1

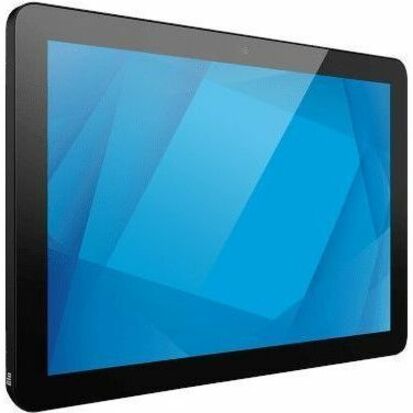

Angled view of Elo I-Series POS terminal displaying wide viewing angle capabilities-alternate-image3

Rear view of Elo I-Series POS terminal showing ports, speakers, and mounting options-alternate-image4

Elo I-Series POS terminal displaying point-of-sale interface with transaction details-alternate-image6

Elo I-Series configured as a movie ticket kiosk with payment terminal-alternate-image7

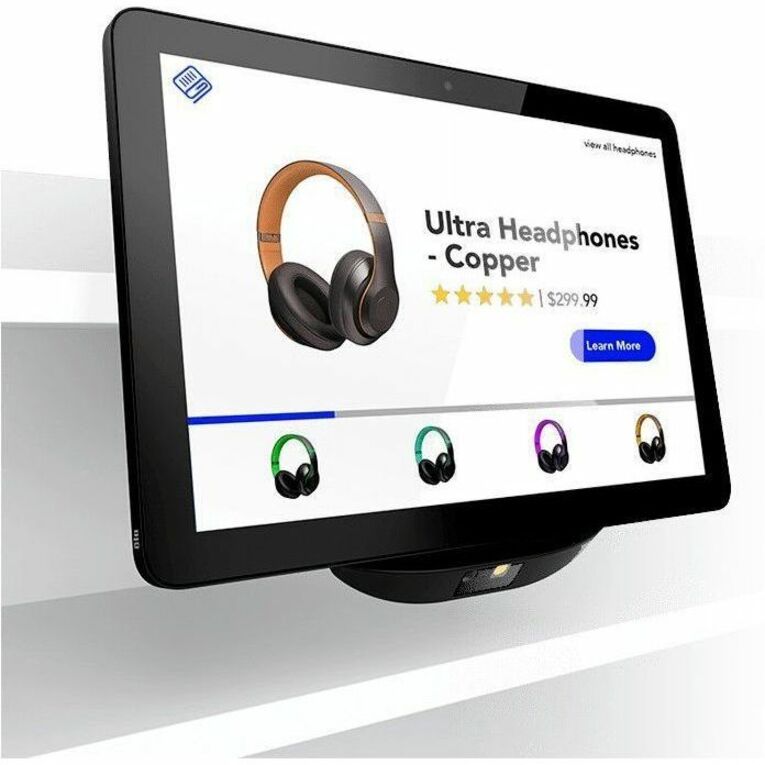

Elo I-Series displaying interactive product catalog with headphone selection-alternate-image8

Detailed view of Elo I-Series rear ports and connectivity options-alternate-image9

Elo I-Series displaying business analytics dashboard with performance metrics-alternate-image10

Elo

E389883

ⓘ

AUTHORIZED
PARTNER

$909.99 $958.49

Elo I-Series 10" POS Terminal, Android 10, Octa-core Snapdragon, 4GB RAM, 64GB Flash, Bluetooth 5.0, WiFi, LCD Touchscreen, POE Ready - E389883 (2 Year Warranty)

Name: Elo I-Series 10" POS Terminal, Android 10, Octa-core Snapdragon, 4GB RAM, 64GB Flash, Bluetooth 5.0, WiFi, LCD Touchscreen, POE Ready - E389883 (2 Year Warranty)
Brand: Elo
SKU: E389883
Price: 909.99 USD
Availability: InStock

Brand New

FREE Returns

Product variants

Octa-Core

Snapdragon

10" Display

LCD Touch

4GB RAM

64GB Flash

Bluetooth 5.0

WiFi AC

POE Ready

Power

2lb Weight

Compact

In stock, ready to ship

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 2 Year

Key Features

🚀 Octa-core Qualcomm Snapdragon SDA660 processor
💾 4GB RAM & 64GB Flash storage
📱 10" LCD touchscreen with 16.7M colors
🤖 Android 10 with Google Mobile Services
📡 WiFi 802.11a/b/g/n/ac & Bluetooth 5.0
📸 Built-in 8MP camera with digital microphones
🔌 Power over Ethernet (POE) capability
🔄 170° viewing angles (horizontal & vertical)
🎯 Projected Capacitive touchscreen technology
🛡️ 2-year limited warranty

Elo I-Series 10" POS Termin...

$909.99 $958.49

Ultra-Thin Edge Design Enhances User Experience

The I-Series' edge-to-edge design maximizes the usable screen area while maintaining a minimal footprint. The seamless glass surface not only enhances the aesthetic appeal but also facilitates easy cleaning and maintenance, crucial for high-traffic commercial environments.

Technical Specifications

Edge-to-edge glass design
Easy-clean surface
Minimal bezel construction

Applications

High-traffic retail environments
Healthcare settings
Public access kiosks

Elo I-Series POS terminal displaying point-of-sale interface with transaction details

Intuitive POS Interface Streamlines Transactions

The I-Series delivers a powerful point-of-sale experience with its intuitive interface and responsive touchscreen. The clear, organized layout facilitates quick transactions while providing easy access to essential functions. The system's Android 10 platform ensures smooth operation and compatibility with modern POS applications.

Technical Specifications

Android 10 operating system
4GB RAM for smooth operation
64GB storage for applications

Applications

Retail checkout operations
Restaurant order processing
Service business transactions

Product details

General Information

Manufacturer

Elo Touch Solutions, Inc

Manufacturer Part Number

E389883

Brand Name

Elo

Product Series

I-Series

Product Model

E389883

Product Name

I-Series E389883 POS Terminal

Product Type

POS Terminal

Technical Information

Bluetooth

Yes

Bluetooth Standard

Bluetooth 5.0

Processor & Chipset

Processor Manufacturer

Qualcomm

Processor Type

Snapdragon

Processor Core

Octa-core (8 Core)

Processor Model

SDA660

Memory

Standard Memory

4 GB

Storage

Flash Memory Capacity

64 GB

Display & Graphics

Screen Size

10''

Display Screen Type

LCD

Touchscreen

Yes

Touchscreen Technology

Projected Capacitive

Aspect Ratio

16:10

Response Time

25 ms

Color Supported

16.7 Million Colors

Horizontal Viewing Angle

170°

Vertical Viewing Angle

170°

Network & Communication

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11a/b/g/n/ac

Ethernet Technology

Ethernet

Interfaces/Ports

USB

Yes

Built-in Devices

Number of Speakers

2

Speaker Power

800 mW

Software

Operating System

Android 10

Power Description

Power Source

AC Power

Physical Characteristics

Color Family

Black

Product Color

Black

Height

0.8''

Width

10''

Depth

6.7''

Weight (Approximate)

2 lb

Miscellaneous

Package Contents

i-Series
NA Power Cable
EU Power Cable
1x Power Brick (E153026)
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)

Warranty

Limited Warranty

2 Year

Included in the Box

I-Series Terminal
NA Power Cable
EU Power Cable
Power Brick
Quick Install Guide
Cover Screws

FAQs

What are the key specifications of the Elo E389883 I-Series POS Terminal?

The Elo E389883 I-Series POS Terminal features a Qualcomm Snapdragon SDA660 octa-core processor, 4GB RAM, and 64GB flash storage. It runs on Android 10 and includes a 10" LCD touchscreen with projected capacitive technology. The display supports 16.7 million colors and offers 170-degree viewing angles both horizontally and vertically. For connectivity, it includes Bluetooth 5.0, WiFi (IEEE 802.11a/b/g/n/ac), and Ethernet capabilities.

What are the display specifications and viewing capabilities?

The terminal features a 10" LCD touchscreen with projected capacitive technology. It offers impressive visual performance with 16.7 million color support and wide 170-degree viewing angles both horizontally and vertically. The display has a 16:10 aspect ratio and a response time of 25ms. The touchscreen is designed for commercial use and provides accurate and responsive touch interaction for various business applications.

What connectivity options does the Elo E389883 support?

The Elo E389883 offers comprehensive connectivity options including Bluetooth 5.0, WiFi (IEEE 802.11a/b/g/n/ac), Ethernet, and USB ports. It also supports Power over Ethernet (PoE) capability, allowing for single-cable power and network connectivity when used with a PoE-capable network, eliminating the need for separate power adapters. This versatility makes it suitable for various installation scenarios and network configurations.

What are the physical dimensions and design features of the terminal?

The Elo E389883 has a compact design measuring 0.8" in height, 10" in width, and 6.7" in depth, weighing approximately 2 pounds. It comes in a professional black color finish. The terminal features a modular design that's VESA compatible and includes Elo Edge Connect capability for adding peripherals. It also includes built-in dual speakers with 800mW power output and an 8MP camera with digital microphones.

What peripherals and accessories can be added to the I-Series terminal?

The I-Series terminal supports Elo Edge Connect peripherals, allowing you to add various accessories including payment devices, cameras, barcode readers, and other compatible devices. These peripherals can be seamlessly attached to the edge of the touchscreen and can be added or moved as needs change. The terminal's universal VESA compatibility also provides additional mounting options and flexibility for different installation scenarios.
