Product details

General Information
Manufacturer

Elo Touch Solutions, Inc

Manufacturer Part Number

E273226

Brand Name

Elo

Product Model

1517L

Product Name

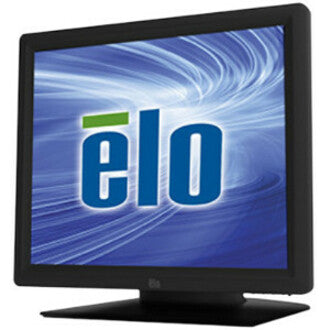

1517L Rev B 15-inch Multifunction Desktop

Product Type

LCD Touchscreen Monitor

Technical Information
Screen Size Class

15

Viewable Screen Size

15

Screen Mode

XGA-2

Screen Surface

Anti-glare

Response Time

16 ms

Aspect Ratio

4:3

Horizontal Viewing Angle

160°

Vertical Viewing Angle

140°

Adjustable Display Angle

Yes

Mount Type

Pole Mount
Desk Mountable
Wall Mountable

Backlight Technology

LED

Features

Security Lock

Horizontal Frequency

80 kHz

Video
Maximum Resolution

1024 x 768

Standard Refresh Rate

75 Hz

Color Supported

16.2 Million Colors

Contrast Ratio

700:1

Brightness

250 Nit

Touchscreen Information
Touchscreen

Yes

Touchscreen Type

Surface Acoustic Wave

Interfaces/Ports
USB

Yes

VGA

Yes

Serial Port

Yes

Power Description
Input Voltage

12 V DC
220 V AC
110 V AC

Operating Power Consumption

12 W

Standby Power Consumption

1.70 W

Off-Mode Power Consumption

1.30 W

Physical Characteristics
VESA Mount Compatible

Yes

VESA Mount Standard

75 x 75

Product Color

Black

Height

9

Width

19

Height with Stand

12.50

Width with Stand

14.10

Depth with Stand

7.80

Weight (Approximate)

9.48 lb

Miscellaneous
Package Contents

  • 1517L Rev B 15-inch Multifunction Desktop
  • Detachable Touch and Video Cables
  • Power Cable

Certifications & Standards

  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • e-Standby
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC
  • IEC 60320 C6

Environmentally Friendly

Yes

Environmental Certification

RoHS
WEEE
China RoHS

Warranty
Limited Warranty

3 Year

Included in the Box

  • icon_list|touchscreen monitor|Touchscreen Monitor Main unit icon

    Touchscreen Monitor

  • icon_list|touch cables|Touch Cables Connection cables icon

    Touch Cables

  • icon_list|video cables|Video Cables Main cables icon

    Video Cables

  • icon_list|Power cable|Power Cord Power cable icon

    Power Cable

FAQs

What are the key features of the Elo 1517L touchscreen monitor?
The Elo 1517L is a 15-inch LCD touchscreen monitor featuring Surface Acoustic Wave technology, 1024x768 resolution, and 250 Nit brightness. It includes an anti-glare display, multiple mounting options (VESA, desk, wall, pole), and versatile connectivity with USB, VGA, and serial ports. The monitor supports 16.2 million colors with a 700:1 contrast ratio and offers wide viewing angles of 160° horizontal and 140° vertical.
What type of touchscreen technology does the Elo 1517L use?
The Elo 1517L uses Surface Acoustic Wave (SAW) touchscreen technology. This professional-grade touch technology is ideal for high-use commercial environments and provides excellent durability and optical clarity. The touch functionality is complemented by an anti-glare display surface to reduce reflections and improve visibility in various lighting conditions.
What are the mounting options available for the Elo 1517L monitor?
The Elo 1517L offers multiple mounting options for flexible installation. It's compatible with VESA 75x75mm mounting standards and can be installed via pole mount, desk mount, or wall mount. The monitor includes an adjustable display angle feature for optimal viewing positioning. With stand dimensions of 14.10" width x 12.50" height x 7.80" depth, it's suitable for various commercial environments.
What are the display specifications of the Elo 1517L?
The Elo 1517L features a 15-inch LCD display with XGA resolution (1024 x 768), 250 Nit brightness, and a 700:1 contrast ratio. It supports 16.2 million colors and offers a 75 Hz refresh rate with a 16ms response time. The monitor provides wide viewing angles of 160° horizontal and 140° vertical, with LED backlight technology for consistent illumination.
What connectivity options does the Elo 1517L monitor offer?
The Elo 1517L comes with multiple connectivity options including USB, VGA, and serial ports. These versatile connection options allow for easy integration with various systems and devices. The monitor includes detachable touch and video cables in the package for convenient setup and installation.
