Brainboxes ED-038 Ethernet To Digital IO Module, 3 Digital Inputs & 3 Relays, Modbus TCP/DCON ASCII, Web Control, Multi-OS Compatible - ED-038 (Lifetime Warranty)
Brand New
FREE Express Shipping | FREE Returns
Out of stock
Order in the next
to be delivered on
Thursday, Jun 26
--
hrs--
mins
Ask Our Experts
Call Us
888.267.9566
Pairs well with
In stock! Ships within 1-2 business days.
30 days Free Return
Complimentary shipping & returns
Limited warranty: Lifetime
Key Features
- 🔌 3 Digital Inputs and 3 Form A Relays with Modbus TCP/DCON ASCII support
- 🧠 Powerful ARM 80 MHz, 32-bit CPU for reliable performance
- 🌐 Web-based configuration and control via browser interface
- ⚡ Relay capacity: 5A @ 250VAC/30VDC with surge protection
- 💻 Multi-platform compatibility (Windows, Linux, Mac, Android, iOS)
- 🛡️ 1500V Magnetic Isolation between ports and network
- 🔋 5V-30V DC input with reverse polarity protection
- 🌡️ Operating temperature: 0°C to +60°C
- 🔄 10/100 MHz Auto-sensing Ethernet with MDIX
- ⚖️ Compact size: 4.6" x 3.9" x 1" and 4.73 oz weight
Industrial-Grade Digital I/O Control with Ethernet Connectivity

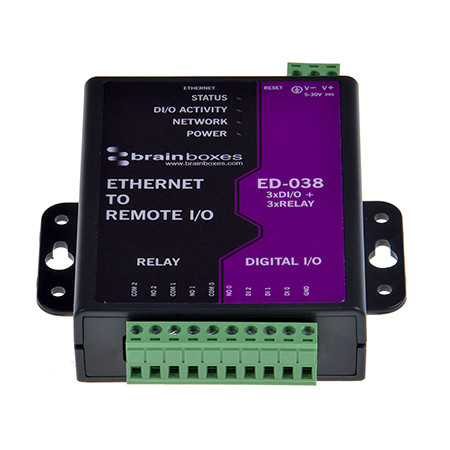

The ED-038 features an advanced interface design with clear status indicators for Ethernet, D/O Activity, Network, and Power monitoring. The device combines robust digital I/O capabilities with reliable relay control in a compact form factor. The distinctive purple accent panel houses essential connectivity information and power specifications, while the green terminal blocks provide secure wiring connections.
Technical Specifications
- 3 Digital Inputs and 3 Form A Relays
- 5-30V DC power input range
- Modbus TCP/DCON ASCII protocol support
Applications
- Industrial automation control systems
- Remote equipment monitoring and control
- Factory floor device integration
Compact Design with Flexible Mounting Options

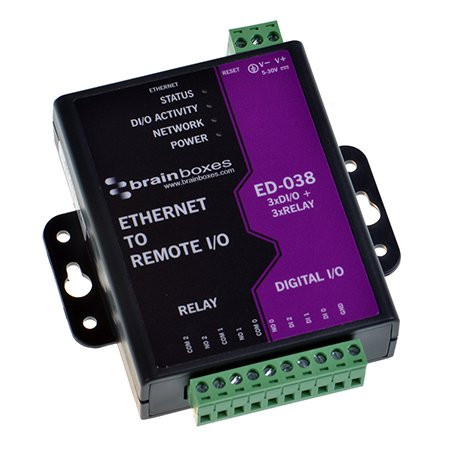

The angled perspective highlights the ED-038's space-efficient design with integrated mounting flanges for versatile installation options. The device features clearly labeled connection points and a robust housing built for industrial environments. The terminal block configuration enables straightforward wiring installation while maintaining signal integrity.
Technical Specifications
- Industrial-grade construction for durability
- DIN rail or surface mounting capability
- Pluggable terminal blocks for easy installation
Applications
- Control panel integration
- Machine automation systems
- Industrial process control
Enhanced Connectivity with Network Integration
The rear view showcases the ED-038's Ethernet port and power input terminal, emphasizing its network connectivity capabilities. The RJ45 port supports 10/100 MHz auto-sensing functionality, while the power terminal accepts a wide input range. Status LEDs provide clear visual feedback of network activity and device operation.
Technical Specifications
- 10/100 MHz Ethernet connectivity
- Auto-sensing MDIX capability
- 1500V magnetic isolation protection
Applications
- Network-based equipment control
- Remote monitoring applications
- Distributed control systems
Comprehensive I/O Configuration Access

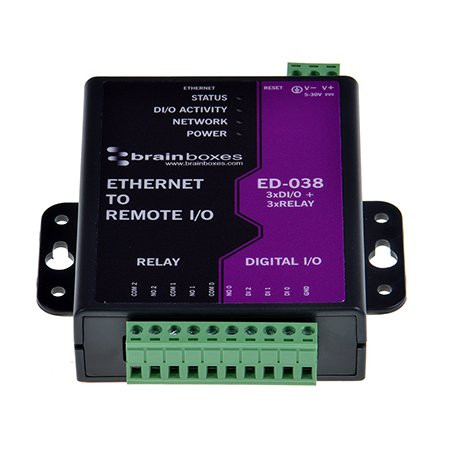

The top-down view emphasizes the ED-038's accessible I/O terminal layout and clear labeling system. The device features dedicated sections for relay controls and digital I/O connections, making setup and maintenance straightforward. The robust terminal block design ensures secure connections for reliable operation in industrial settings.
Technical Specifications
- Clearly labeled I/O terminals
- Secure screw terminal connections
- Support for up to 5A relay switching
Applications
- Motor and pump control
- Lighting system automation
- Environmental control systems
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
