Front view of Eaton 9SX2000G UPS showing LCD display screen and ventilated front panel

Real-Time Power Monitoring with LCD Display

The Eaton 9SX2000G features an intuitive LCD interface that provides instant visibility into critical power metrics. The high-resolution blue display shows load status, battery health, and efficiency levels at a glance, enabling proactive power management. The front panel also includes easy-access navigation buttons for seamless configuration and monitoring.

Technical Specifications

  • LCD display with real-time power metrics
  • Intuitive 5-button navigation interface
  • Honeycomb ventilation design for optimal cooling

Applications

  • Data center power monitoring
  • IT infrastructure management
  • Industrial automation control
Side angle view of Eaton 9SX2000G UPS tower showing compact design and LCD screen

Compact Tower Design for Space-Efficient Protection

The sleek tower form factor maximizes floor space while delivering enterprise-grade power protection. Its robust metal housing and professional-grade construction ensure reliability in demanding environments. The compact footprint makes it ideal for server rooms and network closets where space is at a premium.

Technical Specifications

  • Space-saving tower form factor
  • Durable metal construction
  • Integrated cooling system

Applications

  • Server room deployment
  • Network closet installation
  • Edge computing locations
Rear panel view of Eaton 9SX2000G showing ports, outlets, and cooling fans

Advanced Connectivity and Cooling System

The rear panel showcases comprehensive connectivity options and an efficient dual-fan cooling system. With eight C13 outlets split into two controllable groups, RS232 port, and external battery connection, this UPS delivers flexible power distribution and management capabilities. The dual cooling fans ensure optimal temperature control for maximum reliability.

Technical Specifications

  • 8 C13 outlets in two controllable groups
  • Dual-fan cooling system
  • Multiple communication interfaces

Applications

  • Critical equipment protection
  • Segmented load management
  • Remote power monitoring
Included accessories showing USB cable, serial cable, and documentation for Eaton UPS

Complete Communication Package

Every 9SX2000G comes with essential connectivity accessories for immediate deployment. The package includes USB and serial cables for direct computer connection, along with comprehensive documentation for setup and operation. This ensures quick installation and integration into your existing infrastructure.

Technical Specifications

  • USB and serial communication cables
  • Multi-language documentation
  • Quick start guide included

Applications

  • Rapid deployment scenarios
  • System integration projects
  • Multi-site standardization

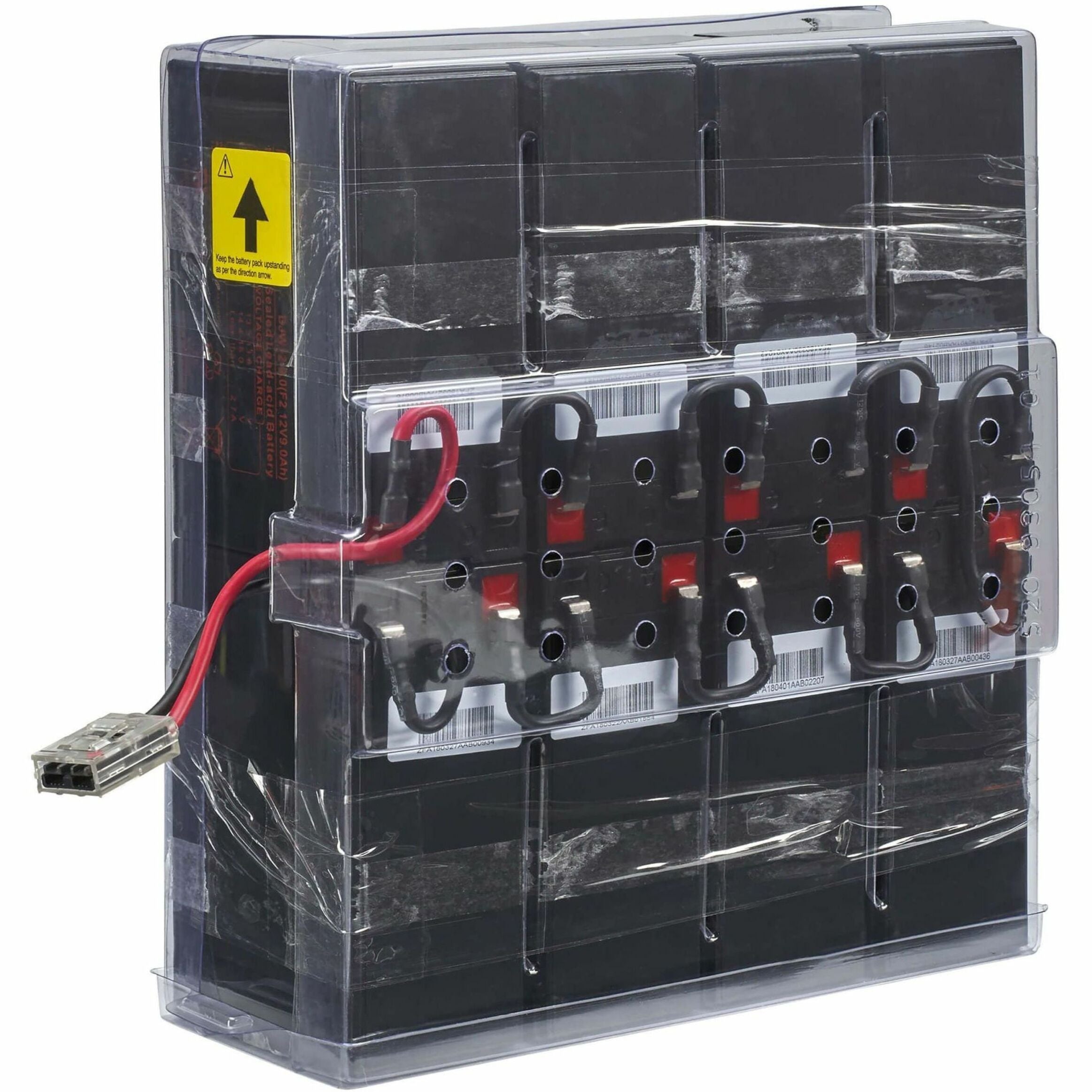

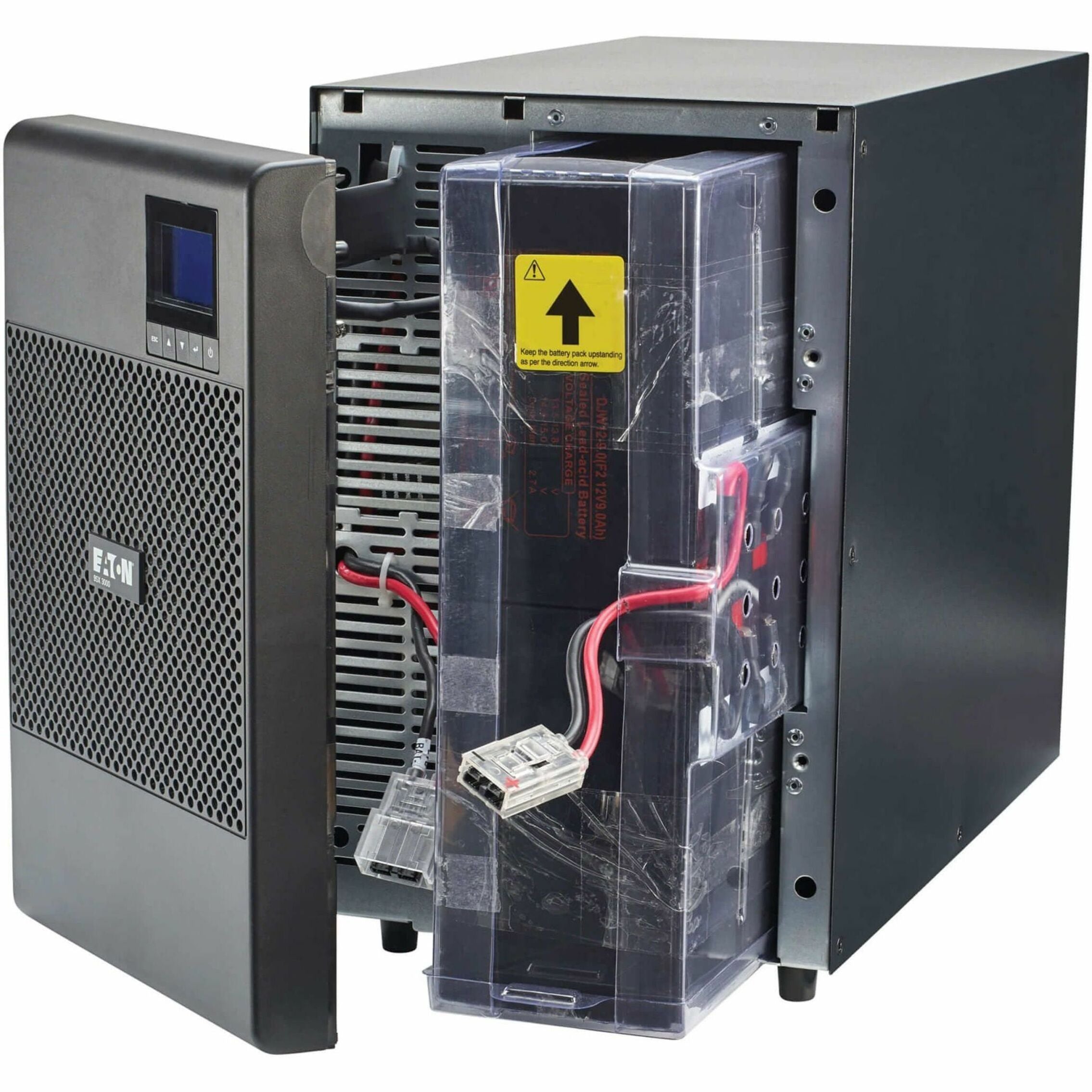

Internal view of Eaton 9SX2000G showing hot-swappable battery compartment

Hot-Swappable Battery Design

The innovative battery design allows for safe and easy replacement without powering down connected equipment. The transparent housing provides clear visibility of the battery condition and connection status. This user-friendly feature minimizes maintenance downtime while ensuring continuous power protection for critical loads.

Technical Specifications

  • Tool-free battery access
  • Hot-swappable design
  • Visual installation guidance

Applications

  • Maintenance operations
  • Battery replacement procedures
  • Continuous uptime requirements

Product details

General Information
Manufacturer

Eaton Corporation

Manufacturer Part Number

9SX2000G

Brand Name

Eaton

Product Name

2000VA Tower UPS

Product Type

Double Conversion Online UPS

Technical Information
Plug/Connector Type

NEMA L6-20P
IEC 60320 C14

Receptacle Type

IEC 60320 C13

Receptacle Detail

8 x IEC 60320 C13

Application/Usage

IT System
Industrial Equipment
Industrial Automation System

Power Description
Load Capacity

2000 VA/1800 W

Input Voltage

230 V AC

Input Voltage Range

190 V AC - 276 V AC

Output Voltage

240 V AC
200 V AC
220 V AC
230 V AC
208 V AC

Waveform Type

Sine Wave

Battery Information
Backup/Run Time (Full Load)

10.40 Minute

Physical Characteristics
Form Factor

Tower

Weight (Approximate)

77.20 lb

Miscellaneous
Package Contents

  • 2000VA Tower UPS
  • Manual
  • Quick Start Guide
  • Safety Guide
  • Serial And USB Cables

Country of Origin

Philippines

Warranty
Limited Warranty

2 Year

Included in the Box

  • icon_list|2000va tower ups|2000VA Tower UPS Main unit icon

    2000VA Tower UPS

  • icon_list|manual|Non-Coded Manual icon

    Manual

  • icon_list|quick start guide|Quick Start Guide Documentation icon

    Quick Start Guide

  • icon_list|safety guide|Safety Guide Documentation icon

    Safety Guide

  • icon_list|serial cable|Serial Cable Main product icon

    Serial Cable

  • icon_list|usb cable|6ft USB cable icon

    USB Cable

FAQs

What is the power capacity of the Eaton 9SX2000G UPS?
The Eaton 9SX2000G UPS has a load capacity of 2000VA/1800W. This double-conversion UPS system provides sufficient power to protect multiple pieces of critical equipment. The unit features 8 IEC 60320 C13 outlets split into two load banks, allowing for strategic power distribution and load shedding capabilities.
How long does the battery backup last on the Eaton 9SX2000G?
The Eaton 9SX2000G provides 10.40 minutes of backup time at full load. For extended runtime, you can connect up to four external battery modules (9SXEBM96, sold separately). The UPS features Eaton's exclusive ABM technology that increases battery life by 50% and provides advanced monitoring of battery health status.
What type of output voltage does the Eaton 9SX2000G support?
The Eaton 9SX2000G supports multiple output voltage settings including 200V, 208V, 220V, 230V, and 240V AC. It provides pure sine wave output with zero transfer time between online and battery modes, ensuring the highest level of power protection for connected equipment.
What are the main applications for the Eaton 9SX2000G UPS?
The Eaton 9SX2000G is designed for mission-critical applications including IT systems, industrial equipment, and industrial automation systems. It's particularly suitable for medical facilities, light industrial operations, and automation environments where space is limited but premium power reliability is essential.
What connectivity options does the Eaton 9SX2000G offer?
The Eaton 9SX2000G comes with USB and serial connectivity. It can be upgraded with the optional NETWORK-M2 network card (sold separately) for full remote configuration and management. The UPS also supports an Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) for temperature and humidity monitoring.
