Front view of Dell EMC N3048ET-ON Layer 3 switch showing 48 Gigabit Ethernet ports and uplink interfaces in a 1U rack-mount form factor-alternate-image1

Stack of four Dell EMC N3048ET-ON switches showing scalable enterprise network configuration with multiple units-alternate-image2

N3048ET-ON-Refurbished

$639.99

Dell EMC N3000 Series Layer 3 Switch, 48-Port Gigabit Ethernet, 10GbE Uplinks, Stackable, Energy Star, TAA Compliant - N3048ET-ON (Lifetime Warranty)

Name: Dell EMC N3000 Series Layer 3 Switch, 48-Port Gigabit Ethernet, 10GbE Uplinks, Stackable, Energy Star, TAA Compliant - N3048ET-ON (Lifetime Warranty)
Brand: Dell EMC
SKU: N3048ET-ON-Refurbished
Price: 639.99 USD
Availability: InStock

Renewed

FREE Returns

Total Number of Network Ports:

2 See available options
50 See available options

Network Technology:

10/100/1000Base-T, 1000Base-X, 10GBase-X See available options
10/100/1000Base-T, 1000Base-SX/LX, 1000Base-X, 10GBase-X See available options

Product variants

48-Port

Gigabit Ethernet

10GbE

Uplinks

Layer 3

Switching

Stackable

Design

1U

Rack Mount

Energy Star

Certified

Hurry, only 1 item left in stock!

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Thursday, Jul 10

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Key Features

🔌 48 Gigabit Ethernet ports + 2 dedicated 10GbE uplink ports
⚡ Energy-efficient design with 74.80W power consumption
🔄 High-availability stacking up to 12 switches from single IP
🚀 Performance up to 328Gbps (full duplex) and 428Mpps forwarding rate
🛡️ Redundant power supply support with hot-swappable capability
🌐 Layer 3 switching with advanced routing capabilities
📦 1U rack-mountable form factor (17.1" x 6" x 1.7")
💼 Lifetime warranty including software upgrades
🔧 Supports Open Network Install Environment (ONIE)
🔗 Multi-chassis Link Aggregation (MLAG) support

Dell EMC N3000 Series Layer...

$639.99

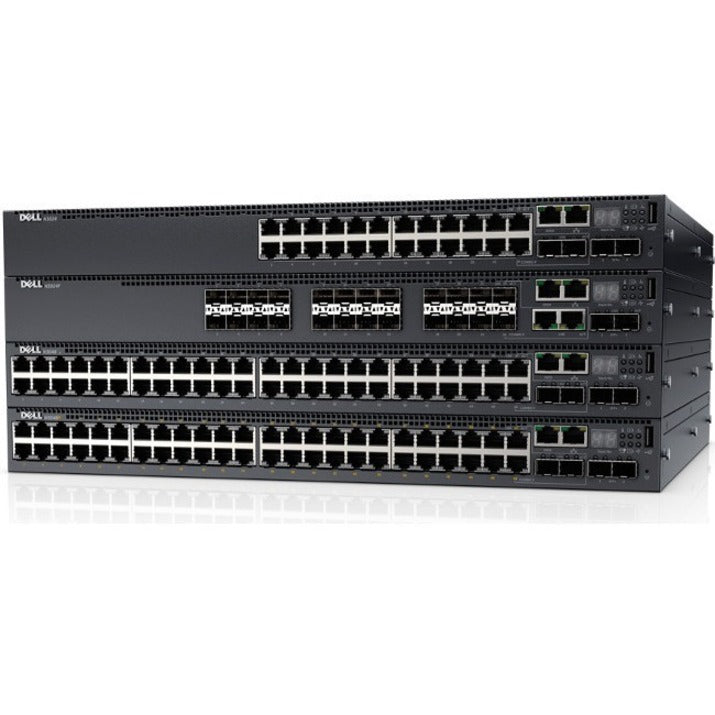

Stack of four Dell EMC N3048ET-ON switches showing scalable enterprise network configuration with multiple units

Scalable Stack Architecture for Enterprise Growth

The N3048ET-ON's stacking capability is prominently displayed in this multi-unit configuration, demonstrating the switch's ability to scale network infrastructure efficiently. Up to 8 switches can be unified into a single logical unit, providing seamless management and enhanced redundancy across the network stack. The dedicated stacking ports ensure high-bandwidth connectivity between units while maintaining wire-speed performance. Each switch in the stack maintains its own power and cooling system while operating as part of an integrated whole. This architecture enables organizations to expand their network capacity incrementally while preserving a single point of management and consistent performance across the entire stack.

Technical Specifications

84Gbps stacking bandwidth per switch
Single IP management for up to 8 switches
Non-blocking architecture for full wire-speed performance

Applications

Large campus network deployments
High-availability network configurations
Scalable enterprise infrastructure expansion

Product details

General Information

Manufacturer

Dell Technologies

Manufacturer Part Number

N3048ET-ON

Brand Name

Dell EMC

Product Series

N3000

Product Model

N3048ET-ON

Product Name

N3048ET-ON Layer 3 Switch

Product Type

Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports

50

Uplink Port

Yes

Modular

Yes

Stack Port

Yes

Port/Expansion Slot Details

2 x Gigabit Ethernet Expansion Slot
2 x Gigabit Ethernet Network
2 x 10 Gigabit Ethernet Expansion Slot
48 x Gigabit Ethernet Network
2 x Stack

Media & Performance

Media Type Supported

Twisted Pair
Optical Fiber

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

Network Technology

10GBase-X
1000Base-X
10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots

4

Expansion Slot Type

SFP+
SFP

Shared SFP Slot

Yes

Number of SFP Slots

2

Number of SFP+ Slots

2

Network & Communication

Layer Supported

3

Management & Protocols

Manageable

Yes

Power Description

Power Source

Power Supply

Redundant Power Supply Supported

Yes

Power Consumption

74.80 W

Physical Characteristics

Compatible Rack Unit

1U

Form Factor

Rack-mountable
Rail-mountable

Height

1.7''

Width

17.1''

Depth

6''

Weight (Approximate)

13.89 lb

Miscellaneous

Package Contents

N3048ET-ON Layer 3 Switch
1 x 200W PSU
RJ-45 to Female DB-9 Connector Cable

Certifications & Standards

GS

Energy Star

Yes

Environmentally Friendly

Yes

TAA Compliant

Yes

Warranty

Limited Warranty

Lifetime

Included in the Box

N3048ET-ON Switch
200W PSU
Console Cable

Accessories

Dell

Dell Stacking Network Cable, 3.28ft Black Switch Compatible Cable for N2024/N2024P...

$209.99

3.28ft

Cable Length

Stacking

Switch Cable

Multi-Switch

Compatibility

Dell N-Series

Support

Dell

Dell Stacking Network Cable (470-AAPW)

$109.99

Dell

Dell Networking SFP Transceiver 1000BASE-T Kit, Hot-Pluggable Gigabit Ethernet, LC...

$139.99

Gigabit Speed

1000BASE-T

Hot-Pluggable

SFP Module

LC Duplex

Connector

Optical Fiber

Compatible

Dell Certified

OEM Part

Dell

Dell SFP Optical Transceiver 1000Base-SX, Hot-Pluggable Network Module, Multi-mode...

$149.99

Gigabit Speed

1 Gbit/s

Extended Range

550m Reach

Hot-Pluggable

SFP Module

LC Duplex

Connector

Multi-mode

Fiber Support

Digital Monitor

Real-time

Dell

Dell SFP Optical Transceiver 1000Base-SX - up to 550 m (407-BBOR)

$139.99

Similar Products

Ubiquiti

Ubiquiti UniFi Pro USW-Pro-48 Layer 3 Switch, 48 Gigabit Ethernet Ports, 4x 10G SF...

$599.99

48 Ports

Gigabit Ethernet

4x 10G

SFP+ Uplinks

Layer 3

Managed Switch

60W

Power Draw

1U Rack

Mount Ready

8.82 lbs

Total Weight

Ubiquiti

Ubiquiti UniFi Pro Layer 3 Switch, 48 Gigabit Ports, 4x 10G SFP+ Uplinks, Managed ...

$1,399.99

48 Ports

Gigabit Ethernet

4x 10G

SFP+ Uplinks

Layer 3

Managed Switch

60W Power

Redundant RPS

1U Rack

8.82 lbs

Touch Display

1.3 inch

Cisco

Cisco CATALYST 9200 48-PORT PARTIAL POE+, NETW (C9200-48PL-E)

$5,469.99

Save 13%

Front view of HPE FlexNetwork 5140 switch showing 8 Gigabit ports, SFP slots, and management interface-alternate-image1

HPE

HPE FlexNetwork 5140 Layer 3 Switch, 8G Ethernet Ports, 2SFP 2GT Combo, Enterprise...

$1,429.99 $1,643.00

Layer 3

Routing

10 Ports

Gigabit

10GbE

Uplinks

4 SFP

Slots

8W

Power

1U Rack

Mount

Save 13%

Front view of HPE FlexNetwork 5140 48G PoE+ switch showing 48 Ethernet ports and 4 SFP+ ports-alternate-image1

HPE

HPE FlexNetwork 5140 Layer 3 Switch, 48G PoE+ Ports, 4x 10GbE SFP+ Uplinks, Enterp...

$8,259.99 $9,542.95

48 Ports

Gigabit PoE+

4x 10GbE

SFP+ Uplinks

Layer 3

Switching

370W

PoE Budget

1U

Rack Mount

IRF

Virtual Fabric

FAQs

What are the key features of the Dell EMC N3048ET-ON switch?

The Dell EMC N3048ET-ON is a Layer 3 switch featuring 48 Gigabit Ethernet ports, 2 dedicated 10GbE uplink ports, and built-in stacking capabilities. It offers up to 328Gbps full duplex throughput with a forwarding rate of 428Mpps. The switch includes dual hot-swappable power supplies for redundancy, supports advanced Layer 3 distribution, and comes with Energy Star certification. Notable features include MLAG support, VRFlite capability, and compatibility with Dell EMC EqualLogic storage arrays. It's backed by a lifetime warranty covering software upgrades and hardware replacement.

What are the port configurations available on the N3048ET-ON?

The N3048ET-ON comes with a total of 50 ports including: 48 x Gigabit Ethernet network ports, 2 x 10 Gigabit Ethernet expansion slots (SFP+), 2 x Gigabit Ethernet expansion slots (SFP), and 2 x dedicated stacking ports. The switch supports both twisted pair and optical fiber connections, with network technology compatibility for 10GBase-X, 1000Base-X, and 10/100/1000Base-T standards.

What are the physical specifications and mounting options for this switch?

The Dell EMC N3048ET-ON is a 1U rack-mountable switch with dimensions of 1.7" height x 17.1" width x 6" depth, weighing approximately 13.89 lb. It's designed for both rack-mounting and rail-mounting installations, making it suitable for various deployment scenarios in network closets and data centers. The compact form factor helps optimize space utilization while maintaining full enterprise-grade functionality.

What is the stacking capability of the N3048ET-ON?

The N3048ET-ON features an 84Gbps full duplex high-availability stacking architecture. With OS 6.5.1.x and higher, it supports stacking of up to 8 switches managed through a single IP address. When stacked with N3000E series switches, the stack size is limited to 8 units and active VLANs are limited to 1024. The dedicated stacking ports enable seamless integration and management of multiple switches in a stack configuration.

What power and efficiency features does the N3048ET-ON include?

The N3048ET-ON is designed for energy efficiency with a power consumption of 74.80W. It supports redundant power supplies and comes with one 200W PSU included. The switch is Energy Star certified and environmentally friendly, featuring 80PLUS-certified power supplies for optimal power efficiency. The dual hot-swappable power supply capability ensures high availability while maintaining energy efficiency standards.
