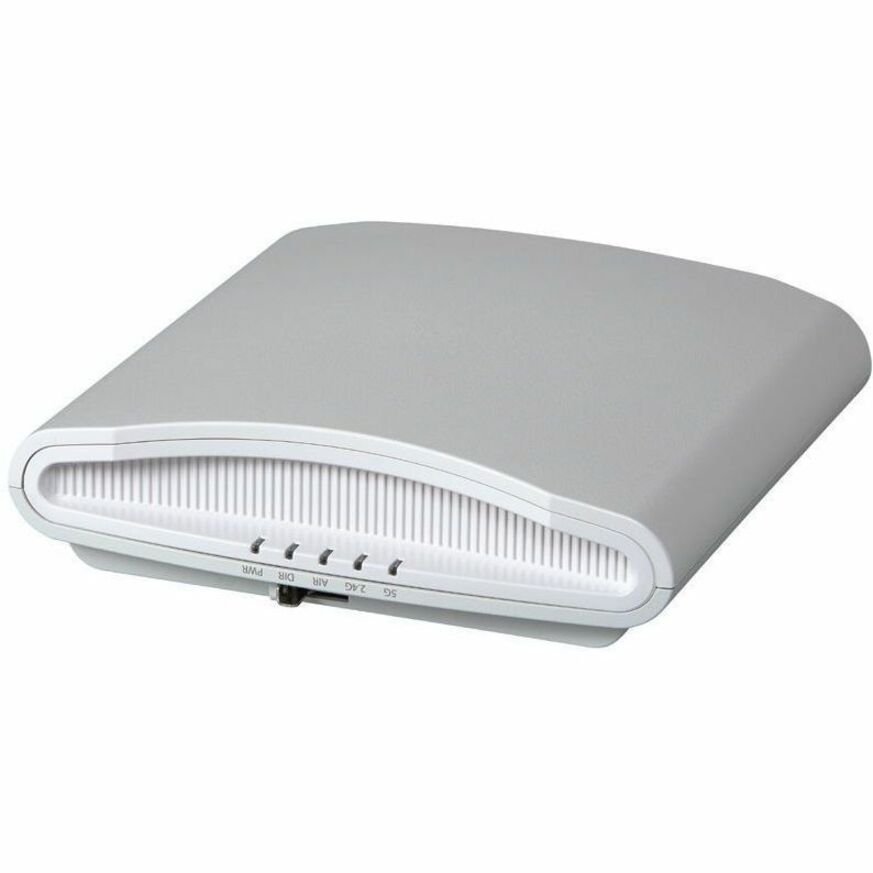

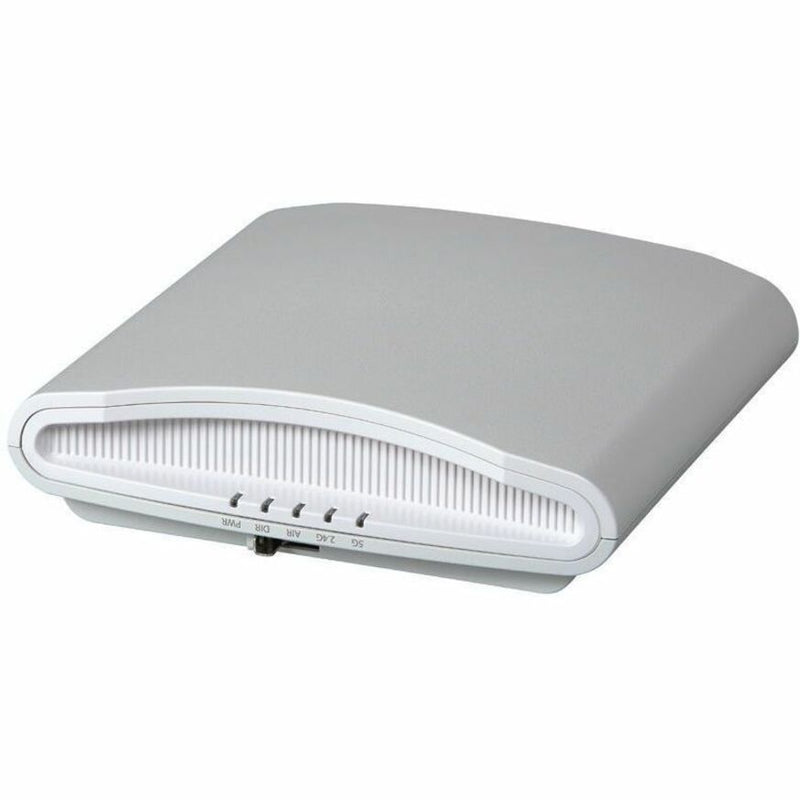

CommScope ZONEFLEX R710 Dual-Band 802.11ac Wave 2 Access Point
Experience enterprise-grade Wi-Fi performance with the CommScope ZONEFLEX R710, a high-capacity dual-band 802.11ac Wave 2 access point. Featuring BeamFlex+ adaptive antenna technology and MU-MIMO capabilities, this access point delivers unprecedented speeds of up to 800 Mbps on 2.4GHz and 1733 Mbps on 5GHz bands.
Advanced Wireless Technology and Performance
- Dual-band 4x4:4 802.11ac Wave 2 technology
- BeamFlex+ adaptive antenna system with dual polarization
- Multi-User MIMO (MU-MIMO) support for simultaneous client transmission
- Combined throughput capacity of 2.53 Gbps (800 Mbps at 2.4GHz + 1733 Mbps at 5GHz)
Versatile Connectivity and Installation
- Dual Gigabit Ethernet ports for reliable network connectivity
- Power over Ethernet (PoE) PD port for flexible deployment
- USB port for additional functionality
- Wall and ceiling mountable design (8.7" x 8.7" x 2.4")
Enterprise-Grade Features
- Ideal for high-density environments like schools, hotels, and conference centers
- Supports HD-quality IP video streaming and VoIP applications
- Backward compatible with all existing Wi-Fi clients
- Functions as standalone AP or part of centrally-managed WLAN
- Lifetime limited warranty coverage
Package Contents
- ZoneFlex R710 Dual Band 802.11ac Access Point
- Adjustable Acoustic Drop Ceiling Bracket
DUAL-BAND 4X4:4 802.11AC SMART WI-FI APRuckus' Highest Capacity, Highest Performing Four-Stream 802.11ac AP
The ZoneFlex R710 combines Ruckus patented technologies and best-in-class design with the next generation of 802.11ac features to deliver industry-leading Wi-Fi performance and reliability.
Featuring BeamFlex+ adaptive antenna technology, the ZoneFlex R710 offers a substantial increase in performance and range by optimizing antenna coverage on a per client, per transmission basis. BeamFlex+ additionally mitigates co-channel interference by directing Wi-Fi signals where they are needed instead of towards neighboring access points. The R710's BeamFlex+ adaptive antenna system is also equipped with dual polarization antennas, allowing the access point to adapt to the physical orientation of client devices and maximize uplink performance.
With throughput capacities of 800 Mbps (2.4GHz) and 1733 Mbps (5GHz), the ZoneFlex R710 supports the highest available throughput for Wi-Fi clients. 802.11ac Multi-User MIMO (MU-MIMO) support allows the R710 to simultaneously transmit to multiple client devices, drastically improving airtime efficiency, overall throughput, and availability. The ZoneFlex R710 is backward compatible with all existing Wi-Fi clients, and can function either as a standalone AP or as part of centrally-managed Wireless LAN.
ZoneFlex R710 is purpose-built for high-capacity, high performance and interference-laden environments such as schools, universities, public venues, hotels, and conference centers. The perfect choice for data-intensive streaming multimedia applications, the ZoneFlex R710 delivers picture perfect HD-quality IP video while supporting VoIP and data applications that have stringent quality of service requirements.
