Close-up view of yellow Cat6 cable RJ45 connectors showing gold-plated pins and transparent housing

Gold-Plated RJ45 Connectors for Reliable Data Transfer

The precision-engineered RJ45 connectors feature gold-plated contacts and a clear protective housing that ensures optimal signal integrity. The transparent design allows for easy visual inspection of the connection status, while the molded strain relief prevents cable damage during installation and use. Each connector is carefully constructed to maintain consistent data transmission speeds up to 1 Gbps.

Technical Specifications

  • Gold-plated contacts for superior conductivity
  • Transparent connector housing for visual inspection
  • Molded strain relief design for cable protection

Applications

  • Server room network connections
  • Data center patch panel installations
  • Network switch to server connections
Full length view of yellow Cat6 network cable showing both connectors and cable markings

High-Performance Cat6 Cable with Gigabit Speed Support

The 7-foot yellow Cat6 patch cable features premium 24 AWG stranded copper conductors wrapped in a durable PVC jacket. The cable's construction meets rigorous industry standards while providing the flexibility needed for easy routing. The bright yellow color aids in quick identification and organization of network connections.

Technical Specifications

  • 24 AWG stranded copper conductors
  • Cat6 rated for speeds up to 1 Gbps
  • Industry standard compliant construction

Applications

  • Connecting network infrastructure components
  • Patch panel to switch connections
  • Workstation to wall outlet connections
Detailed view of RJ45 connector pins showing staggered alignment and contact points

Enhanced Pin Alignment for Perfect Connection

The staggered-pin plug design ensures precise alignment and maximum contact between connectors. Each pin is carefully positioned to minimize crosstalk and maintain signal integrity across all eight conductors. The clear housing allows for visual verification of proper pin engagement.

Technical Specifications

  • Staggered-pin design for reduced crosstalk
  • Eight-position connector configuration
  • Clear housing for connection verification

Applications

  • Critical infrastructure connections
  • High-density patch panel installations
  • Network equipment upgrades

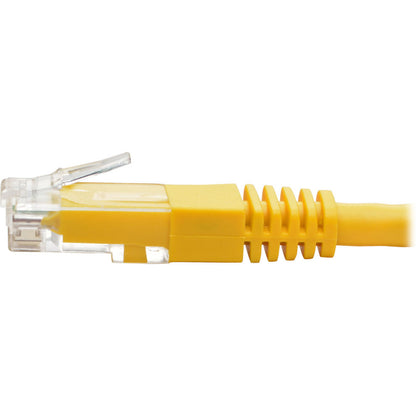

Side profile of yellow Cat6 cable connector showing strain relief design

Robust Strain Relief System

The integrated strain relief mechanism features a robust design with multiple reinforcement points to protect the cable from stress and bending damage. The molded boot transitions smoothly from cable to connector, providing optimal support while maintaining proper bend radius protection.

Technical Specifications

  • Multi-point strain relief system
  • Bend radius protection
  • Integrated cable support structure

Applications

  • High-traffic installation areas
  • Mobile equipment connections
  • Frequent maintenance environments
Close-up view of RJ45 connector locking tab and mechanism

Secure Locking Mechanism Design

The connector's locking tab is engineered for consistent engagement and release, ensuring a secure connection that won't accidentally disconnect. The transparent locking mechanism allows for visual confirmation of proper engagement while providing durability for frequent connect/disconnect cycles.

Technical Specifications

  • Reinforced locking tab design
  • Visual engagement confirmation
  • Rated for frequent reconnections

Applications

  • Security-critical connections
  • High-availability systems
  • Maintenance-intensive environments

Product details

General Information
Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

N200-007-YW

Brand Name

Tripp Lite

Product Model

N200-007-YW

Product Name

Cat6 Gigabit Molded Patch Cable (RJ45 M/M), Yellow, 7 ft

Product Type

Network Cable

Technical Information
Cable Type

Category 6

Cable Characteristic

Patch Cable

Cable Length

7 ft

Connector Type on First End

RJ-45 Network - Male

Connector on First End Details

1 x RJ-45 Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Contact Plating

Gold

Features

Strain Relief
Stranded
Molded

Device Supported

Blu-ray Player
Network Device
Router
Modem
Printer
Computer

American Wire Gauge

24 AWG

Data Transfer Rate

1 Gbit/s

Physical Characteristics
Product Color

Yellow

Miscellaneous
Environmentally Friendly

Yes

Environmental Certification

RoHS

Country of Origin

China

Warranty
Limited Warranty

Lifetime

Included in the Box

  • icon_list|cat6 network cable|Cat6 Network Cable Main cable icon

    Cat6 Network Cable

FAQs

What is the maximum data transfer speed of the Tripp Lite N200-007-YW cable?
The Tripp Lite N200-007-YW Cat6 cable supports data transfer speeds up to 1 Gbps (Gigabit per second). It's designed for 1000Base-T networks and is backward compatible with 10/100Base-T Ethernet standards. This high-speed capability makes it ideal for demanding network applications like gaming, streaming, and large file transfers.
What devices can I connect with this cable?
This versatile cable can connect multiple network devices including computers, printers, video game systems, Blu-ray players, copy machines, routers, and modems. It's suitable for both home and office environments, supporting various networking applications including Ethernet, ISDN, voice, and Token Ring Type 3 connections.
What is the length of this cable and what color is it?
The N200-007-YW is a 7-foot (approximately 2.1 meters) cable that comes in yellow color. The distinctive yellow color can be helpful for easy identification and cable management in complex network setups.
What type of connectors does this cable use?
The cable features male RJ45 connectors on both ends with gold-plated copper contacts. The connectors are molded with integral strain relief for durability and feature a staggered-pin plug design to minimize near-end crosstalk levels, ensuring reliable signal transfer.
What certifications and standards does this cable meet?
The cable meets multiple industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (category 6 draft 11). It's also RoHS compliant, making it an environmentally friendly choice for network infrastructure.
