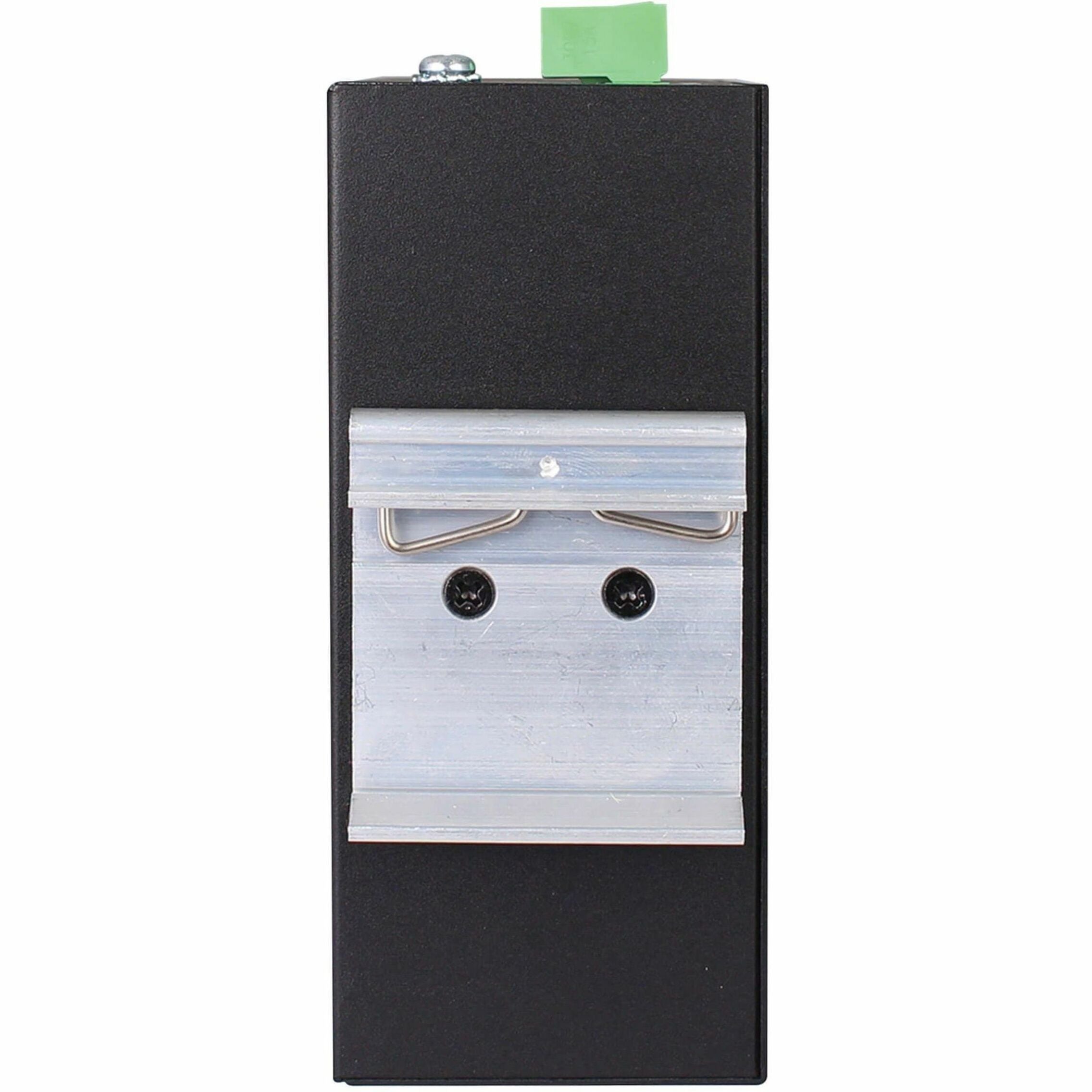

SW-735 mounted on DIN rail showing installation flexibility-alternate-image4

Front view of SW-735 highlighting PoE+ ports and status indicators-alternate-image5

Brainboxes

SW-735

$189.99

Brainboxes Hardened Industrial 5-Port PoE+ Gigabit Ethernet Switch, 10/100/1000BASE-T, 90W PoE Budget, DIN Rail Mountable, CCTV System Compatible, TAA Compliant SW-735 (Lifetime Warranty)

Name: Brainboxes Hardened Industrial 5-Port PoE+ Gigabit Ethernet Switch, 10/100/1000BASE-T, 90W PoE Budget, DIN Rail Mountable, CCTV System Compatible, TAA Compliant SW-735 (Lifetime Warranty)
Brand: Brainboxes
SKU: SW-735
Price: 189.99 USD
Availability: InStock

Brand New

FREE Returns

Total Number of Network Ports:

4 See available options
5 See available options
8 See available options
16 See available options

Network Technology:

10/100Base-T See available options
10/100Base-TX See available options
10/100/1000Base-T See available options
100Base-T See available options
10/100/1000Base-T, 1000Base-X See available options
10/100/1000Base-T, 10/100Base-T See available options

Product variants

5 Port

Gigabit Ethernet

90W PoE+

Power Budget

Industrial Grade

-40°C to 70°C

DIN Rail

Mountable

Metal Build

IP20 Rated

TAA Compliant

Certified

Hurry, only 1 item left in stock!

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Key Features

🔌 5-Port Industrial PoE+ Gigabit Ethernet Switch with 4 PoE+ ports
🌡️ Industrial-grade operating temperature range: -40°C to +70°C
⚡ 90W PoE budget with automatic power optimization
🔄 10/100/1000 Mbps Gigabit Ethernet support
🛡️ Galvanically Isolated Ethernet Ports for enhanced protection
🏭 IP20-rated metal housing for industrial environments
🔋 Dual input redundant power supply (44-57V DC)
🎯 Ideal for CCTV and Vision Systems applications
🛤️ DIN Rail mountable compact design
⚖️ Lifetime warranty included

Brainboxes Hardened Industr...

$189.99

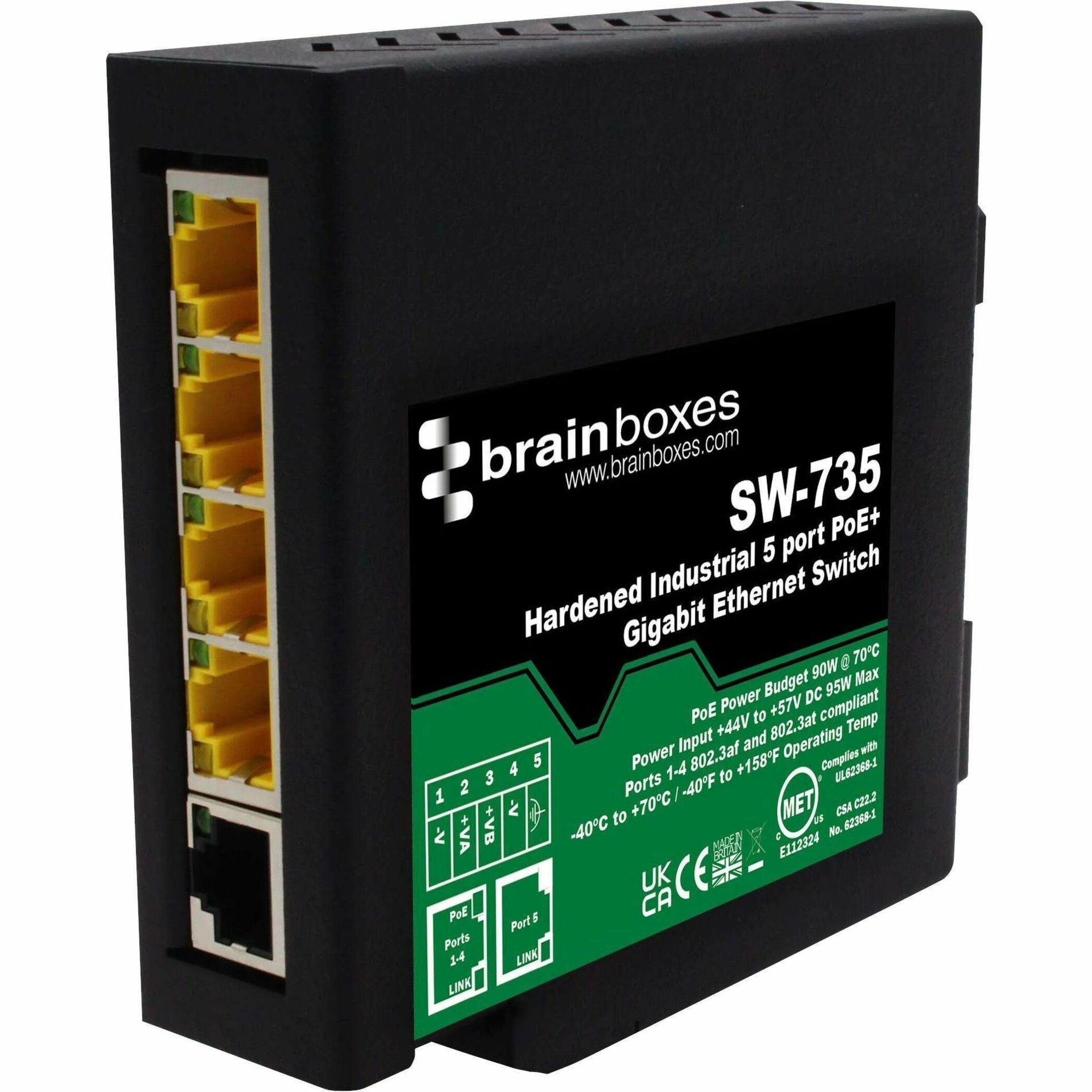

Front view of Brainboxes SW-735 industrial ethernet switch showing 5 ports and product labeling

Industrial-Grade PoE+ Switch with High-Speed Connectivity

The SW-735 features four PoE+ enabled ports and one standard Gigabit Ethernet port, delivering reliable power and data transmission in demanding industrial environments. Its robust metal housing and wide operating temperature range make it ideal for harsh conditions, while the 90W PoE budget ensures consistent power delivery to connected devices.

Technical Specifications

90W PoE+ power budget for demanding applications
Operating temperature range -40°C to +70°C
Gigabit speeds up to 1000Mbps per port

Applications

Industrial automation control systems
Security camera installations in factories
Outdoor wireless access point deployment

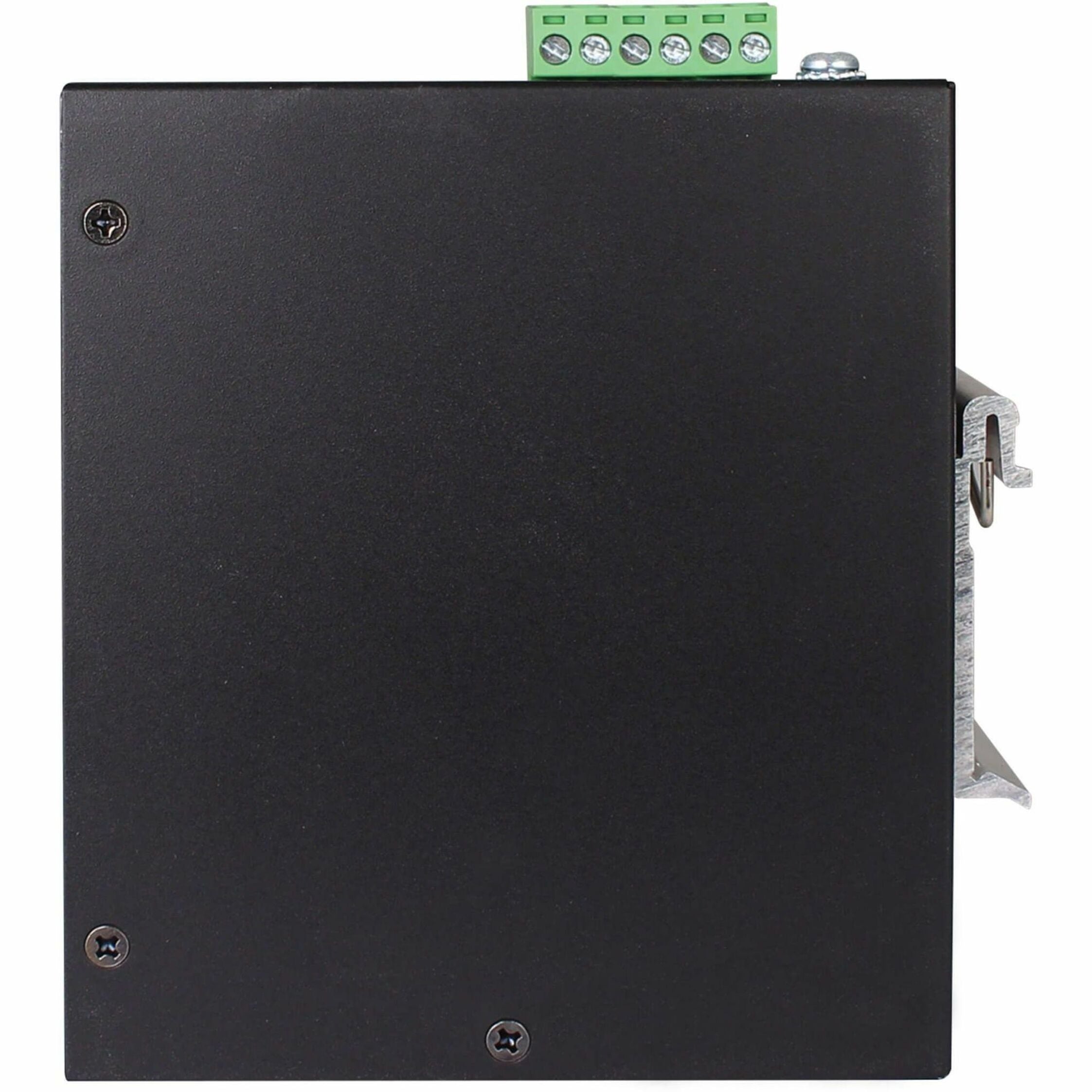

Side angle view of SW-735 showing compact form factor and port layout

Compact Design with Essential Port Configuration

The side profile reveals the switch's space-efficient design, perfect for installations where real estate is at a premium. Clear labeling and port indicators ensure quick setup and troubleshooting, while the durable construction maintains reliable operation in industrial settings.

Technical Specifications

Compact form factor for space-constrained installations
Clear port labeling and status indicators
Ruggedized industrial construction

Applications

Control cabinet integration
Machine vision systems
Factory floor networking

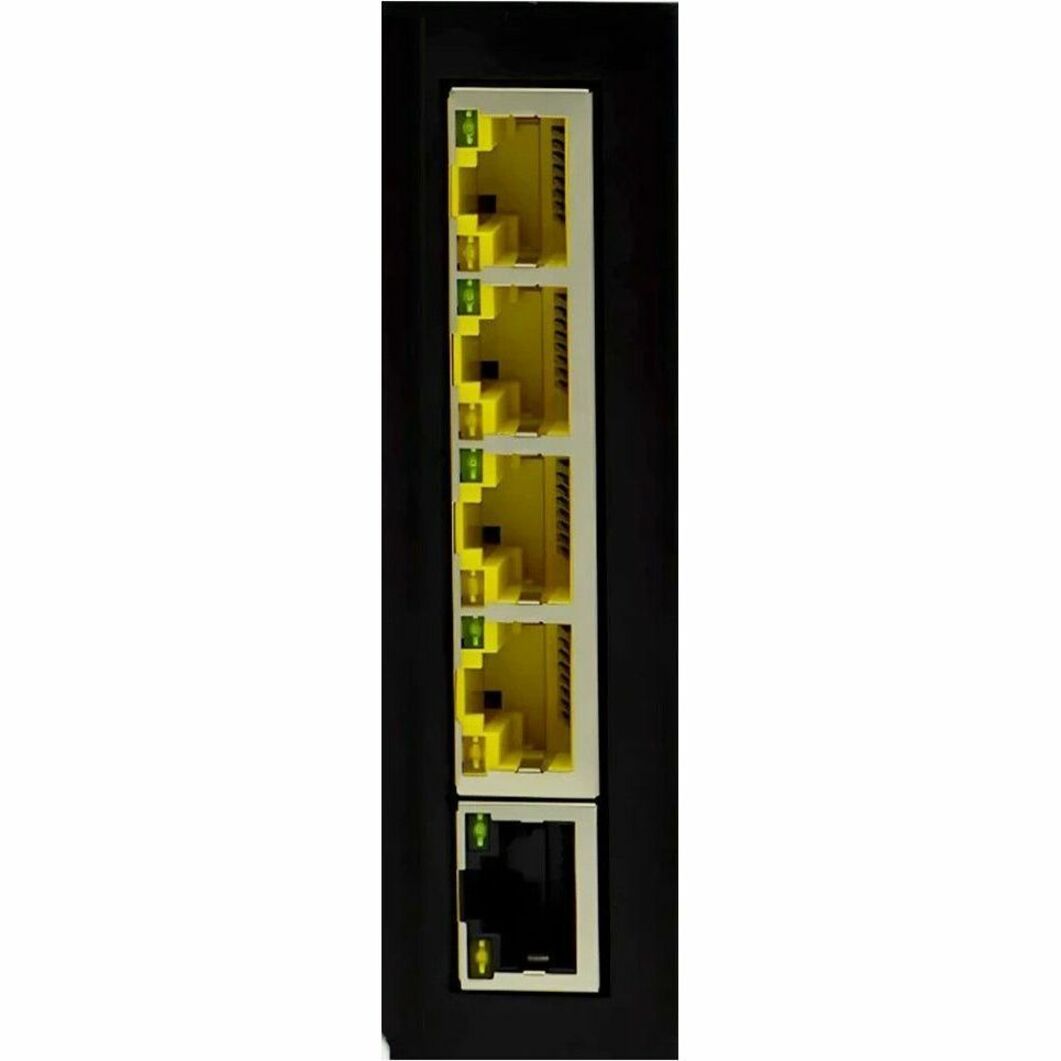

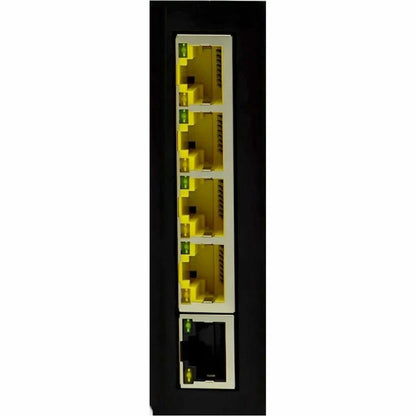

Close-up of SW-735 ethernet ports showing connector design

High-Performance Port Architecture

A detailed view of the Gigabit Ethernet ports reveals the industrial-grade connectors designed for reliable data transmission. The specialized port design includes status LEDs for monitoring connection status and activity.

Technical Specifications

Industrial-grade RJ45 connectors
Integrated activity LEDs
Auto-MDI/MDIX support

Applications

High-speed data acquisition
Real-time monitoring systems
Industrial network expansion

Product details

General Information

Manufacturer

Brainboxes Limited

Manufacturer Part Number

SW-735

Brand Name

Brainboxes

Product Series

SW

Product Model

SW-735

Product Name

Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch

Product Type

Ethernet Switch

Technical Information

Features

IP20

Interfaces/Ports

Total Number of Network Ports

5

Network (RJ-45)

Yes

Port/Expansion Slot Details

4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
1 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port

Media & Performance

Media Type Supported

Twisted Pair

Ethernet Technology

Gigabit Ethernet

Network Technology

10/100/1000Base-T

Maximum Data Transfer Rate

128 MB/s

Network & Communication

Layer Supported

2

Networking Standards

IEEE 802.3at

Management & Protocols

Manageable

No

Power Description

PoE (RJ-45) Port

Yes

PoE Budget

90 W

Input Voltage

44 V DC
57 V DC

Power Source

DC

Power Consumption

5.50 W

Physical Characteristics

Product Material

Metal

Form Factor

DIN Rail Mountable
Compact

Height

3.9''

Width

1.1''

Depth

4.5''

Weight (Approximate)

11.53 oz

Miscellaneous

Application/Usage

Industrial
CCTV System
Wireless Access Point

Certifications & Standards

CE
UKCA

UL

METL Complies with UL62368-1

HTS

8517620000

ECCN

5A991.b

General

ISO9001
ISO14001
Microsoft Certified Gold Partner
AEO (C-TPAT)

CAGE

8QCY6

NCAGE

U0Q96

GSA Contract Number

47QTCA23D009X

Country of Origin

Great Britain

TAA Compliant

Yes

Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime

Included in the Box

Ethernet Switch

Similar Products

TRENDnet

TRENDnet TPE-TG81g 8-Port Gigabit GREENnet PoE+ Ethernet Switch, 30W/Port, 110W Po...

$169.99

8 Ports

Gigabit PoE+

30W Power

Per Port

110W Budget

Total PoE

16Gbps

Switching Capacity

Fanless

Silent Operation

Rack Mount

1U Form

Save 8%

Black Box

Black Box HRD Gigabit Ethernet Switch, 8-Port 10/100/1000Mbps RJ45, Industrial Har...

$289.99 $315.85

8 Ports

Gigabit Ethernet

Industrial

Hardened

DIN Rail

Mountable

Redundant

Power

Auto Sensing

10/100/1000

TAA

Compliant

Save 32%

Front view of NGI-U08A industrial Ethernet switch showing 8 numbered Gigabit ports with status LEDs-alternate-image1

Eaton

Eaton NGI-U08A 8-Port Unmanaged Industrial Gigabit Ethernet Switch, 10/100/1000Mbp...

$239.99 $352.00

8-Port

Gigabit Ethernet

Industrial

Metal Housing

Temperature

-40° to 75°C

EIP QoS

Auto Priority

DIN Mount

Rail Clip

Low Power

5W Consumption

CyberData

CyberData 3-Port Gigabit Ethernet Switch - 011236 USB Powered Network Switch, 10/1...

$119.99

3-Port

Gigabit Ethernet

USB Powered

No Adapter

Wall Mount

Compact Design

Gigabit Speed

10/100/1000

Ultra Light

3.2 oz

IEEE 802.3u

Compliant

Save 21%

Front view of NGI-U05E industrial switch showing 5 Gigabit Ethernet ports with LED indicators-alternate-image1

Tripp Lite series

Tripp Lite series Eaton 5-Port Unmanaged Industrial Gigabit Ethernet Switch, Rugge...

$189.99 $242.00

5 Ports

Gigabit Ethernet

1000 Mbps

Transfer Rate

Ruggedized

Aluminum Housing

Industrial

-40°C to 75°C

3W Power

12-48V DC

Dual Mount

DIN/Wall

FAQs

What are the key features of the Brainboxes SW-735 Industrial Ethernet Switch?

The Brainboxes SW-735 is a hardened industrial 5-port PoE+ Gigabit Ethernet switch featuring 4 PoE+ enabled ports and 1 standard port, all supporting 10/100/1000 Mbps speeds. It offers a 90W PoE budget, galvanically isolated Ethernet ports, and operates in extreme temperatures from -40°C to +70°C. The switch includes dual input redundant power supply, requires no software for operation, and comes with IP20 protection rating. It's specifically designed for industrial CCTV and Vision Systems applications.

What are the power specifications and PoE capabilities of the SW-735?

The SW-735 features a robust power system with input voltage range of 44-57V DC and a power consumption of 5.50W. It provides a generous 90W PoE budget across its 4 PoE+ enabled ports, supporting the IEEE 802.3at standard. The switch includes a dual input redundant power supply with a wide voltage range, allowing power from either USB or 24V factory floor systems. The power terminal is removable with numbered pins for convenient wiring.

What are the physical dimensions and mounting options of the SW-735?

The Brainboxes SW-735 features a compact form factor measuring 3.9" in height, 1.1" in width, and 4.5" in depth, with a weight of approximately 11.53 ounces. The switch is constructed from metal and is DIN Rail mountable, making it ideal for industrial installations. Its compact design and mounting flexibility make it suitable for various industrial environments where space might be limited.

What networking capabilities and ports does the SW-735 offer?

The SW-735 features 5 Gigabit Ethernet ports in total: 4 x 10/100/1000BASE-T PoE+ RJ-45 ports and 1 x 10/100/1000BASE-T standard RJ-45 port. It supports Layer 2 switching with a maximum data transfer rate of 128 MB/s. The switch is compatible with twisted pair media and supports Gigabit Ethernet technology, making it ideal for high-speed industrial networking applications.

What environmental and safety certifications does the SW-735 have?

The SW-735 holds numerous certifications including CE, UKCA, and METL compliance with UL62368-1. It's manufactured under ISO9001 and ISO14001 standards, and is both WEEE and RoHS compliant. The switch is TAA compliant and manufactured in Great Britain. It's designed for industrial use with IP20 protection rating and can operate in extreme temperatures from -40°C to +70°C.
