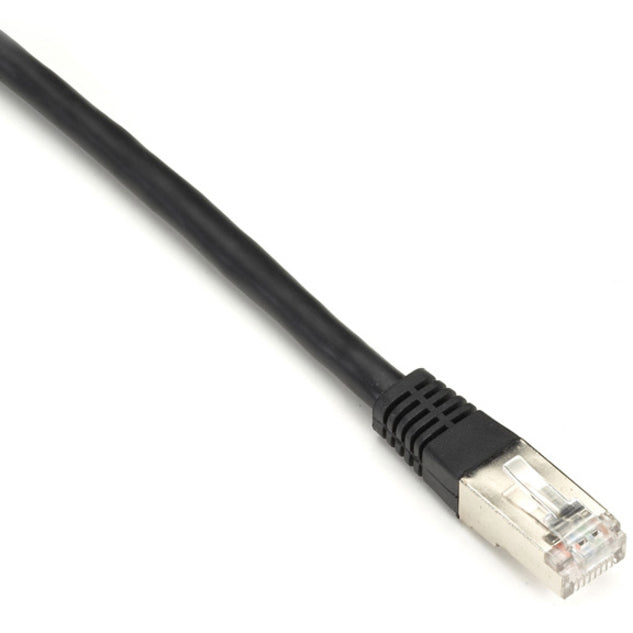

Close-up view of Black Box CAT6 shielded cable's RJ-45 connector with gold-plated contacts and black strain relief boot-alternate-image1

EVNSL0272BK-0015

ⓘ

AUTHORIZED
PARTNER

$39.99

Black Box SlimLine Double-Shielded CAT6 Network Patch Cable, EMI/RFI Protection, 1Gbps, Gold-Plated RJ-45 M/M, 26 AWG, 15ft Black - EVNSL0272BK-0015 (Lifetime Warranty)

Name: Black Box SlimLine Double-Shielded CAT6 Network Patch Cable, EMI/RFI Protection, 1Gbps, Gold-Plated RJ-45 M/M, 26 AWG, 15ft Black - EVNSL0272BK-0015 (Lifetime Warranty)
Brand: Black Box
SKU: EVNSL0272BK-0015
Price: 39.99 USD
Availability: InStock

Brand New

FREE Returns

Color:

Aqua See available options
Green See available options
Blue See available options
Yellow See available options
White See available options
Gray See available options
Black See available options

Product variants

CAT6

Standard

1Gbps

Speed

250MHz

Bandwidth

26 AWG

Wire gauge

15ft

Length

Gold-Plated

Contacts

In stock, ready to ship

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Tuesday, Jul 15

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Key Features

🔌 CAT6 Double-Shielded Patch Cable with EMI/RFI protection
📏 15 feet length with 26 AWG
⚡ 1 Gbps data transfer rate at 250-MHz performance
🛡️ S/FTP shielding with individually shielded twisted pairs
🔗 RJ-45 Male connectors with 50-micron gold-plated contacts
🔄 750 cycles insertion/extraction life
💪 Bare copper conductor with foam insulation
✅ Meets TIA/EIA-568-B.2-1 CAT6 standards
♾️ Lifetime warranty
🌿 RoHS compliant and environmentally friendly

Black Box SlimLine Double-S...

$39.99

Product details

General Information

Manufacturer

Black Box Corporation

Manufacturer Part Number

EVNSL0272BK-0015

Brand Name

Black Box

Product Line

SlimLine

Product Name

CAT6 250-MHz Stranded Patch Cable Slim Molded Boot - S/FTP, CM PVC, Black, 15FT

Product Type

Network Cable

Technical Information

Cable Type

Category 6

Cable Characteristic

Patch Cable

Cable Length

15 ft

Connector Type on First End

RJ-45 Network - Male

Connector on First End Details

1 x RJ-45 Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Contact Plating

Gold

Conductor

Bare Copper

Shielding

Yes

Jacket Type

CM

Device Supported

Network Device

American Wire Gauge

26 AWG

Data Transfer Rate

1 Gbit/s

Features

EMI/RF Protection
Near End Cross Talk (NEXT)
Stranded
Molded

Physical Characteristics

Product Color

Black

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous

Certifications & Standards

UL E164469-XX
TIA/EIA-568-B.2-1 CAT6
ISO/IEC 2nd Edition 11801 Class E
IEC 6-332-1-2
CENELEC EN 50173-1
CENELEC EN 50288-5-2
2002/95/EC (RoHS)

Environmentally Friendly

Yes

Country of Origin

China

Warranty

Limited Warranty

Lifetime

Included in the Box

Cat6 Cable - Network cable

FAQs

What are the key features of the Black Box CAT6 Shielded Patch Cable?

The Black Box CAT6 Shielded Patch Cable features double shielding with four individually shielded twisted pairs, foam insulation, and foil tape with an overall tinned copper braid for EMI/RFI protection. It supports 250-MHz performance and Gigabit Ethernet speeds up to 1 Gbps. The cable includes 50-micron gold-plated contacts, 26 AWG conductors, and is designed for 750 cycles of insertion/extraction. It's constructed with bare copper conductors and features a CM-rated PVC jacket for reliable performance.

What type of shielding does this cable use and why is it important?

This cable uses double shielding (S/FTP) construction with four individually shielded twisted pairs, foil tape, and an overall tinned copper braid. This comprehensive shielding is crucial for protecting against electromagnetic interference (EMI) and radio frequency interference (RFI) that can corrupt data transmission. The shielding is particularly important in high-noise environments where electronic equipment, power cables, or wireless devices might interfere with network performance.

What are the connectivity specifications of this cable?

The cable features RJ-45 male connectors on both ends with gold-plated contacts for superior conductivity. It supports data transfer rates up to 1 Gigabit per second and meets CAT6 250-MHz performance standards. The connectors are designed for durability with a 750-cycle insertion and extraction life. The 26 AWG stranded construction ensures flexibility while maintaining reliable connectivity for network devices.

What certifications and standards does this cable meet?

The cable meets numerous industry standards including UL E164469-XX, TIA/EIA-568-B.2-1 CAT6, ISO/IEC 2nd Edition 11801 Class E, IEC 6-332-1-2, CENELEC EN 50173-1, and CENELEC EN 50288-5-2. It's also compliant with RoHS standards (2002/95/EC) and is environmentally friendly. These certifications ensure the cable meets strict performance and safety requirements for network installations.

What is the length and physical construction of this cable?

This is a 15-foot (4.57-meter) cable with a black PVC jacket rated for CM installation. It uses 26 AWG stranded bare copper conductors for flexibility and reliable performance. The cable features slim molded boots and is part of Black Box's SlimLine product series, making it ideal for high-density installations where space is at a premium.
