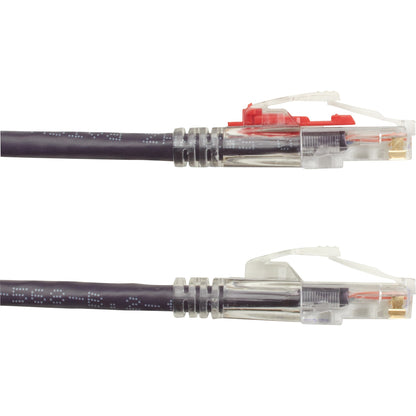

Close-up view of GigaTrue 3 Cat.6 cable's RJ-45 connector with gold-plated contacts and transparent housing

Gold-Plated RJ-45 Connectors Ensure Reliable Data Transfer

The GigaTrue 3 Cat.6 cable features precision-engineered RJ-45 connectors with 50-micron gold-plated contacts, delivering superior conductivity and signal integrity. These high-performance connectors are built to withstand 750 insertion/removal cycles, ensuring long-term reliability in demanding network environments. The transparent connector housing allows for visual verification of proper wire termination.

Technical Specifications

  • 50-micron gold-plated contacts for optimal conductivity
  • 750 cycle connector durability rating
  • Transparent connector housing for visual inspection

Applications

  • Data center patch panel connections
  • Network equipment rack cabling
  • Server room infrastructure
Detailed view of GigaTrue 3 cable strain relief system and snagless boot design

Enhanced Strain Relief Design Prevents Cable Damage

The cable's innovative strain relief system combines a hard-polymer LockPORT boot with integrated cable management features. This design distributes mechanical stress evenly across the connector-cable junction, preventing cable damage during installation and maintenance. The snagless boot design allows for easy insertion and removal in high-density environments while protecting the locking tab.

Technical Specifications

  • Integrated hard-polymer boot construction
  • Snagless tab protection design
  • Enhanced strain relief system

Applications

  • High-density patch panel installations
  • Under-floor cable routing
  • Overhead cable management systems
Side view of GigaTrue 3 cable showing LockPORT security feature and locking mechanism

Secure Locking Mechanism Prevents Unauthorized Access

The patented LockPORT system provides optional port security through a unique locking mechanism. This feature allows network administrators to physically secure critical connections while maintaining the ability to quickly disconnect when needed. The transparent housing design enables visual confirmation of proper locking pin engagement.

Technical Specifications

  • Patented LockPORT security system
  • Compatible with red and green security pins
  • Tool-less removal option for green pins

Applications

  • Government facility network security
  • Public access area protection
  • Critical infrastructure protection

Product details

General Information
Manufacturer

Black Box Corporation

Manufacturer Part Number

C6PC70-VT-07

Brand Name

Black Box

Product Line

GigaTrue 3

Product Name

GigaTrue 3 Cat.6 UTP Patch Network Cable

Product Type

Network Cable

Technical Information
Cable Type

Category 6

Cable Characteristic

Patch Cable

Cable Length

7 ft

Connector Type on First End

RJ-45 Network - Male

Connector on First End Details

1 x RJ-45 Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Contact Plating

Gold

Conductor

Copper

Shielding

No

Jacket Type

CM

Device Supported

Network Device
Wallplate
Patch Panel

American Wire Gauge

24 AWG

Data Transfer Rate

1 Gbit/s

Boot Type

Snagless

Features

Damage Resistant
Near End Cross Talk (NEXT)
Rugged
Stranded
Lockable
Booted
PoE

Physical Characteristics
Product Color

Purple

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous
Certifications & Standards

  • ANSI/TIA-568-C.2 Category 6
  • ISO/IEC 11801 Class E
  • UL
  • E196163-Y

Environmentally Friendly

Yes

Environmental Certification

RoHS

Country of Origin

China

Warranty
Limited Warranty

Lifetime

Included in the Box

  • icon_list|Main unit|Lift Ergo Mouse Main unit icon

    Network Cable - Main unit

FAQs

What are the key features of the Black Box GigaTrue 3 Cat.6 UTP Patch Cable?
The Black Box GigaTrue 3 Cat.6 UTP Patch Cable features premium performance with 550-MHz testing and 1-Gbps data transfer rate, exceeding standard Cat.6 specifications. It includes 50-micron gold-plated contacts, 24-AWG four-pair construction, and a patented LockPORT boot system for security. The cable is snagless, PoE-compatible, and features damage-resistant construction with a rugged hard-polymer boot. It's designed for 750 insertion/extraction cycles and includes NEXT (Near End Cross Talk) reduction technology.
What security options are available with this network cable?
This cable features a unique LockPORT security system with two locking options: Red Pin for preventing unauthorized access in mission-critical areas, requiring a removal tool to unlock, and Green Pin for preventing accidental disconnects in office or industrial settings, featuring butterfly tabs for tool-free removal. The built-in locking tab on the patented snagless boot accepts these locking pins (sold separately) to secure network ports in various environments like government offices, lobbies, and manufacturing facilities.
What are the technical specifications of the cable's connectivity?
The cable features RJ-45 Network Male connectors on both ends, with gold-plated contacts for superior conductivity. It's constructed with 24 AWG copper conductors and supports data transfer rates up to 1 Gbit/s. The cable is tested to 550-MHz performance, significantly exceeding the standard 250-MHz Cat.6 specification. It's compatible with network devices, wallplates, and patch panels, making it versatile for various networking applications.
What certifications and standards does this cable meet?
The Black Box GigaTrue 3 Cat.6 cable meets multiple industry standards including ANSI/TIA-568-C.2 Category 6 and ISO/IEC 11801 Class E specifications. It's UL certified (E196163-Y) and RoHS compliant, making it environmentally friendly. The cable exceeds ANSI/TIA industry standards for performance in bandwidth-intensive Gigabit Ethernet applications.
What is the physical construction of the cable?
This 7-foot purple cable features a robust four-pair 24-AWG construction with a Polyvinyl Chloride (PVC) jacket rated as CM type. It's unshielded (UTP) and includes a rugged, hard-polymer LockPORT boot integrated with the plug for enhanced durability. The cable is designed to be snagless and features stranded conductors, making it ideal for patch applications while maintaining flexibility and durability.
